4mm EVA onto picnic tap?

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

moreb33rplz

Well-Known Member
Joined
Mar 25, 2014
Messages
466
Reaction score
133
Anyone have an idea to make this tubing fit a picnic tap (i think is 1/4 barb)? I know I can just buy different tubing but I already have a roll of the 4mm. I tried warming the tubing and sliding it on but no joy.


Knightshade

Which way is up again??
HBT Supporter
Joined
Mar 31, 2020
Messages
249
Reaction score
186
You might try looking into one of their Pluto guns as those are built to accept duotight connectors?



Carolina_Matt

Well-Known Member
Joined
Jan 24, 2018
Messages
417
Reaction score
207
I wasn't able to find the connection when I looked into it. The best option I found was the DuoTight Draft Beer Gun, instead of the Picnic Tap.



Sammy86

Still thirsty
Lifetime Supporter
Joined
Jan 28, 2013
Messages
2,016
Reaction score
817
Anyone have an idea to make this tubing fit a picnic tap (i think is 1/4 barb)? I know I can just buy different tubing but I already have a roll of the 4mm. I tried warming the tubing and sliding it on but no joy.
It doesn't fit...i tried everything i could think of and that small tubing ain't getting around the picnic tap...sorry brew brother!


day_trippr

"We live in interesting times"
Joined
May 31, 2011
Messages
33,505
Reaction score
14,630
Location
Stow, MA
Maybe. Note the "with 1/4" Duotight compatible barb" in the description.

If that picnic tap has a legit 1/4" barb, that swaging tool or something similar along with a hot air gun or even a hair dryer will get 4mm ID over it...

Cheers!


marc1

Well-Known Member
Joined
Jun 19, 2010
Messages
272
Reaction score
90
Location
OH

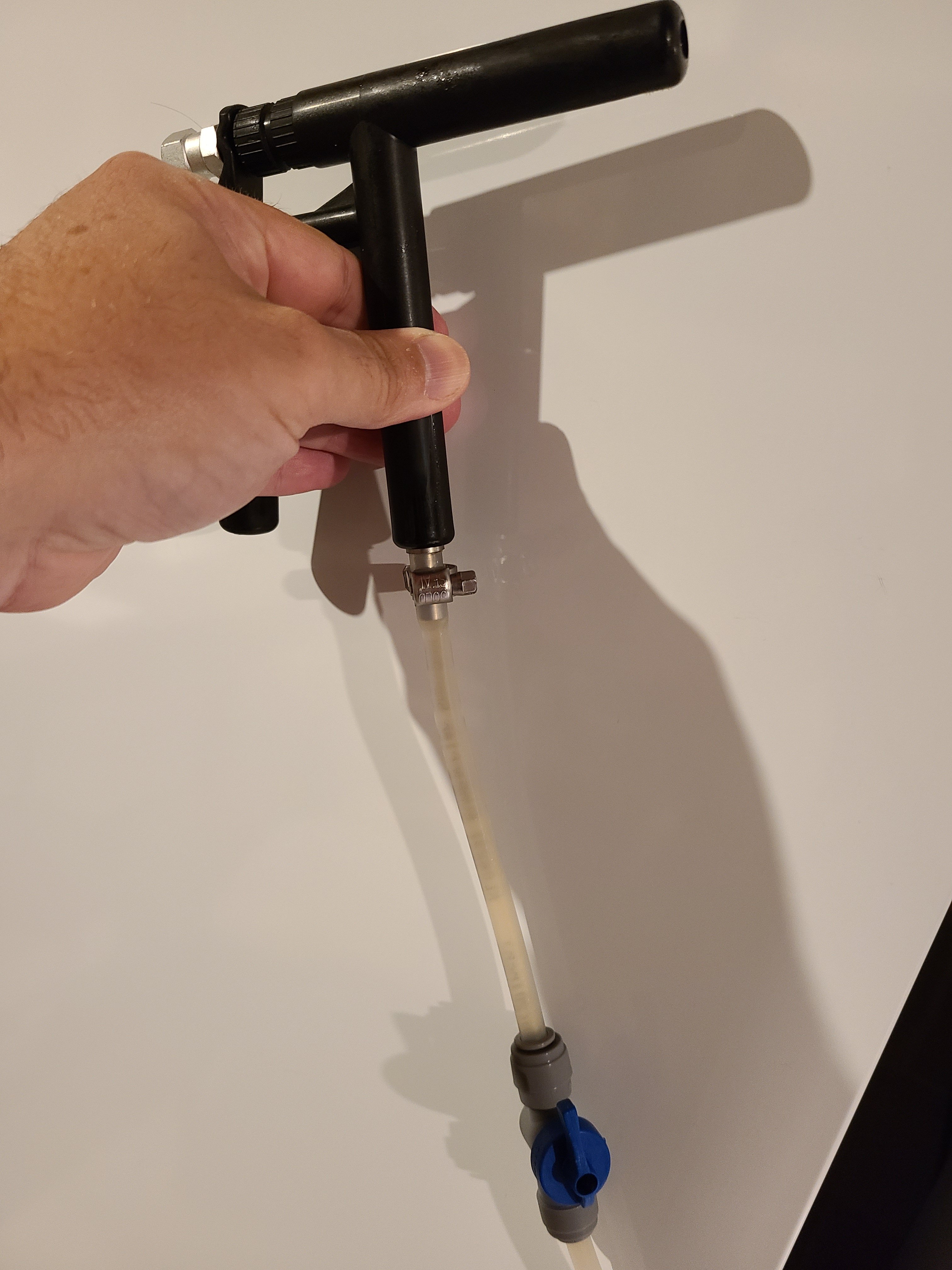

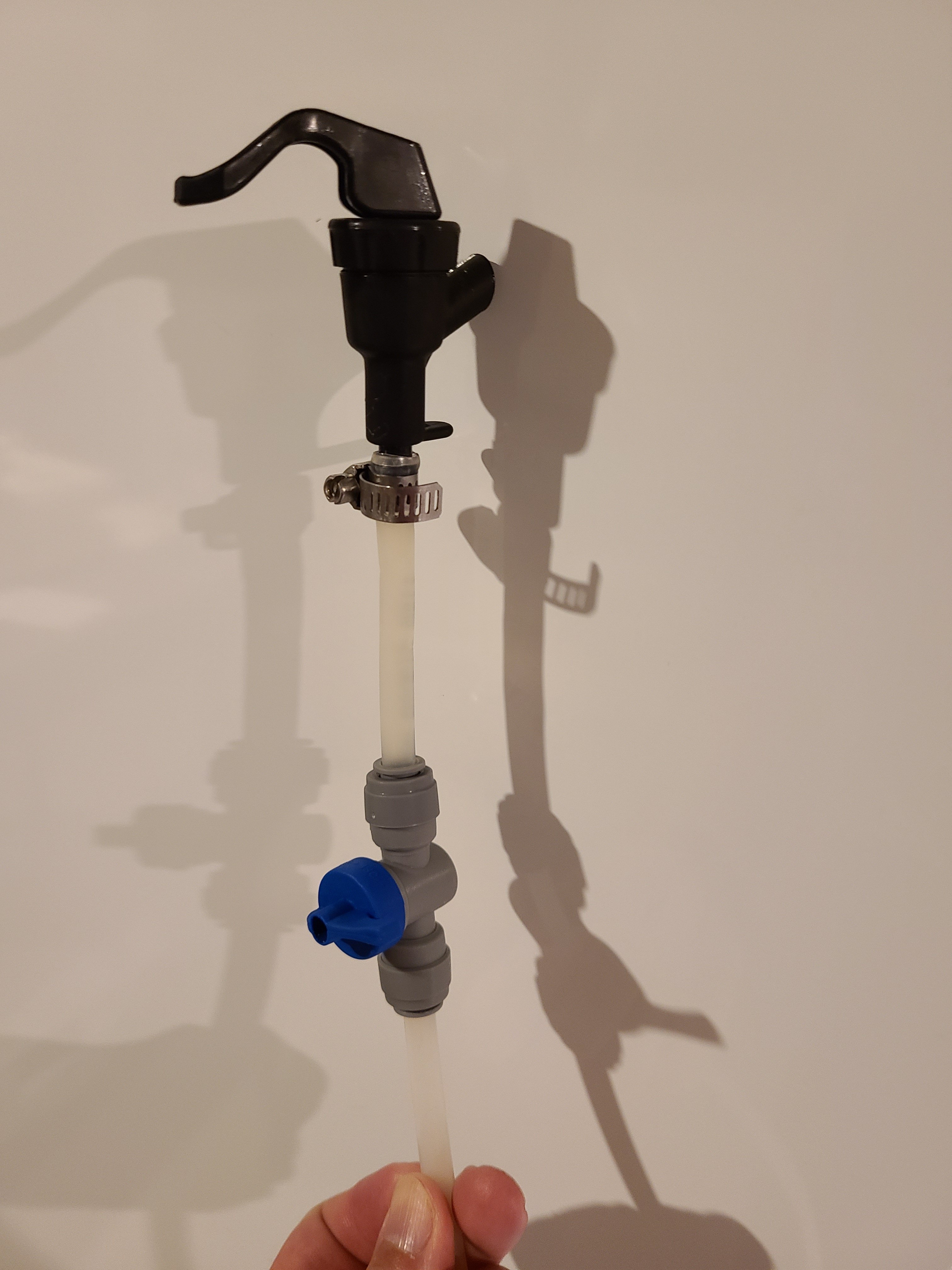

I used a short length of 5mm ID that I was able to get on the picnic tap with some very hot water and a nail set to stretch it out. I ran that into a valve and then ran my 4mm ID out the other side. The 4mm and 5mm ID have the same OD. Plus now I can shut off the tap so I won't have an accidental leak when I'm done pouring.


marc1

Well-Known Member
Joined
Jun 19, 2010
Messages
272
Reaction score
90
Location
OH
I also just got a Pluto gun to try out and I love it. Less drips when the pour is over and it hangs easily off the keg.
The 5mm ID went onto that much easier.


Bobby_M

Vendor and Brewer
HBT Sponsor
Joined
Aug 3, 2006
Messages
24,829
Reaction score
3,505
Location
Whitehouse Station
I can put 4mm EVA on a picnic faucet no problem and have done it 100 times. Swaging tool with keg lube on it. Dip the EVA into 150F water for 15 seconds and push the tool in. Replace the tool with the picnic barb. Oetiker clamp.


jcav

Still Believing In God, Family &This Great Country
Lifetime Supporter
Joined
Jul 15, 2010
Messages
3,143
Reaction score
860
Location
Central Florida
If anyone cares, the stainless steel Pluto gun accepts the Duo tight fitting and attaches right on the bottom of the gun. Just like when attaching to keg disconnects. I did this for my wife's ciders and there are no drips or leaks.

John


Knightshade

Which way is up again??
HBT Supporter
Joined
Mar 31, 2020
Messages
249
Reaction score
186
I think the last few posts have sold me on purchasing a Pluto gun. This is what I’ve got for my wife’s ciders and it always requires a little bit of cleanup if (when) she doesn’t tilt the tap to get that last bit out before hanging it back up.

Mainly because I’m a little more finicky about keeping the inside clean.



Smudgey

Member
Joined
Feb 6, 2020
Messages
20
Reaction score
7
I just fitted 4mm Eva onto an 8.2mm SS tap barb last night. The trick is incremental stretching in hot water. I eventually found using the blunt end of a newish set of twist drill bits works best for me - they usually have small chamfered ends and you probably already have a set handy. Start with the 5mm or equivalent, then pop the tube with the bit still in it in the water again briefly, remove the bit and IMMEDIATLY replace with 5.5 before it contracts, and continue until you have the 8.5mm bit in there. Should slip over the smaller barb without the barb end smunching the internal PET layer down the tube which is one of the problems. Also, try and stretch the whole length you intend to put on the barb as I had the tube perforate on this over and over when I tried to force the unstretched section on further too. These connections drove me mental until I used drill bits and I'd often cut off half a dozen failed attempts or split ends.
Push-fits are the way to go if you can though.
