Spike Flex Mini Fridge

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

Dlawrence529

Active Member
Joined
Jul 30, 2018
Messages
44
Reaction score
9
Has anyone found a mini fridge that works as a fermentation chamber with the Spike Flex or Flex+? It looks like the dimensions are a little large for most mini-fridges. I'd like to avoid a full size fridge or chest freezer.


Bubman

Well-Known Member
Joined
Sep 15, 2018
Messages
99
Reaction score
37
I have been looking at the flex also. I think it would be a tight fit for the flex in my Magic Chef 4.4 cu fridge only sitting on top of the compressor hump using a blowoff setup. Too tight for my liking.

A full size keggerator would be a better fit if space is a concern. The other option is the cooling coil set up for $300 but for that I would just pick up fridge on craigslist.

I would love to get a full size bottom freezer with french doors on the fridge but have no where to put one.


sicktght311

Well-Known Member
Joined
Oct 16, 2018
Messages
568
Reaction score
247
How much wider is it than the SS Brewbuckets? It looks fatter but shorter. I have SS brewbuckets inside two Haier BC112G fridges with a little stand built to accommodate the compressor hump at the bottom, and i still have a few inches on either side. If its not more than 2-3" wider than a brewbucket i dont think it would be a problem. Height is tight with the buckets, so the shorter Flex would work well.


Sam Gilchrist

Member
Joined
Apr 1, 2020
Messages
15
Reaction score
11
Location
Saskatoon
Hi guys.

New to this home brewing, but diving in head first. Working on a fermentation chamber using an old mini fridge and clearly want it to accommodate my Flex+. By measurements I will need an 8” collar as the darn compressor hump is too tall for the flex.

Anybody done an 8” collar before?


Attachments

cubalz

Beer Whore
Joined
Dec 30, 2013
Messages
916
Reaction score
380
Location
Magnolia, DE
I have never heard of putting a collar on a mini fridge door like a keezer. I am not sure how you would go about doing that in a way you will be happy with, fit well from an engineering standpoint and will not leak cool air. Best of luck my man! Love to see pics when you are done.


Sam Gilchrist

Member
Joined
Apr 1, 2020
Messages
15
Reaction score
11
Location
Saskatoon
I have never heard of putting a collar on a mini fridge door like a keezer...
Yeah, it's definitely not something that I've seen a lot of, but there are some videos and pics online. 8" just seems really darn big. I have my cabinet-making neighbour checking it out tonight to fabricate something that is elegant looking for this and my keezer. Then I'll insulate the snot out of both of them to hold temp and not leak. I'll post pics for certain when I get something I'm happy with.


Sam Gilchrist

Member
Joined
Apr 1, 2020
Messages
15
Reaction score
11
Location
Saskatoon

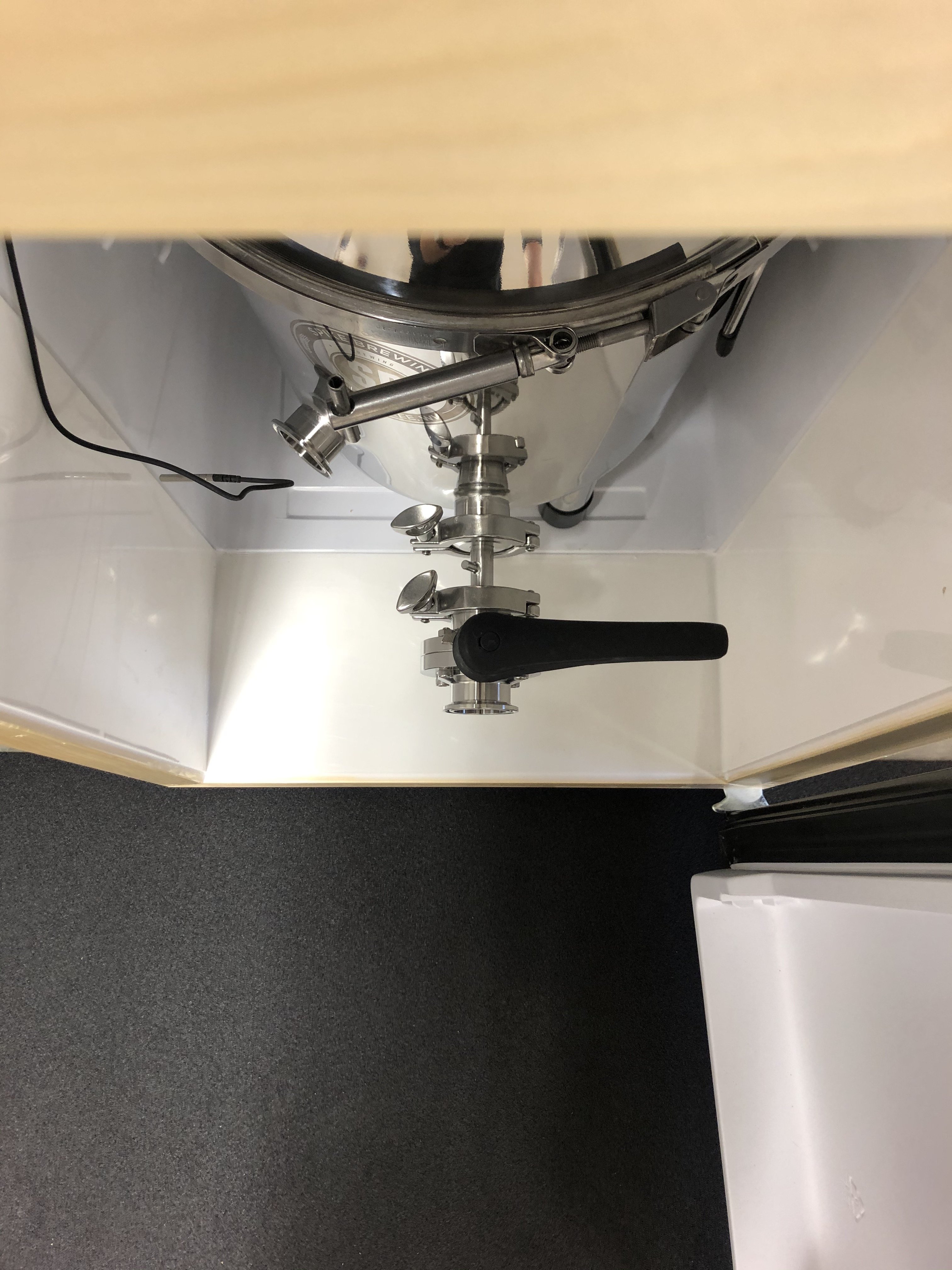

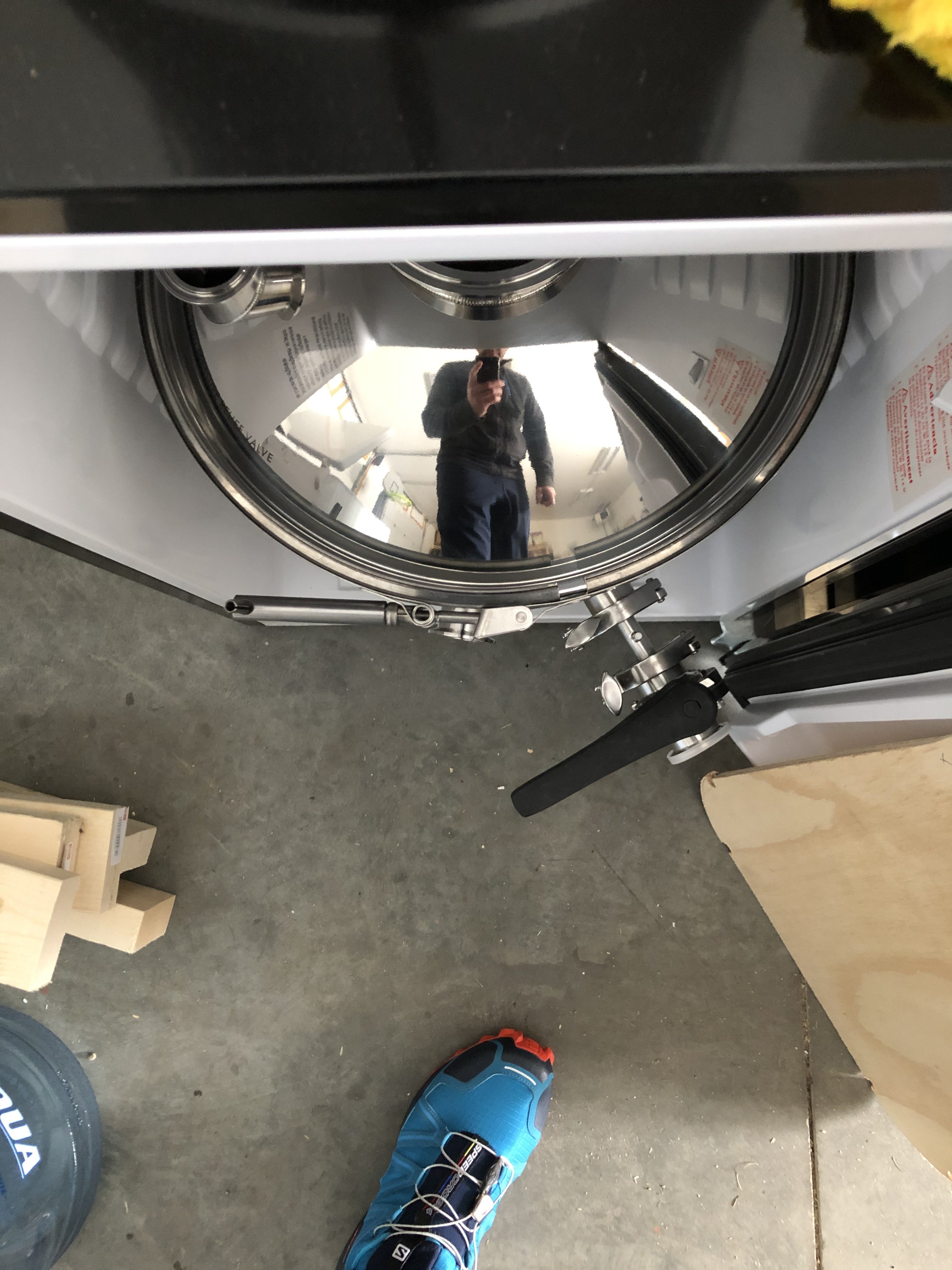

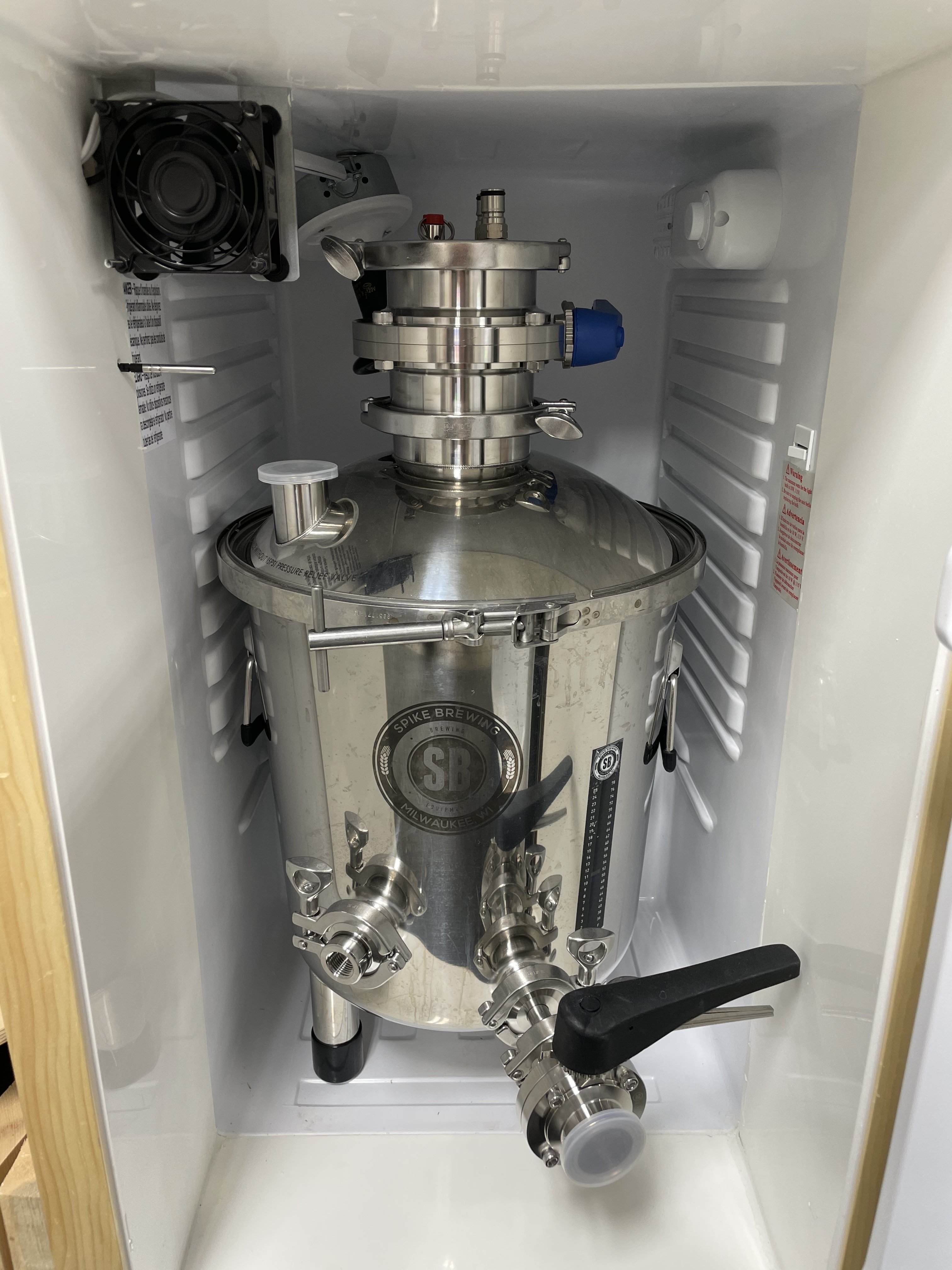

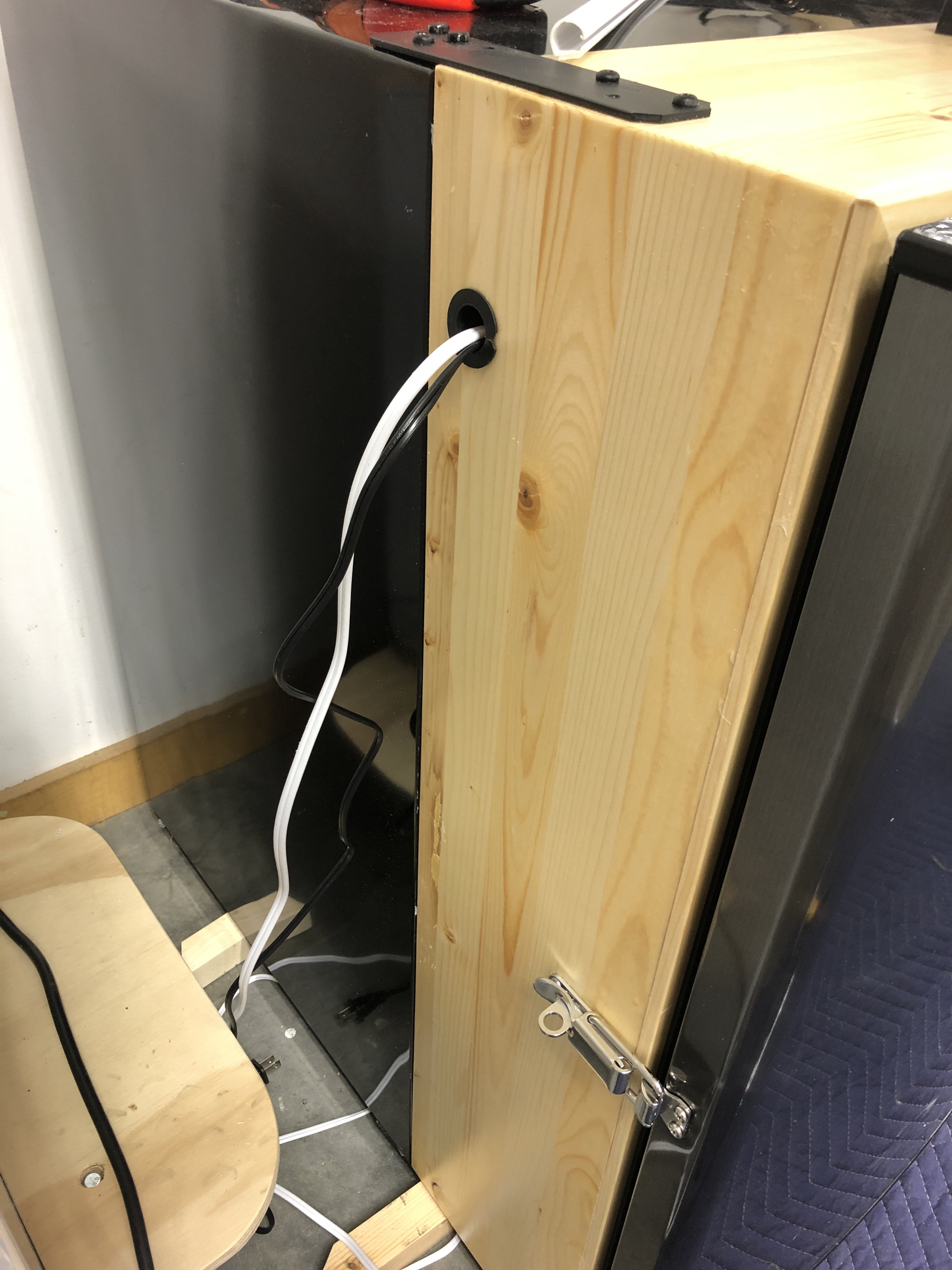

Well, I did get around to putting a collar on my mini-fridge to serve as a fermenting chamber in which I can also cold crash... And it worked like a charm! Holds temperature exceptionally well, even down to 2-degrees Celsius. The composition is 5/8" dimensional spruce, a 1/2" layer of purple hard insulation (do not recall the R-value), and 1/4" puckboard with caulked seamlines to clean it up and look proper. I mounted a ceramic heating bulb in the back upper left, and a PC fan mounted to the collar using L-brackets sandwiched between the wood and insulation. The only thing I am missing is the ability to force-carbonate, as the front-to-back space won't allow my carb stone to fit. But I built a platform in my keezer to perform that task. Here are a couple WIP photos as well as the final look inside holding my Spike Flex+, which is currently fermenting out a citra-IPA.


Attachments

ChiknNutz

Supporting Member
HBT Supporter
Joined
May 3, 2020
Messages
356
Reaction score
182
Location
Advance, NC
I just built something similar. Have yet to use it but might do a brew today to put it to use :)



NewJersey

Supporting Member
HBT Supporter
Joined
Oct 22, 2012
Messages
1,310
Reaction score
560
Location
Boonton
I just built something similar. Have yet to use it but might do a brew today to put it to use :)

Different approach, but also very nice!


Sam Gilchrist

Member
Joined
Apr 1, 2020
Messages
15
Reaction score
11
Location
Saskatoon
Just got this recently. Got sick of lifting it into/out of the chest freezer.
looks tiny in there. But moving that thing when heavy sucks!

I noticed the T fitting on top of your Flex+. Have you seen the new multi port lid Spike just released?


NewJersey

Supporting Member
HBT Supporter
Joined
Oct 22, 2012
Messages
1,310
Reaction score
560
Location
Boonton
looks tiny in there. But moving that thing when heavy sucks!

I noticed the T fitting on top of your Flex+. Have you seen the new multi port lid Spike just released?
I saw the lid and I like it. I'm not.gonna buy one for this flex as I just don't need it, but I will use it on a CF5 whenever I buy one.


Sam Gilchrist

Member
Joined
Apr 1, 2020
Messages
15
Reaction score
11
Location
Saskatoon
Made a small attachment for my Flex+...

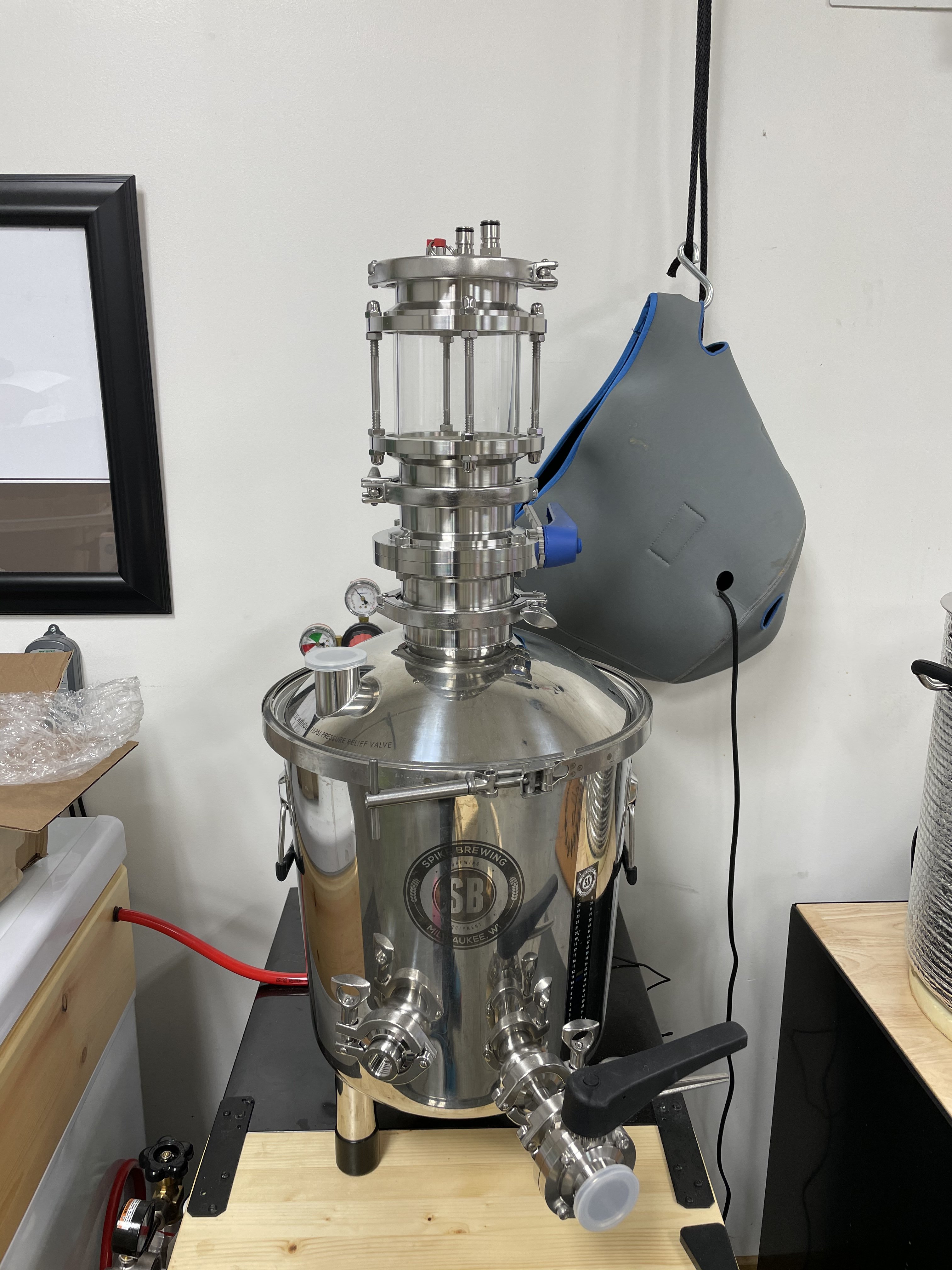

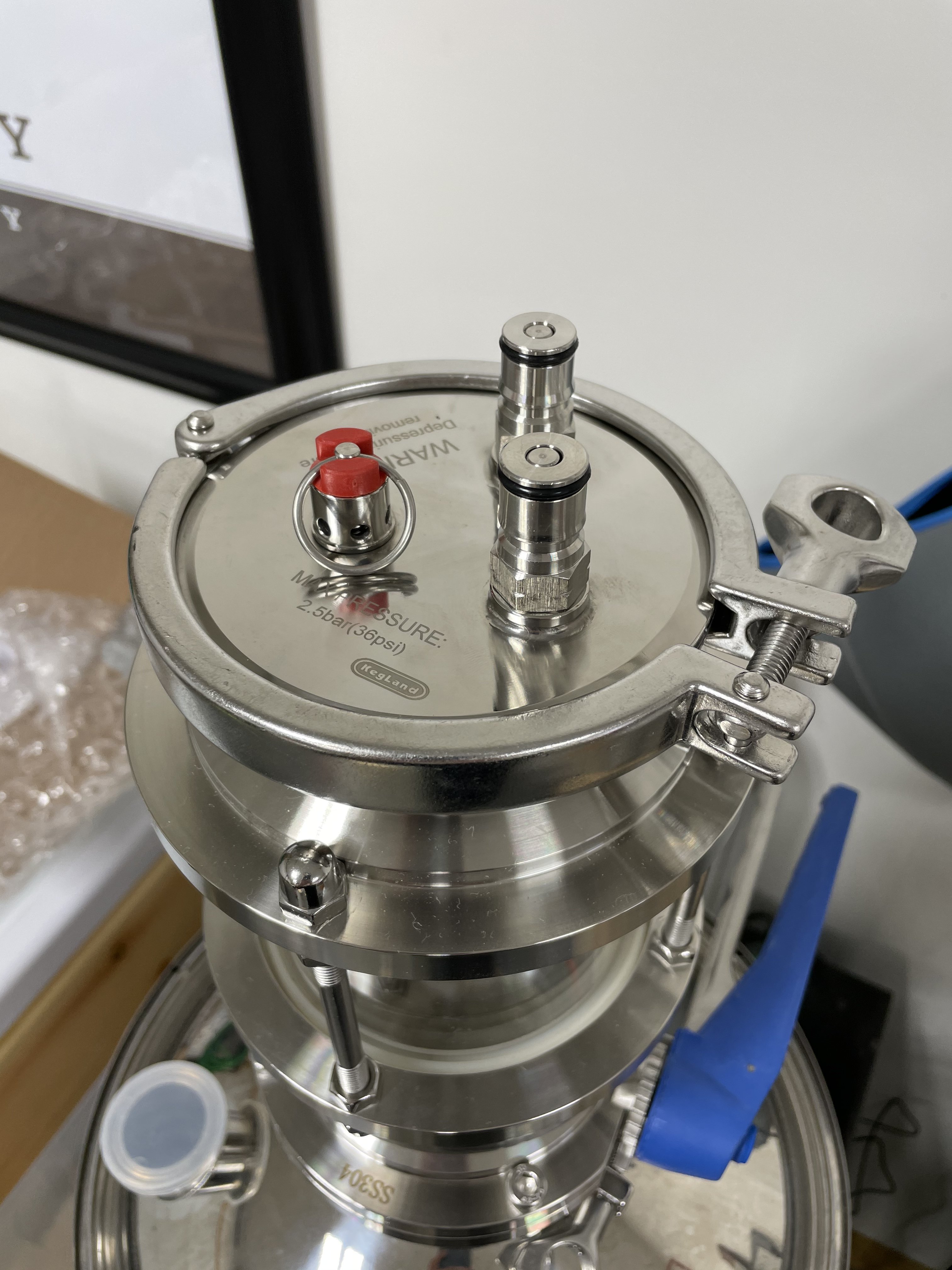

I became a bit concerned with introducing oxygen when adding additions after fermentation stops. Particularly for NEIPA’s which are very susceptible to oxidation. So I built a dispenser that can be purged with CO2 and the additions added without fear of introducing oxygen. I added 1.5lbs of toasted coconut to my porter, and it worked like a dream.

the butterfly is also sufficiently deep that I can add hops without the sight glass, and do it all from the fermenting fridge.


Attachments
