I haven't found much in writing either, but heard a few things on Brulosophy podcasts that I've incorporated that seem to work. Here is pretty much everything I know about kegging:

1) After cleaning, and also checking all of the connections, fill the keg with sanitizing solution, seal it and leave it for a few minutes, including a few minutes upside-down.
2) Connect CO2, and run the liquid line into a fermentor or something else that wants to be sanitized (so's not to waste the solution).
3) Turn on the CO2, and blow out the sanitizer until gas instead of liquid comes out of the liquid line. You can use low pressure if you want to go light on your CO2 usage and don't mind it taking a while.
4) Remove the liquid line and let the CO2 pressure build a little bit in the keg.

This leaves you with a sanitized, oxygen-free keg. When I have a batch ready to keg, I'll connect the outlet of the fermentor to the liquid in on the keg, and run a line from the keg's CO2 connection to the top of the fermentor. Then, let the CO2 pressure in the keg push the beer down the liquid line into the keg. This allows for an oxygen-free transfer.

Sorry if this is too far OT... I was actually reading this thread because I'm getting ready to build a new kegerator...
Any info helps so thank you very much!


Genuine

Well-Known Member
Joined
Nov 19, 2011
Messages
966
Reaction score
501
Location
Putnam
Also as a tip, if you have a spray bottle of soapy water, you can use that to find leaking co2 fittings (ask me how I know). I went through 2 5lb bottles last weekend before finding my insanely slow leaks.


Yesfan

Well-Known Member
Lifetime Supporter
Joined
Aug 2, 2012
Messages
2,173
Reaction score
440
Location
Cleveland
Another thing....

Those stainless tea ball infusers are great at keeping all the small parts of your taps and disconnects together when you're cleaning. I usually hang mine inside my small 2 gallon kettle of PBW/BLC that I use when I'm recirculating cleaner/sanitizer through the beer lines.


seanjwalker1

Dunkel Vater
Joined
Sep 30, 2015
Messages
737
Reaction score
1,514
Also as a tip, if you have a spray bottle of soapy water, you can use that to find leaking co2 fittings (ask me how I know). I went through 2 5lb bottles last weekend before finding my insanely slow leaks.
Thanks! Read that somewhere


seanjwalker1

Dunkel Vater
Joined
Sep 30, 2015
Messages
737
Reaction score
1,514
Another thing....

Those stainless tea ball infusers are great at keeping all the small parts of your taps and disconnects together when you're cleaning. I usually hang mine inside my small 2 gallon kettle of PBW/BLC that I use when I'm recirculating cleaner/sanitizer through the beer lines.
Got a regular size one and a giant size one. Thanks.


Tobor_8thMan

Well-Known Member
Lifetime Supporter
Joined
Feb 15, 2013
Messages
2,392
Reaction score
1,234
Location
Go 97 miles and take a right...
I saw that. It's just a magazine. I read a few reviews that said save your money. I still may get it though. Have it on WATCH at EBay. Thanks!
What exactly is being sought in regards to kegging? Kegging isn't an overly complex item. Clean parts, replace the gaskets when needed, replace the relief valve when needed, sanitize, fill and pressurize to the desired levels of CO2 depending on what's desired and the temp of the liquid.


seanjwalker1

Dunkel Vater
Joined
Sep 30, 2015
Messages
737
Reaction score
1,514
What exactly is being sought in regards to kegging? Kegging isn't an overly complex item. Clean parts, replace the gaskets when needed, replace the relief valve when needed, sanitize, fill and pressurize to the desired levels of CO2 depending on what's desired and the temp of the liquid.
Taking all the parts off, putting them back on in the correct place. I'm a retired nurse not a mechanic or engineer. Can you properly use an IV machine? Collect all the necessary items to collect and hang and administer blood? Calculate correct dosage of a given med based on wt and age category? Chances are, if you never studied to be a Dr, EMT or nurse you can't..not without having reference books. And that's all I'm saying. Nice to have a reference if you've never done something.


Tobor_8thMan

Well-Known Member
Lifetime Supporter
Joined
Feb 15, 2013
Messages
2,392
Reaction score
1,234
Location
Go 97 miles and take a right...
Taking all the parts off, putting them back on in the correct place. I'm a retired nurse not a mechanic or engineer. Can you properly use an IV machine? Collect all the necessary items to collect and hang and administer blood? Calculate correct dosage of a given med based on wt and age category? Chances are, if you never studied to be a Dr, EMT or nurse you can't..not without having reference books. And that's all I'm saying. Nice to have a reference if you've never done something.
IMO you are over thinking things. Kegging isn't medical or rocket science. One doesn't need mechanic or engineer skills to keg our brew. Do it once and you'll know how to do it. Really not much different than changing a light bulb.


seanjwalker1

Dunkel Vater
Joined
Sep 30, 2015
Messages
737
Reaction score
1,514
IMO you are over thinking things. Kegging isn't medical or rocket science. One doesn't need mechanic or engineer skills to keg our brew. Do it once and you'll know how to do it. Really not much different than changing a light bulb.
Been brewing more 15 years. Just never kegged.


GreenEnvy22

Well-Known Member
Joined
Sep 17, 2015
Messages
104
Reaction score
60
Don't have a good current photo. Firs tone is fairly recent but you can only see part of it. I was racking wine at the time, taking a photo of that.
Second one is what it looked like when I was first setting it up, with only 1 tap and no temp controller yet.

It's not pretty, but it keeps the beer cold :)
No space in the house for this, so it's in the garage.

20191002_210809 (1).jpg


Yesfan

Well-Known Member
Lifetime Supporter
Joined
Aug 2, 2012
Messages
2,173
Reaction score
440
Location
Cleveland
Lol absolutely right. My apologies to the Show us your Kegerator powers that be! [emoji108]

No problem. Just post up some pics when you're done. ;)

I regularly go back and scroll through to look at all the setups. One can get some great ideas on what direction to go or if they are wanting to redo their setup for whatever reason due to what they saw here.


seanjwalker1

Dunkel Vater
Joined
Sep 30, 2015
Messages
737
Reaction score
1,514
No problem. Just post up some pics when you're done. ;)

I regularly go back and scroll through to look at all the setups. One can get some great ideas on what direction to go or if they are wanting to redo their setup for whatever reason due to what they saw here.
I will. PBW, tap cleaners and brushes, keg float tubes came today, ball lock sockets coming tomorrow. Should be able to start putting it all together!


airbornespoon

Member
Joined
Jan 21, 2020
Messages
8
Reaction score
17

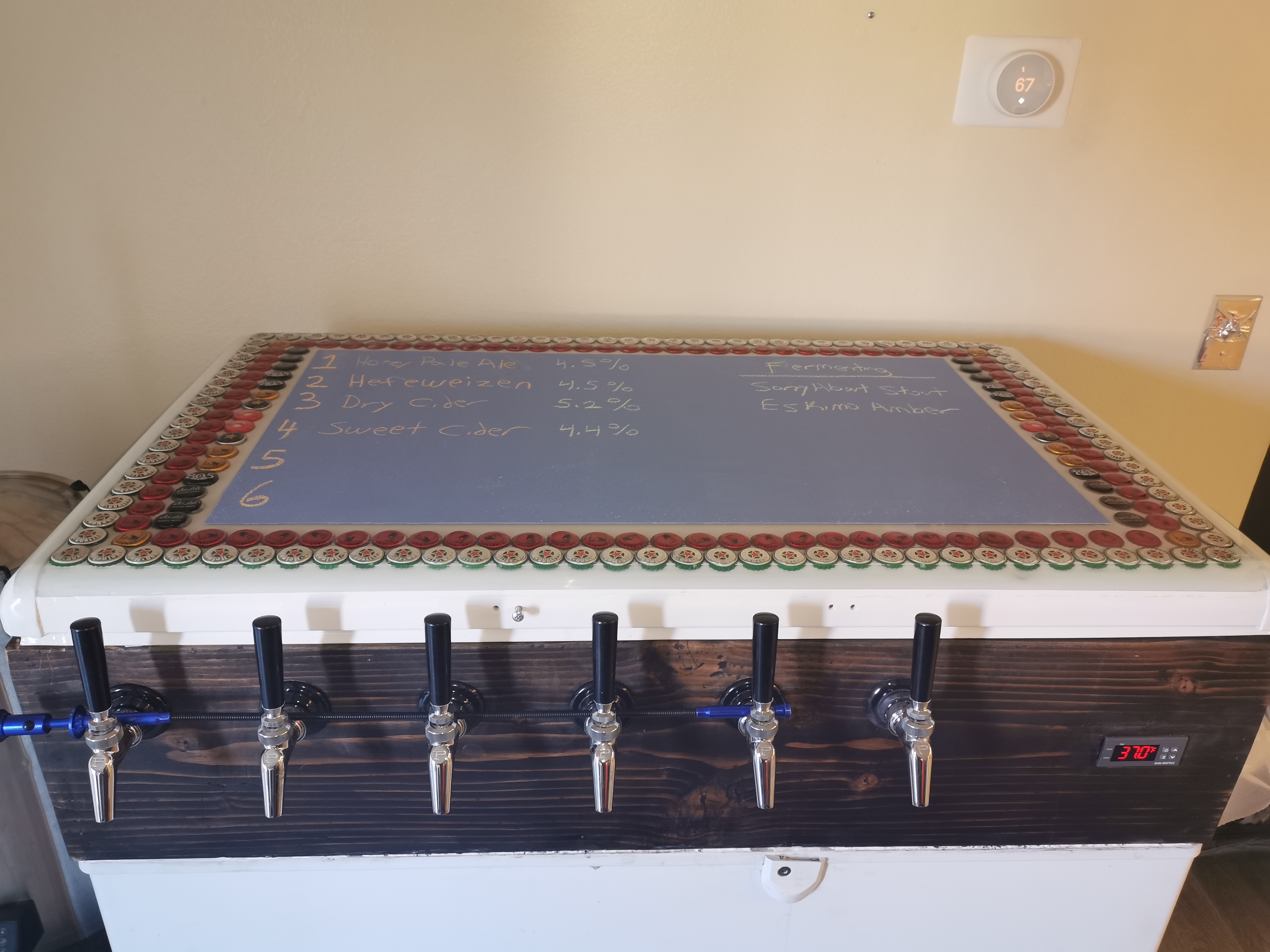

Finally finished building mine so here ya go.

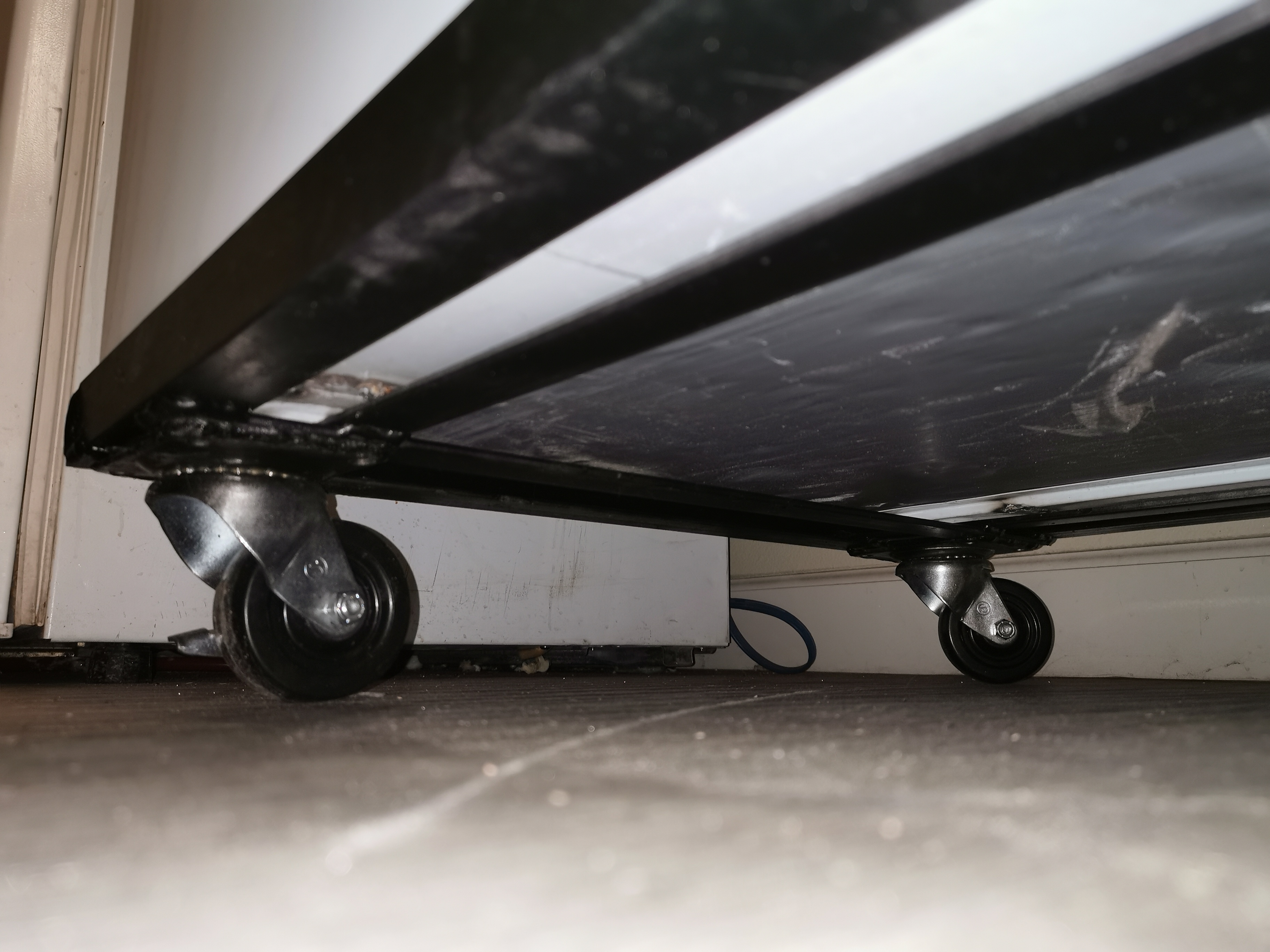

It's a Hotpoint 9.4 freezer. I did epoxy over the top of the bottle caps and chalkboard paint in the middle. Easily holds 6 kegs and a 20# CO2. I have a second regulator in there, that is for my force carbing all the rest run off the other one. I custom made and welded the frame and casters so it is easily moved around for whatever reason.



seanjwalker1

Dunkel Vater
Joined
Sep 30, 2015
Messages
737
Reaction score
1,514

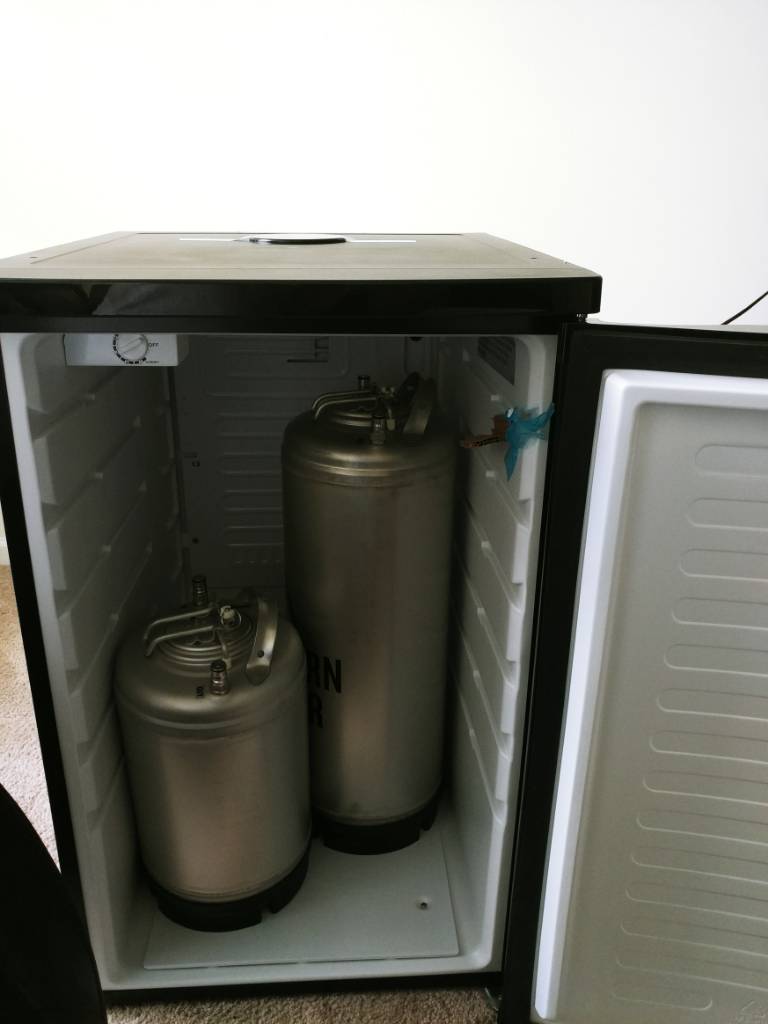

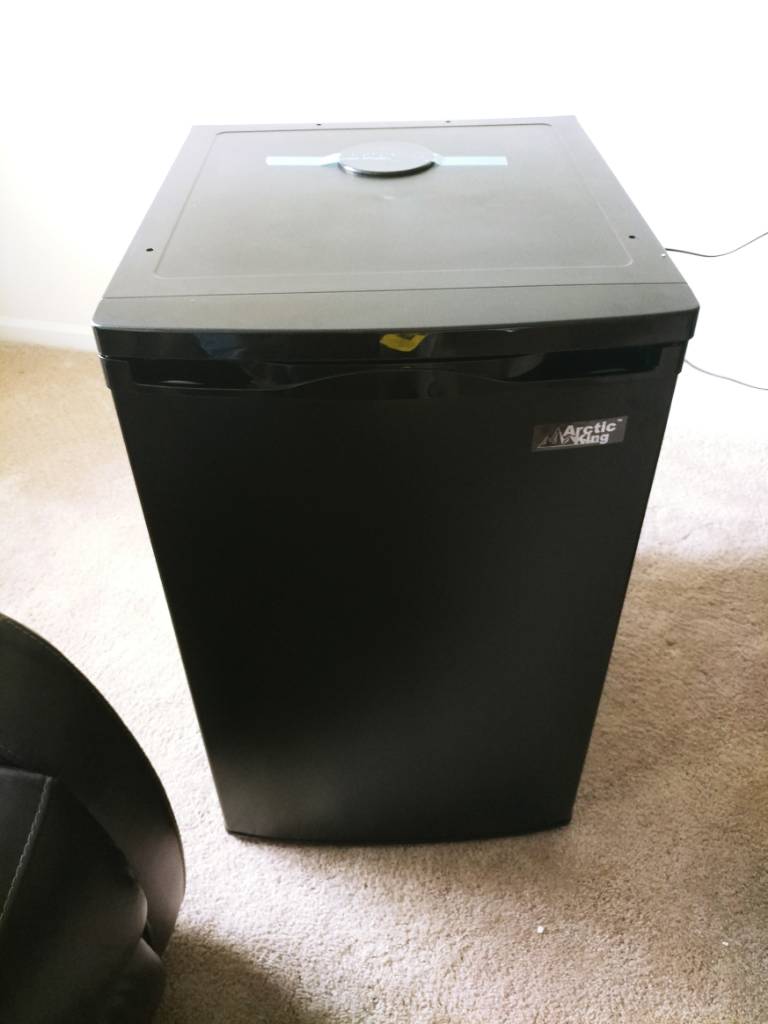

Finally unboxed the Arctic King kegerator. Fits a 3 and 5 gal keg no problem and my 7 gal stainless fermenter for lagering. This is just the beginning! Gonna lager a batch of helles before I connect 2 tap tower and lines and everything else! Hip hip hooray!! Thank you Mrs wifey Claus!!


Dr_Jeff

Well-Known Member
Joined
Dec 13, 2011
Messages
563
Reaction score
130
Location
Henagar
Is there a specific program you're using on your iPad for the tap list? I have an old iPad mini, either first or second generation that is on it's last legs.
Raspberry Pints runs on an old laptop that serves as a server for it.


Dr_Jeff

Well-Known Member
Joined
Dec 13, 2011
Messages
563
Reaction score
130
Location
Henagar
Are you saying there are literally bugs in your sour? I don't know much about them but my brother is really into them, and I just recently started looking at recipe's. JW if that is literal or something different, and if that's normally the case or in yours since you're using barrels =)

Microbes, aka bugs.

I've bought numerous types over the years and added dregs from commercial sours that I liked.


gnef

Well-Known Member
Joined
Sep 5, 2005
Messages
1,420
Reaction score
209
I like the tap handles! Where did you get them, or did you get them custom machined?


gnef

Well-Known Member
Joined
Sep 5, 2005
Messages
1,420
Reaction score
209
I make them. Solid Stainless Steel. Message me if interested.
You did a great job! I made simpler tap handles already using 3/4" 303 stainless hex stock, so I'm set. I appreciate it though!


jseyfert3

Well-Known Member
Joined
Apr 6, 2020
Messages
206
Reaction score
77
Location
South-Central Wisconsin

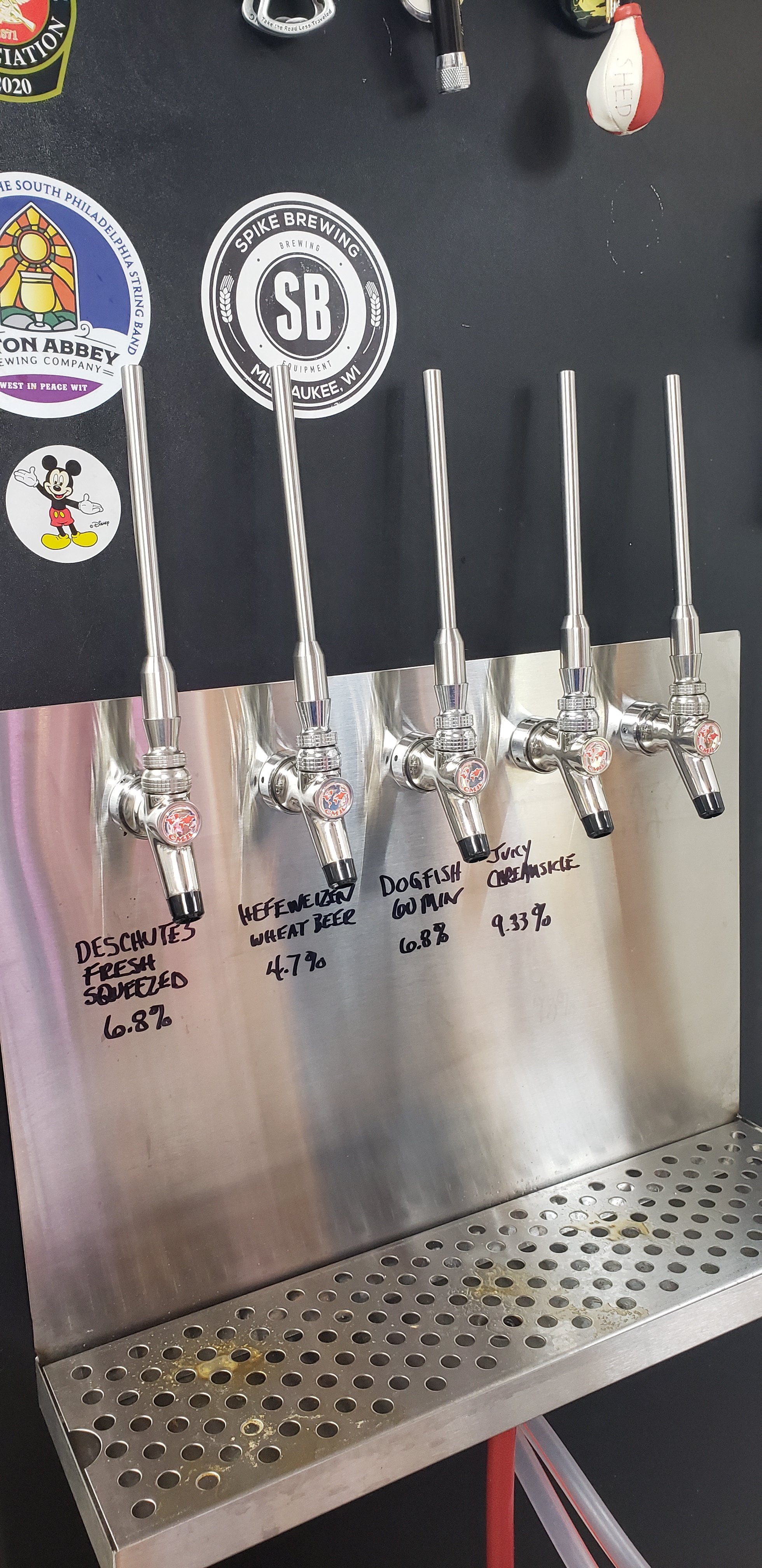

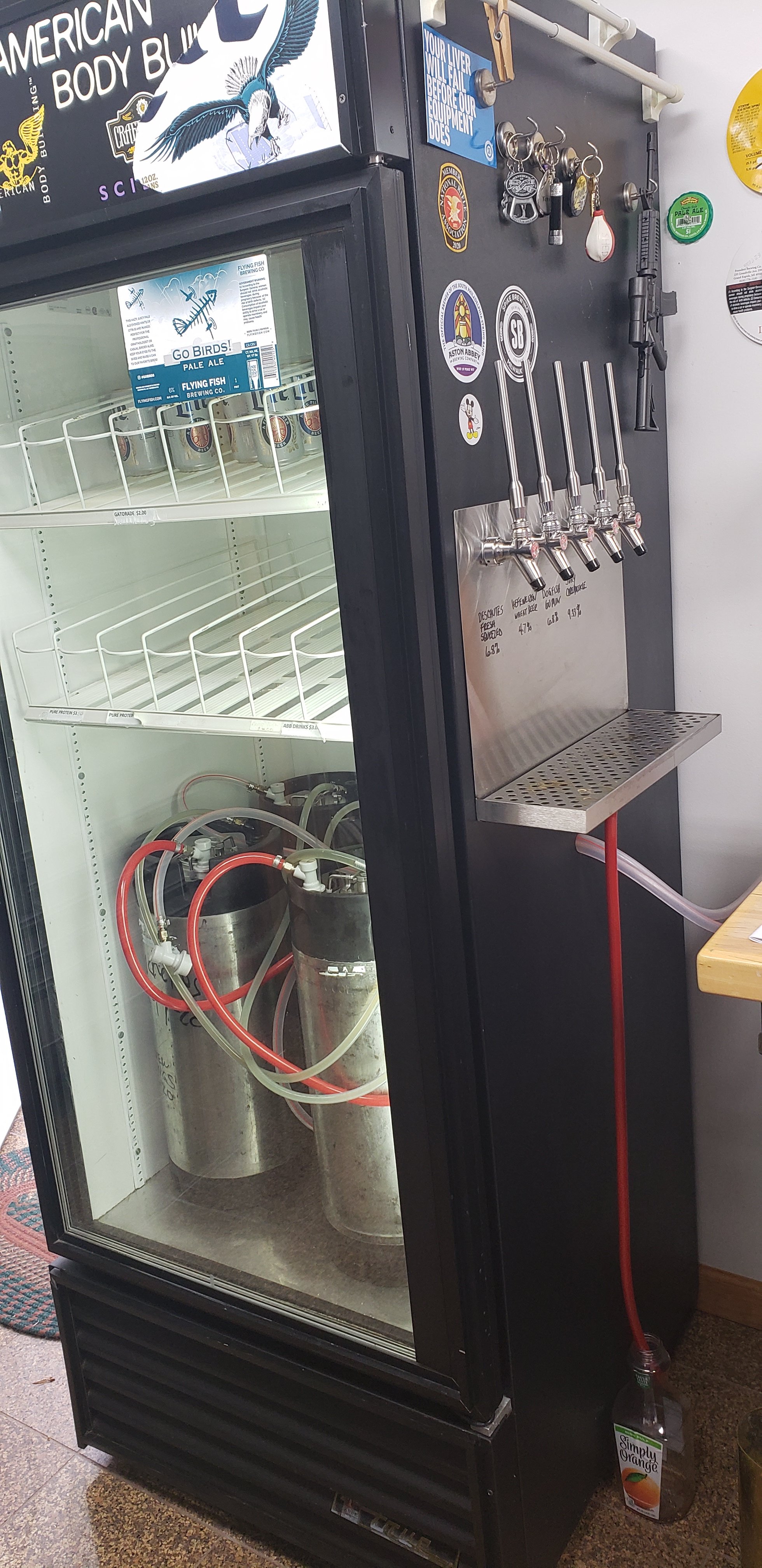

Good gawd! That is some serious selection. Very impressive.
Glad to see you chained your CO2, but a 5 pounder? How often do you need to replace? Ever consider a 20?
I could be wrong, but that looks like a 20 pounder to me. I had a steel 20 lb CO2 tank for some planted aquariums for a few years and that appears to be the same size.


CantWinThisGame

Brewster
Joined
Mar 31, 2020
Messages
58
Reaction score
54
Location
Green Bay, WI

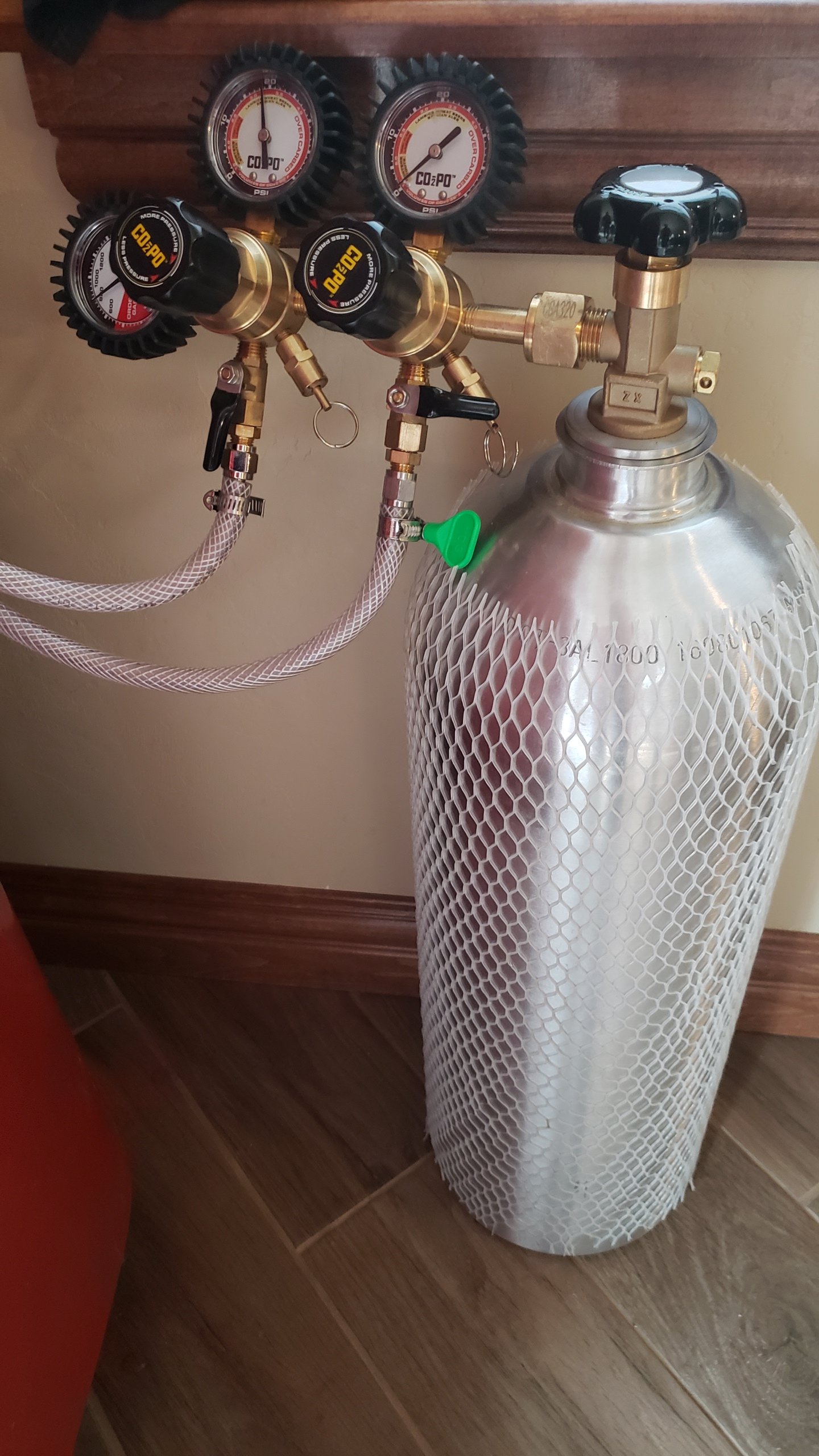

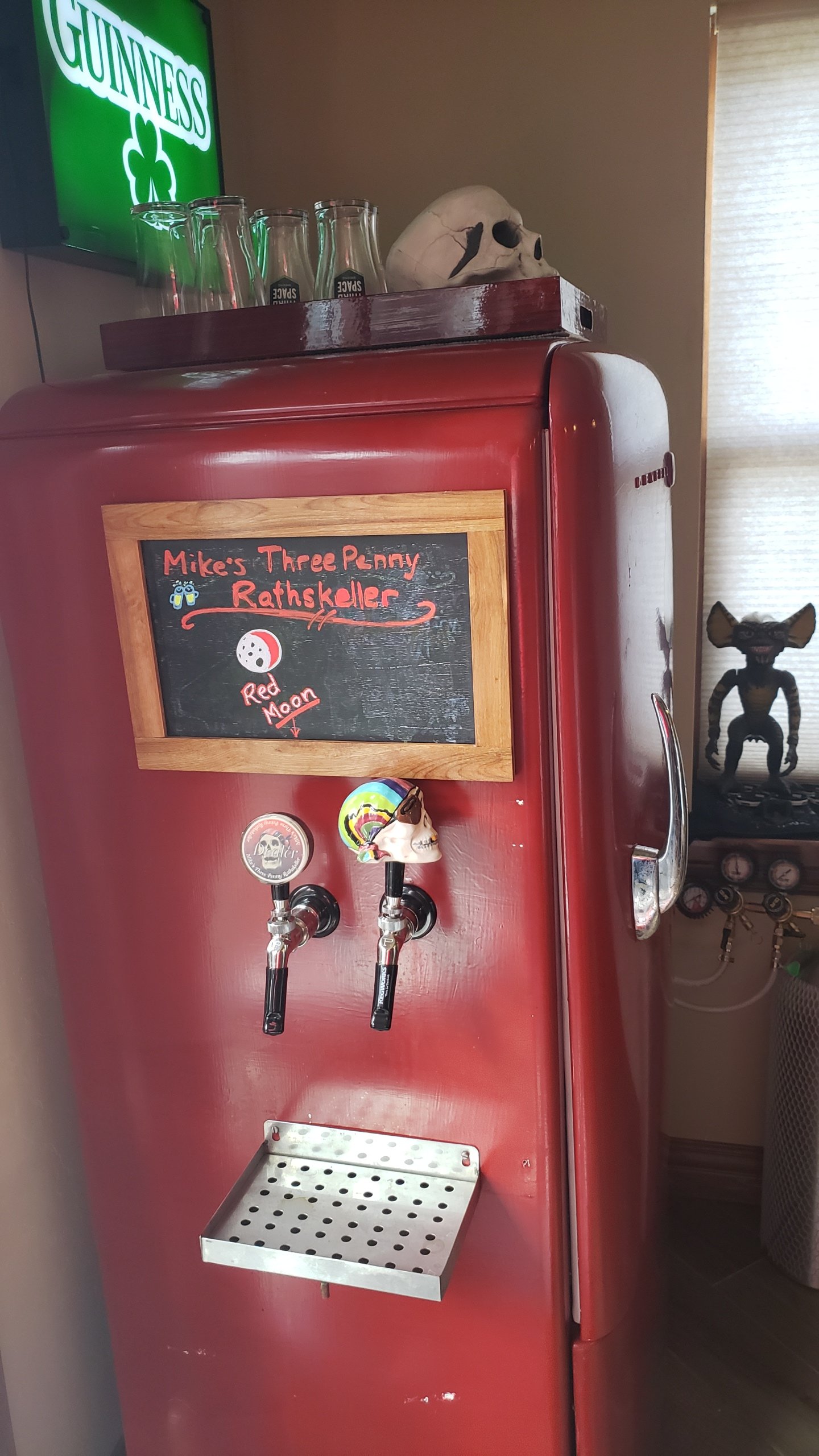

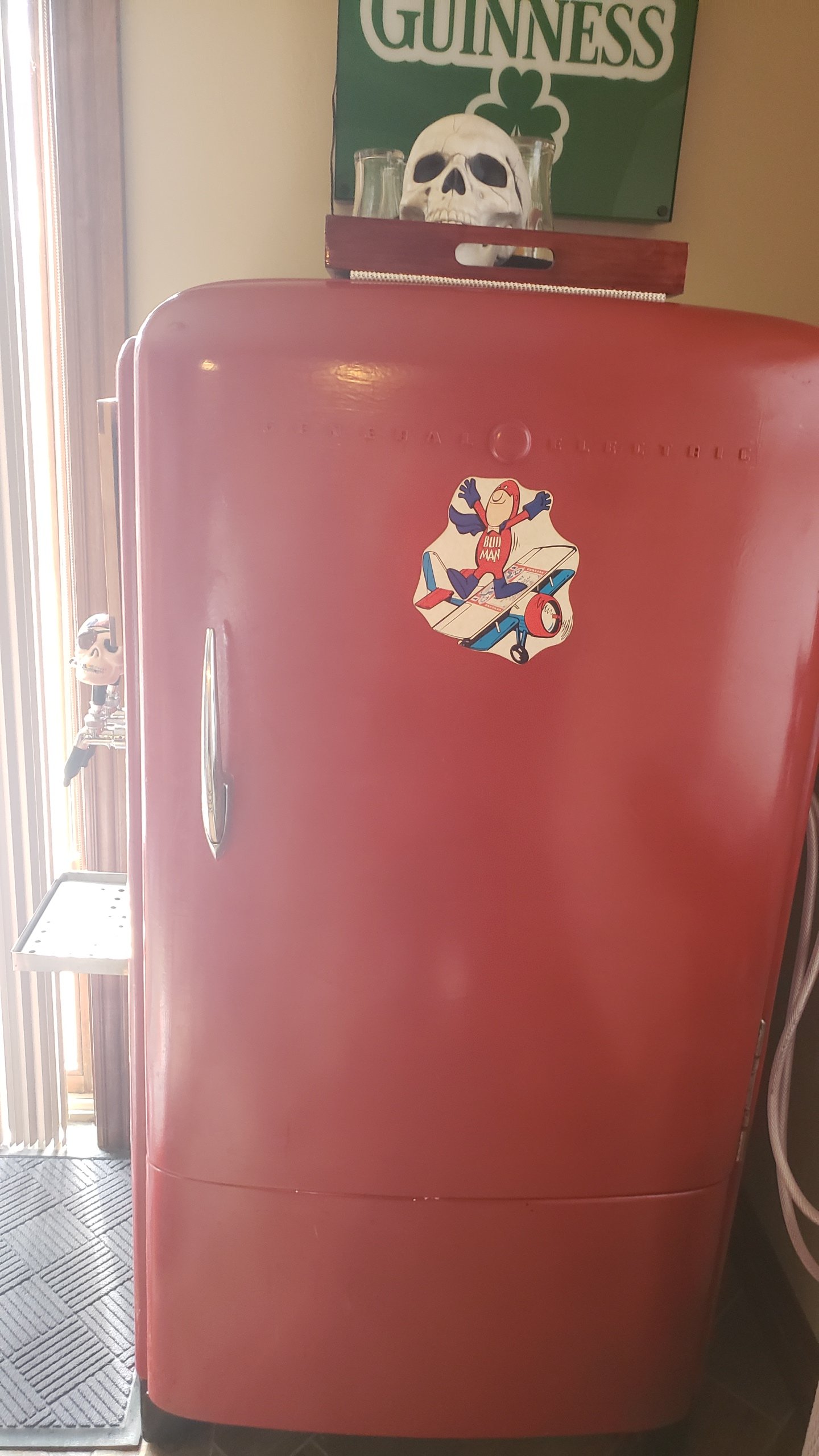

This is my 60 year old kegerator. Runs like a freakin champ! Picked it up for $100 from Craigslist. Was kind of a challenge getting down the stairs, but well worth the effort! There was one tap in it and I added the second. Tapper handles and chalkboard made by me. The gremlin is there to protect it from beer thieves!
