My mostly automated brucontrol setup

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

Tartan1

Well-Known Member
Lifetime Supporter
Joined
Dec 26, 2015
Messages
180
Reaction score
67
Location
GTA
Buying one of those was probably the best purchases I've made in my brewing journey. I've never used anything easier, faster, more accurate. Plus it doesn't waste a ton of liquid per sample.
How often would these meters need to be calibrated, and is it with a test buffer? Another nice feature is the multi units one can measure with it.

Last edited:

helterscelter

Well-Known Member
Lifetime Supporter
Joined
Jun 12, 2014
Messages
579
Reaction score
191
How often would these meters need to be calibrated, and is it with a test buffer? Another nice feature is the multi units one can measure with it.
I am unsure how often they must be calibrated. I calibrate every once in a while when I remember that it's been a while. I've yet to see it read incorrectly.

To calibrate you just put distilled water through it and tell the app to calibrate.

I love that it can measure starting gravity, and final gravity.


cyberbackpacker

Well-Known Member
Joined
Jul 25, 2008
Messages
2,038
Reaction score
326
Location
Holland, MI
I use it's big brother, and it is by far my favorite piece of brewing/distilling equipment!

Have fun with it!


hedge_87

Well-Known Member
Joined
Dec 19, 2011
Messages
114
Reaction score
23
Location
mayfield
Sweet! Did you add your grain before you started? I don't remember seeing you having a "grain adder".


hedge_87

Well-Known Member
Joined
Dec 19, 2011
Messages
114
Reaction score
23
Location
mayfield
That is awesome. Your my Brew hero lol. So is your strike water via your rims setup? How do you handle dough balls?


hedge_87

Well-Known Member
Joined
Dec 19, 2011
Messages
114
Reaction score
23
Location
mayfield
Man I'd just be happy with a start timer to heat my strike water in the morning so I can walk out. Dough in. Go eat breakfast lol. Your build is really impressive and I just want to say thanks for all the videos showing how you script everything. Hopefully I can get some time this weekend to start piecing my control together. (I am currently in a house remodel project and my wife would probably kill me if I didn't make any progress on it this weekend)


HopRodGarage

Well-Known Member
Joined
Apr 26, 2016
Messages
46
Reaction score
15
Location
Vinterbro, Norway
The new "LED displays" - are you using fonts that looks like LED? They look very good and I've been searching for something like this for a while. So if you can share where you got em - I'll be a happy camper :)


crane

Well-Known Member
Lifetime Supporter
Joined
Sep 20, 2011
Messages
1,105
Reaction score
325
Location
San Diego
The new "LED displays" - are you using fonts that looks like LED? They look very good and I've been searching for something like this for a while. So if you can share where you got em - I'll be a happy camper :)
The technical term for those displays are "7 segment" displays.

OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636
Playing around with different layouts and I rendered my transmitters for display.. they turned out pretty well.

Panel



Render and layout.



OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636

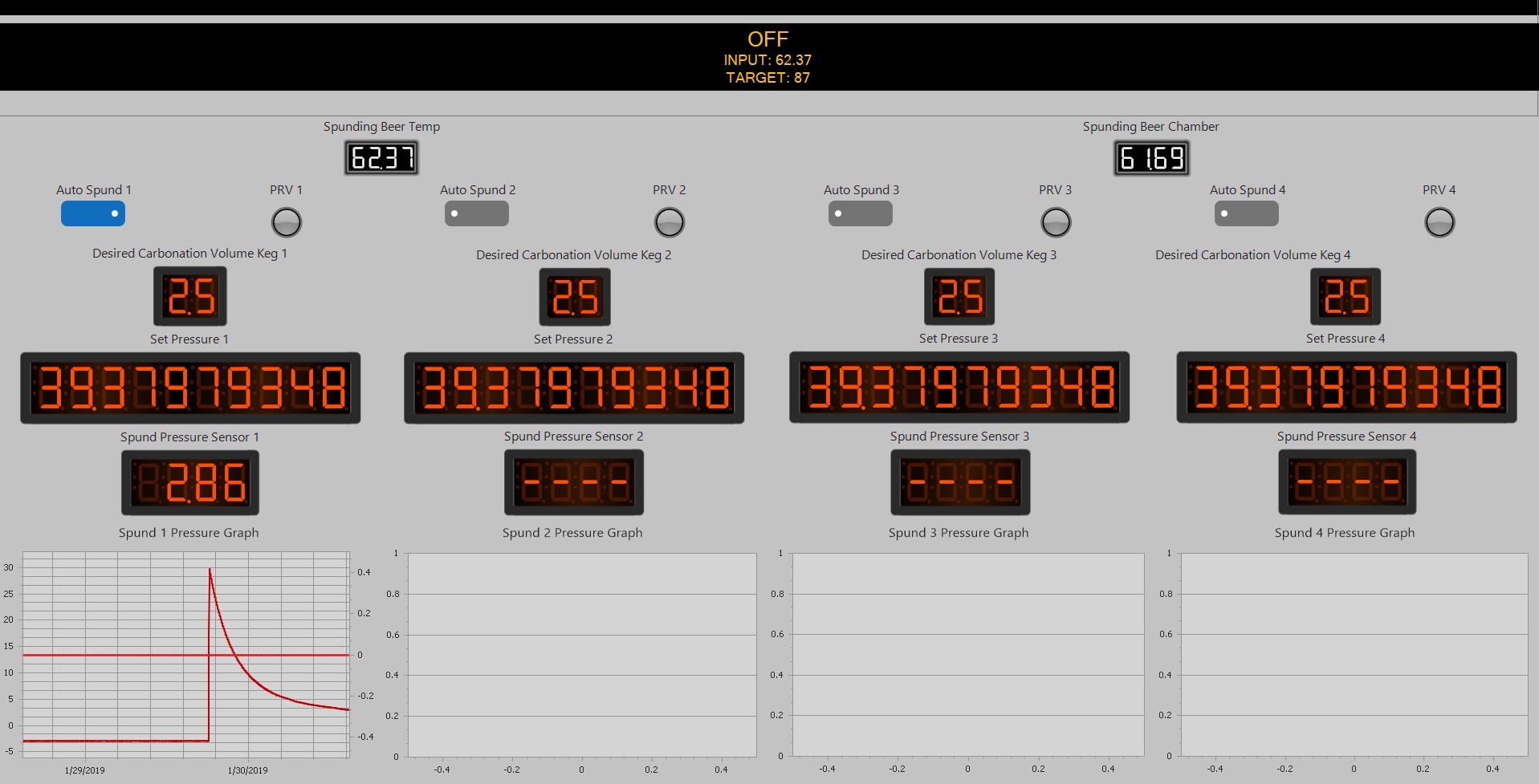

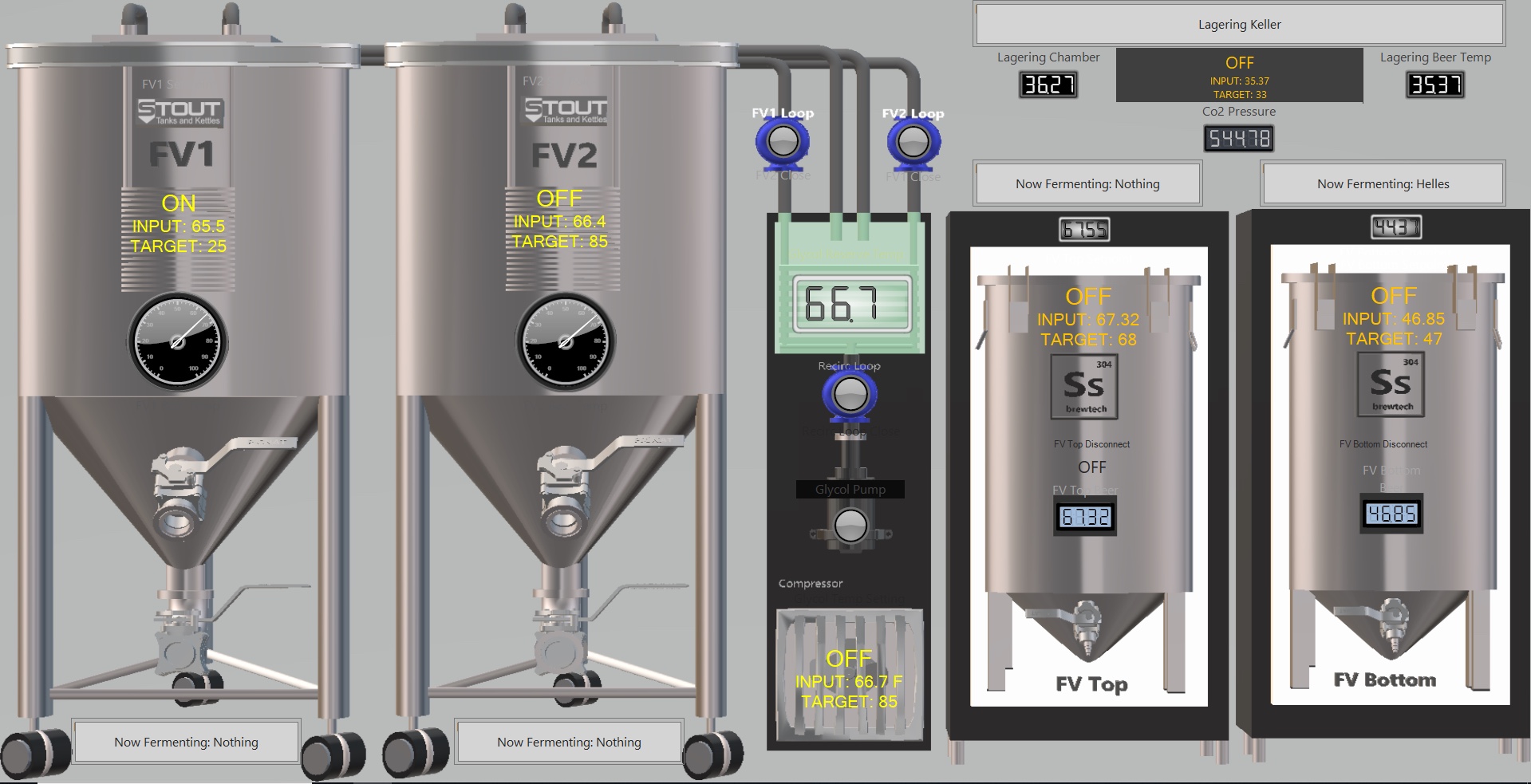

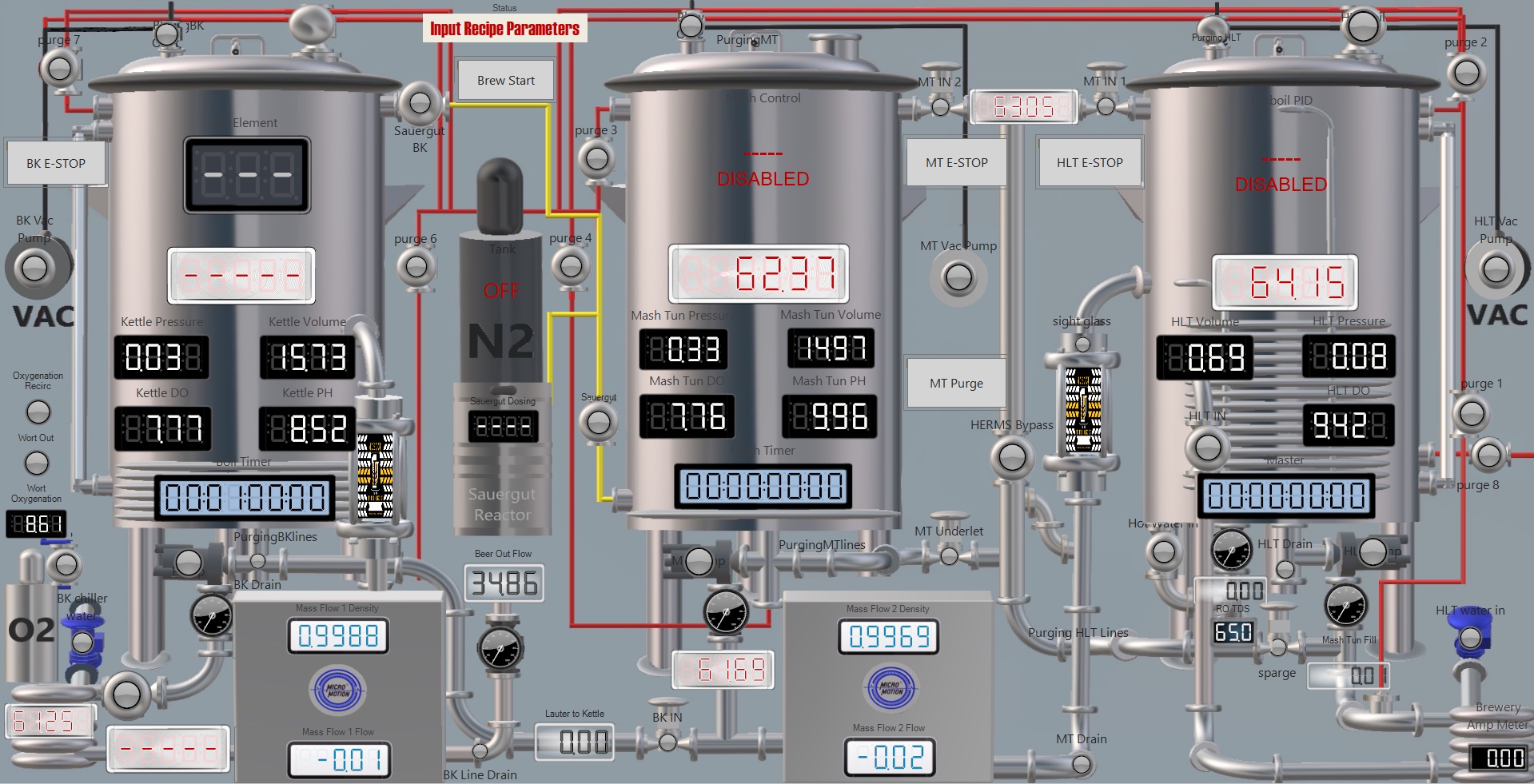

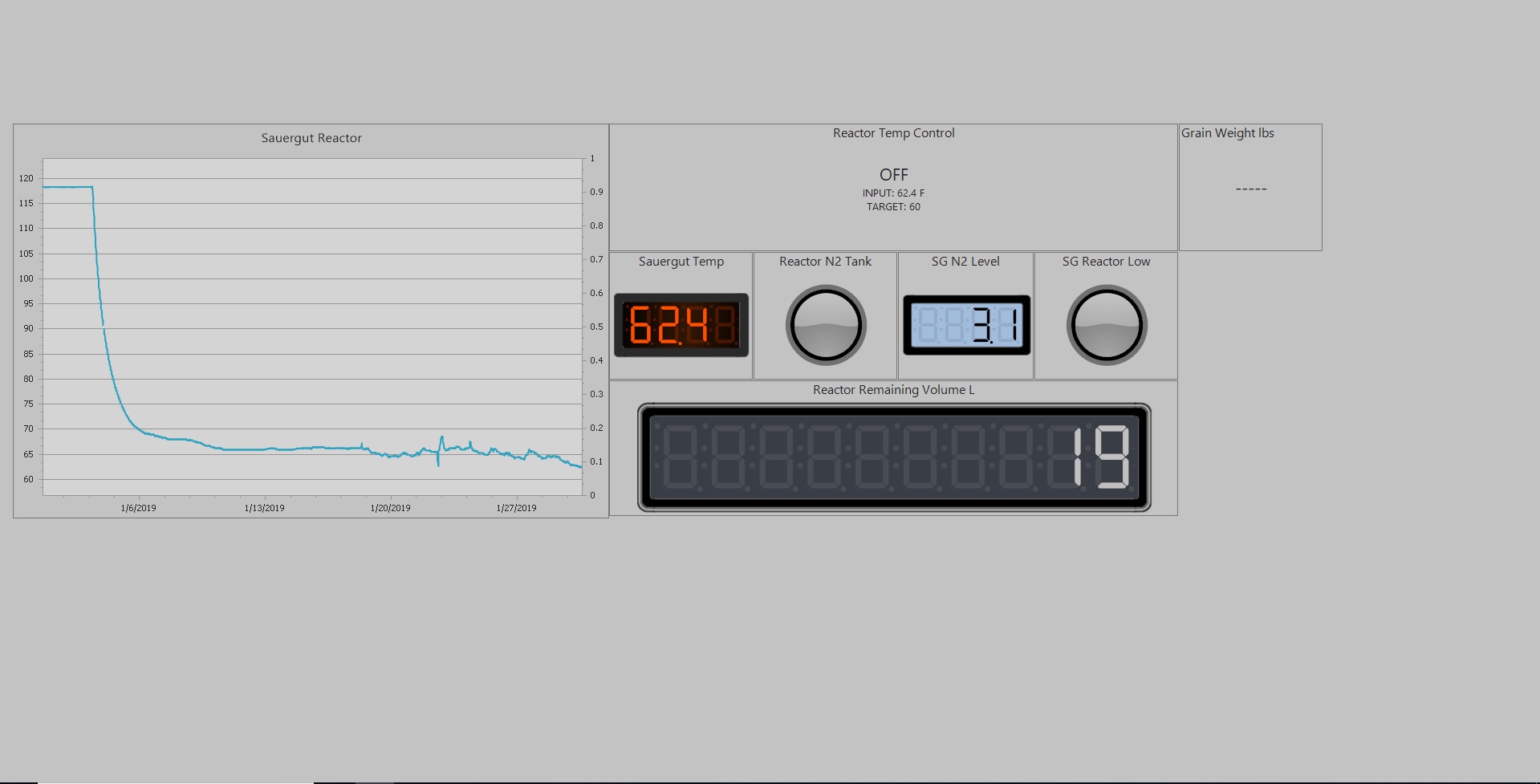

Another interface update. Have not found one I LOVE yet.


Last edited:

Jeremydc

Active Member
Joined
Feb 24, 2013
Messages
40
Reaction score
7
I've been toying with they idea of going electric, but this thread shows just how deep the rabbit hole can go. I'm not sure that I'm ready for that. Although, being able to brew inside during the cold Montana winters would be a plus


day_trippr

"Feeling much better now, thanks"
Joined
May 31, 2011
Messages
33,934
Reaction score
15,220
Location
Stow, MA
Yeah, if you're like in the .0000001% of homebrewers this would be right up your alley, but for the rest of us it's sheer intimidation drenched in awe...

Cheers! :D

[that might still be an order of magnitude or three too optimistic ;)]

OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636

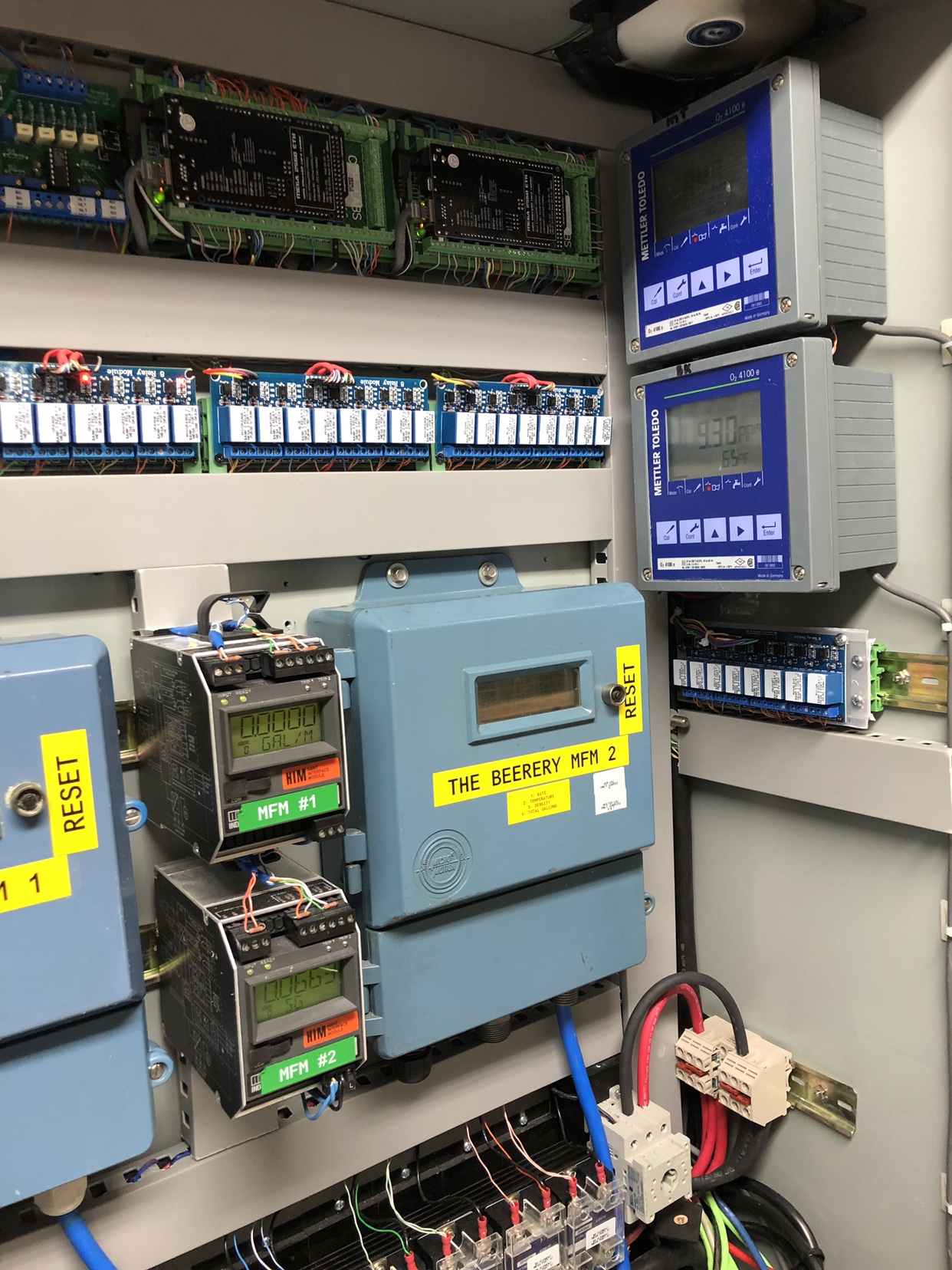

The control panel is pretty much complete as of now. Needed to add another bank of 8 relays, and a couple more DO transmitters. Chose to put them in the panel for now as I didn’t feel like cutting more holes. It’s about time to close here up for now.




Overkill

Well-Known Member
Joined
Oct 30, 2018
Messages
57
Reaction score
26
Really nice man. Interface looking way cooler. Do you happen to remember the ID of the tangential inlet pipes on the kettles? Are they .75" or 0.5" inlets?


augiedoggy

Well-Known Member
Joined
Dec 6, 2013
Messages
10,259
Reaction score
2,252
Location
North Tonawanda NY
If you underlet your strike water instead of pouring your grain into your strike water, dough balls are nonexistent.
Correct, but a disadvantage of underletting in larger sytems like 3bbl is the water at the top of the grainbed is cooled considerably and the water at the bottom is closer to strike temp.. by the time the temps were equalized in our 3bbl rims system at 5 gpm flow much of the mash conversion was already done. just something to keep in mind. we had 139 at the top of our grainbed and 166 at the bottom... far from ideal but not an issue in smaller systems with good herm or rims control.

OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636
Drilled out a solid TC endcap and silver soldered it to the probe body for DO, pH are swaglock.

OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636
Thanks Guys, been a while since I have been here, been busily brewing. Here is the latest.












Working on finishing the basement ad brew area.


and been working on drinking beer.


day_trippr

"Feeling much better now, thanks"
Joined
May 31, 2011
Messages
33,934
Reaction score
15,220
Location
Stow, MA
^Alternate Mind Boggling Universe^

Is that sight glass...oblong? How the heck did you do that?

Cheers!


day_trippr

"Feeling much better now, thanks"
Joined
May 31, 2011
Messages
33,934
Reaction score
15,220
Location
Stow, MA
Right. There are a lot of straight lines for that sight glass to be round...



Cheers!


Bilsch

Well-Known Member
Joined
May 4, 2015
Messages
1,192
Reaction score
843
Setup definitely looking awesome. Especially like the etched glass window.
