Thought I would chronicle my build here. Using brucontrol and upgrading from brewtroller/pi/Arduino.

It will be a 3 vessel setup, flow, level, proportional valves,pH, DO, purging and vacuum, fermentation and serving.

I am in the process of building a brew control. I will be slowly piecing this together, right now I have exactly $35 inevsted into this stuff, and that is for my brewery control. Being as I was already using brewtroller and arduino (brewpi's), I literally have all the parts I need to re-do my controller setup.
I will be adding functionality that I didn't previously have, namely pH, DO, purging and vacuum routines, and integrating a tilt to interface and email me when it's time to spund.


So far all I have got done is some of the fermentation side. 3 out of the 4 vessels. This stuff is probably the coolest most user friendly full automation interface I have seen. It makes me as giddy as a school girl.






That’s what I got done today.

Most of all thanks to @BrunDog for all the help!

Last edited:
OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636
Played around with the serving side a little bit today.

I want to use temp sensors, flow sensors, load cell for the CO2, and a meter for o2/co for a leak alarm. Once a poured level is reached ( say 2 gallons left) It will email me the alarm and I can get on brewing the next batch.


Attachments

ClaudiusB

Well-Known Member
Joined
Dec 30, 2007
Messages
1,546
Reaction score
519
Location
El Paso
e CO2, and a meter for o2/co for a leak alarm.
I do check for CO2 leaks in my setup. I don't worry about the CO2 amount left since I have six CO2 tanks on line (I get free CO2).
If I have a leak the pressure drops and my system will warn me. If the pressure drops more than three times in a fixed time frame the CO2 is shot off to prevent emptying the tanks.


Attachments

cyberbackpacker

Well-Known Member
Joined
Jul 25, 2008
Messages
2,038
Reaction score
326
Location
Holland, MI
@Die_Beerery how do you plan to plumb in your DO and PH probes? I ask because the DO probe especially has a very low operating temp (120F IIRC) and the ph is only 200F.

I have been building a new entirely sanitary sealed brew system for ~3.5 years now, and I am close to the end. Fortunately, my original build plans suited themselves well to lodo brewing; however, when Brundog mentioned the ability for ph (and now DO) integration with the atlas scientific, my wheels are turning again.

I'd love to implement them, but do not know how to handle for plumbing sake.

Any of your thoughts are appreciated.

-Kevin

OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636
Hey @cyberbackpacker I am going to be using industrial analog components, that are made for the rigors of brewing. Broadley James components.


I am debating if they will be a per vessel ( 3, so $$$) or right off my mass flow meter, and I could get awa with 1 of each.
Cheers

Last edited:

cyberbackpacker

Well-Known Member
Joined
Jul 25, 2008
Messages
2,038
Reaction score
326
Location
Holland, MI
Good to know @Die_Beerery I am quite familiar with AB components-- I have an entire BCS-462 panel stuffed with AB components. Definitely robust and high quality, but with a price to match.

Do you have a link or model number that you are looking at for the DO?

After looking at the Atlas Scientific PH, it does work up to 100C so that is definitely a possibility.

I hear you on trying to use just one versus having to buy multiple (major $$$ for me).

I appreciate your help and any insight.

:mug:


Kmo4040

Supporting Member
HBT Supporter
Joined
Jul 28, 2016
Messages
121
Reaction score
9
Played around with the serving side a little bit today.

I want to use temp sensors, flow sensors, load cell for the CO2, and a meter for o2/co for a leak alarm. Once a poured level is reached ( say 2 gallons left) It will email me the alarm and I can get on brewing the next batch.
Die_Beerery I had the same idea in addition, I was going to add an NFC reader and solenoid valves in order to do access control and record keeping. Football Sunday is always at my house.


Kmo4040

Supporting Member
HBT Supporter
Joined
Jul 28, 2016
Messages
121
Reaction score
9
@Die_Beerery how do you plan to plumb in your DO and PH probes? I ask because the DO probe especially has a very low operating temp (120F IIRC) and the ph is only 200F.

I have been building a new entirely sanitary sealed brew system for ~3.5 years now, and I am close to the end. Fortunately, my original build plans suited themselves well to lodo brewing; however, when Brundog mentioned the ability for ph (and now DO) integration with the atlas scientific, my wheels are turning again.

I'd love to implement them, but do not know how to handle for plumbing sake.

Any of your thoughts are appreciated.

-Kevin
Good to know @Die_Beerery I am quite familiar with AB components-- I have an entire BCS-462 panel stuffed with AB components. Definitely robust and high quality, but with a price to match.

Do you have a link or model number that you are looking at for the DO?

After looking at the Atlas Scientific PH, it does work up to 100C so that is definitely a possibility.

I hear you on trying to use just one versus having to buy multiple (major $$$ for me).

I appreciate your help and any insight.

:mug:
High Temp might not be necessary, the D.O. of boiling water is very low. If you are careful and only sample D.O. as it flows to your fermenter, or before the boil kettle(if you need that number), you should be fine. Dissolved Oxygen is inversely proportional to Temperature. Hot water ability to hold oxygen is less than cold water. It is one of the reasons we need to aerate our wort.

OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636
Got all my Garkeller (fermentation cellar) moved over from brewpi today. I am running 1 arduino mega ( $12) to run 2 fermenters, 1 spunding chest freezer, and 1 lagering freezer. Also I am running 5 flow sensors on the serving fridge. Not even coming close to maxing it out either. Added enough room for 8 fridges/fermenters/whatever. I just used stuff I had laying around. In love with this stuff.










OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636
I like your new project.
A few of these will make the project look so much nicer.

I agree.. This was thrown together with what I had. I plan on making a full build after everything is tested and verified.

OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636
Added some Labeling on the Garkeller work space




Got some ESP8266 boards from amazon, so put them to use in the (local) serving fridges. They run about $6 and have on board wifi. So I am monitoring these via IP. I have 4 more to go in at places I stock beer, so I can verify serving temp, and get an email when taps are low. So the "Bierstube" workspace will be home and the "Bierstube Mit" for remote locations.




I really LOVE playing with this stuff and thanks to much to @BrunDog for putting up with my useless rambling.

OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636
Worked and completed my "Remote monitoring Setup's".

1 ESP8266 board- I bought 2 on Amazon for $14 - https://www.amazon.com/gp/product/B01IK9GEQG/?tag=skimlinks_replacement-20


1 5v relay- I bought 4 on amazon for $10 - https://www.amazon.com/gp/product/B078478SZ9/?tag=skimlinks_replacement-20


1 5v power supply - $7 on amazon - https://www.amazon.com/gp/product/B0117O020U/?tag=skimlinks_replacement-20


2 1wire temperature probes - I bought 10 for $20 on amazon - https://www.amazon.com/gp/product/B01IOK40DA/?tag=skimlinks_replacement-20

2 flow sensors - boguth from amazon $10 each - https://www.amazon.com/gp/product/B00QC6LI6Q/?tag=skimlinks_replacement-20

Single gang PVC box and some misc fittings bought form home depot.

I happen to work in the "IT" field and have this kind of stuff everywhere, so here are the parts for my expansion modules.

Take a cat5 snip off the end and we are going to un-twist and retwist some wires.
I broke it apart as:
white/orange, 1 wire sensor 5v power
orange, flow sensor 5v power
white/green, 1 wire sensor ground
green, flow sensor ground
white/blue, 1 wire sensor signal
blue, optional flow sensor signal
white/brown, flow sensor signal
brown, flow sensor signal
Therefore 1 cat5 connection will support up to 10 1 wire sensors, and 3 flow sensors.
So I split and re-arranged the whites and the solids.
















Completed expansion module that will reside in the kegerator

Last edited by a moderator:
OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636
Now time to turn to the control box and hardware.

Step 1 was to poke and pry and breakdown the power supply. Got it down to the board, unsoldered the stock wires and re-soldered some new power wires.




Soldered together the 5v out from the power supply to:
1 5v output to relay
1 5v output to flow sensor power (orange wire)
1 5v ouput to 1 wire temp sensor power (white/orange and a 4.7k resistor, which will tie to 1 wire signal)
1 5v output to power board

Started fitment in the box


Final internals placement and mounting
[https://i.imgur.com/T2m1FU0.jpg/img]

All internal wiring completed
GPIO 5, 1Wire temperature network
GPIO 0, flow sensor signal
GPIO 2, flow sesnor signal
GPIO 10, Fridge relay trigger
Cat5 with punch down wired in with above color code.

[img]https://i.imgur.com/kTqFLTL.jpg

All Complete


Turned my attention to the temperature probes, and flow sensor. First Temp sensor. All I did was attach a cat5 male end to the probe wires, making sure the pinout matched from above.
white/orange, power
white/green, ground
white/blue, signal


For the flow sensor, I dissected it, and unsoldered the original leads, and resoldered in a cat5 cable clipped on one end.




I Then hopped everything up to verify working and started calibrated the sensor, using a gram scale. Once I was satisfied I brought it upstairs and hooked it up.

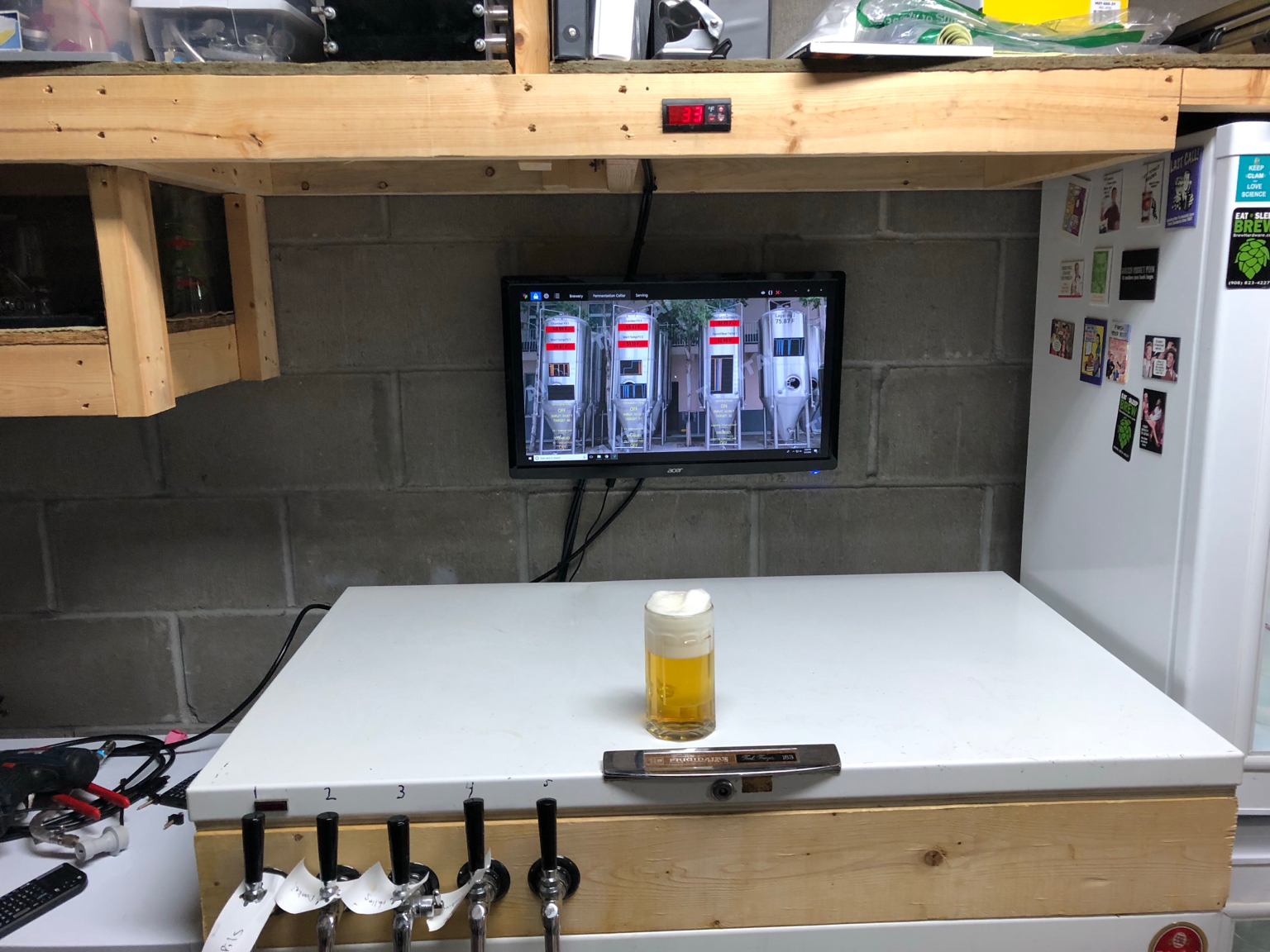

Itching I poured my first beer from it (Porch, Tap 2 Poured)


Eye balling my .5l mas, I think it was pretty close!

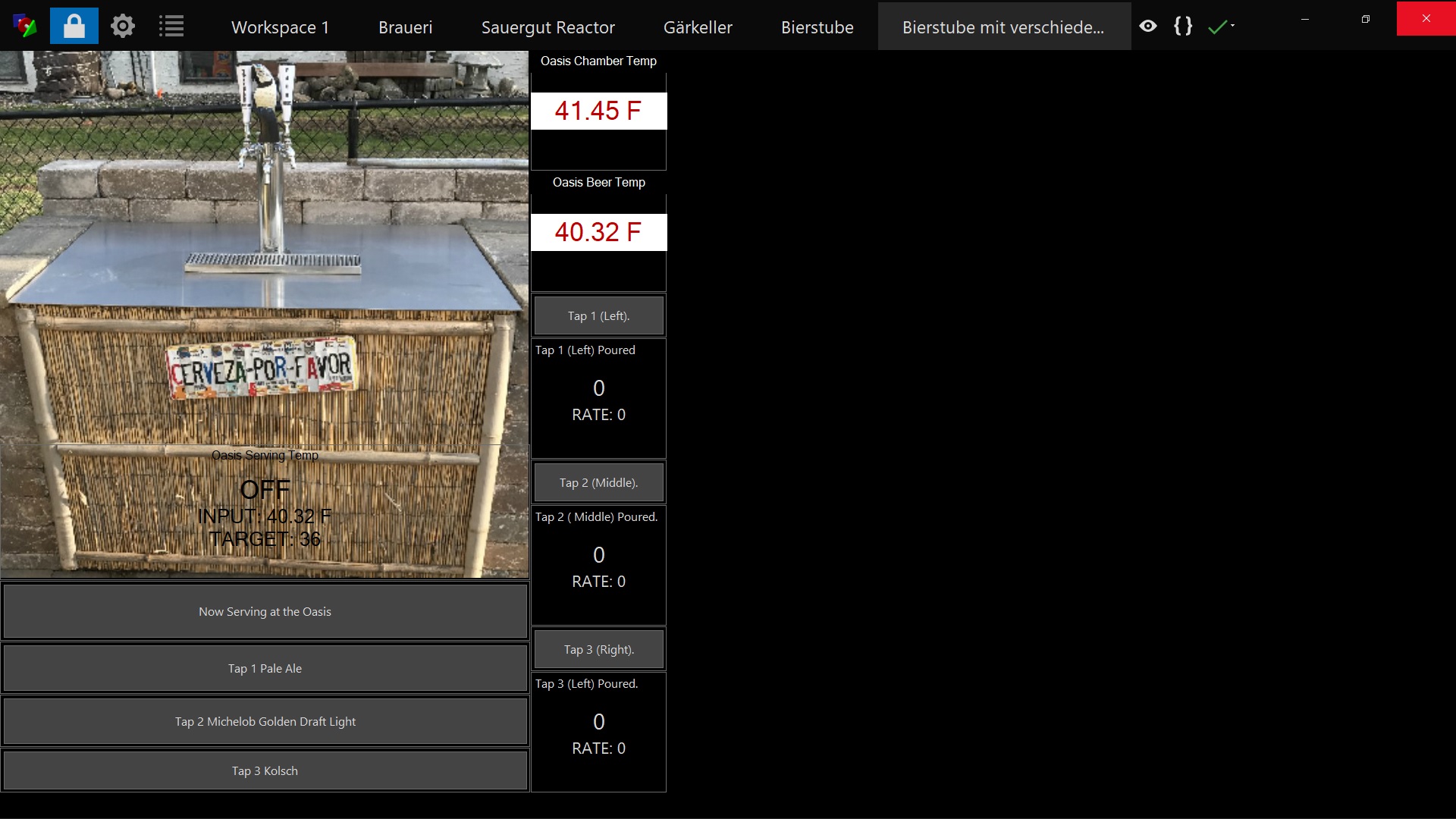

I will be tweaking my interface to make reading in the gui easier, but thats the jist of that part of the new build.

Added poor shakey video


Inspire

Active Member
Joined
Sep 26, 2017
Messages
29
Reaction score
5
You kind Sir is a GENIUS! Using the Cat cables is amazing, and a great time saver.


pickles

Well-Known Member
Joined
Feb 27, 2008
Messages
2,020
Reaction score
57
Location
Columbus
Nice work! What other projects to you have planned for the Brucontrol?

Joined
Dec 19, 2014
Messages
5,232
Reaction score
1,463
Location
West Palm Beach
He's a bit of a mad scientist, so I'm betting lots of new stuff!

I am looking forward to him showing us how he is going to leverage networking to be able to monitor the kegerator at his parent's house! I think it will be the first example of BruControl <-> Interface communication across the internet.

One comment I want to offer for those considering something similar... I love the NodeMCU (ESP8266 based) and think they are a steal at only a few dollars each, powered like above will work as long as the power doesn't drop. If the power drops, they will power up, causing a reset. When BruControl automatically reconnects, they will continue as before, however the flowmeter count will be lost (this can be remedied with a script on BC to keep a running count). But, certain boards like the Adafruit Feathers (including the ESP8266 based Huzzah) support LiPo charging & support on-board. This allows you to plug in a LiPo battery, such that if the power drops, the board will remain powered for a while (hours at least). My personal dispenser/fermenter controller has one - and with frequent power flashes in South FL (lightning, dontcha know), it keeps things running should the power fail and the host computer power down if its UPS wears out.

So, consider using a LiPo supporting module or some other backup support for remote modules!

Last edited:
OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636
He's a bit of a mad scientist, so I'm betting lots of new stuff!

Hey I resemble that statement!

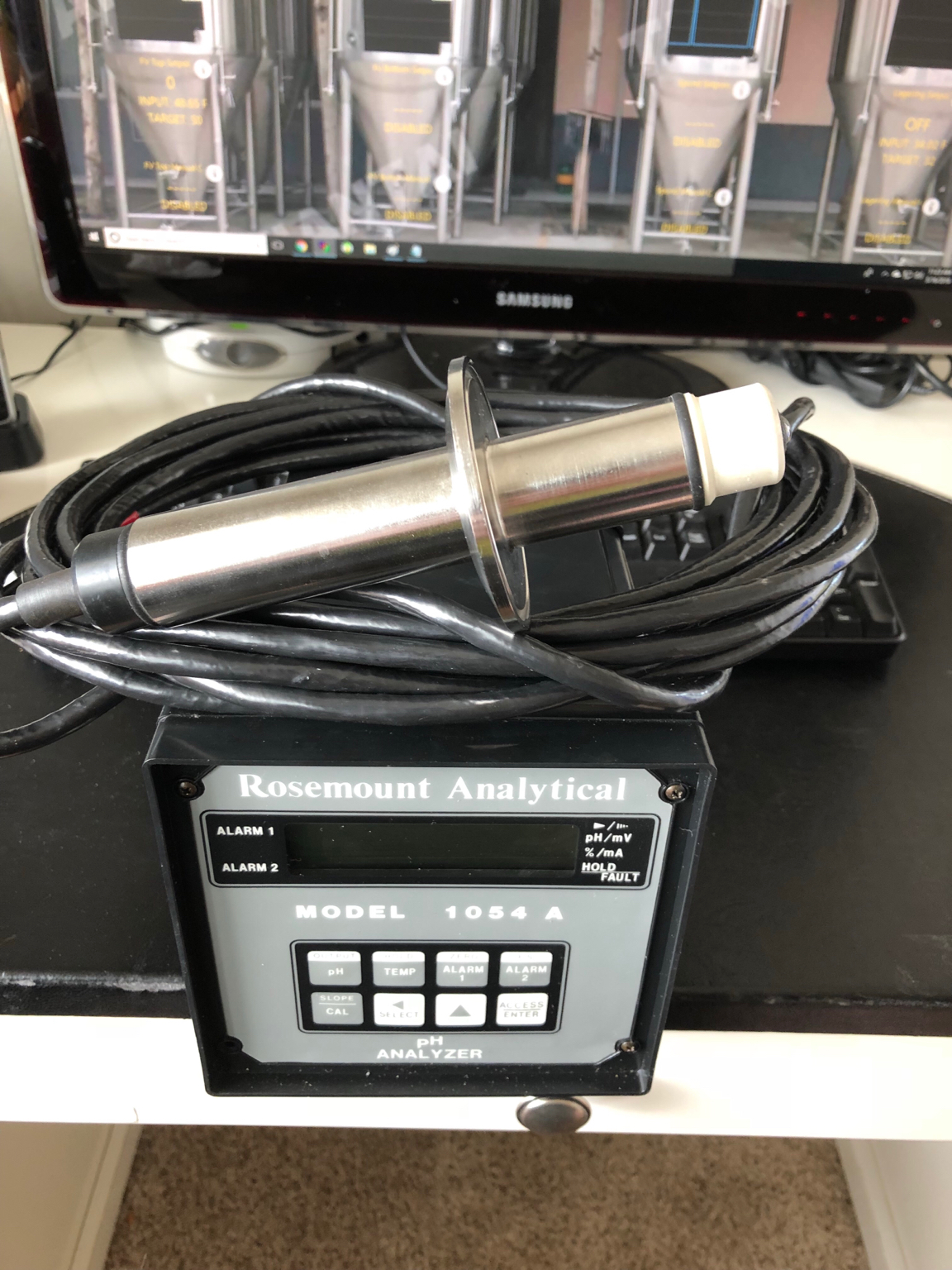

Got some new stuff to play with today.

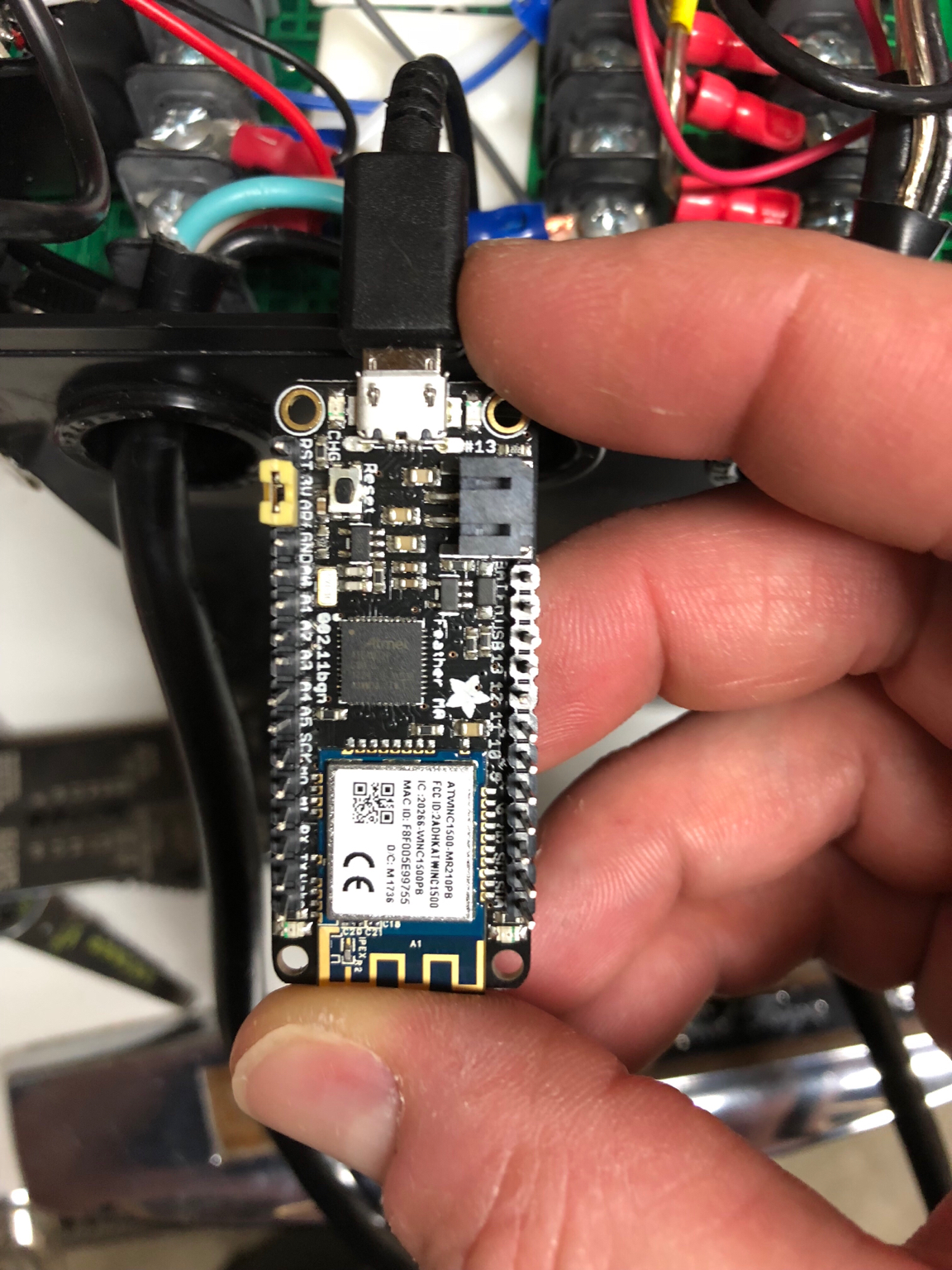

Took a feather

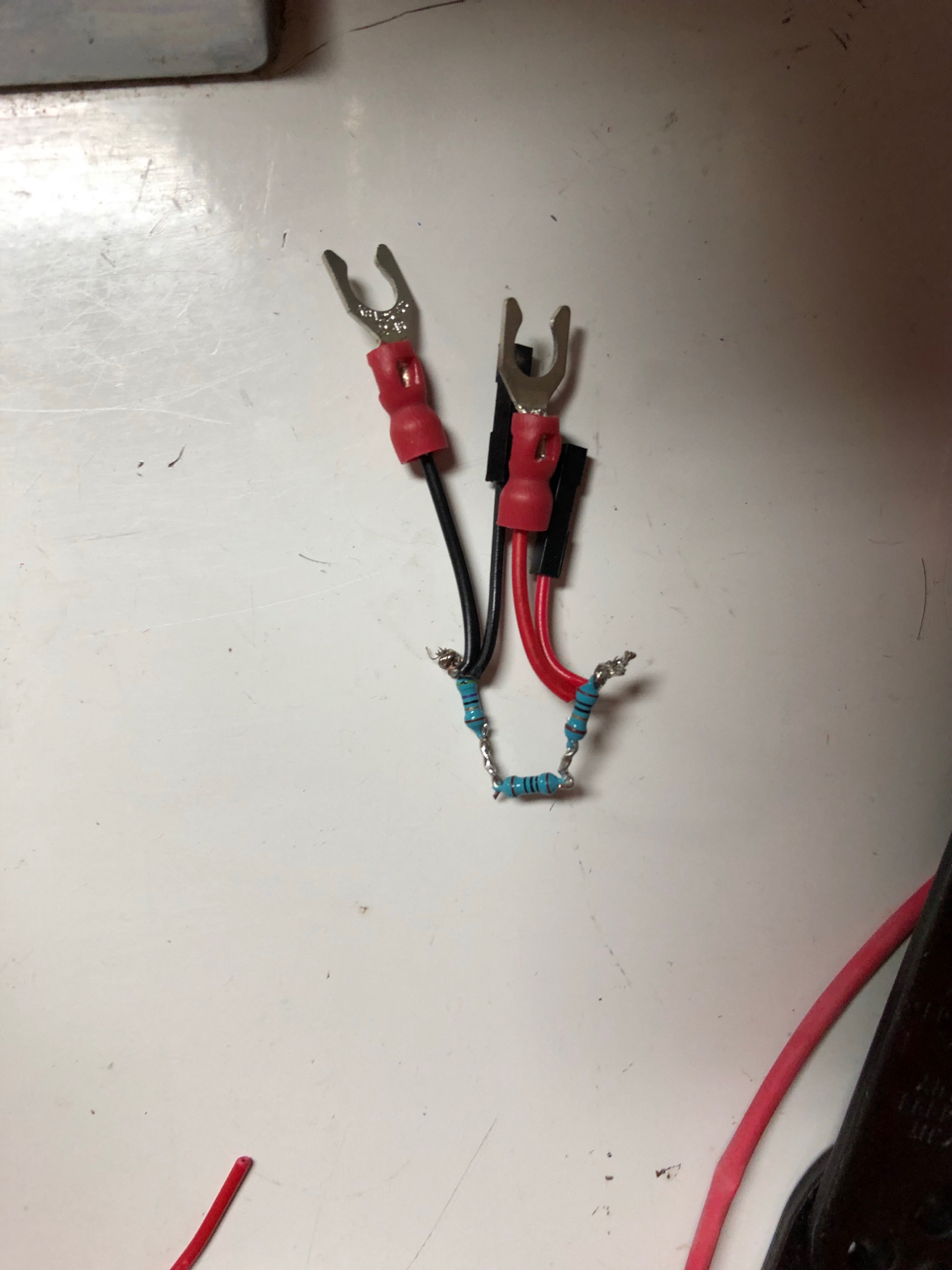

Made a mini jumper



Used some industrial velcro, and another hacked power supply



And @BrunDog and I made this happen.

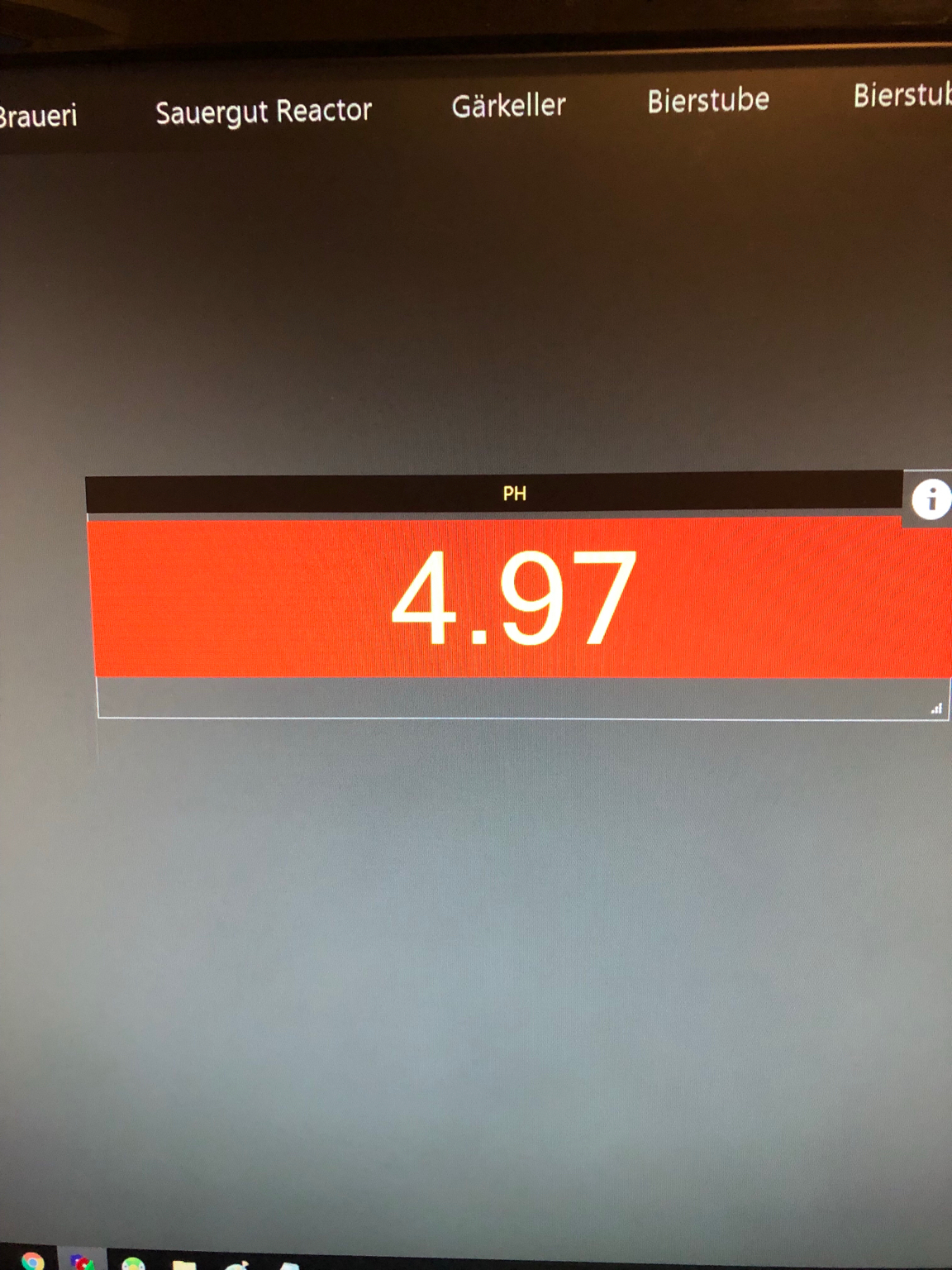

Wireless Industrial pH meter!
Baby steps!

Last edited:

GParkins

Supporting Member
HBT Supporter
Joined
Aug 7, 2014
Messages
318
Reaction score
179
F**k yeah! Well done! No more need for a BT hack! Any chance of a quick sketch of a schematic for the jumper and pinouts?

OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636
The jumper is just power and gnd, with a resistor across them, since the feather is 3.3v, I used a ~160ohm setup. If using 5v (mega) you will need 250ohms. I then jumpered 3.3v and aref.
SO:

PH transmitter output

+ ----------------->Feather pin A0
| 160ohm resistor
- ------------------>Feather pin GND


HopRodGarage

Well-Known Member
Joined
Apr 26, 2016
Messages
46
Reaction score
15
Location
Vinterbro, Norway
Hey I resemble that statement!

Got some new stuff to play with today.

Wireless Industrial pH meter!
Baby steps!
Cool! I got the Atlas scientific pH transmitter and probe on the way for my PLC controlled brewery.
Gonna use it for inline pH readings during mash.
