Tweaking never ends, but the fun is endless.

I just put together some dynamic, mash parameters for my system so it dynamically
calculate volumes and whatnot. I also just finished and tested an automated fly sparge setup the dynamically uses proportional ball valves to sync.






Next up is building the hop dropper.


augiedoggy

Well-Known Member
Joined
Dec 6, 2013
Messages
10,259
Reaction score
2,252
Location
North Tonawanda NY
lol Id love to pay you to just design a graphic interface for my customers at the nano brewpub to see whats going on and whats on deck in fermenters and brite tanks... your graphics are amazing Die Beerery. I also wish I could display multiple screens of info at the same time which I believe Brundog is working on..

OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636
lol Id love to pay you to just design a graphic interface for my customers at the nano brewpub to see whats going on and whats on deck in fermenters and brite tanks... your graphics are amazing Die Beerery. I also wish I could display multiple screens of info at the same time which I believe Brundog is working on..

Thanks.. I have to put the giant waste of money that was a multimedia and web design degree sometimes.

Everything is just built from scratch in paint 3d.

OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636

Worked on oxygenation today. Still have to script it. Should be no big deal.

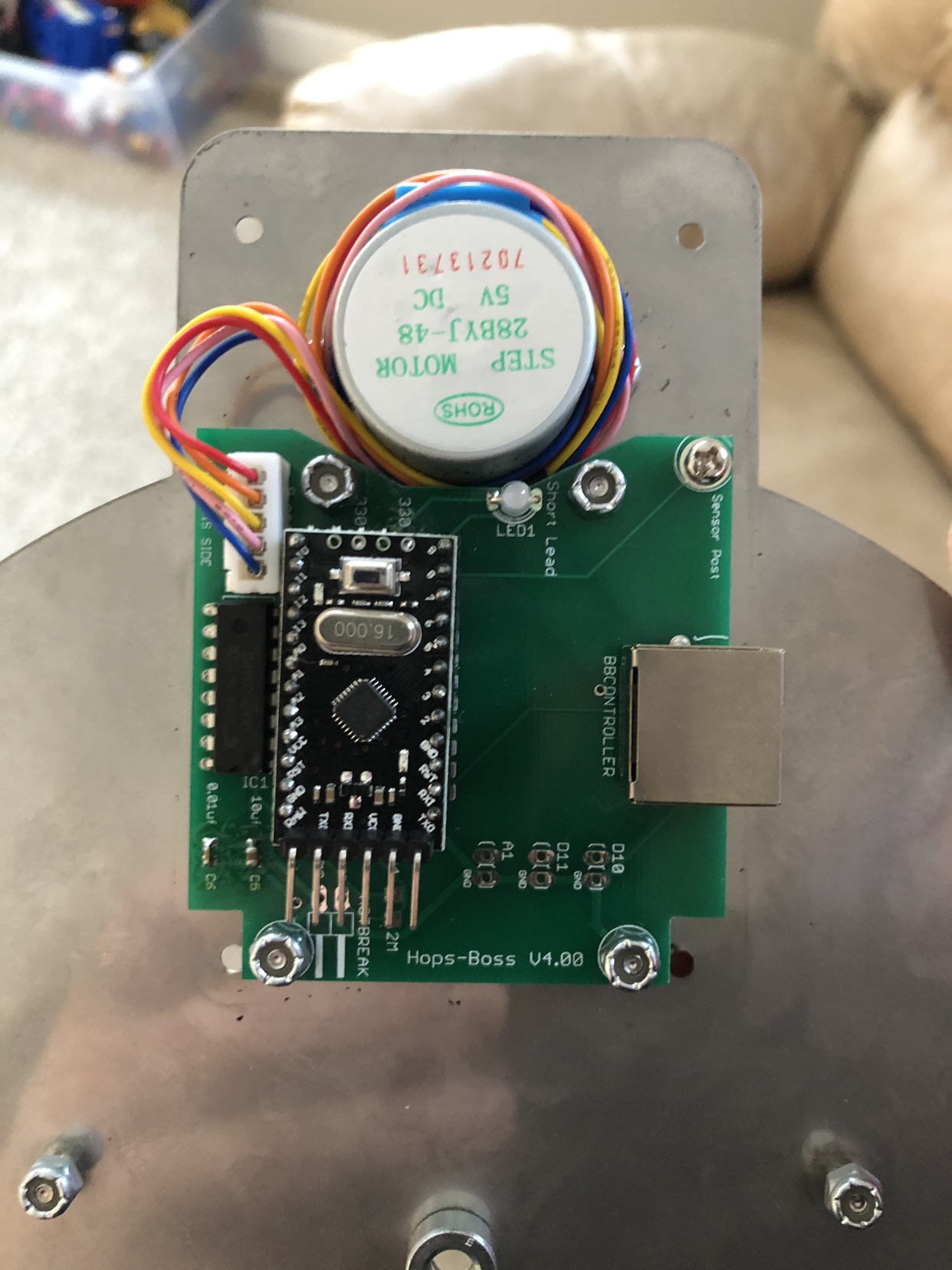

Also working on reverse engineering the hop boss for my hop additions.




Overkill

Well-Known Member
Joined
Oct 30, 2018
Messages
57
Reaction score
26
Hey,
As always pretty cool stuff. So even though you are doing everything under n2, at the end you oxygenate your cold wort?


Overkill

Well-Known Member
Joined
Oct 30, 2018
Messages
57
Reaction score
26
super cool. Does it keep the port sealed in between additions?


day_trippr

"Feeling much better now, thanks"
Joined
May 31, 2011
Messages
33,934
Reaction score
15,220
Location
Stow, MA
With everything going on with his system it's hard to tell what he's doing wrt steam management.
I was thinking the turntable could re-home after each addition if the open hole is a problem during the boil...

Cheers!

Last edited:
OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636
I have coming but not here yet a 1.5” tc solenoid. It is NC so when hops are called for it opens. After hop drops it closes. I do a soft boil and my steam escapes out the 3” center tc.


rayr87

Active Member
Joined
Feb 28, 2014
Messages
42
Reaction score
9
I have coming but not here yet a 1.5” tc solenoid. It is NC so when hops are called for it opens. After hop drops it closes. I do a soft boil and my steam escapes out the 3” center tc.
Do you have a link to the 1.5" solenoid valves? I've been trying to find some reasonably priced for my bottom drain.


ClaudiusB

Well-Known Member
Joined
Dec 30, 2007
Messages
1,546
Reaction score
519
Location
El Paso
It is NC so when hops are called for it opens. After hop drops it closes. I do a soft boil and my steam escapes out the 3” center tc.

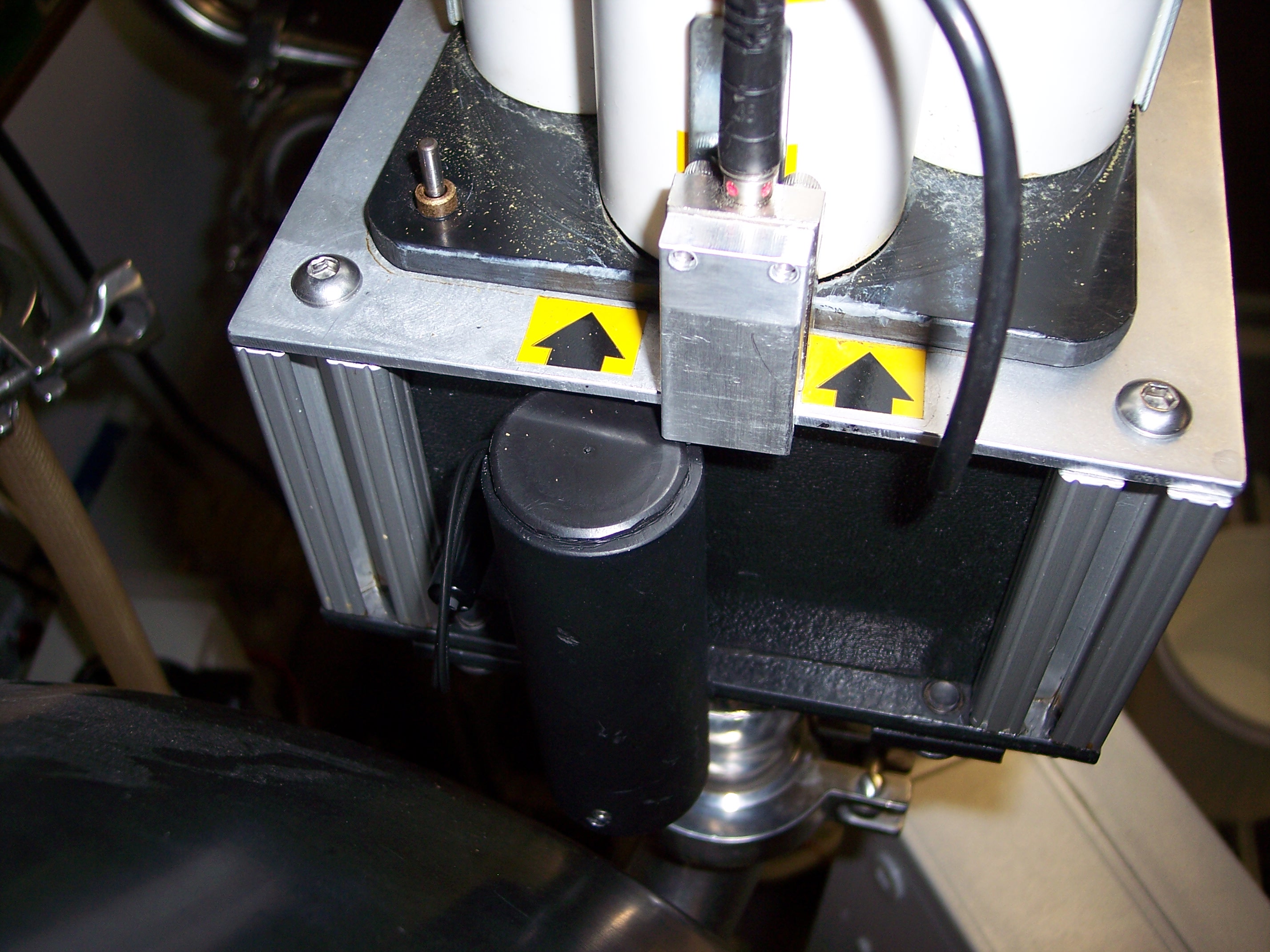

I installed a trap door more than ten years ago to combat the steam from popping up the hops in the first tube.. A solenoid opens and closes the door as required.


crane

Well-Known Member
Lifetime Supporter
Joined
Sep 20, 2011
Messages
1,105
Reaction score
325
Location
San Diego
8-10 pin connections for the MFM’s, DO and PH. I removed the 10 conductor cables and soldered those outside of the panel but the rest are soldered in panel.
It looks like in your later pictures of your build you abandoned the 10 pin connectors for the MFMs and wired directly from the RFT9712 to the sensor. What was the reason for switching?


day_trippr

"Feeling much better now, thanks"
Joined
May 31, 2011
Messages
33,934
Reaction score
15,220
Location
Stow, MA
I have coming but not here yet a 1.5” tc solenoid. [...]
Of course. I expected no less :D

I do a soft boil and my steam escapes out the 3” center tc.
I could likely find out from one of your videos but if I might ask here are you using a condenser, or a hood?
The condenser thing has its attractions though there's a potential "didn't see that coming" downside as well...

Cheers!

OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636
It looks like in your later pictures of your build you abandoned the 10 pin connectors for the MFMs and wired directly from the RFT9712 to the sensor. What was the reason for switching?
Noise pickup.

OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636
Of course. I expected no less :D



I could likely find out from one of your videos but if I might ask here are you using a condenser, or a hood?
The condenser thing has its attractions though there's a potential "didn't see that coming" downside as well...

Cheers!


Hood here.


day_trippr

"Feeling much better now, thanks"
Joined
May 31, 2011
Messages
33,934
Reaction score
15,220
Location
Stow, MA
So we have that in common (and pretty much only that ;))
btw, don't look now but your mash tun is totally out of control...

Cheers! :D


day_trippr

"Feeling much better now, thanks"
Joined
May 31, 2011
Messages
33,934
Reaction score
15,220
Location
Stow, MA

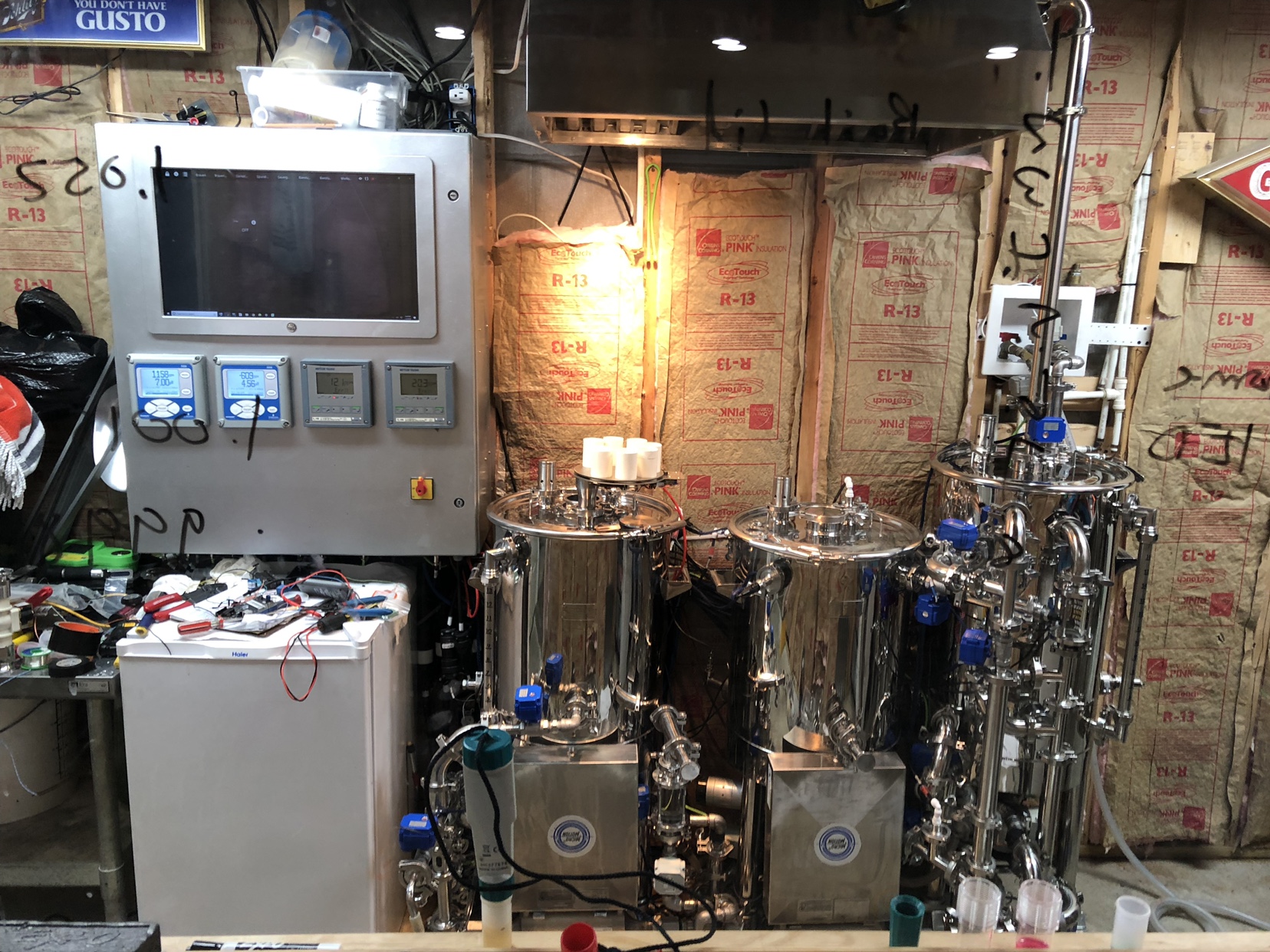

Love the touchscreen functionality. Very cool :mug:
I didn't hear a large solenoid clicking during the hop staging, do you have that integrated yet?

Cheers!


day_trippr

"Feeling much better now, thanks"
Joined
May 31, 2011
Messages
33,934
Reaction score
15,220
Location
Stow, MA
Doesn't look bad at all from here?



fwiw, I use SwissFlow SF800 meters. You wouldn't even know they're in the lines...

Cheers!

OP
D

Die_Beerery

Banned
Joined
Aug 21, 2017
Messages
841
Reaction score
636
Doesn't look bad at all from here?



fwiw, I use SwissFlow SF800 meters. You wouldn't even know they're in the lines...

Cheers!
I also use the sf800. I bought 15 of them way back when (when they were cheap).


bdogg171

Well-Known Member
Joined
Dec 5, 2012
Messages
159
Reaction score
34
Location
Houston
I wonder if there would be less foaming through a flow control faucet?
I’ll look into the sf’s


bdogg171

Well-Known Member
Joined
Dec 5, 2012
Messages
159
Reaction score
34
Location
Houston
Only issue I can see is the flow lever would need to stay in the same position all the time otherwise it would throw the calibration off, correct?


vtipsy

Supporting Member
HBT Supporter
Joined
Mar 9, 2017
Messages
119
Reaction score
127
I wonder if there would be less foaming through a flow control faucet?
I’ll look into the sf’s
I had foaming issues with those flowmeters and Intertap flow control faucets. After futzing with them for a while I gave up.


day_trippr

"Feeling much better now, thanks"
Joined
May 31, 2011
Messages
33,934
Reaction score
15,220
Location
Stow, MA
Aside from the microscopic kind on the down-stream side of the rotor blades, what drives the assumption that there is a pressure drop across a flow meter that would effect pour quality?

I have to say since I installed my six SF800 meters years ago I have never experienced any negative effects on pour quality even with spritely-carbed beers like weizens and wits...

Cheers!
