My iSpindel config is
set ssid for ispindhub
no password - leave blank
HTTP
Token - leave blank
Server address 192.168.4.1
Port 80
path /ispindel


DuncB

Well-Known Member
Joined
Jun 5, 2019
Messages
1,727
Reaction score
870
Location
Paremata New Zealand
Thanks @korev

Tried that as well. No luck.

When I look at the ispindhub access point as a wifi choice on phone or computer it says no internet access.
When I access the 192.168.4.1 via the ispindhub wifi it says not connected to my home SSID.

It should still work on the ispindhub local network.\

OP
ZeSlammy

ZeSlammy

Well-Known Member
Joined
Mar 27, 2020
Messages
99
Reaction score
53
Location
Besançon, France
@DuncB Yes it should.
For the time being the fact that it has no internet access is not an issue as cron jobs are not set up (yet).
But if it sets up a local ispindhub network, then your iSpindel should send its info to it..
Can you take logs ?


DuncB

Well-Known Member
Joined
Jun 5, 2019
Messages
1,727
Reaction score
870
Location
Paremata New Zealand
Okay I've got some form of result now.
Using Brewflasher installed to Nodemcu 8266 with 2.0 spi red tft lcd board. Powered 1.0 amp 5v supply via usb.

I'm now getting the connected coming up in green and then for 15 seconds approx every minute the nice display below.

This isn't the reading from the ispindel though although the ip is the one i've set.
Nice layout though.
When the screen blanks I just have ispind hub 1.0.0
Slammy underneath
THen a couple of seconds later connected appears.

Then up pops the generic spindel info.
I've set the ispindel to 950 seconds.

OP
ZeSlammy

ZeSlammy

Well-Known Member
Joined
Mar 27, 2020
Messages
99
Reaction score
53
Location
Besançon, France
Every minute you come back to the "IspindHub / Connected" screen ?
That's really weird ...
That being said, you have an IP adress so you are connected to your network ?


DuncB

Well-Known Member
Joined
Jun 5, 2019
Messages
1,727
Reaction score
870
Location
Paremata New Zealand
@ZeSlammy
Okay realised that as I had set the Slammy up to be on my internal network and it had the fixed IP that we see, then the ispindel actually needed to point to the internal network and not the Slammy. ie the slammy was a device on my network rather than an access point.
Once the ispindel was transmitting to the internal network and directing to the slammy IP it then did start sending it's info to the slammy and I can see the info.
It is still alternating with your generic info as in my previous picture.
I've watched the device and the blue light is on all the time on the esp8266 node mcu but briefly flickers off then back on again. At this stage the whole display blanks and then Ispind hub 1.0.0 with slammy comes up underneath. A few seconds later connected appears and then one or other of the spindel info comes up.

How can I send you a log if this would help?


DuncB

Well-Known Member
Joined
Jun 5, 2019
Messages
1,727
Reaction score
870
Location
Paremata New Zealand
@ZeSlammy
I checked on my router on my network and found out that it hadn't issued a fixed ip, set the fixed ip to the mac address of the slammy and now your generic ispindel data is cycling with my ispindel data. No drop of connection. Progress.


DuncB

Well-Known Member
Joined
Jun 5, 2019
Messages
1,727
Reaction score
870
Location
Paremata New Zealand
All seems to be behaving itself now.
I was wondering if instead of sending data from spindel to slammy and then onto other programs such as brewpiless ( a work in progress ) as I can connect my ispindel to brewpiless and then forward to remote logs / apps such as brewspy whether I could do that to the slammy instead?

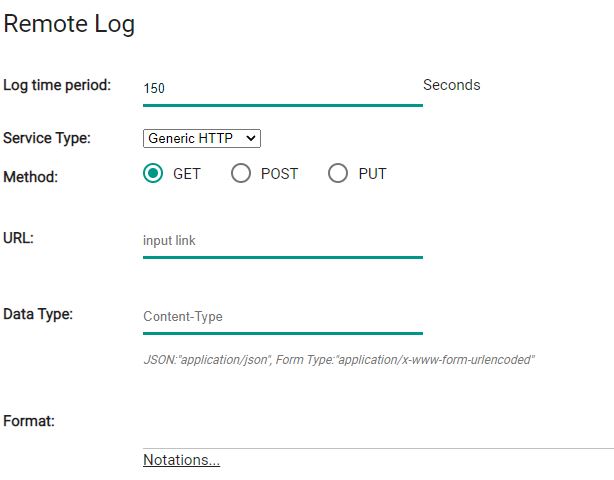

brewpiless repeater log info.JPG

I've not been able to find out what type of data type and format the ispindel " transmits "


korev

Member
Joined
Sep 27, 2021
Messages
20
Reaction score
3
Location
Sydney, Australia
@ZeSlammy I hope all is well. I was wondering when we might expect the next update that hopefully allows files to be deleted and the ability to configure to pass data to Brewfather?

OP
ZeSlammy

ZeSlammy

Well-Known Member
Joined
Mar 27, 2020
Messages
99
Reaction score
53
Location
Besançon, France
@ZeSlammy I hope all is well. I was wondering when we might expect the next update that hopefully allows files to be deleted and the ability to configure to pass data to Brewfather?
Hello
The version allowing the deletion is on the GitHub and I think on BrewFlasher as well (when you log onto the iSpindHub, you'll see a trash can icon next to the name of the file).

It's not fully finished (no error handling) but it does the job.

BrewFather data push should be done by Tuesday. Sorry for the delay.


JSB241

New Member
Joined
Sep 5, 2018
Messages
3
Reaction score
1
Thank you ZeSlammy!
I stumbled onto your GitHub page and set out to build the 1.4" version... no luck. I did ended up getting a 2" version working great, once I found this thread. Please update your GitHub instructions!

I have (3) Ispindels working in rotation! CV files are still an issue.


DuncB

Well-Known Member
Joined
Jun 5, 2019
Messages
1,727
Reaction score
870
Location
Paremata New Zealand
Yes it is.
Still trying to figure out how to display the "°" symbole
That's great, do I just reinstall via brewflasher and the most upto date version is selected by brewflasher? I couldn't see a specific 2 inch display update on github.
That could easily be due to my lack of knowledge about navigating github.

Great work keep it up.


korev

Member
Joined
Sep 27, 2021
Messages
20
Reaction score
3
Location
Sydney, Australia
Hello
The version allowing the deletion is on the GitHub and I think on BrewFlasher as well (when you log onto the iSpindHub, you'll see a trash can icon next to the name of the file).

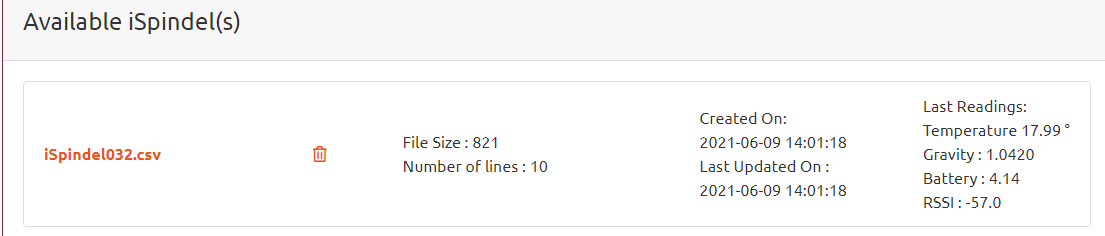

View attachment 747454
It's not fully finished (no error handling) but it does the job.

BrewFather data push should be done by Tuesday. Sorry for the delay.
No worries. Thanks for all your good work.

Cheers

OP
ZeSlammy

ZeSlammy

Well-Known Member
Joined
Mar 27, 2020
Messages
99
Reaction score
53
Location
Besançon, France
That's great, do I just reinstall via brewflasher and the most upto date version is selected by brewflasher? I couldn't see a specific 2 inch display update on github.
As soon as I have a working version, I push it to BrewFlasher.
Got the ° working. Pushing to web services on the way.


korev

Member
Joined
Sep 27, 2021
Messages
20
Reaction score
3
Location
Sydney, Australia
As soon as I have a working version, I push it to BrewFlasher.
Got the ° working. Pushing to web services on the way.
Feedback

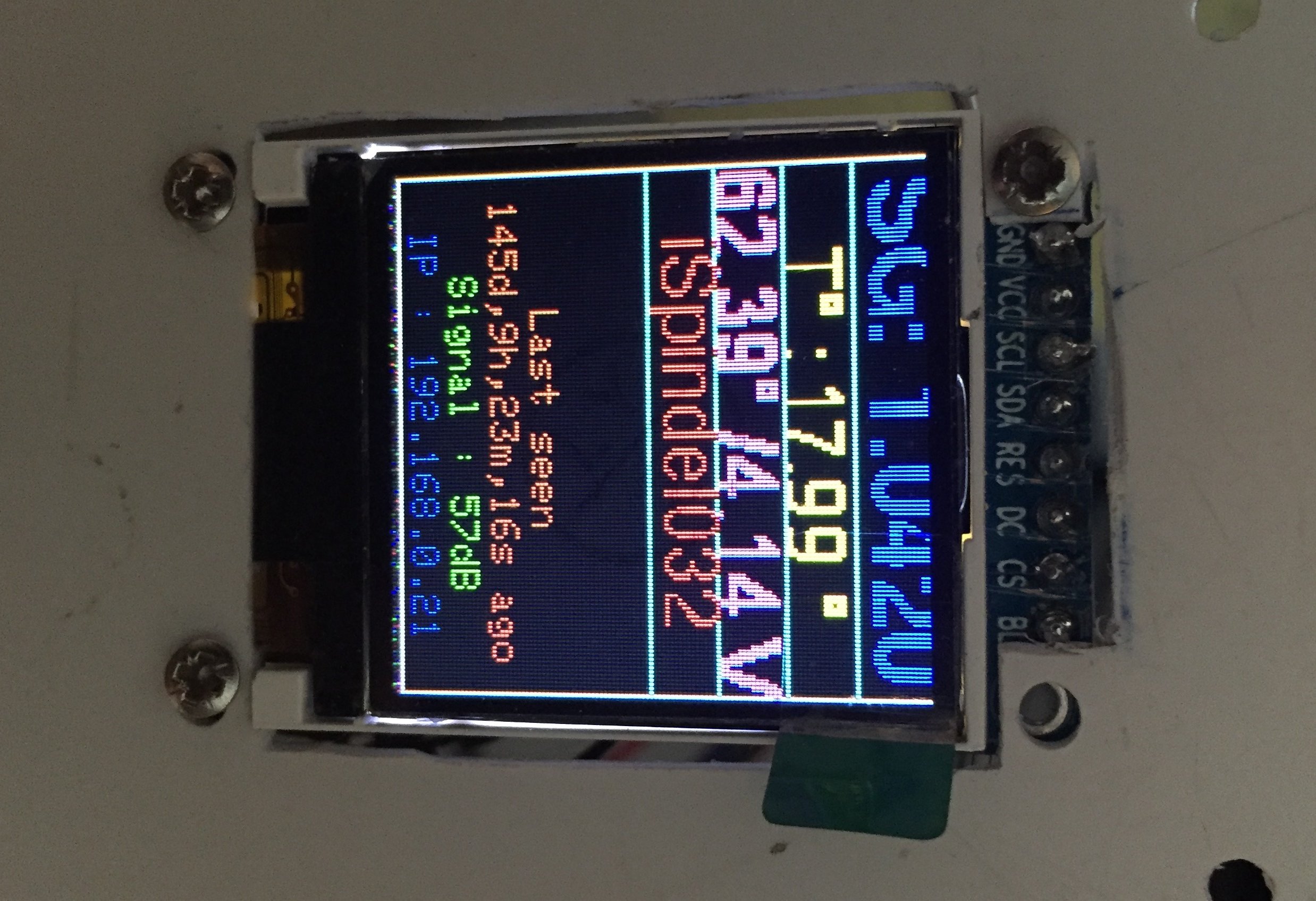

This photo shows the Brewflasher 1.4 Green tab rev 0-3 alpha version, the 1.4 Red tab is the same
Perhaps the new font may have caused screen formatting problems for the 1.4 version?

Cheers


Attachments

OP
ZeSlammy

ZeSlammy

Well-Known Member
Joined
Mar 27, 2020
Messages
99
Reaction score
53
Location
Besançon, France
Feedback
This photo shows the Brewflasher 1.4 Green tab rev 0-3 alpha version, the 1.4 Red tab is the same
Perhaps the new font may have caused screen formatting problems for the 1.4 version?

Cheers
Yeah saw that. Let me fix it :/


DuncB

Well-Known Member
Joined
Jun 5, 2019
Messages
1,727
Reaction score
870
Location
Paremata New Zealand
@ChrisThomas

Seems very variable the post, some stuff less than 2 weeks but I anticipate everything 28 days plus so my hopes don't get too high.

My screen took from 10th sept to 6th oct from these people to NZ, it's working well.


Some brew stuff has taken 60 days though and the D1 minis and gyros from

Super seller For Arduino&3D - Amazing prodcuts with exclusive discounts on AliExpress

I'm still waiting for after 6 weeks.

How is Brissle these days, traffic worse?


JSB241

New Member
Joined
Sep 5, 2018
Messages
3
Reaction score
1

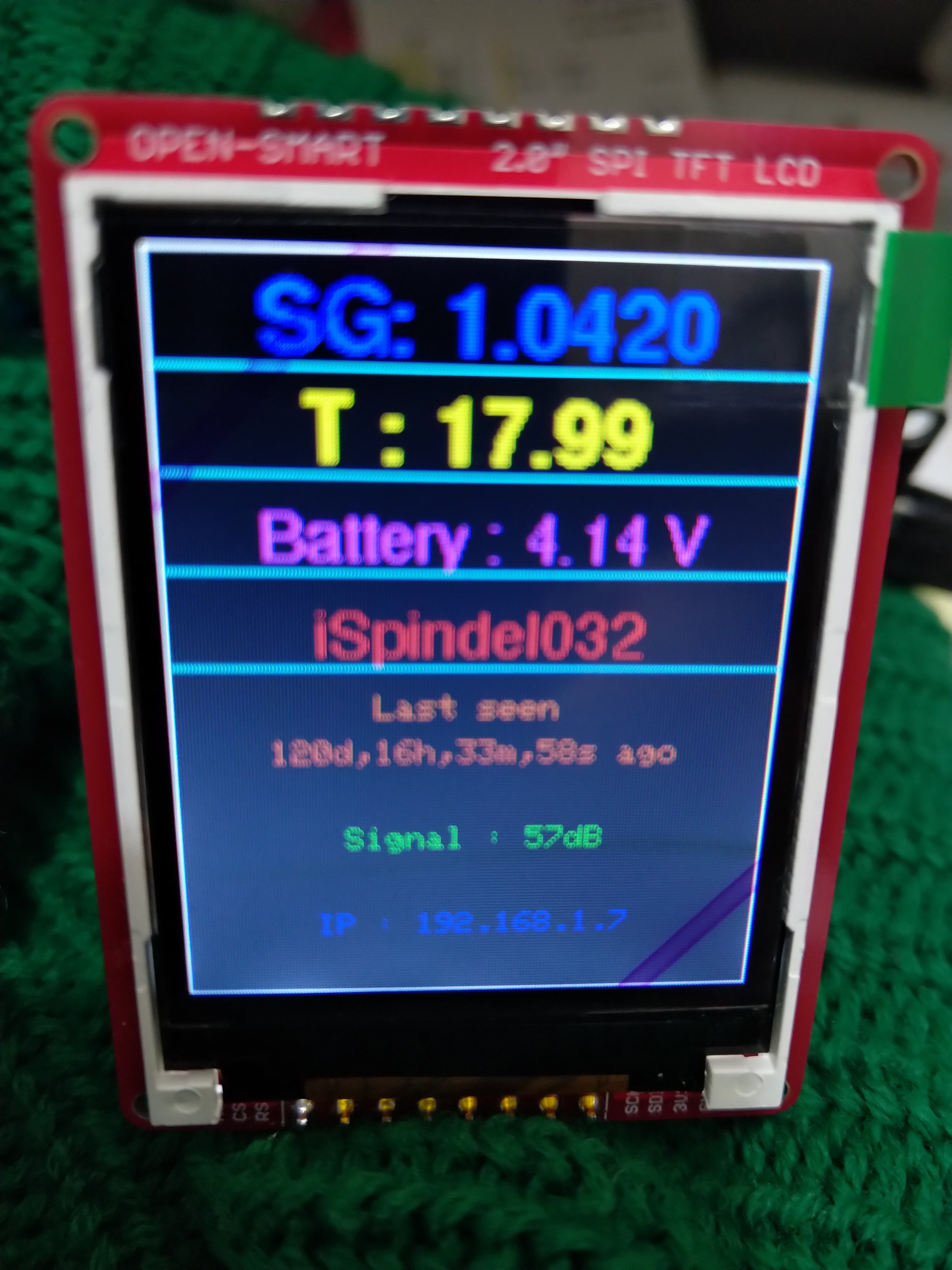

My 2" display is an OPEN-SMART... works great.. I now only buy D1 Minis straight from the Lolin store on Aliexpress .... some random weird issues with the knock offs.


ChrisThomas

Well-Known Member
Joined
Aug 11, 2019
Messages
111
Reaction score
27
Location
Bristol, UK
@ChrisThomas

Seems very variable the post, some stuff less than 2 weeks but I anticipate everything 28 days plus so my hopes don't get too high.

My screen took from 10th sept to 6th oct from these people to NZ, it's working well.


Some brew stuff has taken 60 days though and the D1 minis and gyros from

Super seller For Arduino&3D - Amazing prodcuts with exclusive discounts on AliExpress

I'm still waiting for after 6 weeks.

How is Brissle these days, traffic worse?
Some stuff I ordered later arrived weeks ago, still electronics but different supplier, never used this supplier before. Ditto with D1 mini's, I always buy from Lolin on Aliexpress but I also use a eBay supplier sometimes which has proven to use quality stuff, and delivers faster.

Brissle traffic, if you can believe it is much worse, public transport is getting more expensive and less "useful". Where we are, they've just build a "Thoughabout" to replace a busy roundabout at the cost of £2.8million. So this works much like a motorway, filter left to turn right, downside is that there's almost no sliproad for the traffic to wait on to turn right. Been in place 3 days, some chaos, can't wait for traffic to return to normal after the holidays and wait for the first person to try and turn right in the right hand lane. Our traffic planners have always been different! One of the best parts of this though is the signage, almost all of it is on the road, so when it's busy you've got no idea of what lane to use to go where, also the junction has 26 sets of traffic lights! The best part though is that one of the local area names they've used nobody knows where it is, but then they probably didn't want to abbreviate "Cock Road", they've replaced it with Mount instead...

Last edited:
OP
ZeSlammy

ZeSlammy

Well-Known Member
Joined
Mar 27, 2020
Messages
99
Reaction score
53
Location
Besançon, France
Feedback
This photo shows the Brewflasher 1.4 Green tab rev 0-3 alpha version, the 1.4 Red tab is the same
Perhaps the new font may have caused screen formatting problems for the 1.4 version?

Cheers
Hey there.
Corrected.On Github and through BrewFlasher.

BrewFather later today.


wd16261

Well-Known Member
Joined
Aug 5, 2019
Messages
84
Reaction score
20
Location
Belgium
I've installed the latest version for the 1.7" and I came up with some issues that you probably already know:
1. When I delete the default file ispindel032.csv I'm redirected to a page 'File Not Found.' but when I come back to the iSpindHub de file is deleted.
2. I'm missing the angle information on the website:

It would be nice to see the Angle information also.

3. Downloading the log files does not work, when I check the download process I see this:


OP
ZeSlammy

ZeSlammy

Well-Known Member
Joined
Mar 27, 2020
Messages
99
Reaction score
53
Location
Besançon, France
Yeah I'm aware of those issues.
- Angle on the Web : Will add
- No error after deletion : will try and do
- Downloading : this one seems tricky ..

OP
ZeSlammy

ZeSlammy

Well-Known Member
Joined
Mar 27, 2020
Messages
99
Reaction score
53
Location
Besançon, France
Angle on the Web : Done


Deletion brings you back to the home page.

I won't tackle download, I'd rather finish the BrewFather stuff :)


Not commited to BrewFlasher yet. On GitHub though


korev

Member
Joined
Sep 27, 2021
Messages
20
Reaction score
3
Location
Sydney, Australia

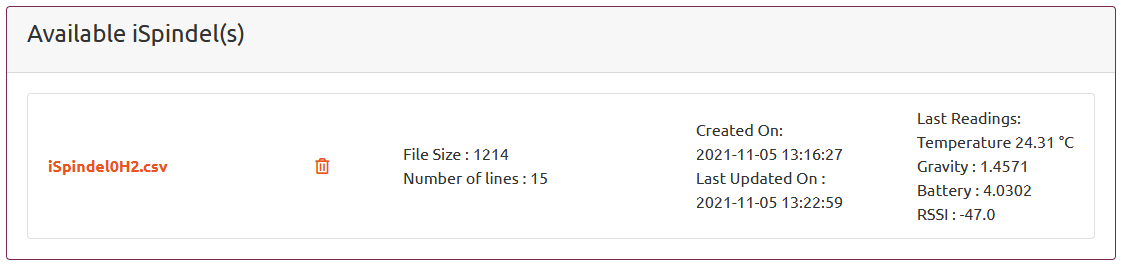

Thanks to ZeSlammy and using the version on GitHub, 6 Nov. I have had a play in the screen.cpp file and reformatted the screen display to suit my 1.44" TFT using the Sangras fonts and removing the lines, which to me, at least, seemed to add clutter.
Noting In Screen.h line 11 0xF81F // magenta 0xF81F was 0xF8FF resolved a compilation error
I used my old iSpindel which, I think has the equation configured to report in Plato. Please ignore the WHITE_[SG} label which looks wrong.

Perhaps another item for the ToDo list is to select between SG and Plato?

Cheers


Attachments

DuncB

Well-Known Member
Joined
Jun 5, 2019
Messages
1,727
Reaction score
870
Location
Paremata New Zealand
Thanks to ZeSlammy and using the version on GitHub, 6 Nov. I have had a play in the screen.cpp file and reformatted the screen display to suit my 1.44" TFT using the Sangras fonts and removing the lines, which to me, at least, seemed to add clutter.
Noting In Screen.h line 11 0xF81F // magenta 0xF81F was 0xF8FF resolved a compilation error
I used my old iSpindel which, I think has the equation configured to report in Plato. Please ignore the WHITE_[SG} label which looks wrong.

Perhaps another item for the ToDo list is to select between SG and Plato?

Cheers
That looks nicely formatted, I have a spare bit of screen real estate on the 2 inch display with the latest update. The different colours seem to be a good enough distinguisher between the data rather than needing the added lines. Hoping that font change and rearrangement will cross to the 2 inch display.
My spindel is just a test one so the gravity is all off as well.

OP
ZeSlammy

ZeSlammy

Well-Known Member
Joined
Mar 27, 2020
Messages
99
Reaction score
53
Location
Besançon, France
Thanks to ZeSlammy and using the version on GitHub, 6 Nov. I have had a play in the screen.cpp file and reformatted the screen display to suit my 1.44" TFT using the Sangras fonts and removing the lines, which to me, at least, seemed to add clutter.
Can you send me your .cpp file ?

Noting In Screen.h line 11 0xF81F // magenta 0xF81F was 0xF8FF resolved a compilation error
I don't have it in screen.h (Magenta I mean). It's coming from the main TFT_eSPI.h file

Perhaps another item for the ToDo list is to select between SG and Plato?
It displays whatever the iSpindel is sending back. But yes, I can check the value and display SG or °P or propose an option to chose what to display.


Regarding the whole display rearrangement, I will change my approach.
And optimize for each size instead of trying and have a "generic" file.
Got a 4 days week end ahead, should be able to get some work done.


korev

Member
Joined
Sep 27, 2021
Messages
20
Reaction score
3
Location
Sydney, Australia
Can you send me your .cpp file ?


I don't have it in screen.h (Magenta I mean). It's coming from the main TFT_eSPI.h file


It displays whatever the iSpindel is sending back. But yes, I can check the value and display SG or °P or propose an option to chose what to display.


Regarding the whole display rearrangement, I will change my approach.
And optimize for each size instead of trying and have a "generic" file.
Got a 4 days week end ahead, should be able to get some work done.
Yes, have sent screen files
I think that an option to select display in P or SG would be useful.

Cheers


DuncB

Well-Known Member
Joined
Jun 5, 2019
Messages
1,727
Reaction score
870
Location
Paremata New Zealand
Thanks @ZeSlammy , using all the screen realestate would be great on the 2 inch screen, then I won't need to hunt for my glasses!! It's still great though.


ChrisThomas

Well-Known Member
Joined
Aug 11, 2019
Messages
111
Reaction score
27
Location
Bristol, UK
My camel from China has finally arrived! 1.77" display, connected to D1mini, connected to WiFi, changed configuration on spare iSpindel and all working! First time!

My task this afternoon is to configure iSpinHub to forward to Fermentrack. After watching an exciting weekend of International Rugby, this is a good weekend!


Chris

OP
ZeSlammy

ZeSlammy

Well-Known Member
Joined
Mar 27, 2020
Messages
99
Reaction score
53
Location
Besançon, France
My task this afternoon is to configure iSpinHub to forward to Fermentrack. After watching an exciting weekend of International Rugby, this is a good weekend!
I can confirm it was an awesome Rugby weekend.
As far as forwarding, it's not done yet, hit a snafu with the periodic jobs. I'm on it though :(


ChrisThomas

Well-Known Member
Joined
Aug 11, 2019
Messages
111
Reaction score
27
Location
Bristol, UK
A good rugby weekend or all 6 Nations, I don't think that's ever happened before!

I thought I'd configured everything, but didn't seem to work! Celebrate the win before getting back to this! Sorry @DuncB :(

Last edited:

ChrisThomas

Well-Known Member
Joined
Aug 11, 2019
Messages
111
Reaction score
27
Location
Bristol, UK
Only comments I can make so far is that I think I'd prefer the iSpindel ID on the top line and a posssible change in font to a less bold appearance. Seems to do what it says on the tin otherwise.

Top
