Water Profile for a APA?

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

jmo88

Well-Known Member
Joined
Sep 17, 2008
Messages
1,374
Reaction score
30
Location
Seattle
Ray daniels suggests softer water than English versions. Don't burtonize your water. Think on the low side of all recommended salt ranges. CaSo4 around 50-100.


ajf

Senior Member
Lifetime Supporter
Joined
Oct 29, 2005
Messages
4,648
Reaction score
119
Location
Long Island
From Pale Ales by Terry foster
Ca 50 - 100 ppm, SO4 100 - 200 ppm, Cl 20 ppm
I've been using his recommendations for some time now, and find them excellent.

-a.


jmo88

Well-Known Member
Joined
Sep 17, 2008
Messages
1,374
Reaction score
30
Location
Seattle
Ajf- I don't have the book. What do you think, worth getting?


ajf

Senior Member
Lifetime Supporter
Joined
Oct 29, 2005
Messages
4,648
Reaction score
119
Location
Long Island
I think it was worth getting, but I don't know what you want to get out of it.
It has a lot of historical information, and a dozen recipes. Each recipe has a suggested water profile (which doesn't exactly match what some others say about water profiles).
For me, his water profiles were worth their weight in gold, and saved me a great amount of time and money in determining a suitable water treatment for English style beers.
I've also used his recommendations for APA's and American IPA's, and everybody who has tried them has been happy and come back for more.
With the exception of the water profiles, I think that Designing Great Beers (Ray Daniels) and New Brewing Lager Beer (Greg Noonan) both give much more bang for the buck.

-a.


studmonk3y

Well-Known Member
Joined
Nov 29, 2008
Messages
151
Reaction score
15
Location
Sacramento
I use Randy Mosher's profile for Pale Ales for APAs and IPAs.
Ca: 110
Mg: 18
Na: 17
Cl: 50
SO4:350
CaCO3: 57


Bobby_M

Vendor and Brewer
HBT Sponsor
Joined
Aug 3, 2006
Messages
25,221
Reaction score
4,177
Location
Whitehouse Station
I've had success with Mosher's profile too but I reduced the S04 to about 250 so that I wouldn't blow out my Ca level. My S04 is regularly 15ppm.


ajf

Senior Member
Lifetime Supporter
Joined
Oct 29, 2005
Messages
4,648
Reaction score
119
Location
Long Island
Foster gives a profile fairly similar to Mosher's for an American IPA with an OG of 1.070
Foster suggests Ca 150 - 200, SO4 300 - 400, Cl 30
I could treat my water to fall in that range, but there's no way I could get 350 ppm SO4, while keeping the Ca and Mg down to 110 and 18 respectively unless I used sulfuric acid.

-a.

OP
Julohan

Julohan

Well-Known Member
Lifetime Supporter
Joined
Apr 25, 2009
Messages
962
Reaction score
2
How does this look as a profile

Starting Water (ppm):
Ca: 26.4
Mg: 12.6
Na: 40
Cl: 90
SO4: 87.1
HCO3: 49

Mash / Sparge Vol (gal): 7.5 / 2.5
Dilution Rate: 0%

Adjustments (grams) Mash / Boil Kettle:
CaCO3: 2 / 0.67
CaSO4: 6 / 2
CaCl2: 0 / 0
MgSO4: 2 / 0.67
NaHCO3: 1 / 0.33
NaCl: 0 / 0
HCL Acid: 0 / 0
Lactic Acid: 0 / 0

Mash Water / Total water (ppm):
Ca: 103 / 103
Mg: 19 / 19
Na: 50 / 50
Cl: 90 / 90
SO4: 232 / 232
CaCO3: 96 / 96

RA (mash only): 11 (6 to 11 SRM)
Cl to SO4 (total water): 0.39 (Very Bitter)


Elysium

Well-Known Member
Joined
Feb 18, 2013
Messages
1,190
Reaction score
23
Location
Madrid
From Pale Ales by Terry foster
Ca 50 - 100 ppm, SO4 100 - 200 ppm, Cl 20 ppm
I've been using his recommendations for some time now, and find them excellent.

-a.
I actually go with 155 Cl and 182 SO4 and I find that my APAs do not have the necessary fruitiness.
Do you think I should lower the Cl to a minimum?


ajf

Senior Member
Lifetime Supporter
Joined
Oct 29, 2005
Messages
4,648
Reaction score
119
Location
Long Island
In my opinion, 155 ppm Cl is much too high. I would reduce it to a maximum of 30, and (when you drink it) make a note of the difference it makes.

-a.


mabrungard

Well-Known Member
Lifetime Supporter
Joined
Feb 22, 2011
Messages
5,969
Reaction score
1,905
Location
Carmel
I actually go with 155 Cl and 182 SO4 and I find that my APAs do not have the necessary fruitiness.
Do you think I should lower the Cl to a minimum?
As mentioned above, that Cl level is probably too high. The combination of high sulfate and high chloride tends to produce minerally perceptions and flavor. Fortunately, the 182 ppm sulfate is not really high. If you boost the sulfate to 300+ ppm and used that high chloride, I'm pretty sure the beer would come across as minerally. Reducing the chloride to under 50 ppm is a good idea if you want to toy with the high sulfate level that I prefer: 300 ppm.


jwalk4

Well-Known Member
Joined
Jun 2, 2012
Messages
1,172
Reaction score
267
Location
St. Thomas
This thread is nearly 2 years old, so I feel secure in jacking it.

2 questions about nailing a pale ale profile:

1) I only have Calcium Chloride and Gypsum at my disposal, can I match this profile without raising my Chloride levels too high? Oops. Edit: I forgot about epsom salts. I can get that easily and that seems to boost my sulfate quite a bit

2) I like a pale ale that balances the hops and a malty backbone. With Brunwater's Pale Ale profile, the SO4/CL ratio is 5.5 (VERY bitter territory). Soothe my fears, if possible. How much does the ratio matter? I read AJ's sticky on the subject, but it doesn't really answer my question.

Edit: New screen shots



@Yooper, @mabrungard ?

Thanks guys.


mabrungard

Well-Known Member
Lifetime Supporter
Joined
Feb 22, 2011
Messages
5,969
Reaction score
1,905
Location
Carmel
The more factual descriptors for the ratio are: full and dry, not malty and bitter. Having a higher SO4/Cl ratio means that the beer finish is going to be more drying. That allows the hop flavor and bittering to come through a little more to the drinker. It does not actually make the beer more bitter.

Using epsom salt is a good idea for these bittered and hoppy styles. You don't use much. I just finished my first pound box of epsom salt and it only took 13 years of brewing. The smallest package I could subsequently find was a 2 pound bag, so that should last longer than I will.


Yooper

Ale's What Cures You!
Staff member
Admin
Mod
Lifetime Supporter
Joined
Jun 4, 2006
Messages
74,661
Reaction score
12,279
Location
UP/Snowbird in Florida
From the screenshot, it looks like you're adding both baking soda, and lactic acid? You don't want to do that. Remove the baking soda and see where the mash pH is, and go from there.


jwalk4

Well-Known Member
Joined
Jun 2, 2012
Messages
1,172
Reaction score
267
Location
St. Thomas
From the screenshot, it looks like you're adding both baking soda, and lactic acid? You don't want to do that. Remove the baking soda and see where the mash pH is, and go from there.
I was thinking of using the baking soda for the sodium content.

I know that the baking soda and acid is redundant as far a PH goes.

Would you suggest I skip the sodium addition?


rnm410

Well-Known Member
Joined
Feb 9, 2014
Messages
254
Reaction score
16
Location
Baton Rouge
This thread is nearly 2 years old, so I feel secure in jacking it.

2 questions about nailing a pale ale profile:

1) I only have Calcium Chloride and Gypsum at my disposal, can I match this profile without raising my Chloride levels too high? Oops. Edit: I forgot about epsom salts. I can get that easily and that seems to boost my sulfate quite a bit

2) I like a pale ale that balances the hops and a malty backbone. With Brunwater's Pale Ale profile, the SO4/CL ratio is 5.5 (VERY bitter territory). Soothe my fears, if possible. How much does the ratio matter? I read AJ's sticky on the subject, but it doesn't really answer my question.

Edit: New screen shots



@Yooper, @mabrungard ?

Thanks guys.
I started with 250-300 ppm sulfate, tasted off to me. Since I have backed down to 150 ppm and 50 chlorides. What I leaned in doing the switch is: 250 ppm sulfate bloated the drinkers of the beer, made them feel full i.e. Caused water retention in the gut which is what epsom salt does, and the beer had an artificial mineral taste to it. I also learned is to establish a known ratio for a beer style, start on the lower end of the scale and add the missing qualities of minerals to your beer upon tasting. Using palmers how to brew water additions section is helpful in outlining the ppm range and qualities of water salts. I've even made diluted salt solutions to add to beer when it was finished to dial in mineral qualities.

It's easy to add salt, but once its in there...


ajdelange

Well-Known Member
Lifetime Supporter
Joined
Aug 5, 2010
Messages
11,959
Reaction score
2,724
Location
McLean/Ogden
Caused water retention in the gut which is what epsom salt does,
Well it often isn't retained that long and it's the magnesium. Think milk of magnesia (Mg(OH)2), magnesium citrate and what they are used for.

..and the beer had an artificial mineral taste to it.
Not too surprising that lots of minerals lend a mineral taste.

I also learned is to establish a known ratio for a beer style, start on the lower end of the scale and add the missing qualities of minerals to your beer upon tasting.
I think this is very wise and often advise people to start out with very low levels of both sulfate and chloride or even just chloride and build up after tasting dosed finished beer.


BrewerNH

New Member
Joined
Nov 29, 2011
Messages
4
Reaction score
0
Location
Windham
Hi, I am also trying to get my water to a good APA profile. I have been disappointed with the various all grain Pale Ale attempts I've made, I'm concerned the water maybe a contributor. I did have very good results with a Helles. Attached is my water report from Ward. I have loaded them into Brun Water, and made some adjustment. Before I fire up the kettles, is there any recommendations or comments?

Thank you, John



ajdelange

Well-Known Member
Lifetime Supporter
Joined
Aug 5, 2010
Messages
11,959
Reaction score
2,724
Location
McLean/Ogden
I was thinking of using the baking soda for the sodium content.

I know that the baking soda and acid is redundant as far a PH goes.
Assuming you want a mash pH of 5.5 and 1 mol (23 mg) of sodium per L you could add 1 mmol of NaHCO3 and 0.91 mmol of lactic acid to each liter. You would have 0.12 mmol/L bicarbonate and 0.91 mmol of lactate ion in the water.

Or you could add 1 mmol of NaLac and .027 mmol of lactic acid per liter (the extra acid needed because NaLac is a slightly basic salt) leaving 1 mmol/L sodium and 1.027 mmol/l Lac-. The pH is the same in either case and the resulting ion concentrations are pretty close. So take your pick. I assume you don't have calcium lactate to hand so I'm sure you'd pick the first method. Lowering pH in the mash/kettle will get rid of the extra bicarbonate.


jwalk4

Well-Known Member
Joined
Jun 2, 2012
Messages
1,172
Reaction score
267
Location
St. Thomas
Assuming you want a mash pH of 5.5 and 1 mol (23 mg) of sodium per L you could add 1 mmol of NaHCO3 and 0.91 mmol of lactic acid to each liter. You would have 0.12 mmol/L bicarbonate and 0.91 mmol of lactate ion in the water.
What instrument would I need to measure at those quantities?


mabrungard

Well-Known Member
Lifetime Supporter
Joined
Feb 22, 2011
Messages
5,969
Reaction score
1,905
Location
Carmel
Hi, I am also trying to get my water to a good APA profile. I have been disappointed with the various all grain Pale Ale attempts I've made, I'm concerned the water maybe a contributor.
I'm hoping that you added some degree of mineralization to that water. While that water is a great starting point, it could use more mineralization for many beer styles. I find this is especially true when brewing APA or IPA. They would be a bit bland if brewed with that unadulterated tap water.


ajdelange

Well-Known Member
Lifetime Supporter
Joined
Aug 5, 2010
Messages
11,959
Reaction score
2,724
Location
McLean/Ogden
You'd measure the bicarbonate or sodium lactate with a balance and the lactic acid (which brewers usually buy as a solution) with a pipette though it can be measured with a balance as well.


mabrungard

Well-Known Member
Lifetime Supporter
Joined
Feb 22, 2011
Messages
5,969
Reaction score
1,905
Location
Carmel
Any sort of mass measuring device that can reliably discern to about 0.1 grams is suitable for typical homebrewing use. Larger breweries might be able to get by with a scale that discerns down to about 1 gram.


ajdelange

Well-Known Member
Lifetime Supporter
Joined
Aug 5, 2010
Messages
11,959
Reaction score
2,724
Location
McLean/Ogden
I should have said 'scale' though indeed they all balance something or other against the force of gravity.

We talked about a mmol of sodium in the earlier post. You'd get that from a millimole of sodium bicarbonate which weighs 83 mg or 0.083 gram. It would be nice to have something that weighs down to 0.001 gram (1 mg) and indeed these can be found for under $100 but they have small upper capacity limits e.g. 20 g x 0.001 g. These are a bit harder to find than scales rated 100g x 0.01 g or thereabouts and there are dozens of those to choose from. The high accuracy, low total weight ones are often used by jewelers so check 'jewelers scale' and 'gram scale'.

High accuracy is necessary when experimenting with the amounts of salts/acids/bases to be added to small volumes of water in the 'lab' (your kitchen or garage). When scaling up to full brew size the high accuracy is no longer needed and 20 grams total capacity may not be enough. A kitchen scale that reads 500 g x 0.01 g or x 0.1 g will do for that.


BrewerNH

New Member
Joined
Nov 29, 2011
Messages
4
Reaction score
0
Location
Windham
I'm hoping that you added some degree of mineralization to that water. While that water is a great starting point, it could use more mineralization for many beer styles. I find this is especially true when brewing APA or IPA. They would be a bit bland if brewed with that unadulterated tap water.
Thank you Martin.

Here's my first pass using your calculator. I read your excellent Brun Water paper last night, I'm a bit overwhelmed by all of this. Clearly, I don't know what don't know, but getting closer. Any comments or suggestion are most welcome. For the record the water comes from a deep well, ~35 miles north of Boston. "Bland" is a good description of the previous results.

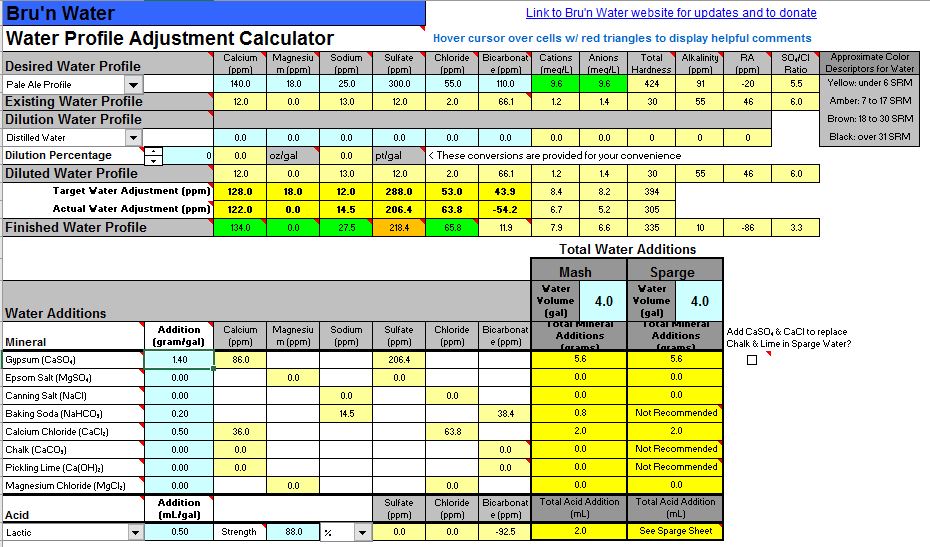

Water adjustment 1.JPG


ajdelange

Well-Known Member
Lifetime Supporter
Joined
Aug 5, 2010
Messages
11,959
Reaction score
2,724
Location
McLean/Ogden
Martin,

Just looking at #28 and noticed that his source water was unbalanced by 0.2 but that the finished water is unbalanced by 1.3. If I take his alkalinity number as correct (IOW if he took alkalinity from his water report and calculated bicarbonate from that rather than the other way around) his profile balances at pH 6.62. Making the additions he made to the balanced profile I get a finished profile with 7.90 mEq/L cations and anions. I believe you forgot to include the, in this case, lactate ion as its contribution is equal to the spreadsheet's anion deficit.


mabrungard

Well-Known Member
Lifetime Supporter
Joined
Feb 22, 2011
Messages
5,969
Reaction score
1,905
Location
Carmel
Yes, the free-version of the sheet doesn't include the proper accounting of the added acid anion. It is an otherwise innocuous error that doesn't affect the results.


J-Rock44

Member
Joined
Jun 15, 2015
Messages
24
Reaction score
1
Location
Columbia Heights
Hey just out of curosity, where do you obtain the figures for your water? Send it off to a Lab? Or maybe you have an in house kit?


BrewerNH

New Member
Joined
Nov 29, 2011
Messages
4
Reaction score
0
Location
Windham
Hey just out of curosity, where do you obtain the figures for your water? Send it off to a Lab? Or maybe you have an in house kit?

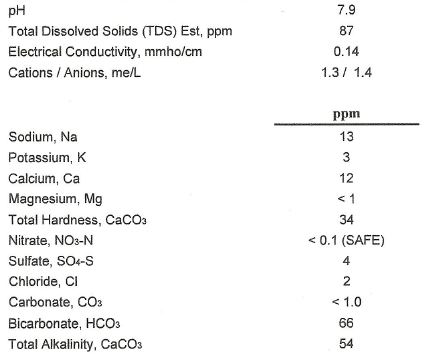

My results came from Ward Laboratories. It's a painless process with options for submitting samples and report types.

John


ajdelange

Well-Known Member
Lifetime Supporter
Joined
Aug 5, 2010
Messages
11,959
Reaction score
2,724
Location
McLean/Ogden
Yes, the free-version of the sheet doesn't include the proper accounting of the added acid anion. It is an otherwise innocuous error that doesn't affect the results.
Capisco but it sort of says 'This spreadsheet has an error. What else is wrong?' I'd rather put blank fields than something that is obviously wrong. Perhaps put a solid field (no number) of a particular color with an annotation, and/or general comment in the instructions, that says when you wave your credit card you get to see what's behind the green doors.


Brewdogs

New Member
Joined
Apr 1, 2021
Messages
4
Reaction score
2
Location
India
I use Randy Mosher's profile for Pale Ales for APAs and IPAs.
Ca: 110
Mg: 18
Na: 17
Cl: 50
SO4:350
CaCO3: 57

Are those figures in grams for a 5 gallon batch or are they in ppm?

Also, if it's in PPM, that is equal to mg/ litre. So I should just multiply by the number of litres of the total water used (mash+sparge) to arrive at amounts of salt needed ,right?

Sorry, I'm a noob. I have to know this before my first batch.. and I'm using RO..

Thanks in advance.


VikeMan

It ain't all burritos and strippers, my friend.
Joined
Aug 24, 2010
Messages
3,385
Reaction score
2,359
Are those figures in grams for a 5 gallon batch or are they in ppm?
Those numbers @studmonk3y quoted are in ppm.

Also, if it's in PPM, that is equal to mg/ litre. So I should just multiply by the number of litres of the total water used (mash+sparge) to arrive at amounts of salt needed ,right?
Sort of. You can't add any of these cations or anions without also adding an associated anion/cation. Examples: to add calcium, you have to add it as calcium chloride, or calcium sulfate, or even calcium hydroxide.

So to do the math, you have to know what percentage of the weight of the salt is made up of the ion you are targeting. And when building a whole profile, the math is cumbersome. That's why there are several software options, some free, that make it easier.


Brewdogs

New Member
Joined
Apr 1, 2021
Messages
4
Reaction score
2
Location
India
Those numbers @studmonk3y quoted are in ppm.



Sort of. You can't add any of these cations or anions without also adding an associated anion/cation. Examples: to add calcium, you have to add it as calcium chloride, or calcium sulfate, or even calcium hydroxide.

So to do the math, you have to know what percentage of the weight of the salt is made up of the ion you are targeting. And when building a whole profile, the math is cumbersome. That's why there are several software options, some free, that make it easier.
Thank you so much for the reply. I'll read more about this and also use calculators that are available online.
Cheers!
