I've done a search and seen some fantastic ideas, but I'd like to see if anyone else will chime in with some thoughts.
I've been tasked to brew the beer for our company picnic and bbq competition later this year. Not being the guy to do something simple and ice down a keg in a bucket, I plan on building a portable kegerator to bring the brew. I'm not afraid of the layman thinking it looks redneck, in fact I used a cube cooler to build a stereo using 4 6x9's and a car stereo... I'm kinda partial to the diy redneck look and have been known for it.
If all I can fit is a single 5 gallon keg, that is fine, but I'd like the keg to fit inside completely, and just have a tap on the outside. As I said, any ideas would be awesome. This will also serve as my camping kegerator.

Thanks in advance for all the help!!!


beninan

Well-Known Member
Joined
Mar 23, 2010
Messages
994
Reaction score
19
Location
Maine
Research Jockey Boxes. a lot of people make them out of coolers and trash cans, with a tap out of the side or even a tower setup.

OP
J

Jkstone

Active Member
Joined
Jan 29, 2011
Messages
38
Reaction score
1
Location
Kansas City
Now I didn't see the truck box one, very nice! Probably looking for a tad more portable though. I don't know of any coolers that are tall enough for a 5 gallon corny though... I saw the trash kegerator, but I'm hoping to get something smaller.

OP
J

Jkstone

Active Member
Joined
Jan 29, 2011
Messages
38
Reaction score
1
Location
Kansas City
I may have come up with an idea. I am wanting something compact and convenient. At walmart yesterday I saw one of those stainless flip top trash cans, the right one would be oval and about 28" tall. They have a removable liner that I could put insulation between and have a spout come out the front. Pro's, con's? Does this sound like it would work?

OP
J

Jkstone

Active Member
Joined
Jan 29, 2011
Messages
38
Reaction score
1
Location
Kansas City
I got a 20 ounce co2 and picked up a kobalt mini air regulator to see if it will work. I don't see why it wouldn't and it's much smaller than a standard regulator. I'll try to post some pics later.


kpr121

Well-Known Member
Joined
Jul 30, 2009
Messages
3,119
Reaction score
136
Location
Pittsburgh
I too am looking into a portable kegerator solution. Right now I am leaning toward the plastic wheeled trash can (I think its BierMuncher's post that gave me that idea). I really like the idea of being able to hold two or three separate kegs and I just don't think that can be done cheaply any other way.


JoeBronco

Well-Known Member
Joined
Jan 15, 2011
Messages
814
Reaction score
16
Location
East Bay
Here's the co2/regulator setup I'm going to try out.
It will be a little hard to get your pressure accurate with those regulators. You may want a secondary or a gauge on your keg to double check. Those smaller regulators are more of a "here is what we think the pressure is" rather than an exact LBS.


rmullins

Well-Known Member
Lifetime Supporter
Joined
Apr 15, 2007
Messages
356
Reaction score
7
Location
Long Island
I remember seeing plans in an old BYO issue (and I have gone through everyone I have so it must have been tossed of course) of a portable display that somebody built, that had a white board above where all of the taps were. The kegs were just in a garbage can with ice, but the display was really nice


sanch

Well-Known Member
Joined
Jun 14, 2009
Messages
256
Reaction score
4
Location
Mesa town
I used a water softener brine tank inside a plywood box with styrofoam insulation it will fit a sanke or two cornies. At the dunes it stayed cold for 5 days with 3 bags of ice


Cpt_Kirks

Well-Known Member
Joined
Sep 11, 2008
Messages
3,704
Reaction score
59
Location
Lakeland TN
Mine holds two 3 gallon kegs, but I have plans to add a removable collar that will allow it to hold 5 gallon kegs.







:mug:


kpr121

Well-Known Member
Joined
Jul 30, 2009
Messages
3,119
Reaction score
136
Location
Pittsburgh
I really like that. Are the 3 gallon cornys the same diameter as 5 gallon? I have the same cooler and I might think about building a collar for it if I can fit two kegs. I also have some converted pinlocks, that have a larger diameter. I would imagine those may not fit. I will have to test fit tonight.


Yooper

Ale's What Cures You!
Staff member
Admin
Mod
Lifetime Supporter
Joined
Jun 4, 2006
Messages
74,903
Reaction score
12,756
Location
UP/Snowbird in Florida
Mine holds two 3 gallon kegs, but I have plans to add a removable collar that will allow it to hold 5 gallon kegs.



:mug:
That's awesome! I have three 3-gallon kegs, and I'd love to make one of these for our trips to Texas. Right now, we're using this for parties:


It holds four kegs, but we only have three taps on it. It can easily hold the three kegs and a 5 pound co2 tank and regulator.

OP
J

Jkstone

Active Member
Joined
Jan 29, 2011
Messages
38
Reaction score
1
Location
Kansas City
Well I built a small scale portable kegerator. It's not my ultimate goal, but it will work for small parties/BBQs. A 2 1/2 gallon water filled fire extinguisher that I've replaced the dip tube, spout and fittings on. It's pressurized with a 16 oz co2 charger.



JoeBronco

Well-Known Member
Joined
Jan 15, 2011
Messages
814
Reaction score
16
Location
East Bay
Well I built a small scale portable kegerator. It's not my ultimate goal, but it will work for small parties/BBQs. A 2 1/2 gallon water filled fire extinguisher that I've replaced the dip tube, spout and fittings on. It's pressurized with a 16 oz co2 charger.
Nice... Got one too! I use a paintball tank to force carb!


JuanMoore

Getting the banned back together
HBT Supporter
Joined
Oct 19, 2009
Messages
29,305
Reaction score
7,111
Location
The Old Pueblo
I may have come up with an idea. I am wanting something compact and convenient. At walmart yesterday I saw one of those stainless flip top trash cans, the right one would be oval and about 28" tall. They have a removable liner that I could put insulation between and have a spout come out the front. Pro's, con's? Does this sound like it would work?
That's what I was going to suggest. I recently bought one of these in a stainless finish at target to use as a diaper pail, and as I unpacked it I couldn't help thinking that it would be the perfect size for a corny keg. It was on sale locally for $25.


toolboxdiver

Well-Known Member
Joined
Feb 9, 2011
Messages
293
Reaction score
64
Location
Hatboro
here is my portable kegerator it holds 2 corny's or a 1/2 barrel sanke or either 1/4 barrel sanke kegs. I put a 36 gal trash can in a 55 gal drum and insulated it with foam on bottom and spray foam on sides then I put insulation on top under open head cover. it keeps a 1/2 barrel sanke cold for 2 days when iced down so it is awesome for tailgating or concerts and small parties

http://www.flickr.com/photos/[email protected]/5582905105/

http://www.flickr.com/photos/[email protected]/5582905119/

http://www.flickr.com/photos/[email protected]/5582905111/

http://www.flickr.com/photos/[email protected]/5582905107/

OP
J

Jkstone

Active Member
Joined
Jan 29, 2011
Messages
38
Reaction score
1
Location
Kansas City
Ok, so I've come up with a design I'm going with. It should hold two five gallon cornies and have room for some ice. It's a work in progress but as you can see I have a plastic bin sitting in a wooden frame. I'll put some kind of veneer to wrap it and insulate between the veneer and bin. I'll also put a drain in the bottom and have a lid with taps on the top. Dimensions are about 33"x22"x13". I'm also thinking about putting casters on the bottom. What do y'all think?







Frank347

New Member
Joined
Apr 23, 2011
Messages
1
Reaction score
0
Location
Laval
The objective here is to be able to serve anywhere right? Then my opinion is that you could chill the beer in line as opposed to all your (good) idea to chill the keg. I used a design created by a friend of mine and inserted 50 foot of 1/4 stainless steel coil into a 3 gallons Bubba keg ( http://p0.flyerland.ca/images/products/1372000/1372212_image.jpg ). Fill it with ice and serve at around 25psi, as simple as that!
I'll post pictures if anyone is interrested.

OP
J

Jkstone

Active Member
Joined
Jan 29, 2011
Messages
38
Reaction score
1
Location
Kansas City
Building with one battery for all my tools sucks! I put a drain in the bottom of the bin and attached a tube that will run out the back near the bottom. I put expanding foam int the bottom to create insulation and secure the bin. The front and back veneer are on ( I used dry erase board, friends can sign it with permanent marker and I can use dry erase marker to label the beer). Battery is charging now, back to it in an hour!






OP
J

Jkstone

Active Member
Joined
Jan 29, 2011
Messages
38
Reaction score
1
Location
Kansas City
Been a while since I have updated this. I've got the shell about done. I'm gonna use a torch to bring out the grain in the wood. All I gotta do is order the shanks and add a few finishing touches.



TripleHopped

Well-Known Member
Lifetime Supporter
Joined
Aug 26, 2009
Messages
277
Reaction score
25

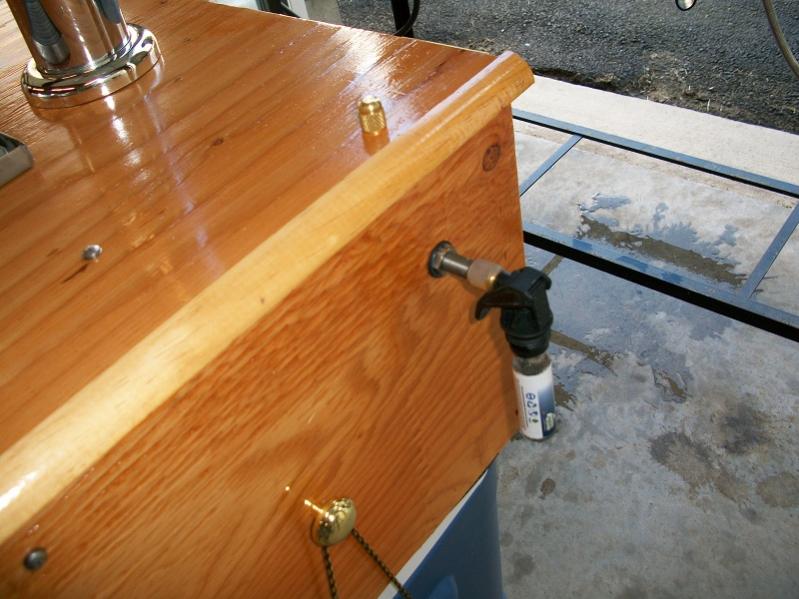

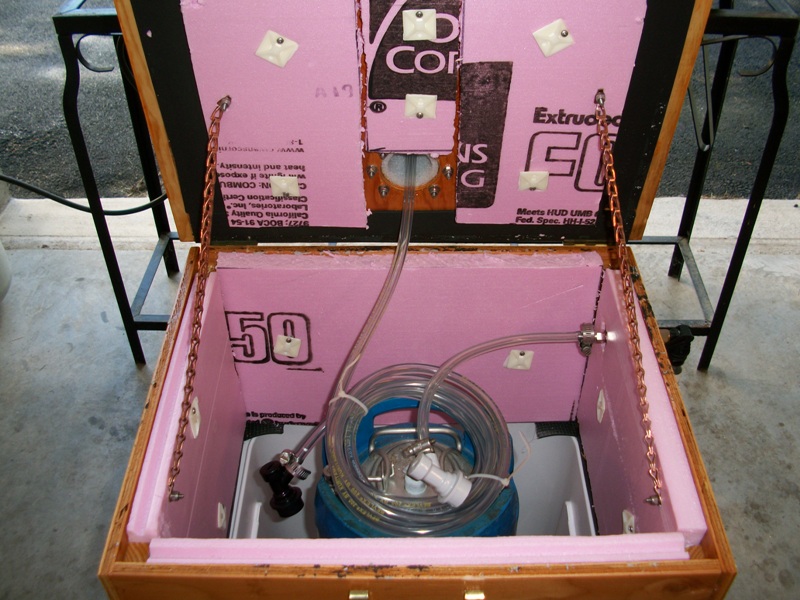

Didn't see this thread until today. I made this one a couple of years ago. My plans were to add a SS shank to it, but I'm still using the picnic tap. I want to switch the 5 lb. tank for a paint ball tank someday too.



wncbrewer

Well-Known Member
Joined
Feb 4, 2011
Messages
431
Reaction score
16
Location
sylva
mine is a cooler with two taps, with stainless coils plumbed into each tap. the kegs are stored outside the cooler, ice inside around the coils. I like this design because it chills pretty much instantly...no waiting around on the entire keg to get cold. it was previously one of morebeer's rentals and I got it for a really, really good price because they were tired of cleaning it between rentals. it works beautifully. if anyone is interested I'll post some pics when I get home this evening


Smashing

Well-Known Member
Joined
Feb 9, 2010
Messages
1,037
Reaction score
142
Location
Kent/Brockport NY
Not sure what you guys are using to overcome the pin valve on paintball tanks but I use one of these...

Click me

It replaces the valve that comes with the tank and has no pin. Fits right in a standard regulator.


Gwitz

Well-Known Member
Joined
Apr 29, 2010
Messages
195
Reaction score
3
Location
Kamloops
For my paintball co2 setup i bought a fitting thats screws onto the pinvalve on the tank, it has a 1/8 threaded opening. I bought a 1/8 to 1/4 adapter and that screws into a regular co2 regulator. Works really well.

For my portable kegerator i have a square cooler that i can fit an entire coke keg inside of, co2 tank and all with a faucet mounted on the door. And i have another smaller cooler that i cut an opening in the end that fits snuggly a pepsi keg with just the rubber handle sticking out, i like it better because the co2 is outside of the cooler for easier adjustment.
