PIDs Vs Raspberry PI build.

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

If you could build an electric brewing setup again.

  • Kal Clone/PIDs

  • Raspberry PI/Strange brew


Results are only viewable after voting.

GoodaleBrewing

Active Member
Joined
Aug 29, 2013
Messages
30
Reaction score
4
Location
Storm Lake
So I have been prepping to make an electric setup that I can use in my basement to get out of the cold of my garage in the winter. I plan on going with a 3 keg build with 2 pumps either way and am weighing my options on control box. I had planned on building a kal clone style 3 PID setup but every time I come into the electric brew section I see post about Raspberry PI builds (Strange Brew). Can anybody give a good pros and cons list between the two setups.

What I think is correct already.

Pros of PIDs
Actual switches you can touch

Cons
More difficult to expand (case space)


Pros of Rasberry Pi
Cheaper?(depending on touch screen)
Easier expansion and layout changes (if you have room inside the case)

Cons
Without screen relies on internet connection (will probably use a screen anyway)
Errors with Raspberry Pi??


golfindia

Well-Known Member
Joined
Dec 6, 2015
Messages
527
Reaction score
155

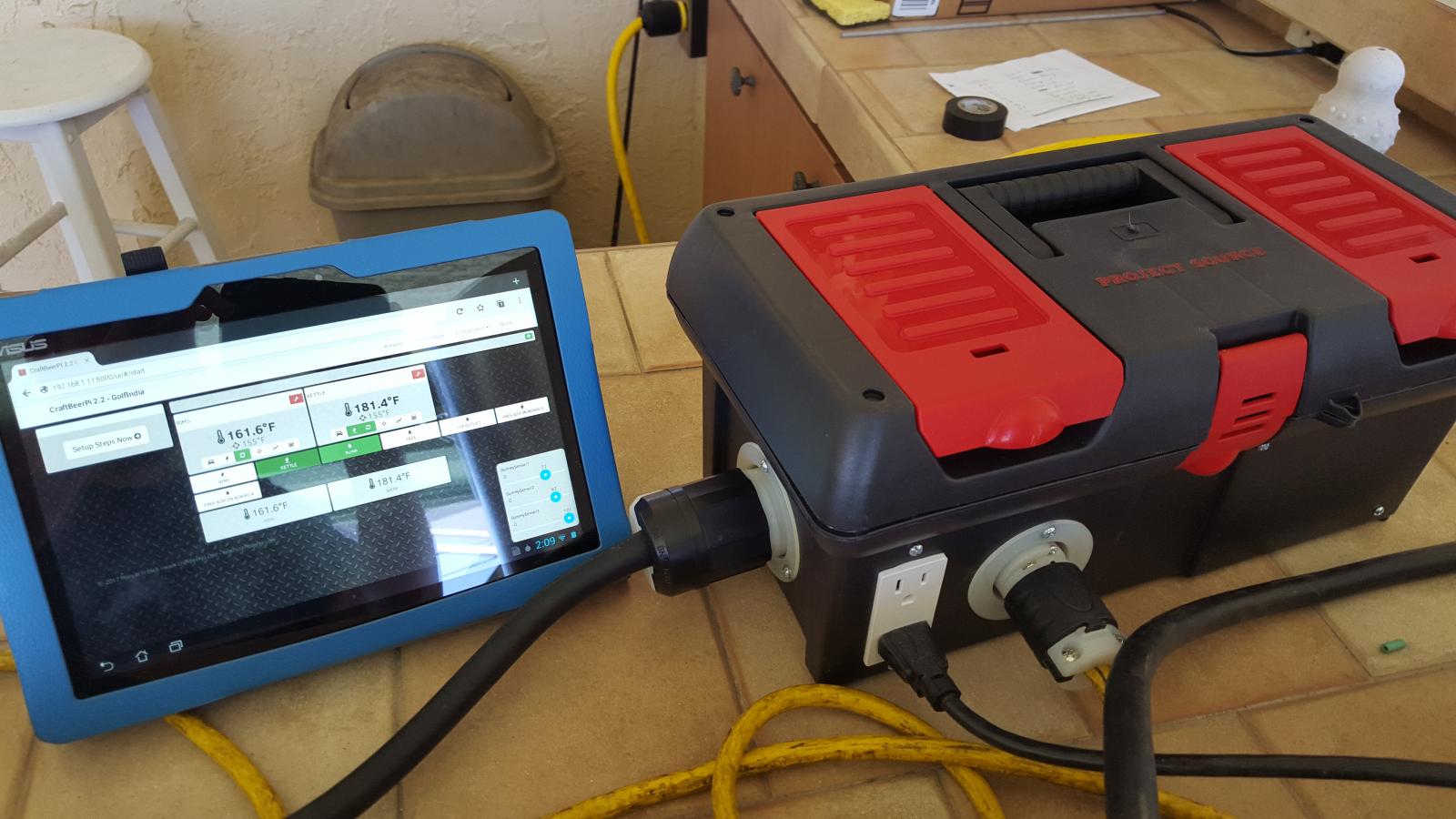

Raspberry pi is more work to set up, but it's much more convenient than babysitting switches and a panel. Basically it cuts the cord and you don't have to stand around the brewstand for several houra. I have 2 SSRs and 7 relays in a toolbox.




OP
GoodaleBrewing

GoodaleBrewing

Active Member
Joined
Aug 29, 2013
Messages
30
Reaction score
4
Location
Storm Lake
That is an awesome box you made. That might be what I do if I go down the PI route. Is there a big difference between craftbeerPI and Strangebrew or same basic thing?


CadiBrewer

Supporting Member
HBT Supporter
Joined
Feb 21, 2013
Messages
813
Reaction score
223
Location
Pasadena
For me, the biggest pro of going with the Kal clone system was the future proofing and lack of fiddling once it was set up. I have an extra PID in case Auber goes out of business. The rest is all standard stuff that should be around for years for spare parts.

I use my raspberry pi for fermentation and tracking my tap list.


golfindia

Well-Known Member
Joined
Dec 6, 2015
Messages
527
Reaction score
155
I have not used strange brew elsinore, but I might try it. Craftbeerpi is great, but has no provision for a manual mode for boiling, which is sort of a pain... It's rumored that version 3.0 of CBP will have a PWM mode.


cod3ck

Well-Known Member
Joined
Oct 17, 2015
Messages
419
Reaction score
48
Location
Denver
Kal's manual seems to have become a bible for electric brewing... Is there anything remotely similar for a Pi setup? Including the full build -- not just the software

OP
GoodaleBrewing

GoodaleBrewing

Active Member
Joined
Aug 29, 2013
Messages
30
Reaction score
4
Location
Storm Lake
It looks like there is a basic setup of Raspberry PI, relay board, and some probes plus your SSRs. You can add touchscreen if you want and some switches.


BandonBrewingCo

Well-Known Member
Joined
Apr 6, 2012
Messages
192
Reaction score
55
Location
Innsbruck
Kal's manual seems to have become a bible for electric brewing... Is there anything remotely similar for a Pi setup? Including the full build -- not just the software
Bump.
Me dragging up this old post shows the lack of info out there for n00bs.

I'd glady pay for a step by step guide on the hardware front.


golfindia

Well-Known Member
Joined
Dec 6, 2015
Messages
527
Reaction score
155
As stated above, hardware is the same as a "Kal" system, minus PIDs. Here's a crappy drawing of how I did mine.



atoughram

Well-Known Member
Joined
May 23, 2013
Messages
1,888
Reaction score
295
Location
Puyallup
Reliability is paramount in my mind. PID's, relays, and switches are much more robust than a hobbyist type SBC like the pi.

OP
GoodaleBrewing

GoodaleBrewing

Active Member
Joined
Aug 29, 2013
Messages
30
Reaction score
4
Location
Storm Lake
Reliability is paramount in my mind. PID's, relays, and switches are much more robust than a hobbyist type SBC like the pi.
Wouldnt that depend on what unit you get? Plus you can put manual switches in line just like you do with a PID if you want.

I am going PI mainly because I wanted a PI board to play with anyway so if I don't like how the system works then I will buy PIDs since they do use all the same components past the PI/PID. Worst case is I will use the PI to make a retro arcade instead.


GParkins

Supporting Member
HBT Supporter
Joined
Aug 7, 2014
Messages
321
Reaction score
182
I came up with a way to do both. I have a switch in my design that changes the elements and pumps from PID to CBPi control. One switch and five relays is what I needed to add to my Kal clone to add the CBPi capability.


golfindia

Well-Known Member
Joined
Dec 6, 2015
Messages
527
Reaction score
155

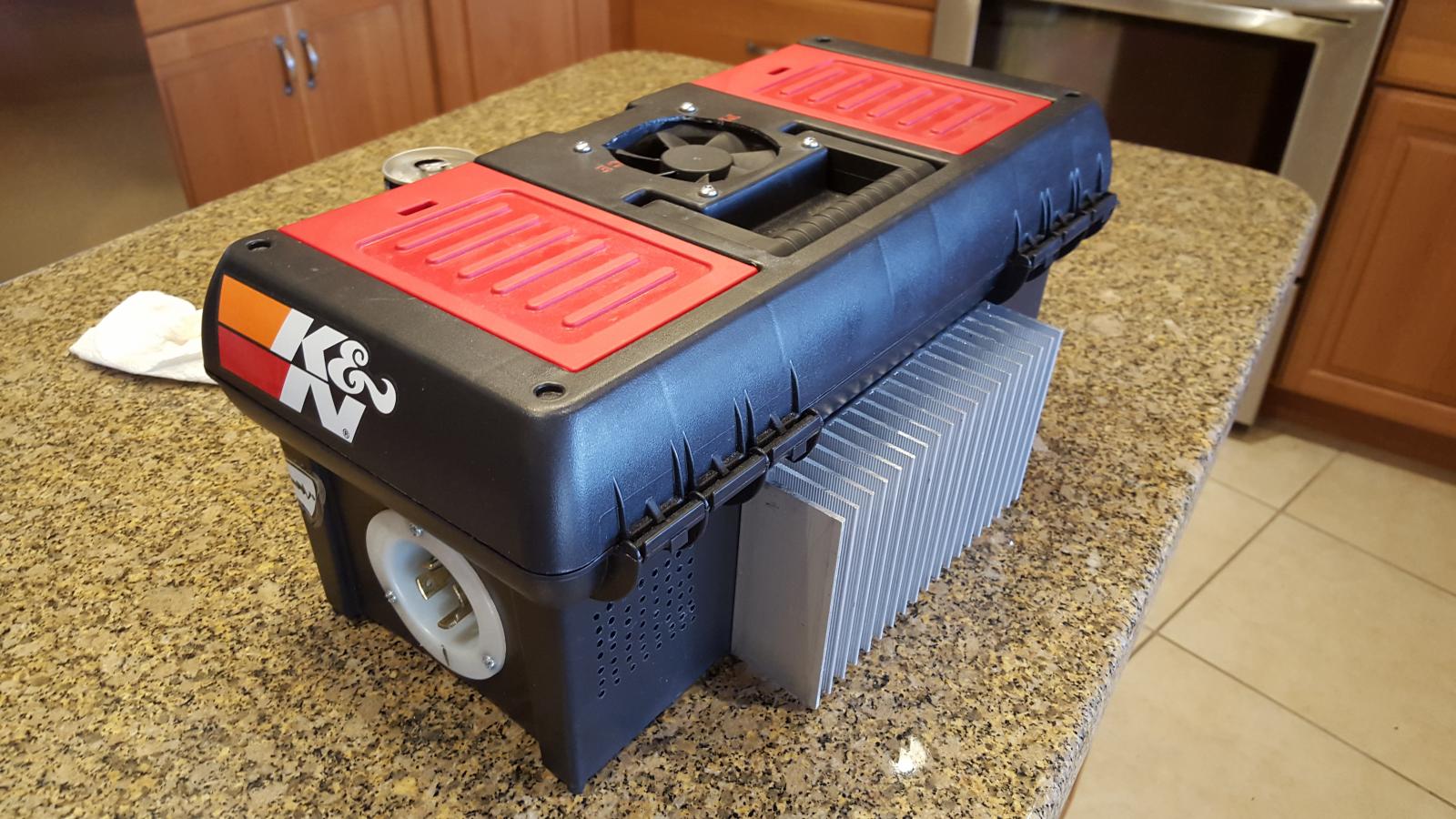

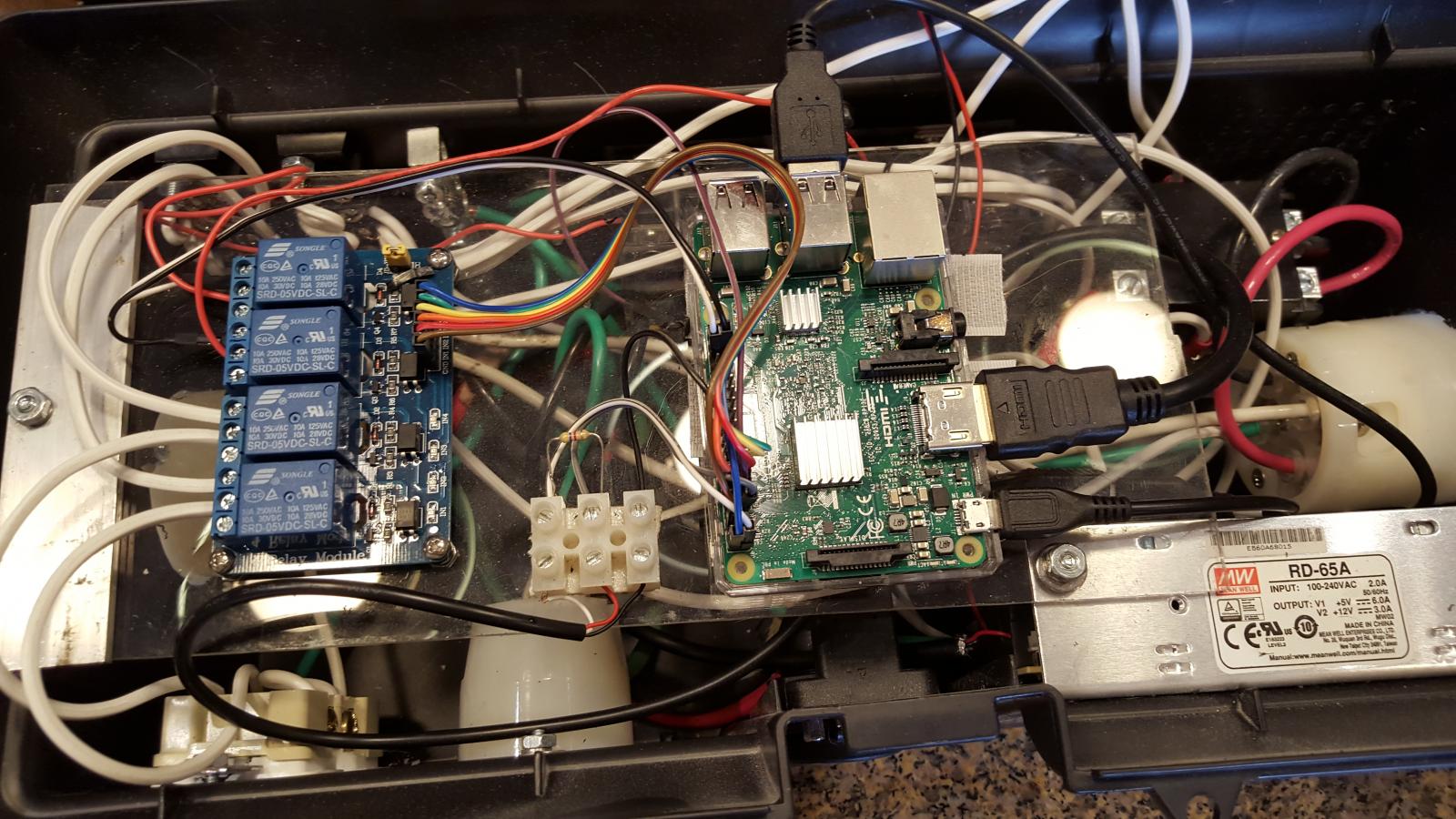

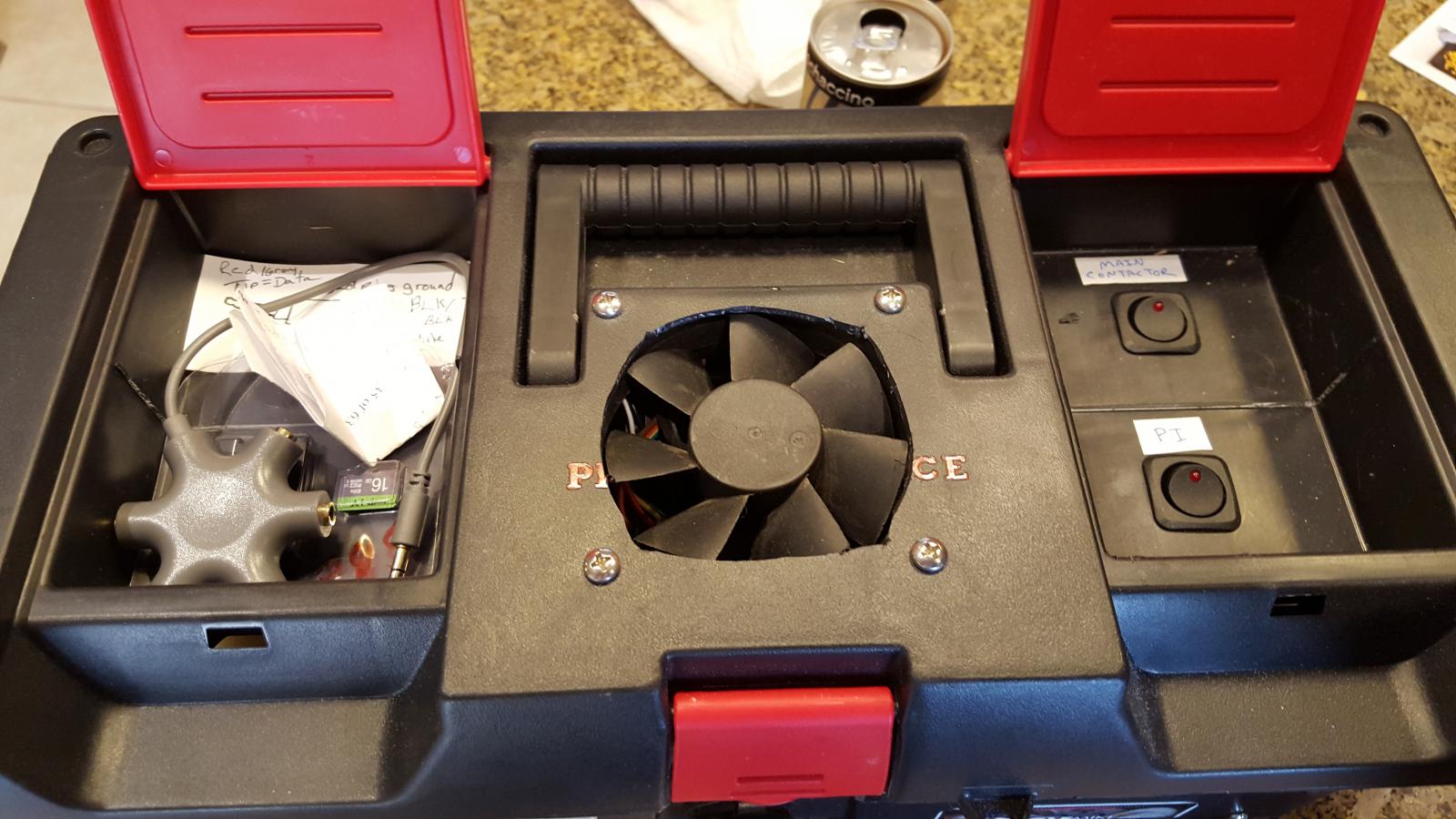

Here are some more detailed photos of my Pi brew box. DS18B20 probes plug into the front stereo headphone jack. Only 2 manual switches, contactor and computer PS.









atoughram

Well-Known Member
Joined
May 23, 2013
Messages
1,888
Reaction score
295
Location
Puyallup
Wouldnt that depend on what unit you get?
I've never had a hardware issue with a pi - and I've got at least a dozen of them (A new PI zero-w sits here ready to be played with)

I've all sorts of issues with software freezing up.

I have an issue with my Brewpi once or twice a year with the SD corrupting or failing. (I have an image I can rewrite to a new sd card and be running within minutes)

I've never had issues with hardware on the PID's except for a loose connection on an element, which could happen to a pi.

If I were to upgrade from PID's, I'd do something like a BCS


golfindia

Well-Known Member
Joined
Dec 6, 2015
Messages
527
Reaction score
155
I've found 3 things that cause software issues with Pi computers. A) inadequate power supplies, B) repeatedly disconnecting power without shutting down, C) using the Pi to drive a display.

If you see a little lightning bolt in the upper right part of the screen, you need a higher amperage PS. This can occur if you power several 5v relays at once from GPIO pins. A 5a PS works for me.

I set one Pi up as a media server, and rather than shutting down through software, my household turned it off cold with a switch every time. It got hosed. I reinstalled everything and now just leave it on all the time. Been running for months.

Running software over network instead of an HDMI display seems to keep software from bogging down significantly.

I also have a Pi controlling my fermenting fridge. It's been on and running for many months.


atoughram

Well-Known Member
Joined
May 23, 2013
Messages
1,888
Reaction score
295
Location
Puyallup
I also have a Pi controlling my fermenting fridge. It's been on and running for many months.
I'm not trying to argue with anyone, I've had my brewpi controlling a chamber for at least three years and have replaced the SD card 4 times.

SD Cards have a finite number of write cycles they can take. (Somewhere around 10,000 times IIRC)

Pi's run on Linux and have a swap file that is constantly being written to and read on the SD card.

I assert that once the card has been written too many times it gets unstable and the Pi crashes. On the Brewpi, this isn't a big deal, even in the middle of a fermentation. The Arduino takes over and you still have control of temperatures. When the Pi dies, you loose web server ability and temperature step capability, but you don't loose a batch. (This happened to me on my latest batch)

The Pi crashing in the middle of a brew day, if you're not ready to fix it quickly, could result in a bad day.

Each to their own - I'll stick with PID's :)

Joined
Dec 19, 2014
Messages
5,546
Reaction score
1,621
Location
West Palm Beach
I agree with both camps: on one hand, dedicated controls are reliable but provide no pathway to expansion or automation, and on the other hand, a real-time operating system controlling automation is prone to failure, but offers a growth path.

Of course I am biased to the solution we've created, which uses a micro-controller for the control and software for the interface, so use a dose of salt!


augiedoggy

Well-Known Member
Joined
Dec 6, 2013
Messages
10,284
Reaction score
2,280
Location
North Tonawanda NY
I went from pids to an Arduino / brucontrol system and find it not only cheaper but has a lot more available funtionality and it makes upgrades a lot easier.


pocketmon

Well-Known Member
Joined
Oct 12, 2015
Messages
701
Reaction score
227
Yes. A typewriter is more reliable than a computer. Unfortunately, it is off-lined, and I have to use a computer to type this response.

The concept of erase cycles is true, but there is something call "wear leveling" which helps to extend the life time of the flash. I would bet it won't run out before your hardware buttons or relays break.

Whatever can happen will happen. Having a plan B is always a good idea whatever you are using.


LarMoeCur

Well-Known Member
Joined
Dec 29, 2006
Messages
1,049
Reaction score
271
Location
Las Vegas, NV
One thing I looked at when building my Kal Clone was its built in backups. If I lose a heating circuit (SSR or element failure) I can easily swap it out with just a few cable changes. Same goes with the RTDs and PIDs, one starts acting wonky just a cable swap and I'm back in business. My one fear with computerizing my system is losing a batch from a part failure. With my Kal setup, I can limp a batch home and fix it later.


oakbarn

Well-Known Member
Lifetime Supporter
Joined
Jun 23, 2011
Messages
1,669
Reaction score
319
Location
Bartonville
I really like the BCS 462. A litlle more expensive but if you bought 8 Aubrin PIDs, it would be much the same. Tested and good interface. Can control up to 8 Widgets with PID and another 10 just on/off.
