Is it possible to embed text labels on the surface for those connectors & ports?
Like "Heat" and "Cool" (or at least "H" and "C") above the duplex sockets?

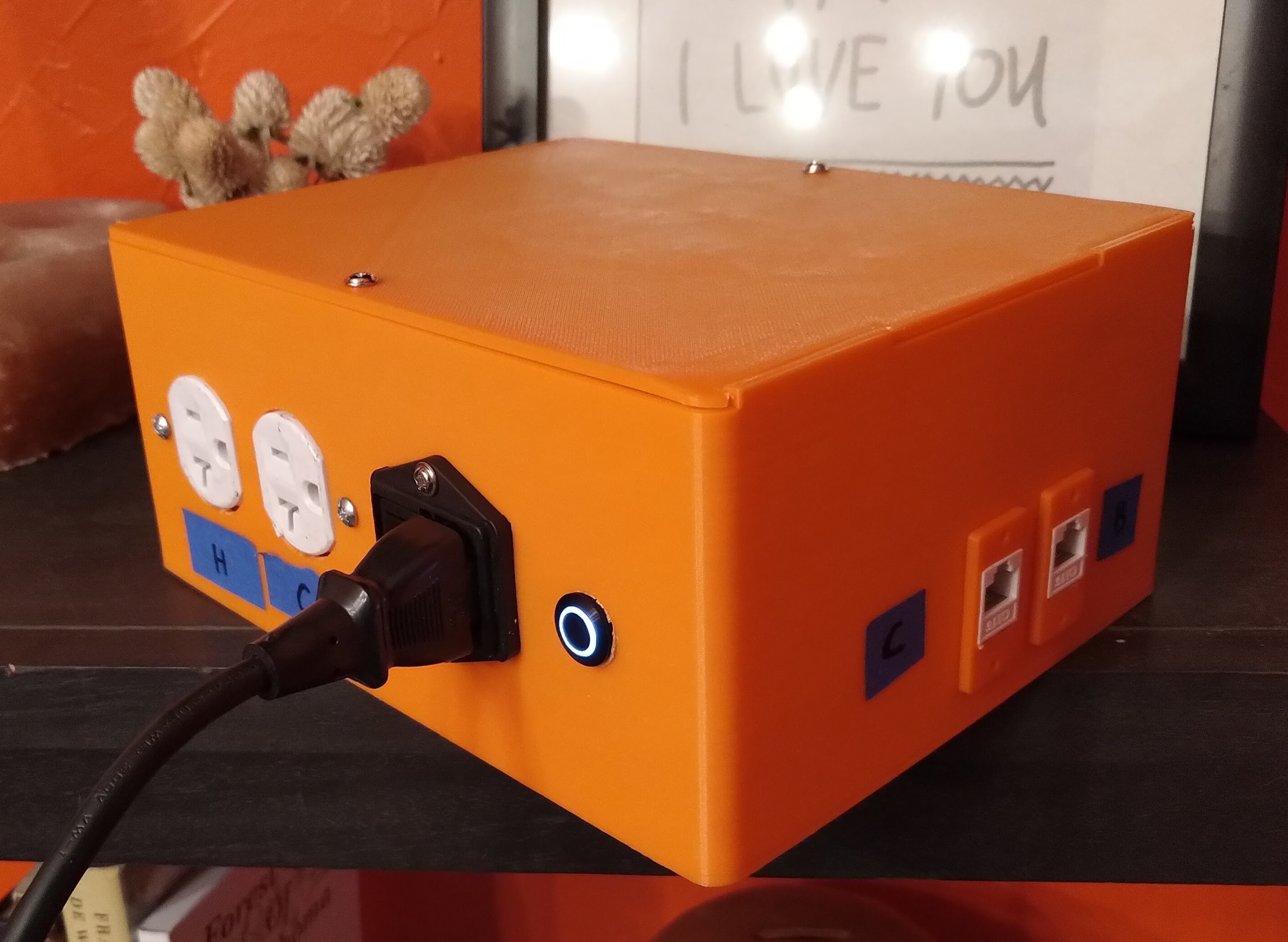

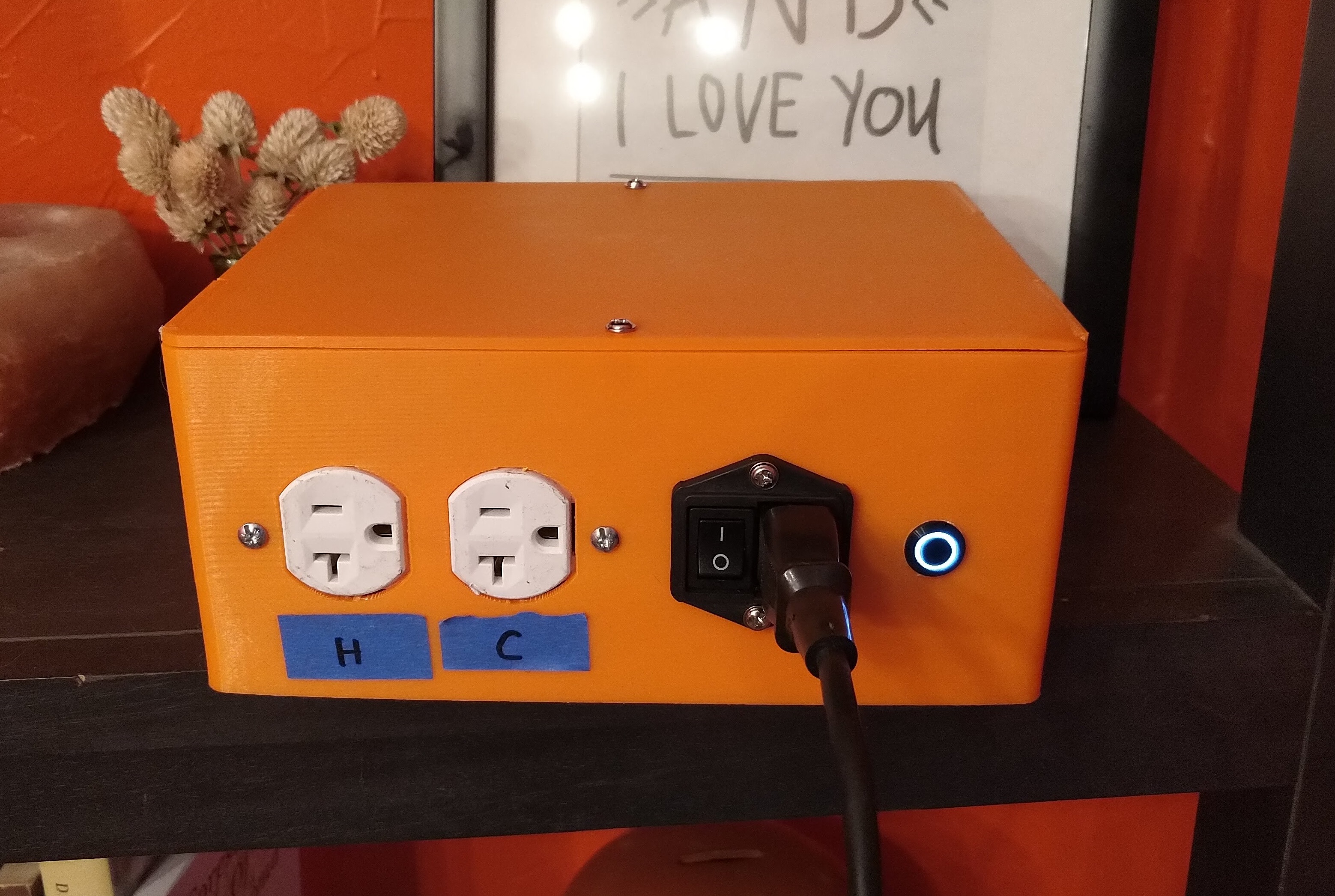

I think the blue painters tape gives it a certian je ne sais quoi ;)

But yeah, it is possible. I'll be modifying the design today to add that in, but probably won't actually print a new enclosure until I need to. I probably should have thought about that before I printed the first one, but I was focused more on getting everything to fit in a box that was small enough to print on my 3d printer, and honestly didn't even think about it at the time.

The problem is: I'll bet he's got a > 1 day print there. If I were to guess, it's only about $5 in material, but tying up your printer for another day for an H and C is an emotional decision he needs to make. :D

Hahaha, exactly. Also after that, taking everything apart and putting it in a new box.

One other option I have is engraving that info on the existing box with a laser cutter/engraver. I have a membership at the local makerspace here in Tulsa called the Fab Lab, and they have a pretty slick laser cutter, so I'll probably go that route.

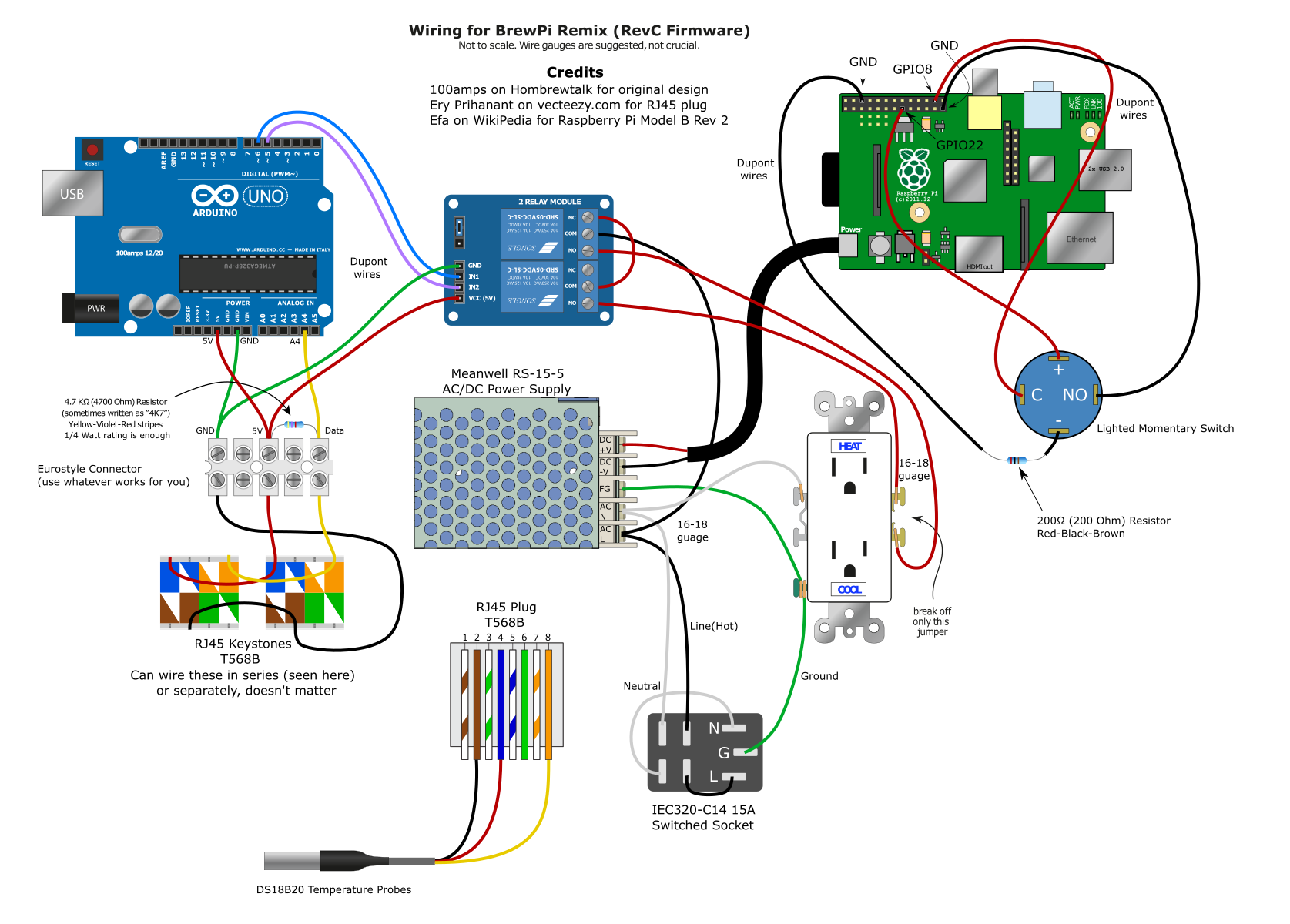

For the RJ45 jacks it says you can wire them in series like you did. That's actually parallel. But that's nitpicking.

Ah, gotcha. I'll fix it, might throw someone off.

An enhancement I recommend is using a fused IEC power inlet. Say 8-10 amp fuse. But make sure it's one that has legitimate safety certifications. CSA/UL or whatever. The only way to ensure those certs are legit is to buy it from a responsible supplier. (Mouser, Digikey, etc.)

I did get the inlet from DigiKey, but I did not get a fused one. I'll look into adding a fuse to the AC circuit


LBussy

A Cunning Linguist
HBT Supporter
Joined
Jan 19, 2013
Messages
3,991
Reaction score
1,736
Location
Rural Kansas

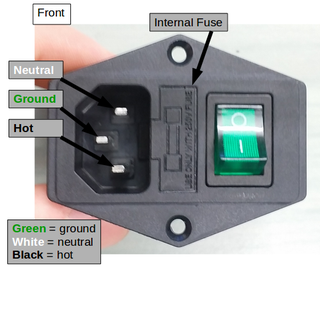

An enhancement I recommend is using a fused IEC power inlet. Say 8-10 amp fuse. But make sure it's one that has legitimate safety certifications. CSA/UL or whatever. The only way to ensure those certs are legit is to buy it from a responsible supplier. (Mouser, Digikey, etc.)
Such as these.

Of course, these are $19.25 and Chinese ones can be had for $1.50. :) @day_trippr has often noted the switches on the cheaper ones burning out.


day_trippr

The Central Scruuuutinizer
Joined
May 31, 2011
Messages
39,337
Reaction score
22,632
Location
Stow, MA
Ah, but remember, the bulkheads we all were using were sold as "10 Amp" but sported 6A or even 5A switch modules.
The Holy Grail (post #19) looks strong. I need to get mine installed, just been too busy...

Cheers!


100amps

100 Amp (Home) Brewing
Joined
Jun 20, 2014
Messages
155
Reaction score
28
Location
Vancouver
I saw a fused IEC inlet (10A) on Digikey.com for like $1.50. I consider the switch optional. I leave mine running or just pull the plug. It's still probably engineered in China, but Digikey almost certainly do their due diligence wrt safety certs.

Of course shipping is on top of that.


100amps

100 Amp (Home) Brewing
Joined
Jun 20, 2014
Messages
155
Reaction score
28
Location
Vancouver
Relays do make decent fuses. Sure they smell like burnt plastic, but it's because they're 'cloud based' which means they communicate with your smoke detector to provide you with a convenient wireless notification that your controller may be near some tolerance limit. The word 'fuse' was, in fact, derived from relay contacts permanently fusing together, ensuring an optimal low impedance connection. 😎

Last edited:

bloombrews

Well-Known Member
Joined
Aug 14, 2014
Messages
132
Reaction score
13
Location
Pittsburgh

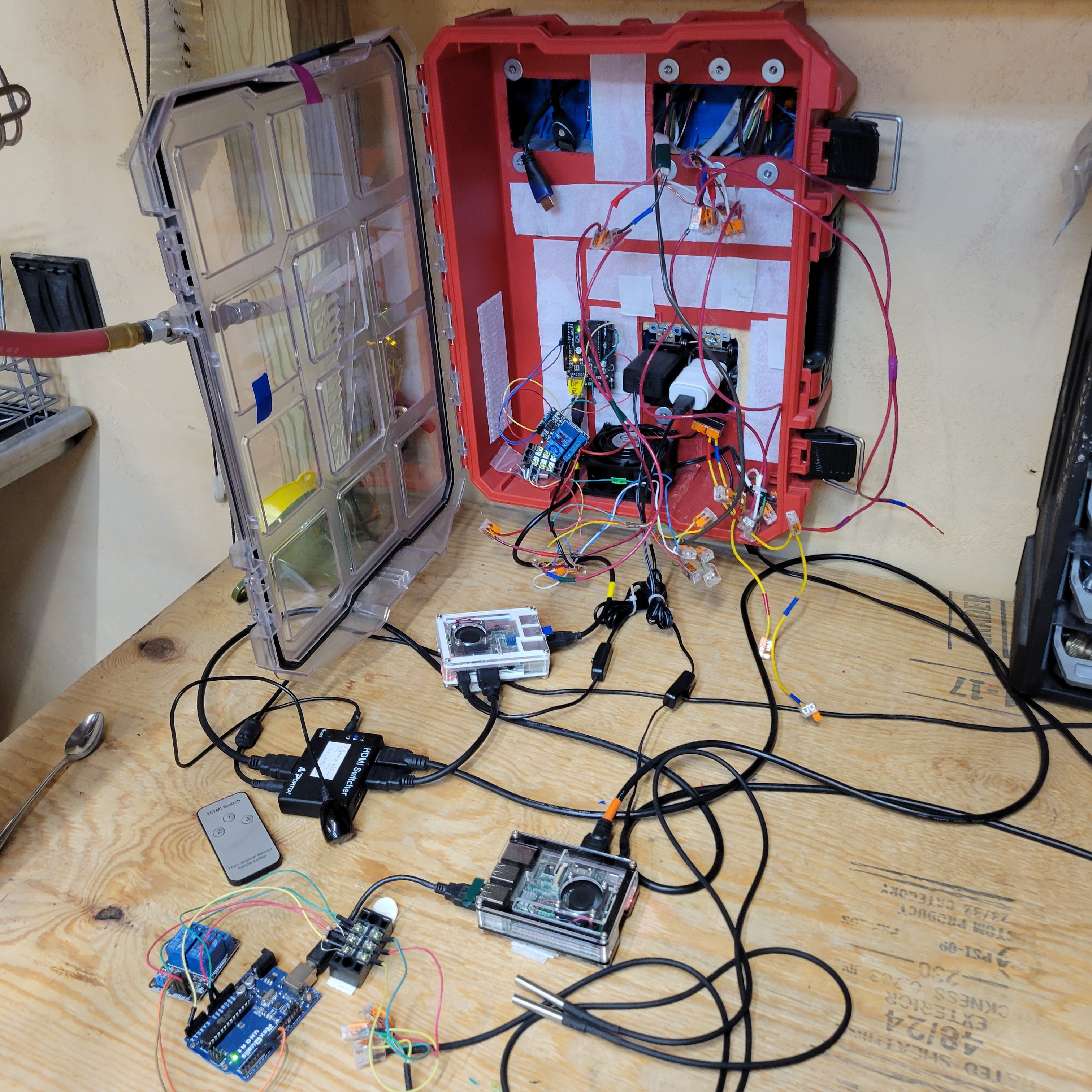

The Milwaukee packout box will someday house 2 smaller boxes that you men have posted here. As an HVAC Tech and a Master Plumber also, I am embarrassed to show you my "Build" LOL

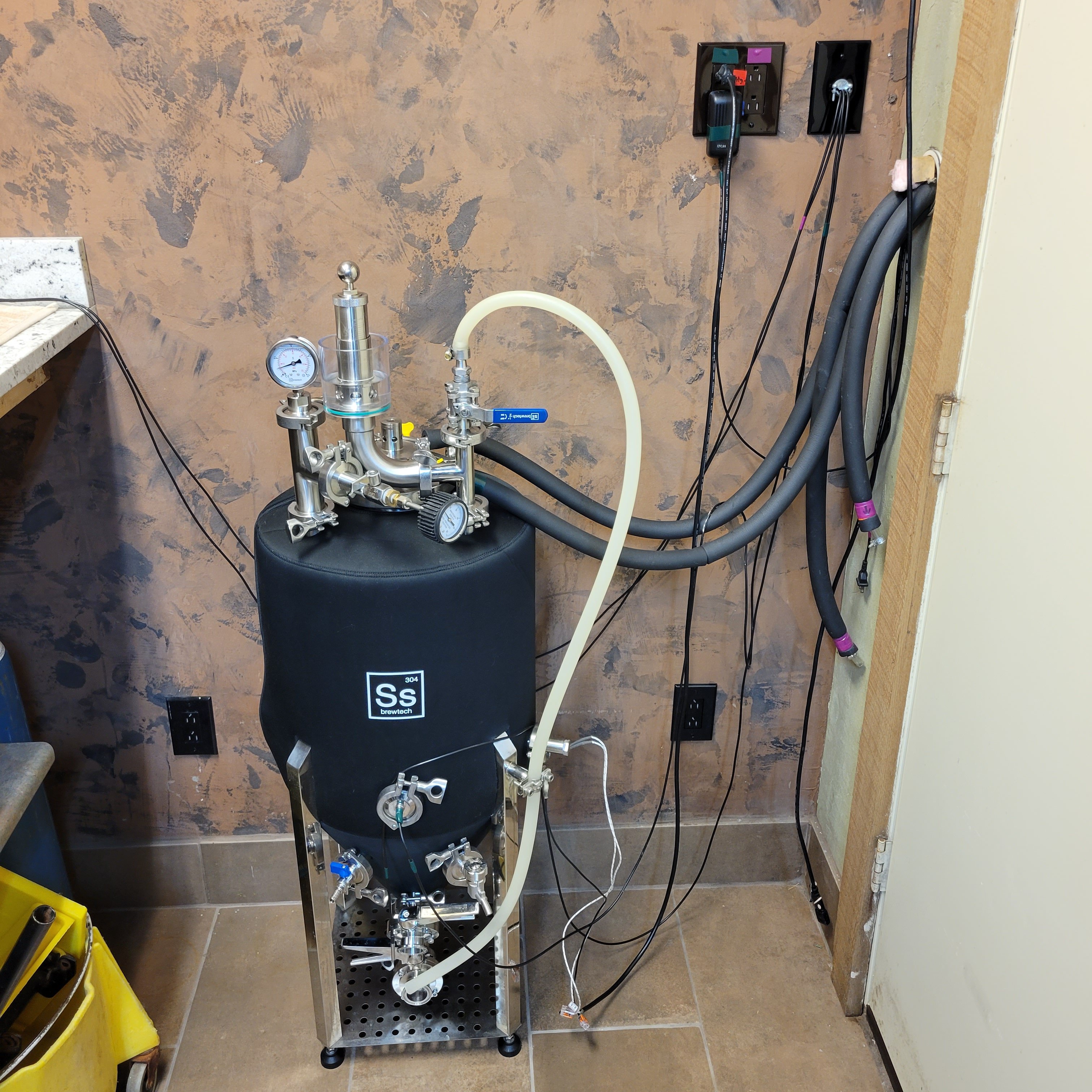

The 1/2 Bbl Unitank is about 20 feet away from this desk, and I ran all the control temperature probe wires and AC power through the walls, around my walk-in-cooler (HVAC... had to have one)
It works! I just need @LBussy help me figure out WTH is going on with the second BPRemix not working
Hopefully I will post my "hack" without a 3D printer (just dremmel, and pipe wrenches... LOL)
The right side has a 300 watt, 110 VAC, heater rod ($17) that I added an additional Triclamp bulkhead onto the tank (works fantastic!)
The Cooling is from a 55 gallon barrel of chilled water inside the cooler, next to the Unitank
If anyone is interested in this tank re-build, just send a message and I will give you all the Where, and How-to
