Question: How do you plumb, preferable all stainless steel, from a sanke D coupler to a faucet, without using a shank?

Background: I ferment in a half barrel sanke keg and want to move to having the ability to do pressure fermentations. With a sanke spear and coupler installed, I can connect a spunding valve to the CO2 in port on the coupler, with the duckbill/Thomas valve removed, and I would like to plumb a facet as close as possible to the coupler’s beer out port. My intent is to use the faucet as a sample port once fermentation is near completion.

Possible solutions:

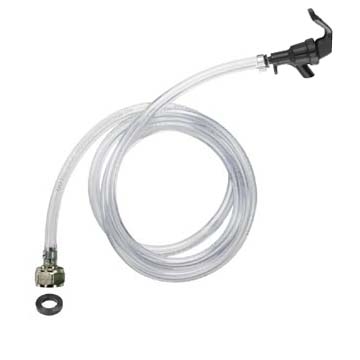

1. I know that I can use a configuration like what is shown in the picture. However, what I don’t like about this is the it is plastic that allows oxygen ingress and the hose would need to be shortened.
2. Use Duotight type fittings including a Duotight valve. This isn't stainless, but certainly inexpensive.

Any suggestions using just stainless?


Attachments

OP
C

Climb

Member
Joined
Oct 28, 2013
Messages
13
Reaction score
3
Thanks BBBF. How does this help solve the problem?


Joeywhat

Well-Known Member
Joined
Feb 10, 2009
Messages
280
Reaction score
77
Location
Farmington, MI
Check this out - Keg Faucet Adapter Assembly - Ball Lock

I know I've seen one that is attached to a Sankey keg coupler as well, but I can't find it on their site. If you notice, the faucet is connected to an adapter that connects to 1/4" MFL devices. So you could buy that assembly, toss the corny keg disconnect and connect it to a Sankey coupler with 1/4" flare fittings instead of barbs.

I'm assuming that adapter also exists somewhere by itself, so if you already have the faucet I'm sure you could just find the adapter.


Qhrumphf

Stay Rude, Stay Rebel, Stay SHARP
Lifetime Supporter
Joined
Apr 2, 2011
Messages
16,392
Reaction score
5,934
Location
Arlington (DC)
Can easily get a beer hex nut to TC adaptor and then a TC sampling valve that would normally attach to a unitank. Probably want to put a 90 elbow in between.






With these parts you'd also need a 1.5" to 1" reducer. But another source with hex beer nut to 1.5" TC instead if 1" would make all the standard 1.5" fittings work. As would a 1" sampling valve instead of 1.5".

Edit: last (now removed) part was still 1.5" fitting, just reducing the pipe diameter...

Last edited:

Qhrumphf

Stay Rude, Stay Rebel, Stay SHARP
Lifetime Supporter
Joined
Apr 2, 2011
Messages
16,392
Reaction score
5,934
Location
Arlington (DC)
Since I'm not seeing any beer nut to 1.5 fittings there are also beer nut to NPT adaptors, and a lot more NPT to TC options. But I'd try to minimize any threaded fittings.

There's a 1" sampling valve I could find but it's super expensive.
