Convert ultraviolet light tube to RIMS tube

[Murph69]

Has anyone successfully converted an ultraviolet light tube to a RIMS heating tube



[Staticsouls]

You would only need fittings and to find an element that would fit or a way to drill and tap the end for the element.



[Murph69]

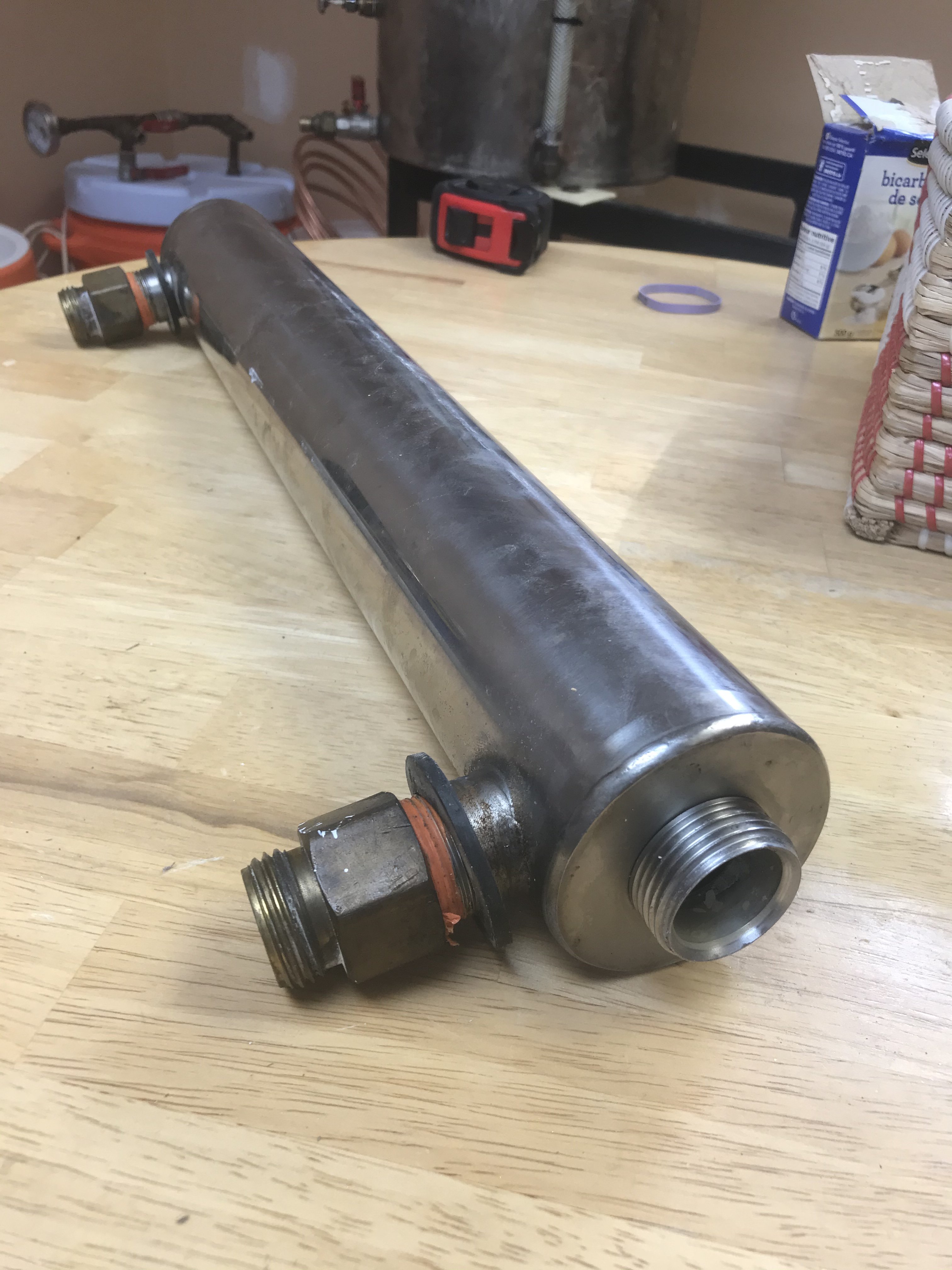

Has anyone successfully converted an ultraviolet light tube to a RIMS heating tube


View attachment 722201

I have a mig welder, but I need stainless steel wire and argon gas - this would cost me more than purchasing a complete RIMS system



[Staticsouls]

It is probably easier and cheaper to buy 1.5 or 2 inch sanitary tees and a spool long enough for the element, held with tri clamps. This would also be much easier to service in the future.

Element>tee>spool>tee. With the thermowell for temp probe at the end tee



[Murph69]

Do you mean, black PVC pipe and fittings ?



[Staticsouls]

No stainless steel sanitary fittings. You can find them on amazon.

Tee fitting

Heating element or 15amp element

Gaskets

Thermowell

Hose barbs

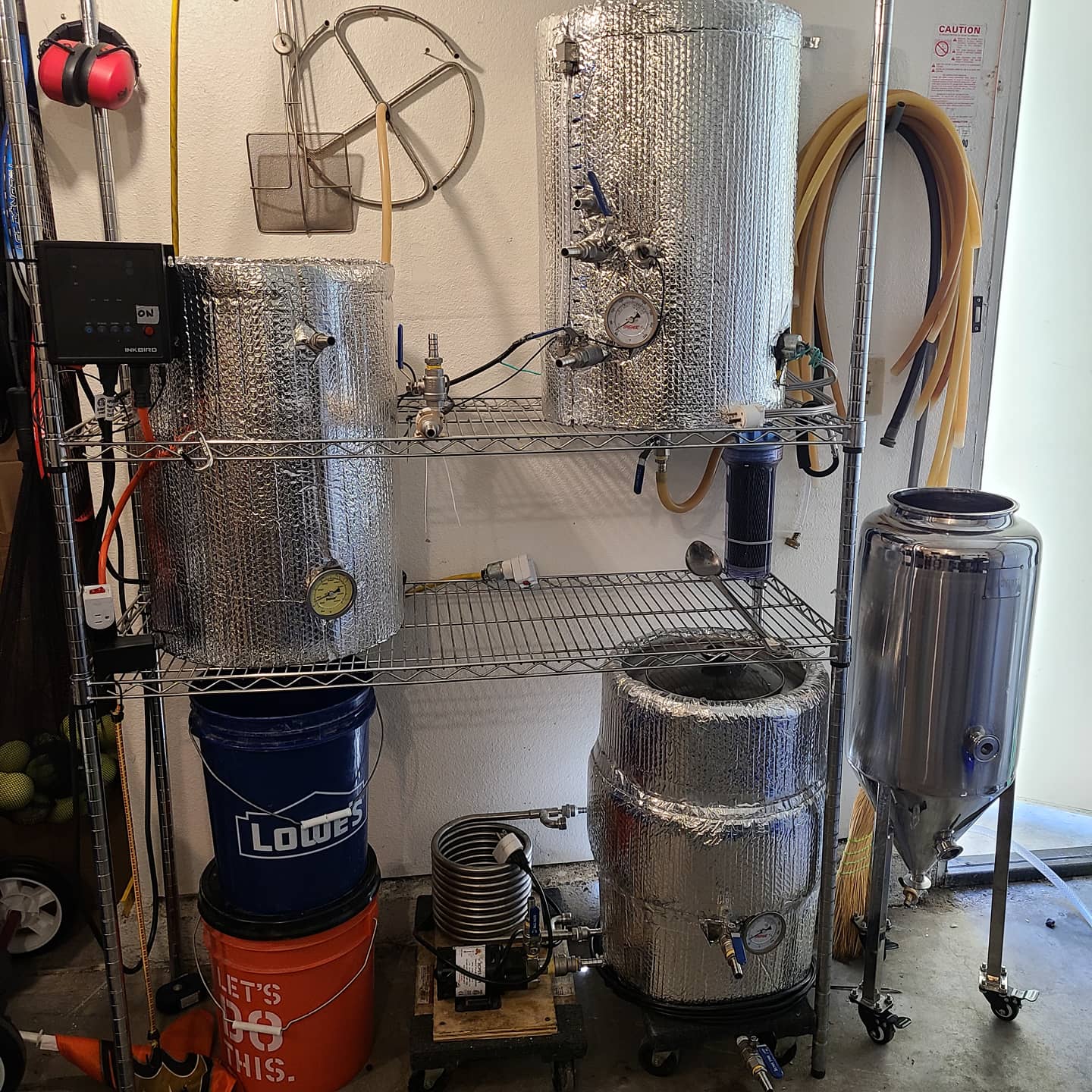

Looks like the biggest variable would be your power supply available. If you have 220v you could use a bigger element or if you have household 15amp you could go lower wattage. Your controller will correlate to the element. I use 15 Amp elements in my herms system with an ink bird ipb 16. Works great I'd like the bigger higher voltage stuff but my condo just doesn't have it. Nice thing is that these are interchangeable parts so you can mix and match it to your specific application.

Clamps

Optional spool depending on element length



[Murph69]

You can 220 in your condo, watch this;



[Staticsouls]

I could but then I'd have to rebuild my entire system.

I only use both elements for a short time in the hlt, then let the pid control just one for mash and sparge Temps. I them have both elements run full blast for the boil.
