Show Me Your Wood Brew Sculpture/Rig

[Redtab78]

Built this over the weekend. Installed my blichmann Burner for the keggle yesterday along with a water filter system for the HLT. Casters will be here in a few days, and hopefully take it for a spin this weekend on a Vienna ale!!



[m1k3]

Built this over the weekend. Installed my blichmann Burner for the keggle yesterday along with a water filter system for the HLT. Casters will be here in a few days, and hopefully take it for a spin this weekend on a Vienna ale!!

I put a spare flooring tile under my burner. Depending how hot your burner gets, you could do something like that to protect the wood.

Again, great job! 4x4s look super strong!



[kev211]

I put a spare flooring tile under my burner. Depending how hot your burner gets, you could do something like that to protect the wood.

Again, great job! 4x4s look super strong!

Ya I also did something similar. I cut a piece of sheet metal to cover the whole top. Now I dont need to worry about heat ruining the wood, boil overs, etc



[m1k3]

Here is a pic of my tile and sheet metal protection. The wood under the burner was turning brown and smoking a little before I added the tile.

Also, note the tile that keeps the mash tun from melting... It is needed in my arrangement. I learned that I have to lean the tile against the mash tun and NOT the HLT, after one tile shattered.

View attachment ImageUploadedByHome Brew1460565664.947706.jpg



[Paleface]

My e-keggle, BIAB, HERMS system undergoing water test. Meant to age an Imperial stout in those barrels at one time, but never got around to it. Kind of like the way they look in my wooden sculpture. I suppose one of these days I'll get around to building some legs.



[Paleface]

Sorry about that last post. Rotated the pic now.



[Redtab78]

Here is a pic of my tile and sheet metal protection. The wood under the burner was turning brown and smoking a little before I added the tile.

Also, note the tile that keeps the mash tun from melting... It is needed in my arrangement. I learned that I have to lean the tile against the mash tun and NOT the HLT, after one tile shattered.

View attachment 350262

How hot does that sheet metal get that is next to your boil kettle? I have a similar set up and do not currently have any protection there and was curious, thanks!



[m1k3]

The sheet metal does not get very hot... I probably wouldn't put my hand on it for long but the pump and propane tank were used in that location before I added the 5/8" MDF wall with sheet metal.

Sorry, I know that's not a very precise answer.



[Schlomo]

Threw this guy together in about an Hour with some insparation from other stands on here. It sits about 28" high which is perfect for me. Brewed 10 gallons on it this weekend and all I can say is WOW! What a difference it makes having a dedicated stand for everything!



[lari]

heres mine in action - 2 vessel no sparge.



[boogyman]

Here is a pic of my tile and sheet metal protection. The wood under the burner was turning brown and smoking a little before I added the tile.

Also, note the tile that keeps the mash tun from melting... It is needed in my arrangement. I learned that I have to lean the tile against the mash tun and NOT the HLT, after one tile shattered.

View attachment 350262

That is one huge boil kettle



[mwill07]

construction details.



[stamandster]

A work in progress, need to mount the control panel somewhere and finish up my piping Painted with flat black enamel. It's surprisingly light and easy to move!



[Tarpon87]

Pretty much 100% copied from jpicasso's build. Only thing left to do is mount the pulley and cleat. Dont know why the pic orientation is all screwy



[Dernebo]

Pretty much 100% copied from jpicasso's build. Only thing left to do is mount the pulley and cleat. Dont know why the pic orientation is all screwy

My first thought was "Why is he hanging his rig from the wall?"



[Islandboy85]

Here is a potential setup for a poor man's electric build:

Step one: cut pallet in half
Step two: put kegs on pallet

Simple as that and I haven't seen this done. It seems like it would be a tight squeeze but nothing beats free

This really has me thinking. The cost of building a metal stand is crazy. I'd love to have one, but got to question the value vs function. Did you ever chop up a pallet to make this for yourself? This makes me think about making a pallet table. In my case having a brew stand cleverly disguised as a piece of diy outdoor furniture would go over better with SWMBO.



[IamCanadian]

construction details.

I'd love to see video of this in action, great build!



[IamCanadian]

construction details.

I'd love to see video of this in action, great build!



[IamCanadian]

construction details.

I'd love to see video of this in action, great build!



[lari]

one more time!



[IamCanadian]

Apologizes, it said could not connect.



[jojacques]

My basic 3 tiers brew stand.
In the next few weeks, I'll be changing my HLT for a new Kettle so I can mount a second propane burner under it.
Also, I'll get some plumbing up there to help with filling the HLT.
Plus needs a black paint.



[Tombsy]

Love my ghetto brew rig.



[karch1967]

My pallet wood brewstand:



[Tombsy]

Love it!



[Gloves]

Love my ghetto brew rig.

Can you explain what this is. I honestly don't understand what I'm looking at.



[Gloves]

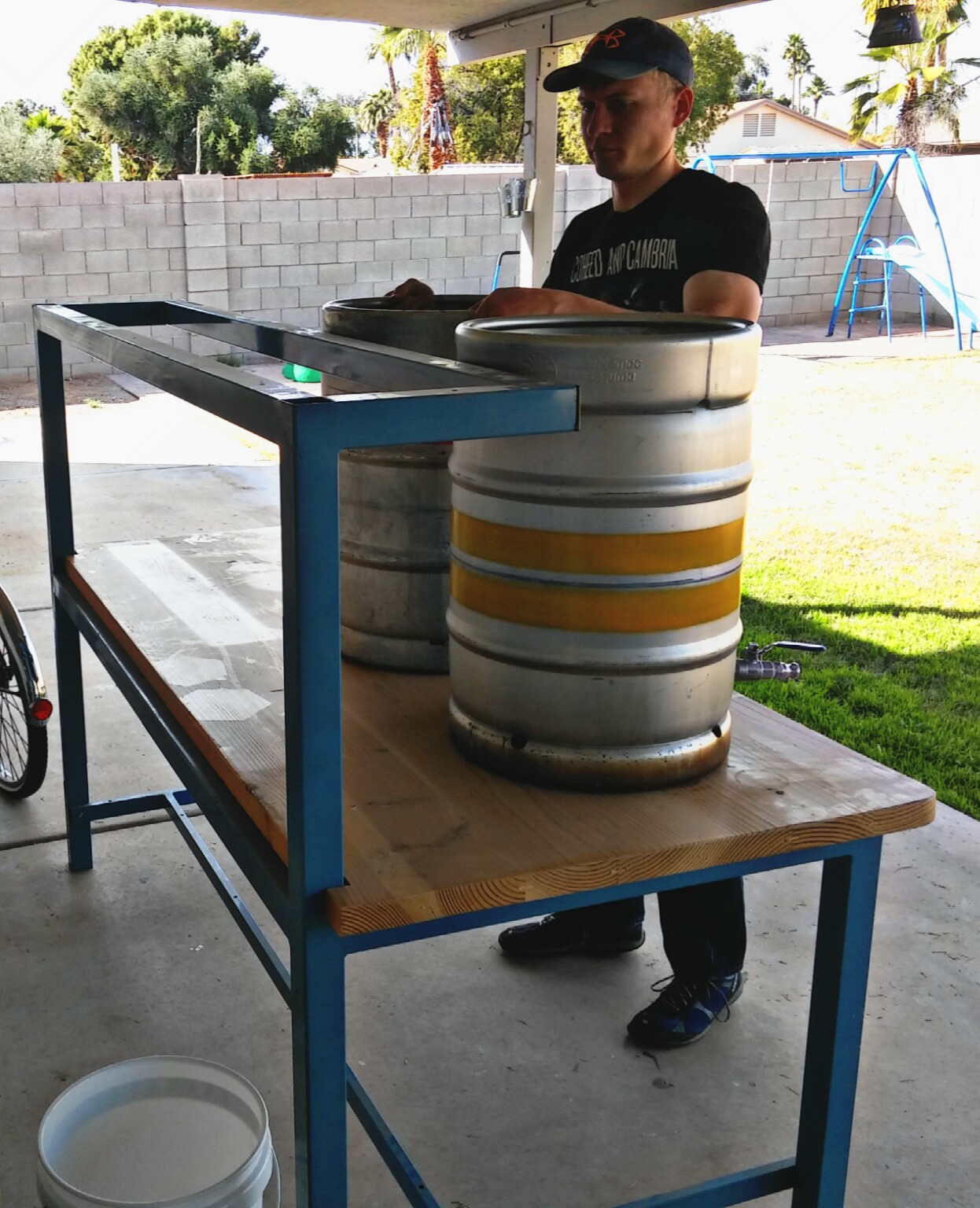

My brother got this work bench for free from a family friend. Don't know if we should mount burners on top or cut holes... Maybe just scrap the entire wood top. Any suggestions?



[wilserbrewer]

Any suggestions?

1. Electric with the table as is.
2. Cut holes in table, put burners underneath and use aluminum flashing as heat shielding.
3. Cut 16-20" off the table legs and use burners on top of the table.



[lari]

My brother got this work bench for free from a family friend. Don't know if we should mount burners on top or cut holes... Maybe just scrap the entire wood top. Any suggestions?

wrong thread mate - this is WOOD brew stand thread.
although personally i would love to have something like this, so many possibilities.



[JONNYROTTEN]

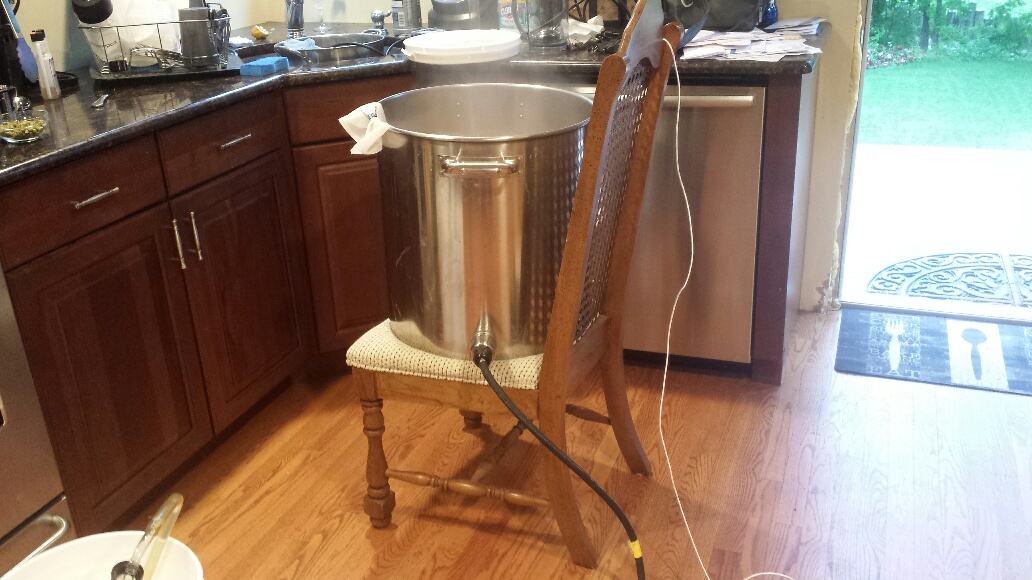

Does a wood chair count



[Btaz]

Delete



[jodell]

Does 6 2×4s and 2 saw houses count??



[milldoggy]

Does 6 2×4s and 2 saw houses count??

How does the wort stay in, your kettles are upside down



[dryboroughbrewing]

How does the wort stay in, your kettles are upside down

He was making a Sticke Alt

/rimshot



[jodell]

How does the wort stay in, your kettles are upside down

You know how brew days go...first one homebrew...then 6 more



[Senormac]

this is the best thread ever



[dcrog]

How does the wort stay in, your kettles are upside down

Looks like a unique CIP system where you turn the room upside down to dry.



[milldoggy]

Looks like a unique CIP system where you turn the room upside down to dry.

Need a thread on how to do this, that would so much easier than a vacuum and air compressor to suck/blow the water out of my herms coil and pumps.



[Tombsy]

Can you explain what this is. I honestly don't understand what I'm looking at.

Its a homemade BrewEasy system. 2 vessel recirculating system. The bottom part is a fusti that acts as the kettle/fermenter. Pumps to the top vessel that acts as the mash tun.



[chiefwigms]

wrong thread
