Starting my eHERMS build....

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

OP
DonT

DonT

Active Member
Joined
Oct 3, 2016
Messages
43
Reaction score
24
What size length are your pump cords? Also, where are you planning to mount your panel? I ended up fabricating a mount out of an articulating tv mount! My pump cords are 10ft plus 3" or so with the locking adapters I'm using for the pumps.
I have chugger pumps and the cord length is 5ft.... and I'll need a couple more ft to make it a comfy fit. I plan to put both pumps on a drawer under the workbench/brewbench. That way I can slide it in/out as needed and stay out of the way. It's 18/3, but I'm going to use 16/3 because Lowes has it for .63 cents a foot. I'll put the splice behind the bench, attached to the back of the bench, to keep it stable. I'm placing the controller on the wall next to the bench above my FC. Scroll up to see pics of my garage... The box will be at the lower left corner of the meat market sign.


4TBBUCS

Supporting Member
HBT Supporter
Joined
Jul 30, 2015
Messages
99
Reaction score
16
Location
Virginia Beach
I have chugger pumps and the cord length is 5ft.... and I'll need a couple more ft to make it a comfy fit. I plan to put both pumps on a drawer under the workbench/brewbench. That way I can slide it in/out as needed and stay out of the way. It's 18/3, but I'm going to use 16/3 because Lowes has it for .63 cents a foot. I'll put the splice behind the bench, attached to the back of the bench, to keep it stable. I'm placing the controller on the wall next to the bench above my FC. Scroll up to see pics of my garage... The box will be at the lower left corner of the meat market sign.
Got it! I ended up with way too much myself. 10ft cables, plus another 10ft from my riptide pumps smh.

OP
DonT

DonT

Active Member
Joined
Oct 3, 2016
Messages
43
Reaction score
24
I got my HLT from Brew Hardware on Friday! Thanks @Bobby_M, looks great! Weld quality is top notch and herms coil went in without a hitch.

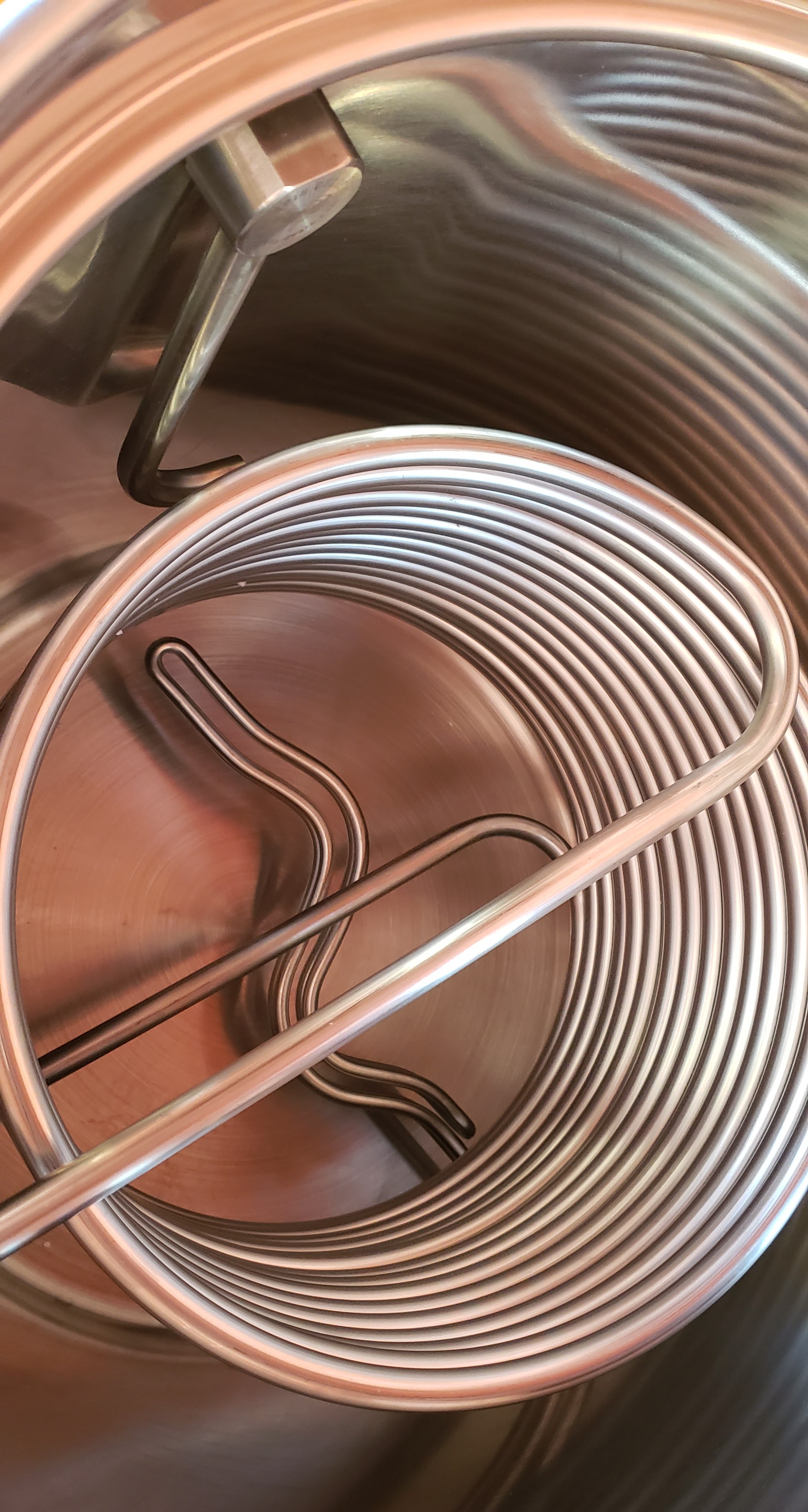

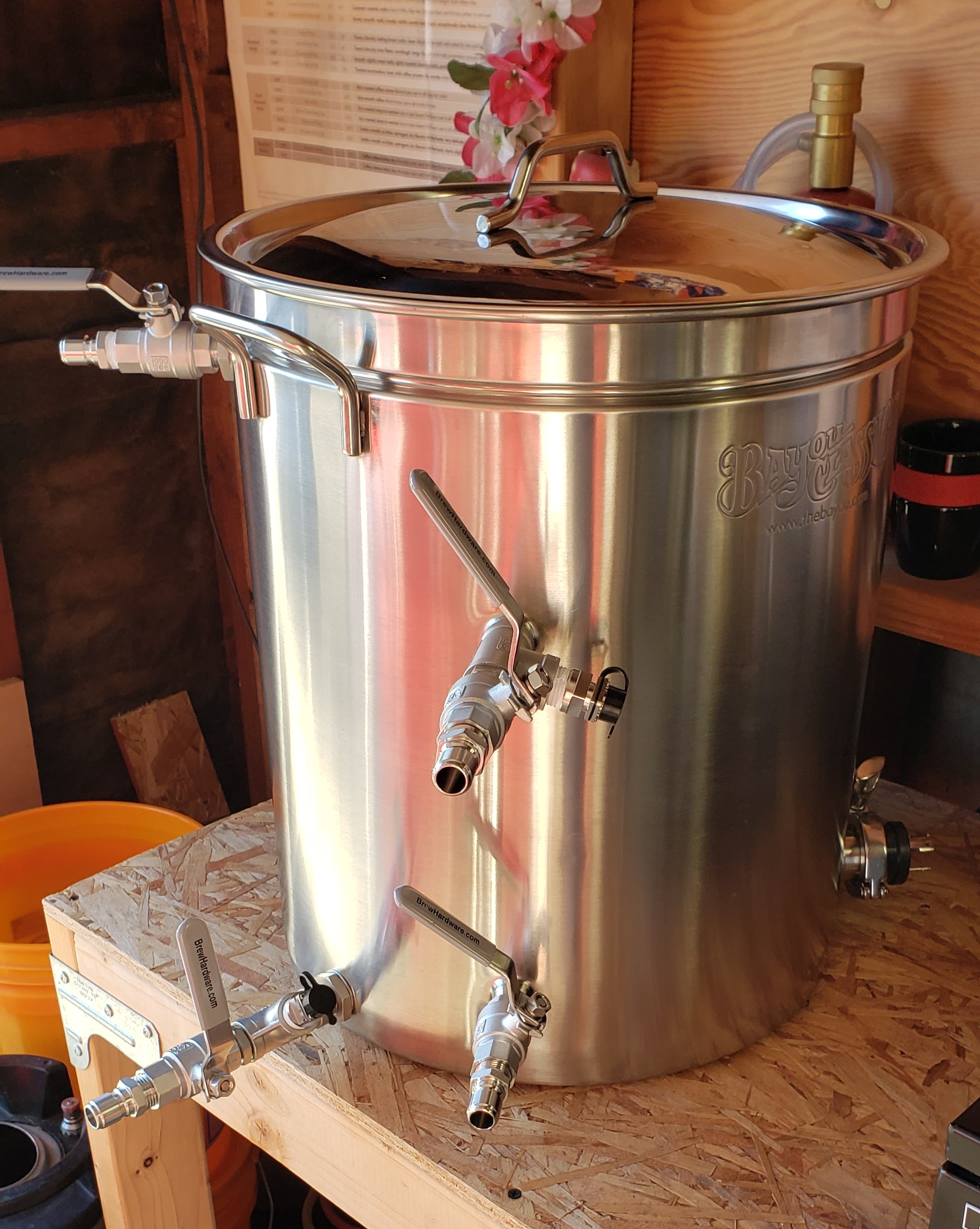

HLT.jpg inside HLT.jpg

Last edited:

4TBBUCS

Supporting Member
HBT Supporter
Joined
Jul 30, 2015
Messages
99
Reaction score
16
Location
Virginia Beach
I got my HLT from Brew Hardware on Friday! Thanks @Bobby_M, looks great! Weld quality is top notch and herms coil went in without a hitch.
View attachment 720505 View attachment 720506

Nice looking HLT man. I essentially have the same set up, different brand, but same set up. I used a BH herms coil in a BK kettle. Same configurment though. Probe in the herms out! Also, running the same recirculation arm.

OP
DonT

DonT

Active Member
Joined
Oct 3, 2016
Messages
43
Reaction score
24
Back to an electrical question. I thought I read somewhere on HBT that a dryer will trip a GFCI breaker all the time and so won't work. Is this true? My plan was to replace the current 50A breaker with a 30A GFCI. I'll be unplugging the dryer to brew. And yeah, that 50A probably shouldn't be there anyway... previous renter.


doug293cz

BIABer, Beer Math Nerd, ePanel Designer, Pilot
Staff member
Mod
Lifetime Supporter
Joined
May 14, 2014
Messages
11,176
Reaction score
7,316
Location
Renton
Back to an electrical question. I thought I read somewhere on HBT that a dryer will trip a GFCI breaker all the time and so won't work. Is this true? My plan was to replace the current 50A breaker with a 30A GFCI. I'll be unplugging the dryer to brew. And yeah, that 50A probably shouldn't be there anyway... previous renter.
A three wire power input dryer, that has any 120V control circuitry inside, will blow a GFCI every time. If it's set up for four wire input, then it will work with a GFCI.

Brew on :mug:

OP
DonT

DonT

Active Member
Joined
Oct 3, 2016
Messages
43
Reaction score
24
A three wire power input dryer, that has any 120V control circuitry inside, will blow a GFCI every time. If it's set up for four wire input, then it will work with a GFCI.

Brew on :mug:
Cool. Thanks.

OP
DonT

DonT

Active Member
Joined
Oct 3, 2016
Messages
43
Reaction score
24
I received my mash tun and boil kettle from Brew Hardware the other day!
new brewery.jpg

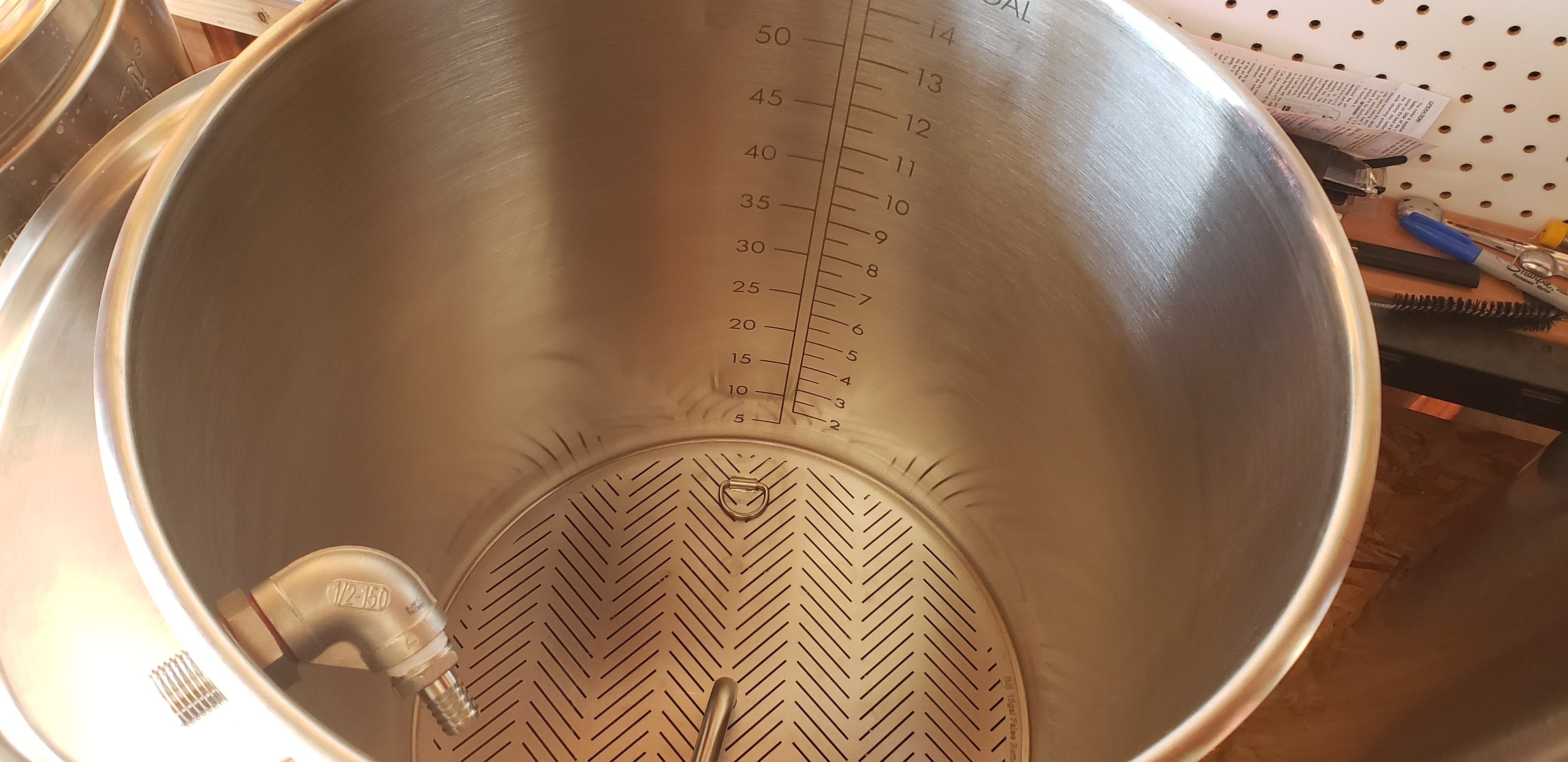

mash tun.jpg

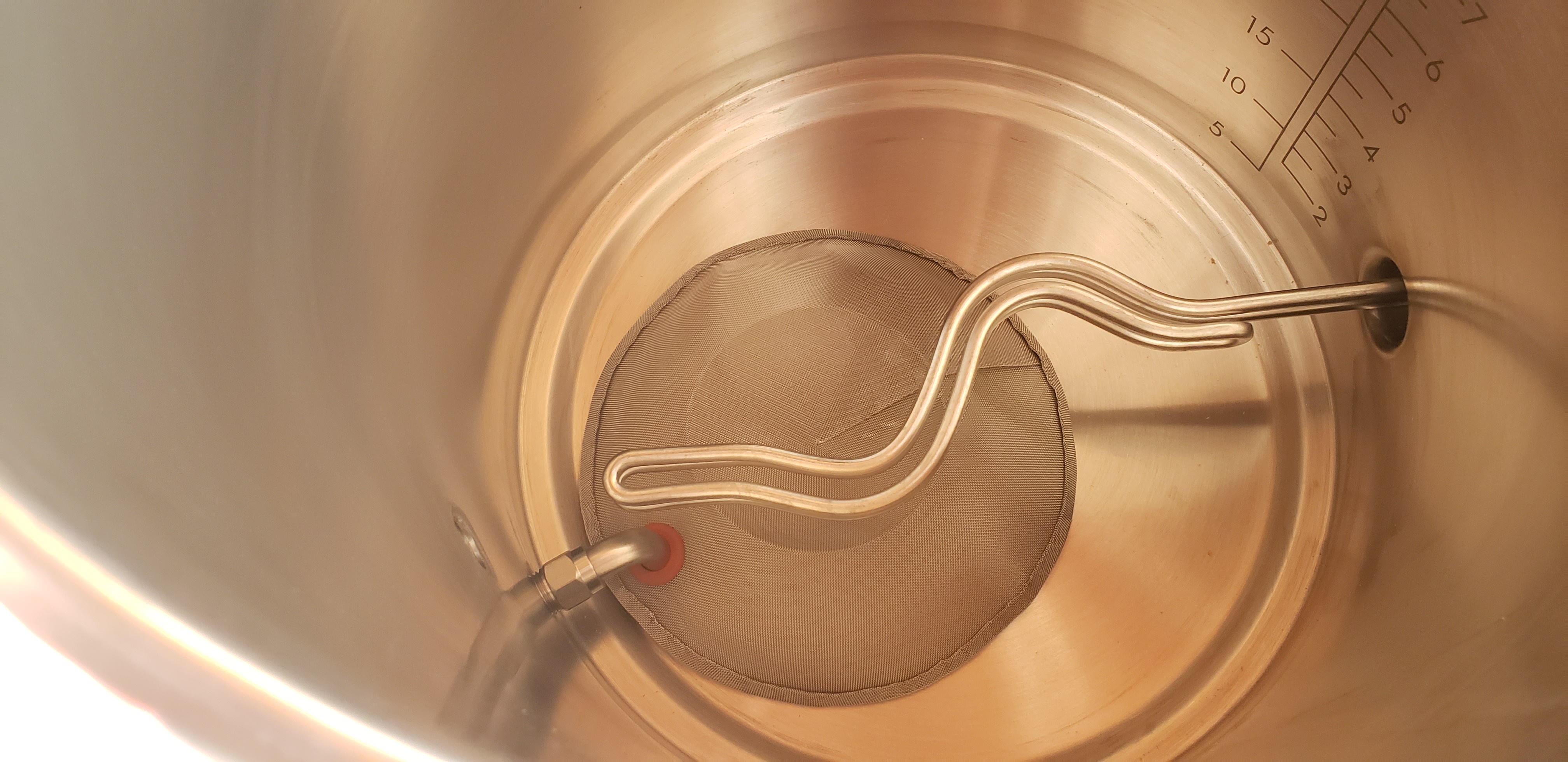

hop stopper.jpg

Now I just have to hook everything up. I'm going to re-do my bench and put in a sink, water heater and an RO system as well...
