Just got this in the Bayou Classic 1032 8 -Gallon (32 quart) SS Spigot Stockpot in the mail today. The installation instructions that came with it for installing the SS 1/2" ball valve are really vague. It has, what looks like, a SS thread protector that I did not use. I did use 2 of the SS nuts with the recess for the "O" ring and put the flat neoprene washer up against the outside nut and installed the ball valve up against it. Doesn't leak, but it is a bit "wobbly".

Does anyone have a good diagram or idea on how these 1/2" ball valves are supposed to be assembled on this pot? Do I use that threaded SS tube on the inside?

Pictures would be great!


chezhed

Well-Known Member
Joined
Dec 28, 2010
Messages
808
Reaction score
114
Location
Mission
Not sure what you mean by thread protector but I suspect it is a Coupler...threaded complete so you can attach a male threaded a) bazooka tube, or b) 90 degree street elbow or c) any male threaded contraption....

I have sold these but cannot remember the configuration exactly but I do recall the "wobbly" effect. Sorry I can't remember what we did to get rid of it.may have added a flat SS washer..but try the washer inside and see if that helps eliminate wobbly and does not leak...I believe it is food grade.


augiedoggy

Well-Known Member
Joined
Dec 6, 2013
Messages
10,284
Reaction score
2,280
Location
North Tonawanda NY
I have the 16 gallon version... I do not recall having or using that silicone washer on the outside... Your should have a red silicone oring under the nut on the inside and that should do all the sealing. I used teflon tape to install the ball valve on the nipple on the outside.

OP
Nebraskan

Nebraskan

Assoc. Winemaker
Joined
Oct 19, 2017
Messages
204
Reaction score
96
Location
Fennville, Michigan
I have the 16 gallon version... I do not recall having or using that silicone washer on the outside... Your should have a red silicone o-ring under the nut on the inside and that should do all the sealing. I used Teflon tape to install the ball valve on the nipple on the outside.

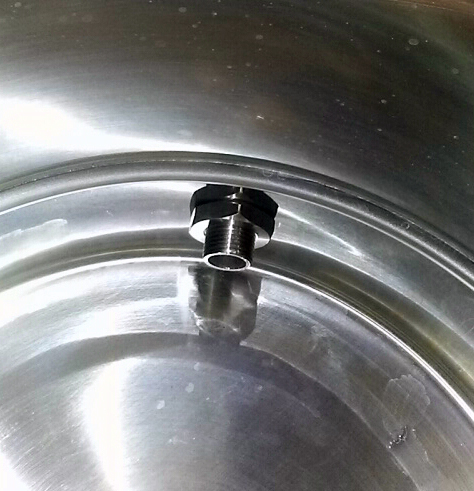

I used Teflon tape installing the ball valve as well I also used the red silicone O ring on the inside as well as on the nut on the outside and tightened down good. Came with 2 wrenches. I contacted "The Bayou" www.thebayou.com today and talked about what I did. Guy agreed that it should be fine. They include that steel piece (what I called a thread protector) in case I wanted to install it on the inside to attache some sort of screening or other device inside the pot. I also put plumber Teflon tape on the insert/barb I got in the mail today 1/2 x 1/4 barb. Hope the pictures help.
