Hello,

I’m looking at adding several solenoid valves to my existing cbpi setup through a relay board. Another user of cbpi recommended a 5-wire valve, which from what I understand provides wiring for indicator lights. What if I bypassed the indicators could I use a 2 or 3 wire setup? I know members here use solenoid valves, want to get your advice and expertise please.

Thanks,
Jessee


crane

Supporting Member
HBT Supporter
Joined
Sep 20, 2011
Messages
1,215
Reaction score
457
Location
San Diego
Are you talking about solenoids or electronic ball valves? I have only ever seen 2 wire solenoid valves, but there are several different wiring implementations for electronic ball valves (CR-02, CR-04, etc.)

OP
OP
Jessee

Jessee

Well-Known Member
Joined
Dec 5, 2014
Messages
49
Reaction score
1
With the motorized valve you provided, would this wiring diagram be reference to go by?


Attachments

  • A29417EC-BBEC-4E8A-8699-0F02E9B05320.jpeg
    54.8 KB · Views: 148

Kmo4040

Well-Known Member
Joined
Jul 28, 2016
Messages
123
Reaction score
9
With the motorized valve you provided, would this wiring diagram be reference to go by?

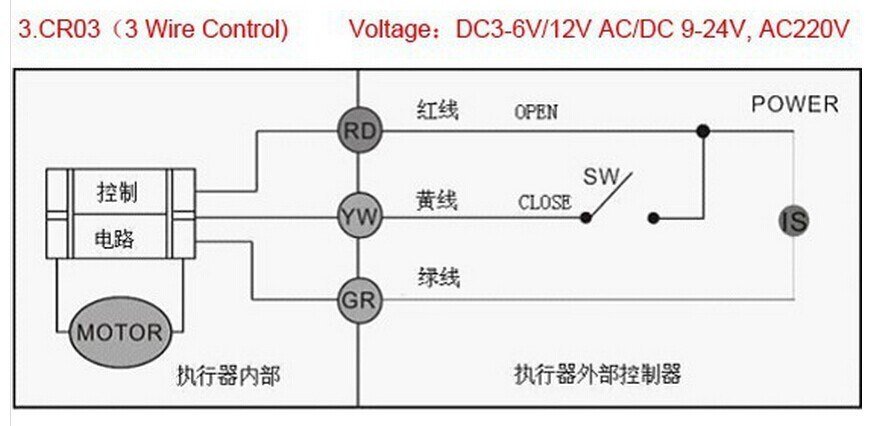

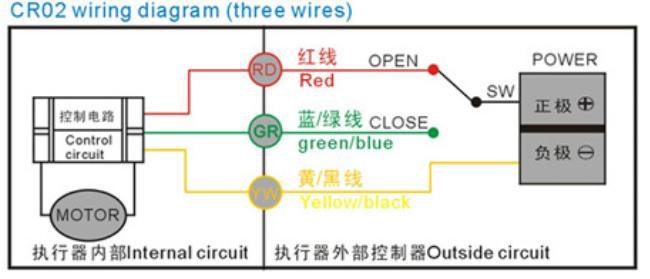

These are the 2 most common wiring schemes cr02 and cr03. I couldn't tell which one it was.

OP
OP
Jessee

Jessee

Well-Known Member
Joined
Dec 5, 2014
Messages
49
Reaction score
1
Refering back to my diagram: the wiring to relay has one wire to nc and another to no...is that necessary with a 3-wire? Second, I have a 12V 5A DC power supply for my raspberri pi. What power supply would I need for the valves, I think I'm gonna buy 4-5.


Kmo4040

Well-Known Member
Joined
Jul 28, 2016
Messages
123
Reaction score
9
That's plenty of power, and your relay will work with either.

OP
OP
Jessee

Jessee

Well-Known Member
Joined
Dec 5, 2014
Messages
49
Reaction score
1
Thanks for the help. I'll try to post a quick little diagram before I put it together.
