fwiw, I upgraded my APEC ROES-50 system yesterday and was able to test its performance today.
Thought I write up what I did in case anyone's interested in a similar upgrade.
While the oem system is rated at 50 gpd, it'll only get there with an 80+ psi water source, and as my well pump ranges between 35 and 55 psi the system yield was significantly affected - like, by 50%. Gathering the 20+ gallons for a typical brew day was a totally manual protracted affair at that rate, almost always requiring over-night operation with fingers crossed nothing went awry. Also, due to design limitations, filling my kettles immediately emptied the reservoir tank, leaving the merest trickle of water available at the RO faucet nearby until the filling was accomplished.
So my intention was to add a booster pump with appropriate controls to get the pressure in the ball park, and not have the kettle-filling exhaust the pressure tank for the duration. I ran my needs and ideas by
Russ @Buckeye_Hydro and worked through the parts needed and what went where and sent me a marked up version of one of the site's diagrams as a reference.

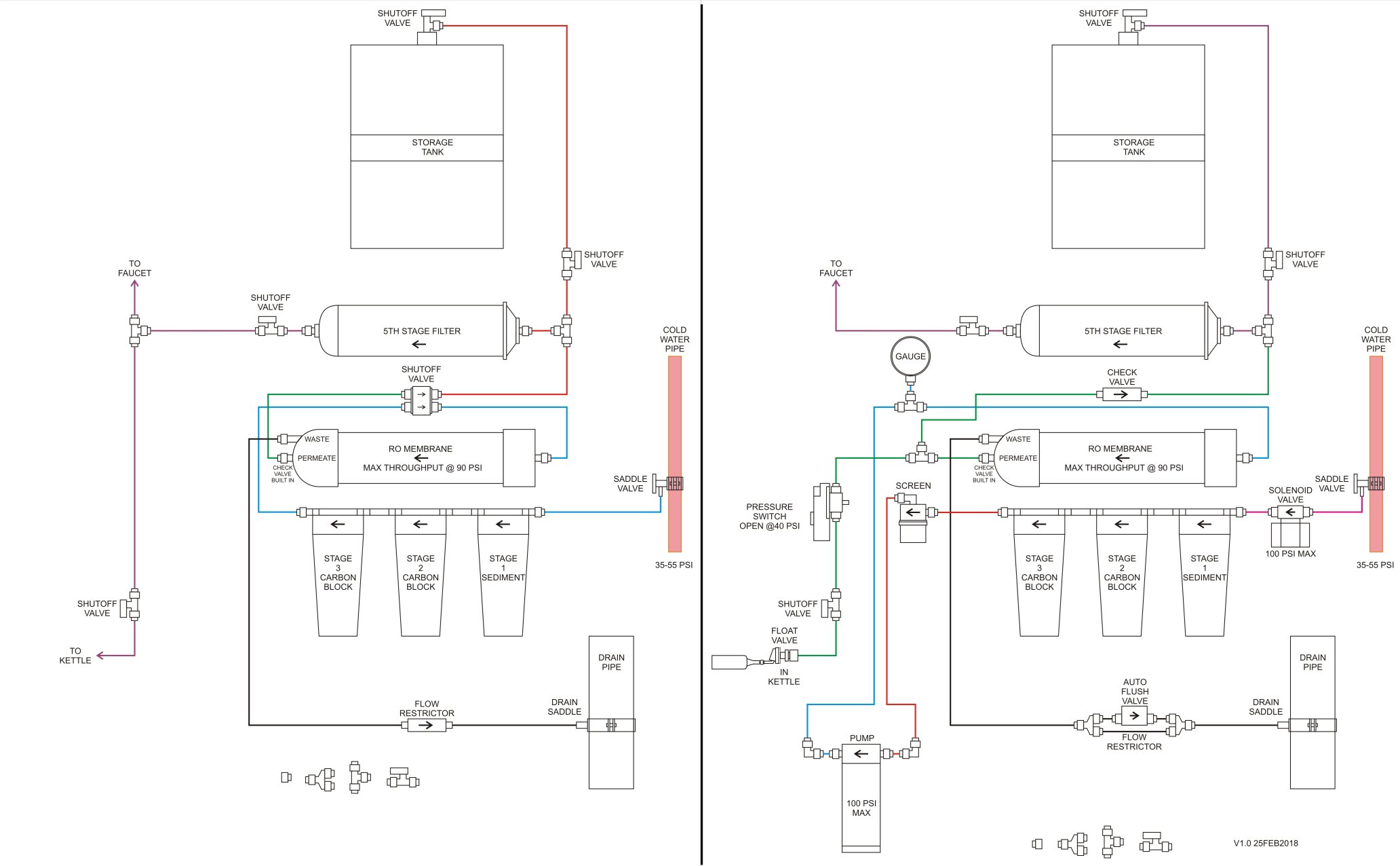

I took all that and drew up my system before and after the changes to give me a road map for installing everything in the right place the first try. Note a couple of shut-off valves appear redundant but are there for convenience (ie: the tank valve is up near the ceiling so I added a shut-off in that path that I can actually reach, and the shut-off near the end of the ~20' kettle-filling branch has obvious benefits).
We added the pump and an input screen for it, a pressure gauge to monitor the pump pressure, a pressure sensor and a solenoid to control the raw water input to the system, and a strategically located check valve prevents my kettle-filling path from drawing from the pressure tank which now is dedicated to the faucet. An adjustable float valve will make the kettle-filling automatic once I come up with a mounting scheme. And we also added an auto-flush feature to help keep the membrane healthy and relieve me from having to manually cycle the system every few days when not being used.
So how'd it turn out? Couldn't be more pleased!
Before the mods it was yielding 1.15 gallons per hour @ tds of 6 (our well typically runs around 330 with most of it bicarbonates).
After the mods it is now yielding 2.28 gph, still @ tds of 6, so nearly double, and actually a bit over the oem system's performance ratings.
And the RO faucet will be useful all the time now, and I don't have to tend to the RO membrane's needs any more, it can take care of itself now
Cheers! ("It's A Good Thing")
