Quick & Easy Keg Pressure Checker / Air Compressor Fill

[UpstateMike]

Materials:
One Gas Quick Disconnect with 1/4 Inch Barb
One 3/16 Inner Diameter vinyl tubing
Two 1/4 - 5/8 Inch Hose Clamps

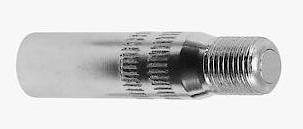

One Victor Metal Valve Extension, as seen below:


Warm the vinyl tubing (boiling water or a hair dryer / heat gun), and push the valve extension into the tubing.
Attach the Gas QD to the other end of the tubing.
Secure the tubing to the Gas QD and the valve extension with hose clamps.

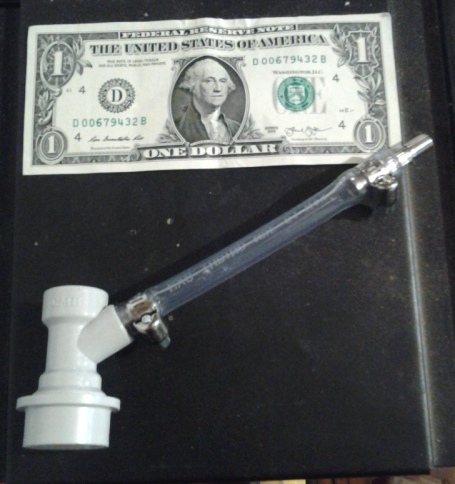

Now you can attach this device to your gas side post and either fill it from your air compressor to pressure check your keg, or use a tire pressure gauge to check the pressure of your keg.



[OleBrewing]

I like the idea for pressure checking kegs. When I use an air compressor for rinsing lines I put a barb on a air blower and just press the button.



[SeeMont]

I am going to build this but I will be sure to back the pressure down on my compressor regulator. I really don't want 120 plus psi in my kegs, don't know what would happen and i am not going to find out. Be careful.



[UpstateMike]

I carb and serve at 12 PSI, so I test my kegs at 30 PSI... I figure if there's going to be a leak, that will find it...



[Dr_Jeff]

I am going to build this but I will be sure to back the pressure down on my compressor regulator. I really don't want 120 plus psi in my kegs, don't know what would happen and i am not going to find out. Be careful.

When the kegs were new, they were marked 130 psi max.



[Stealthcruiser]

When the kegs were new, they were marked 130 psi max.

My old ones are still marked with that...................



[Zepth]

Or you can turn your corny keg into an "air pig" and use your CO2 to fill your car tires. If you happen to not own a compressor.
