Motorizing new mill

[HOPtuary]

So i got a brand new Dayton 1YBV8 1/2HP motor which is unwired for power and my electrical skills are lacking when it comes to motors. Below is the wiring diagram from on the motor and from the company. At this time I am just looking to run power to the motor but would like to add a 3 way drum switch at some point. If someone can help me straighten out all the colors and what needs to be spliced and cut together. Thanks in andvance!



[HOPtuary]

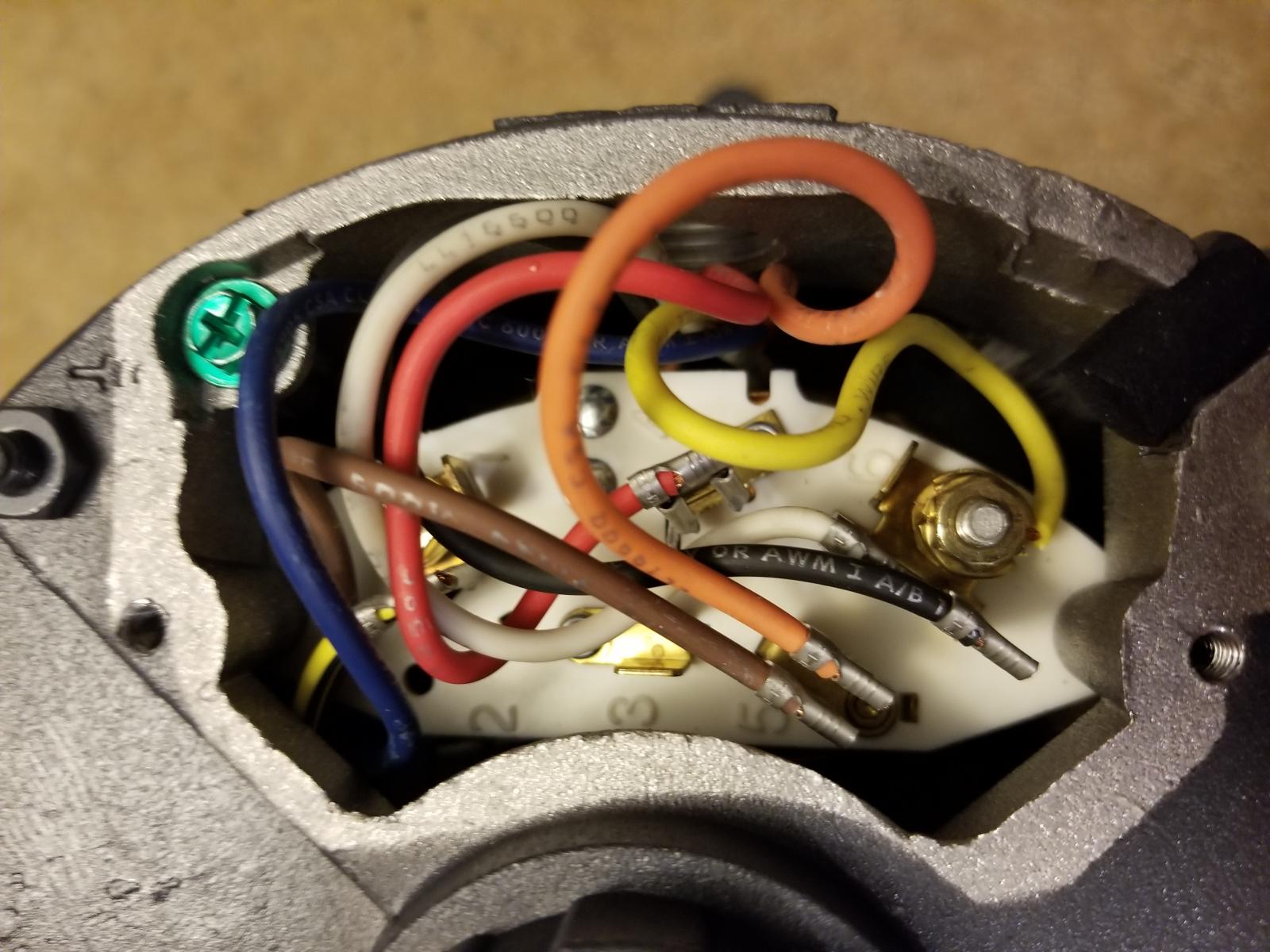

I think im looking at getting power attached to the open terminals at 1 & 6 and the ground to the case screw. Am i right?



[mikescooling]

Wanger is a friend of mine in real life and I'm telling him he is totally screwed and I'm bumping his thread. I'm thinking one is hot and 6 is round, but IDK for sure



[mikescooling]

Black, white ad yellow are on terminal 6 so it would seem that this is wired for 120v application, maybe? anyone? anyone?



[HOPtuary]

Got this up and working. This can be deleted.



[Mybuddypete]

If a solution is found this thread should NOT be deleted so others can read about it.



[FloppyKnockers]



[lschiavo]

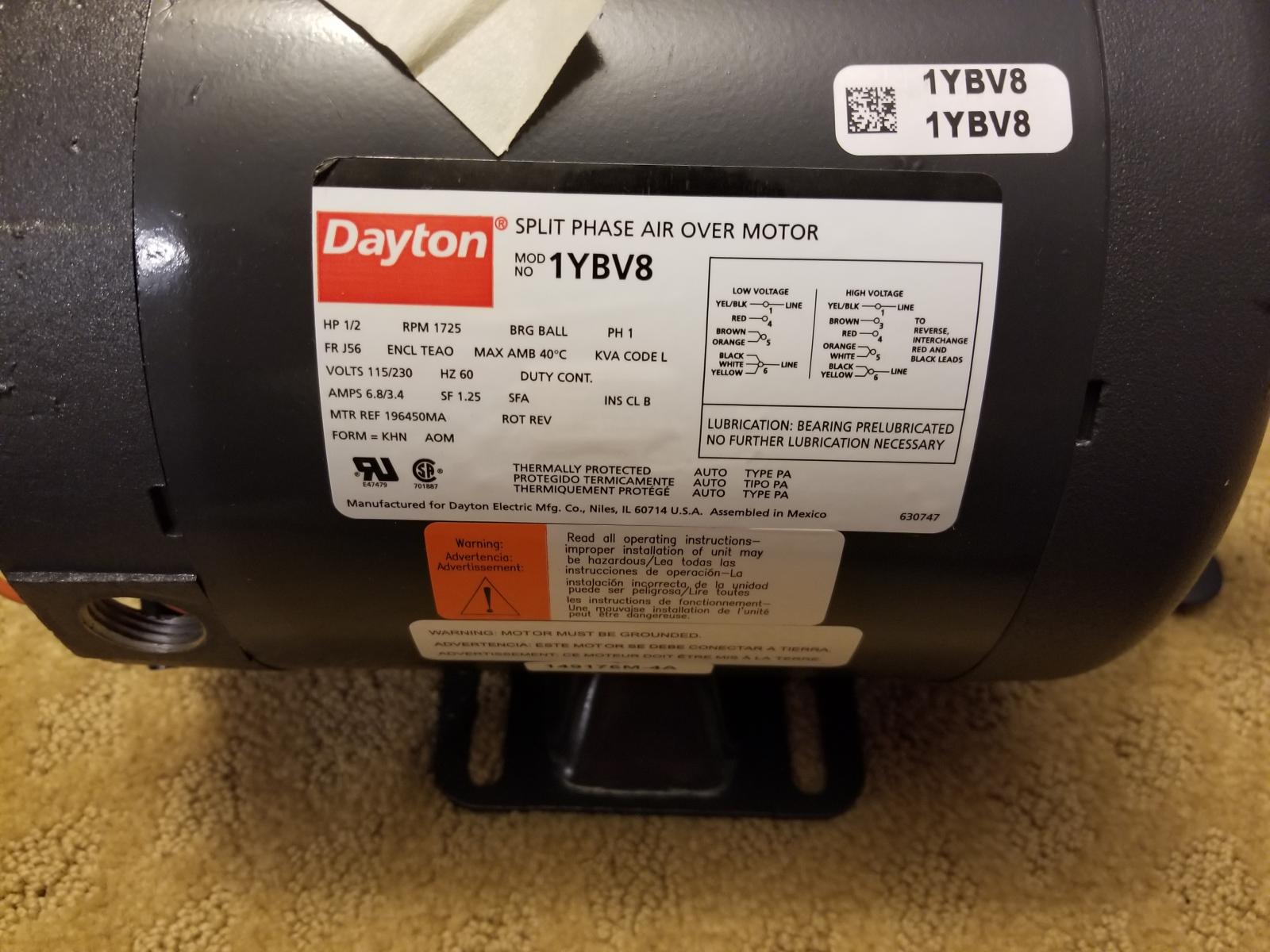

The diagram sure is a mess but the nameplate on the side of the motor is very clear.



[HOPtuary]

Connected incoming hot black wire to the open terminal on #6, incoming neutral to open terminal on #1 and ground to the green case screw. Hope this helps others.



[GParkins]

In this case, unlike wiring an outlet in your house, black and white are interchangeable and can go to either "Line" terminal. Green MUST go to the green ground screw.
