Keezer collars - which wood to use?

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

day_trippr

Covid-19 Vaccine Effectivity Test Subject
Joined
May 31, 2011
Messages
35,859
Reaction score
18,285
Location
Stow, MA
[...]The idea of the plywood on the inside is it will take a lot more abuse than just having foam on the inside.
Would you double the back where the hinges attach?

Cheers!


PerryS

Well-Known Member
Joined
Dec 19, 2012
Messages
67
Reaction score
11
Location
Fort Collins
After using my keezer for a few years, I can't recommend foam insulation on the inside. As the keg goes in (40+ pounds), it may scrape the sides. I dunno - maybe y'all are stronger than I am. Wood can take a lot more abuse. The thermal loss of 2x wood versus another inch of styrofoam isn't much.

As an added bonus, I created some auxiliary refrigerator space for my (wonderful) wife by installing some opened eye screws to hold the freezer baskets. Made the project a much easier sell.


Kcmfg

Member
Joined
Sep 15, 2011
Messages
13
Reaction score
0
Location
Rochester

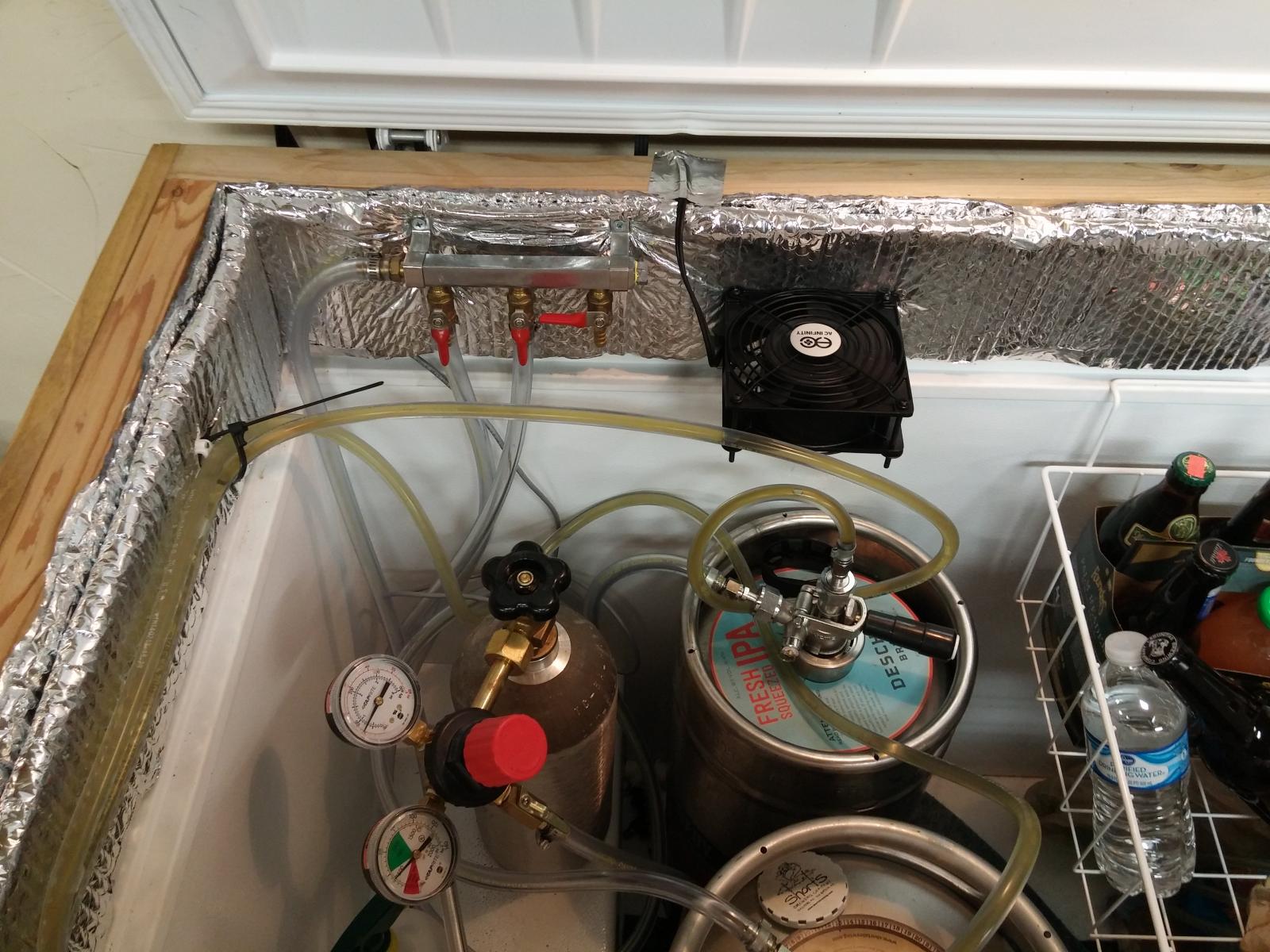

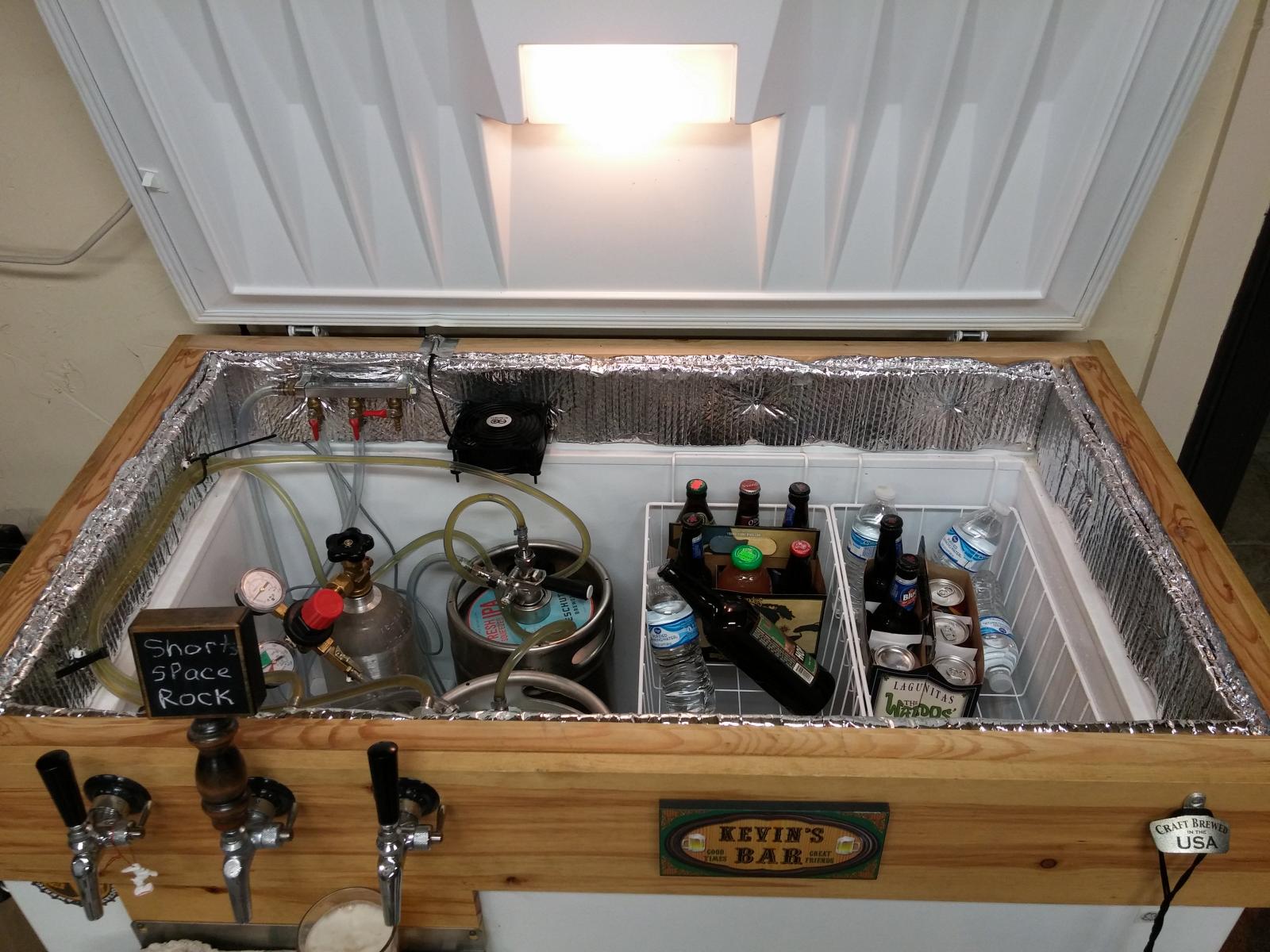

I used 2x6 wood on top of freezer with truck bed insulation taped on bottom and then wrapped it with stained 1x8 pine on front and side walls. Then used about 3 layers of reflectix insulation bubble foil on the inside on the wood collar.







BryceL

Well-Known Member
Joined
Feb 23, 2011
Messages
937
Reaction score
50
Location
Yorba Linda
First time posting photos on here, so please excuse me if they don't attach correctly.

I just finished my keezer build a couple months ago. I went with 1.5" cherry, 1.5" foam backing, and then wrapped the inside with aluminum sheet metal. I'm really glad I went with the sheet metal. Not only does it look super clean, but it protects the foam from getting beat up lifting kegs in and out.

I spent about $100 on the cherry wood and had enough left over to build a skirt for the bottom which helps to conceal the casters.







corkybstewart

Well-Known Member
Lifetime Supporter
Joined
Jun 29, 2011
Messages
3,032
Reaction score
3,561
Location
Silver City
I used 1 X 4 pine on the inside, red oak for the outside. The oak is attached with screws from the inside. I would avoid plywood, the moisture inside the keg can cause it to swell and come apart.


musicbymark

Member
Joined
Apr 30, 2012
Messages
16
Reaction score
4
Location
Iron Mountain
I use PVC lumber from Home Depot, more expensive than would for sure, but perfectly flat and you can either use the fake rain outside or turn it inside for a smooth surface which is my preference. I wish I would have painted it black in retrospect, as it is a little bit more prone to staining then wood with a slippery finish would be. The PVC offers great insulation qualities I think comma evidence by it always feeling room temperature when you touch the outside. It was very easy to drill into and I got extremely tight mitered corners.


John Paul Stoddard

Well-Known Member
Joined
Mar 3, 2006
Messages
156
Reaction score
27
Location
Galveston
As for Wood...I am a Wood Lover...So I select the wood I want to see...Walnut, Mahogany, Northern Red Oak, Alder, Maple,or maybe Cherry...not a cheap wood stained to look like something else...Even Pine is beautiful with a clear finish on it.....But I owuldn't stain it cherry or oak...

Every Wood worker has their way of doing joints...Myself I would consider dovetails If the ends would be exposed.
