Hi brewers.
I built a 4 tap keezer and have the typical wooden collar. Time to add a drip tray but weary of drilling in to front and hitting a cooling line. What have some of you done for this? I need one 18 inches long to span the 4 taps.
Thanks


Smellyglove

Well-Known Member
Joined
May 17, 2013
Messages
2,807
Reaction score
801
Maybe you can glue a long magnet to the fridge and another one on the driptray.


brew703

Well-Known Member
Joined
Jul 8, 2015
Messages
2,207
Reaction score
467
Location
Outside of Nola
I have a 16" SS drip tray and used rare earth magnets. Holds secure.
I used 4 60x10x5mm. Check out Ebay or Amazon. I paid under $8 with free shipping.
If you go larger than a 16" drip tray you may need larger magnets.


mongoose33

Well-Known Member
Joined
Dec 16, 2015
Messages
8,063
Reaction score
7,799
Location
Platteville, WI
Here's the non-drilling solution I used.

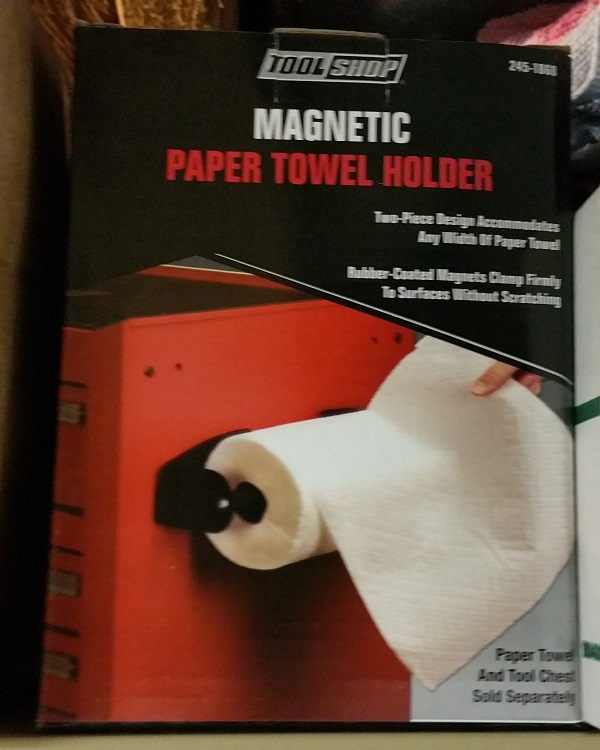

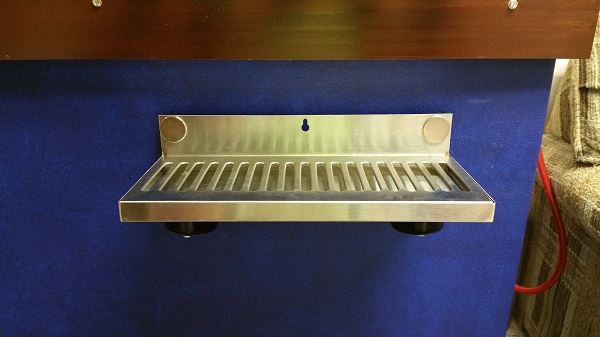

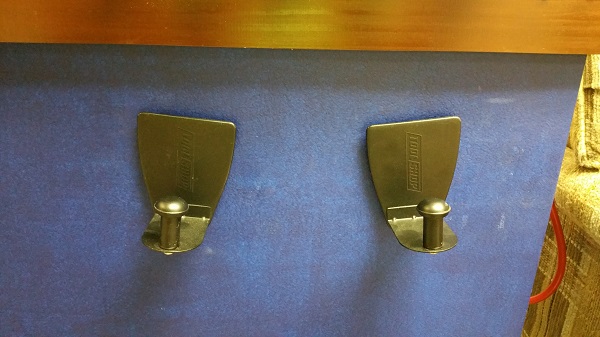

I bought a couple magnetic paper towel holders from Menards (home store). They are strong, very strong. I stuck them on the front of the keezer, laid the drip tray on them, used a couple of magnets to hold the drop tray to the paper towel holders, and voila! No-drill keezer drip tray.

The weight is supported from underneath, not by hanging from screws.

At some point I'll drill a couple holes in the paper towel holders, add a couple screws, and use that to hold the drip tray to the paper towel holders instead of the magnets. On my list to do. :)

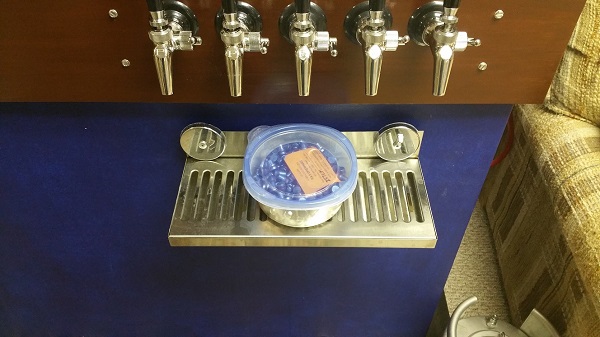

BTW, the bottom pic shows an 8-pound container of bullets sitting on the drip tray; it'll hold a glass of beer or two. :)



Last edited:

millsbrew

Well-Known Member
Lifetime Supporter
Joined
May 19, 2013
Messages
375
Reaction score
18
I use a bunch of small rare earth magnets and a tube into a Home Depot bucket. Put some magnets under the tray too and wrap them in electrical tape backwards so it grips to the freezer. Creates more friction allowing for a full pint to sit on the drip tray.


LLBeanJ

Well-Known Member
Joined
Feb 27, 2012
Messages
3,247
Reaction score
891
Location
Northern Colorado
OP
W

walker111

Well-Known Member
Joined
Oct 6, 2016
Messages
195
Reaction score
45
Location
Calgary

Lost_Arkitekt

Well-Known Member
Lifetime Supporter
Joined
Jan 14, 2013
Messages
267
Reaction score
25
Location
Chicago
The Keg Connection had splash guard drip trays already...no need to have one fabricated. You might have to fill your shank holes with dowels and drill new ones depending on the spacing.


blkmagik98

Supporting Member
HBT Supporter
Joined
Mar 13, 2015
Messages
46
Reaction score
32
Location
Austin

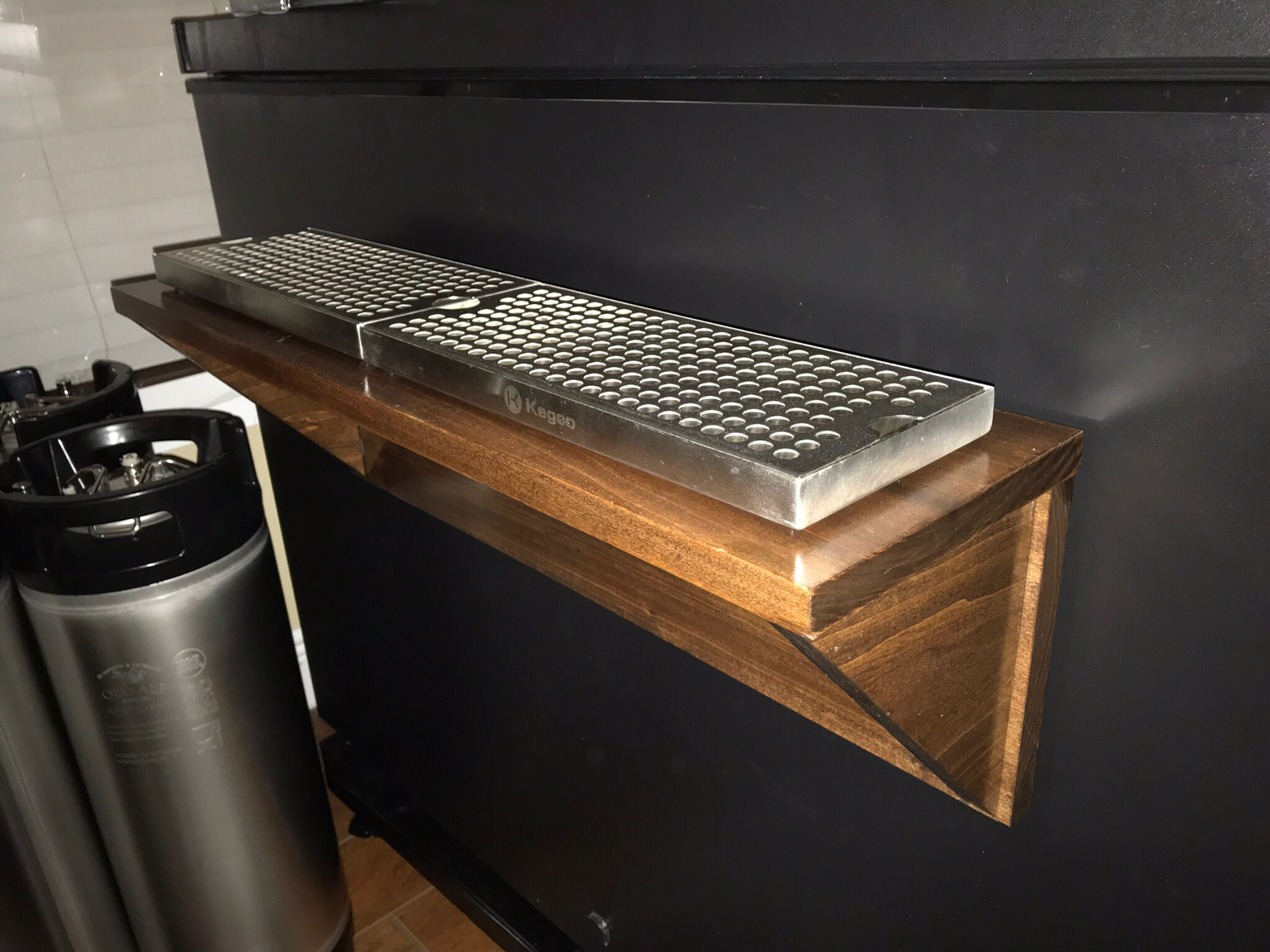

I just built a shelf and attached neodymium magnets to the back. The magnets have countersunk holes and I used screws.


mongoose33

Well-Known Member
Joined
Dec 16, 2015
Messages
8,063
Reaction score
7,799
Location
Platteville, WI
I'm throwing this out there as a suggestion to consider.

My drip tray, of course, catches drips; then it looks bad because the beers, some dark, leave splotches on my nice and clean drip tray.

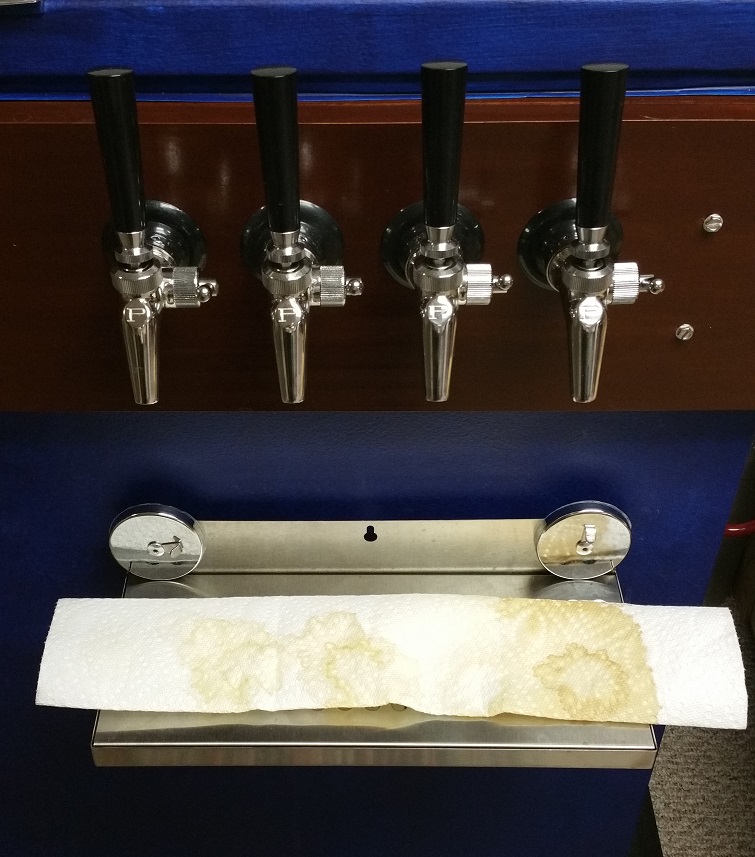

If I know I'm having company and want to show it off a bit, I'll put a piece of paper towel on the tray to catch those drips. As long as you're not dumping out glasses, or catching streams from an open faucet, it works remarkably well.

And it keeps the drip tray clean.



mongoose33

Well-Known Member
Joined
Dec 16, 2015
Messages
8,063
Reaction score
7,799
Location
Platteville, WI
Wish I'd seen this before I bought mine. The tray I have is 6" x 14" which is just barely wide enough for 5 faucets spaced 3" apart.

They also have a 6" x 16" trip tray for $19.95; I could have easily created a support from magnets and a little angle-iron. And it would have been cheaper and wider than what I have.


dsaavedra

Well-Known Member
Joined
Jan 11, 2014
Messages
635
Reaction score
122
I bought the 19" drip tray linked above, which is not magnetic. To mount it, I went to the hardware store and bought a 1"x1/8"x48" flat aluminum bar for $10 and cut three 12" lengths off of it and bent them at 90° to form L brackets. This was cheaper, and lighter, and matched the look of the stainless steel better than pre-made 6" L backets which were like 7 bucks a pop. I used 2 ton epoxy to glue three 1.25" diameter rare earth magnets to the back side of each bracket, lined the back of each magnet with duct tape to provide some grip against the freezer as well as prevent scratching, and mounted them on the freezer with a level. Then I secure the drip tray on top of that with some Velcro so it stays put but is easily removable for cleaning.
