Howdy friends,

Just thought I'd post this info. up for anyone in the chest freezer market. Home Depot has the Magic Chef 7.0 cu. ft. on sale for $168 right now. I took my kegs into the store by my place earlier today and confirmed that you can fit 4 ball locks on the floor for the current model -

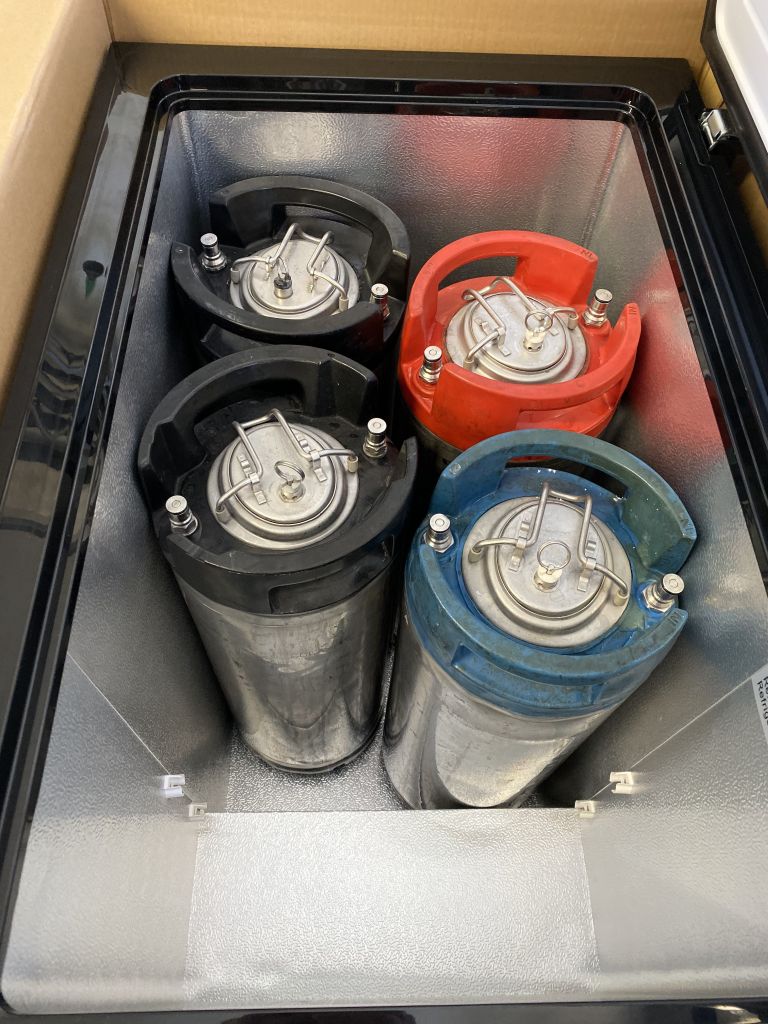

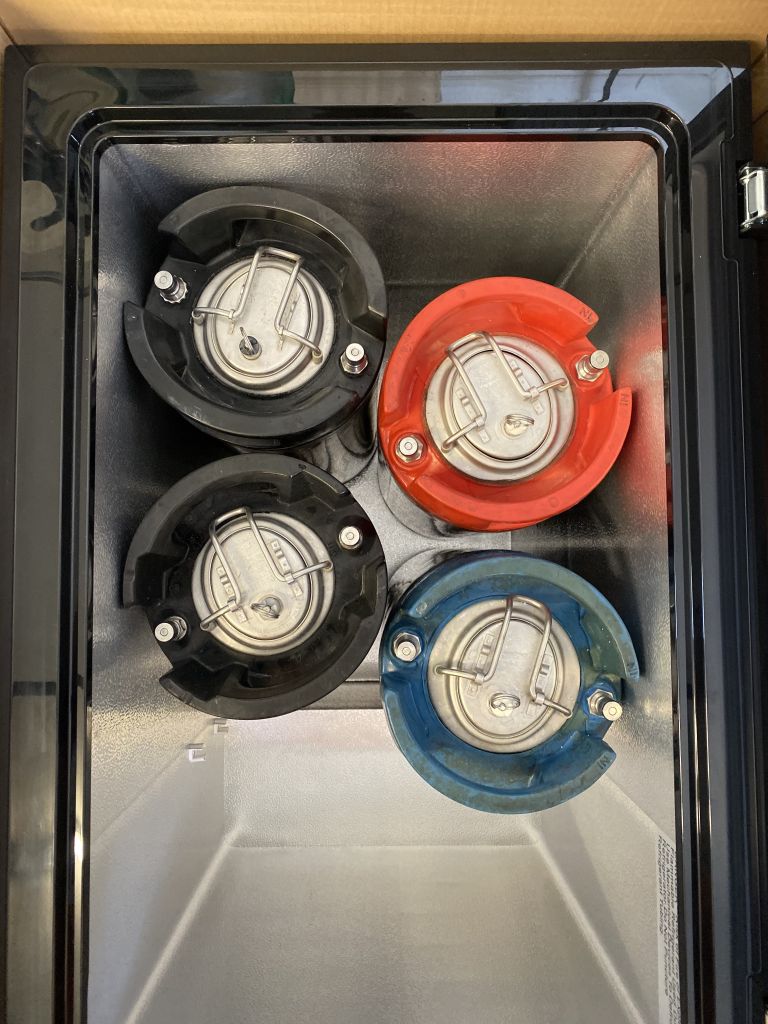

View attachment 597320

They fit in really nicely - just a bit of wiggle room. Did not have to force them in at all. Here's the info on the model I tested -
View attachment 597321

The same freezer comes in black, which is kinda nice since I know a lot of us end up painting them black any way. The model I tested was white, but I would assume the black one is the same size. Anyway, hope this helps someone out. Fitting 4 ball locks on the floor of a 7 cubic footer is pretty sweet if you ask me. Cheers and happy brewing.

Keep in mind fwiw the newer ball locks are fatter then the old tall skinny ones pictured. Cheers


njohnsoncs

Well-Known Member
Joined
Apr 6, 2017
Messages
239
Reaction score
20
Keep in mind fwiw the newer ball locks are fatter then the old tall skinny ones pictured. Cheers
This is very true. I found out the hard way. Was expecting to fit 2 based on the data in this thread but could only fit 1...


odie

Well-Known Member
Joined
Dec 18, 2016
Messages
1,006
Reaction score
347
Location
CC, TX
Really? Ball locks getting wider? Crap, I better check all mine. Or is this only new production?


Blazinlow86

Well-Known Member
Joined
Oct 19, 2016
Messages
1,680
Reaction score
733
Not sure what year they switched over. All my ball locks are aeb Pepsi ones with oldest being 2008. Cheers


Blazinlow86

Well-Known Member
Joined
Oct 19, 2016
Messages
1,680
Reaction score
733
I would think it's the "newer" new ones that are on the market, believe they are made in Italy.

But, I don't own any, so I can't measure the O D on them.
Correct there Italian aeb ball locks. Sorry I thought I added that but didn't. Cheers


odie

Well-Known Member
Joined
Dec 18, 2016
Messages
1,006
Reaction score
347
Location
CC, TX
When did freezers get so skinny? Even the small ones used to be 2ft outside depth so you didn’t have to stagger kegs. I had an old 5cf-ish Roper(GE) that swallowed 3 ball locks and 5# without any mods


Beeru

AnarchoFermentalist
Joined
Oct 9, 2013
Messages
165
Reaction score
54
Location
Vancouver
I just ordered the Insignia 10.2 Cu. Ft. freezer after my old kegerator died.
There are a few posts here about this freezer, and it looks like it will be able to fit 5-6 5 gallon ball lock kegs and a 20# c02 tank, which is an exciting upgrade from my old system.

My question is, what do you think about getting an extended warrantee on a new freezer? I'll be building a type of collar that I should be able to pop off quite easily, so if the compressor fails due to being overworked (or something like that happens) I could easily remove the collar and pop the lid back on and essentially pretend it was never modified, and get it repaired. But, do you think the warrantees are worth while? Also, has anyone had experience with the longevity of new chest freezers being used as refrigerators with temperature controllers? Any tips to prolong its life?


odie

Well-Known Member
Joined
Dec 18, 2016
Messages
1,006
Reaction score
347
Location
CC, TX
These things typically run forever or break the first week. I bet 90% of the failures are the start relays. About $5 bucks or so on eBay. Extended warranty is nothing but a money maker for them and hassle for you getting it honored


Beeru

AnarchoFermentalist
Joined
Oct 9, 2013
Messages
165
Reaction score
54
Location
Vancouver
These things typically run forever or break the first week. I bet 90% of the failures are the start relays. About $5 bucks or so on eBay. Extended warranty is nothing but a money maker for them and hassle for you getting it honored
This is how I typically think about warrantees for most products, but I know absolutely nothing about refrigerator mechanics and don’t even know what a Start relay is or how to diagnose those sorts of problems. So I guess i’m the ideal dupe for an extended warranty.

Do they run forever even with a temperature controller in there, making it start and stop more frequently ?


odie

Well-Known Member
Joined
Dec 18, 2016
Messages
1,006
Reaction score
347
Location
CC, TX
Relay plugs into back of compressor. If the freezer or fridge won’t kick on it’s almost always that little guy. No difference with the controller. Freezer or fridge works same way the thermostat is just adjusted for a different ranger...same thermostat. The knob is a fine adjustment but there is a hidden screw for course adjusting.


strangatang

Member
Joined
Nov 18, 2013
Messages
18
Reaction score
5
Location
MONROEVILLE
Frigidaire 8.8cf LFFC09M5HW

Download this specification sheet and layout as a high-resolution printable PDF at Dropbox.


________________________________

________________________________

________________________________
Hi, awesome thread! Do the measurements you have here include the hinges on the back? I measured a few of these in store (excluding hinges) but I wrote down different depths. Just want to make sure before placing order online


matt_m

Supporting Member
HBT Supporter
Joined
Oct 6, 2017
Messages
829
Reaction score
349
Is anyone aware of a current-model 7cuft class freezer that will fit 4 ball locks on the floor? Looking to build a counter-height Keezer with top-mounted tap tower and want it to fit in a space 43" or narrower.


day_trippr

"Now brewing exclusively with Hydrohydroxic Acid"
Joined
May 31, 2011
Messages
35,176
Reaction score
17,129
Location
Stow, MA
What I've found on this model: [edit: Insignia 7cf class NS-CZ70WH6 sold at BestBuy]

"Best answer: Inside dimensions: 32 inches wide, 14.5 inches deep (front to back) and 27 inches from floor to lid. Plus in the lower right floor is a step that is 8 inch wide, 8.5 inch floor to top of step"

So...



It should definitely fit at least four ball lock kegs with room for disconnects. Less assured is that fifth keg - even though I slightly over-sized the keg diameters at 9.0" I wouldn't count on the 5th fitting as the freezer walls are often not dead square and plumb and the foaming can cause bulging...

Cheers!

Last edited:

Jayjay1976

Bubblegazer
Joined
Nov 26, 2016
Messages
3,531
Reaction score
2,836
Location
Chicago
What I've found on this model:

"Best answer: Inside dimensions: 32 inches wide, 14.5 inches deep (front to back) and 27 inches from floor to lid. Plus in the lower right floor is a step that is 8 inch wide, 8.5 inch floor to top of step"

So...

View attachment 641662

It should definitely fit at least four ball lock kegs with room for disconnects. Less assured is that fifth keg - even though I slightly over-sized the keg diameters at 9.0" I wouldn't count on the 5th fitting as the freezer walls are often not dead square and plumb and the foaming can cause bulging...

Cheers!
Which model is this?


day_trippr

"Now brewing exclusively with Hydrohydroxic Acid"
Joined
May 31, 2011
Messages
35,176
Reaction score
17,129
Location
Stow, MA
Whoops! The Insignia 7cf class NS-CZ70WH6 sold at BestBuy...

Cheers!


day_trippr

"Now brewing exclusively with Hydrohydroxic Acid"
Joined
May 31, 2011
Messages
35,176
Reaction score
17,129
Location
Stow, MA
From the Lowes reviews of the Idylis IF71CM33NW:
"The overall interior length (L-R) is 32" The overall interior width (front to back) is 15" The depth varies. For 23 1/2" of the width it is 26 1/2" deep and for the remaining width 8 1/2" (there is a hump) it is 18 1/2" deep."

So...



Looks like three kegs max sans collar...

Cheers!


day_trippr

"Now brewing exclusively with Hydrohydroxic Acid"
Joined
May 31, 2011
Messages
35,176
Reaction score
17,129
Location
Stow, MA

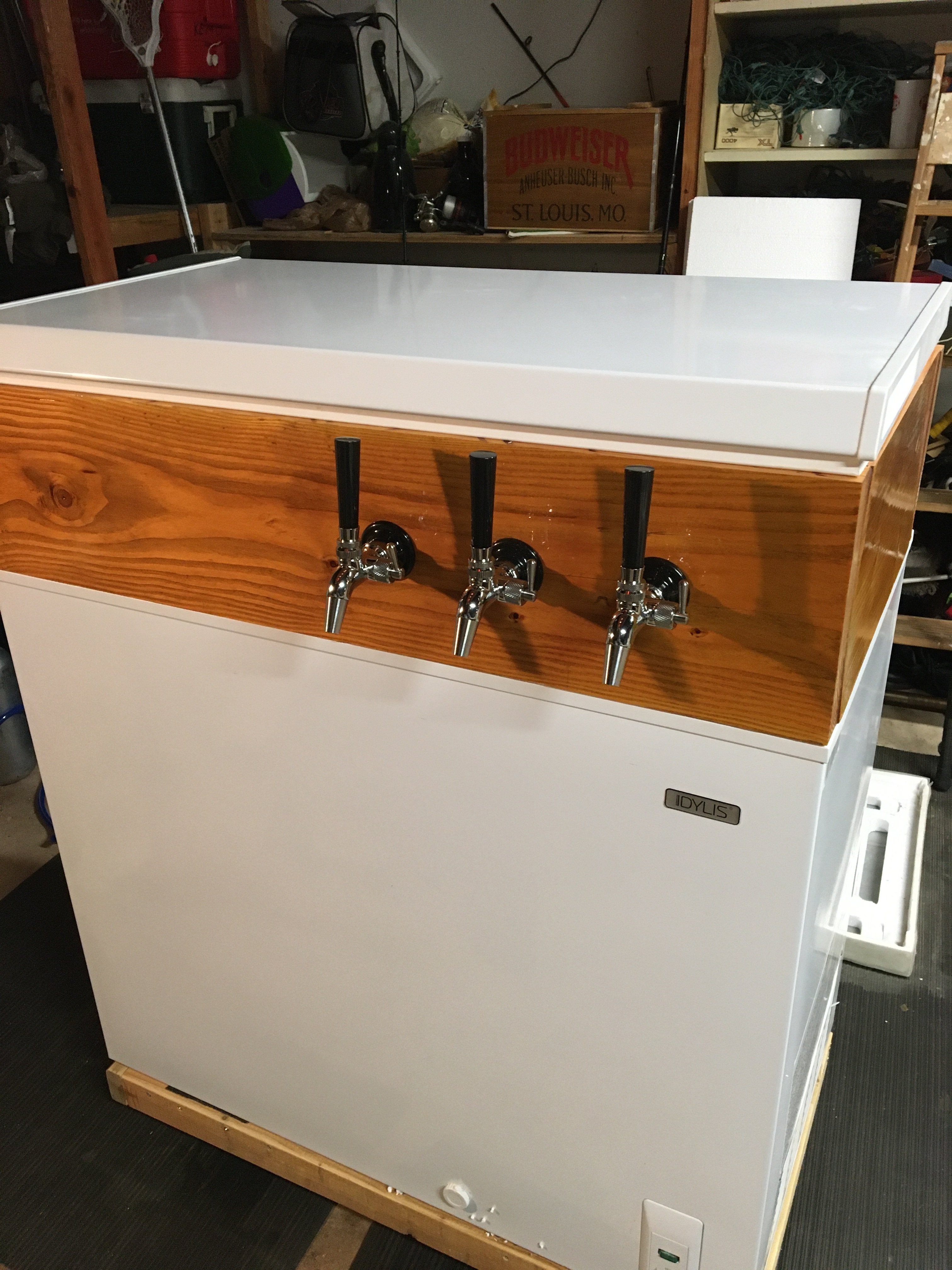

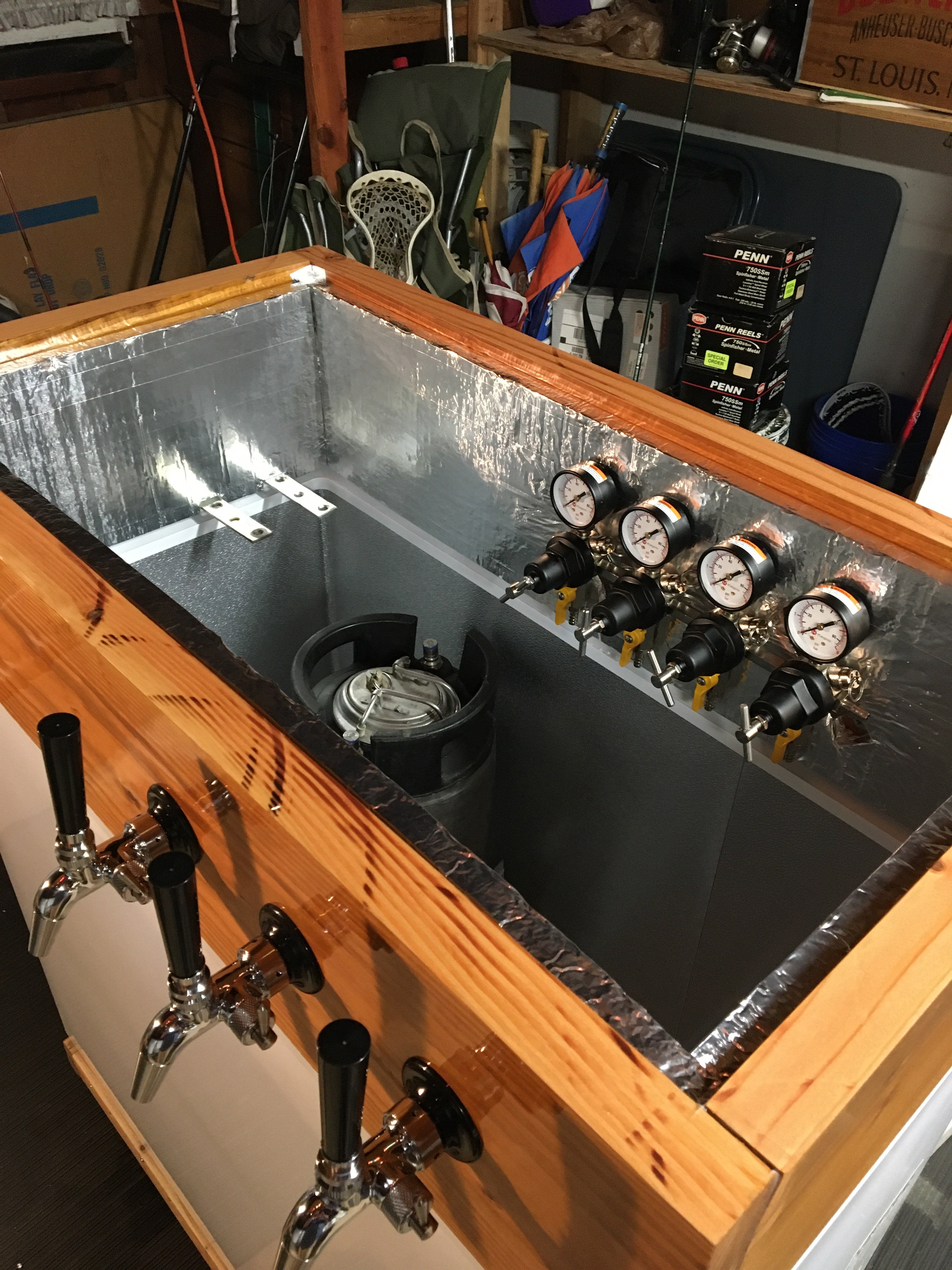

Collared with a keg on the hump.

Even if I cut the keg diameters down to 8.5" no way do four kegs fit on the floor...



Cheers!


Ruint

Going NoWhere fast
Lifetime Supporter
Joined
Jan 15, 2017
Messages
775
Reaction score
540
Location
West Central NY
Correct. I collared it to make vertical space so I could easily get a keg up on the hump. If I had to fit 5 kegs in there... I'm thinking it would be tight, but do-able.


day_trippr

"Now brewing exclusively with Hydrohydroxic Acid"
Joined
May 31, 2011
Messages
35,176
Reaction score
17,129
Location
Stow, MA
Yes, once you've gone in on the collar you could definitely fit a fifth keg...

Cheers!


Tony_nc

Well-Known Member
Joined
Jan 12, 2015
Messages
60
Reaction score
79
Location
Denver
Just my 2 cents

I bought the idyllis 7.1 a few years ago. I am usually against the extended warranties but this time I decided to buy it for around 24.99 (if I remember correctly) for 3 years. 11 months after owning it, it died. Since I set it up as my keezer I was worried about the return issues I might have. I called the warranty company and after giving my warranty number, they didn't ask many more questions. About a week later I received a check for the full amount. I then went and bought a starter relay and it was back up and running. Its still in use


matt_m

Supporting Member
HBT Supporter
Joined
Oct 6, 2017
Messages
829
Reaction score
349
Current (as of fall 2019) Magic Chef 7cu ft fits 4 ball locks and probably a 5lb tank (but not a 10lb tank) with no collar. Available in black or white at Home Depot.

Since I have 10lb tanks I'm going to add a very short collar just to give enough room to run the CO2 line in from outside without risking drilling the body. I have 2 double tap towers that are going on top which will get a wood top adhered to the lid somehow.



matt_m

Supporting Member
HBT Supporter
Joined
Oct 6, 2017
Messages
829
Reaction score
349
Yeah, I was thinking construction adhesive or epoxy. Have another use for epoxy so I was thinking of stopping by one of the marinas and getting a big epoxy kit.

Its definitely going to get heavier with two double-tap towers and a 3/4" thick lid overlay, but it appears the center of gravity will still hold the lid open from mocking it up. This plan wouldn't work against a wall, but its going to sit behind a bar, so the towers will go over the top of the bar as the lid opens.


Velinos

Member
Joined
Jul 1, 2011
Messages
22
Reaction score
1
Location
Madison
Has anyone been able to confirm whether the GE FCM7SKWW can indeed fit four ball lock kegs on the floor? My GE FCM7SUWW just died and I was hoping to swap it out with the newer model and keep the collar and everything for my four keg setup. Four kegs in the FCM7SUWW was snug, but they all fit on the floor.


InLimbo

Well-Known Member
Joined
Nov 22, 2010
Messages
297
Reaction score
37
Location
Seattle
This thread is invaluable. Can it please be made a sticky? I used it to select my first chest freezer several years ago, and I just now spent several minutes searching different things to try and find it again.


Maidenhead

Member
Joined
Mar 25, 2019
Messages
19
Reaction score
10
Absolutely incredible amount of work here!
Thanks to all who shared, esp...Thadius? and the pic donors...
Giving me the push to finish my build.
Best regards!


Jayjay1976

Bubblegazer
Joined
Nov 26, 2016
Messages
3,531
Reaction score
2,836
Location
Chicago
Getting itchy to click the BUY NOW on a chest freezer but I have a couple of thoughts...

I want to fit 4 standard ball locks on the floor, with maybe room for a 5th for lagering. Best Buy has an Insignia 10.2 right now for $259, will that be big enough?

It will also likely have to live in the garage here in Chicago where garage temps drop below 32 in the winter for days or weeks at a time. My thought was to use a dual stage inkbird to run the freezer when temps are above 40f and kick on a heater inside the freezer (ceramic reptile heating bulb) if it drops lower than 32f to keep the beer from freezing. I'm assuming that since the compressor won't kick on at all during the coldest months it is safe from damage, is this correct? I've seen "garage-ready" chest freezers but they are kinda pricy.


Maidenhead

Member
Joined
Mar 25, 2019
Messages
19
Reaction score
10

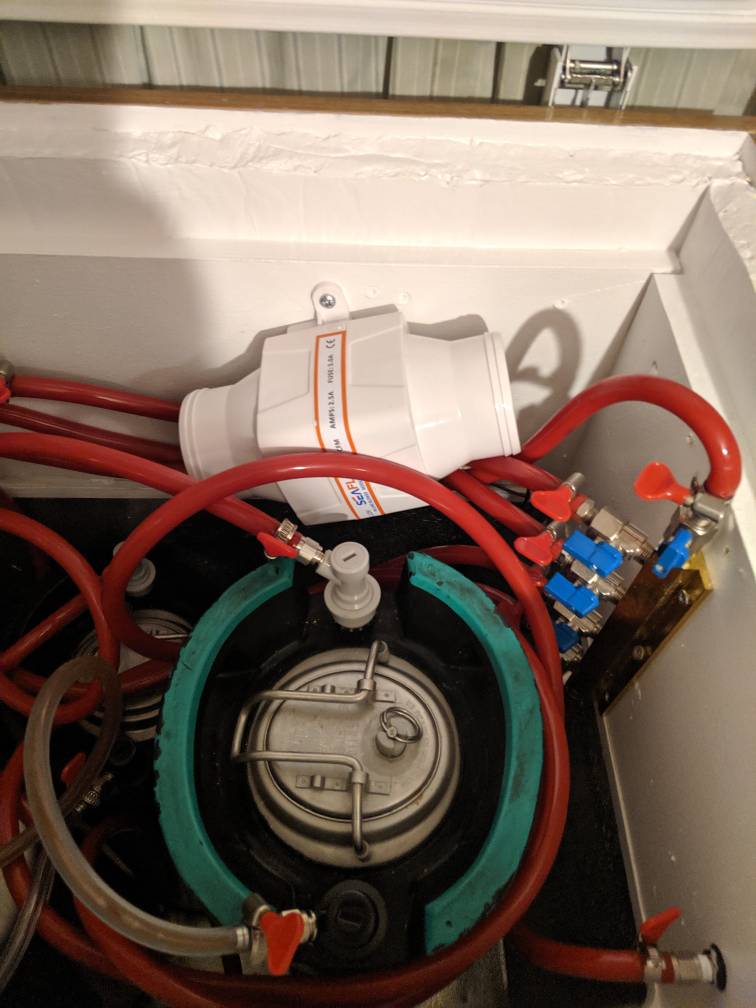

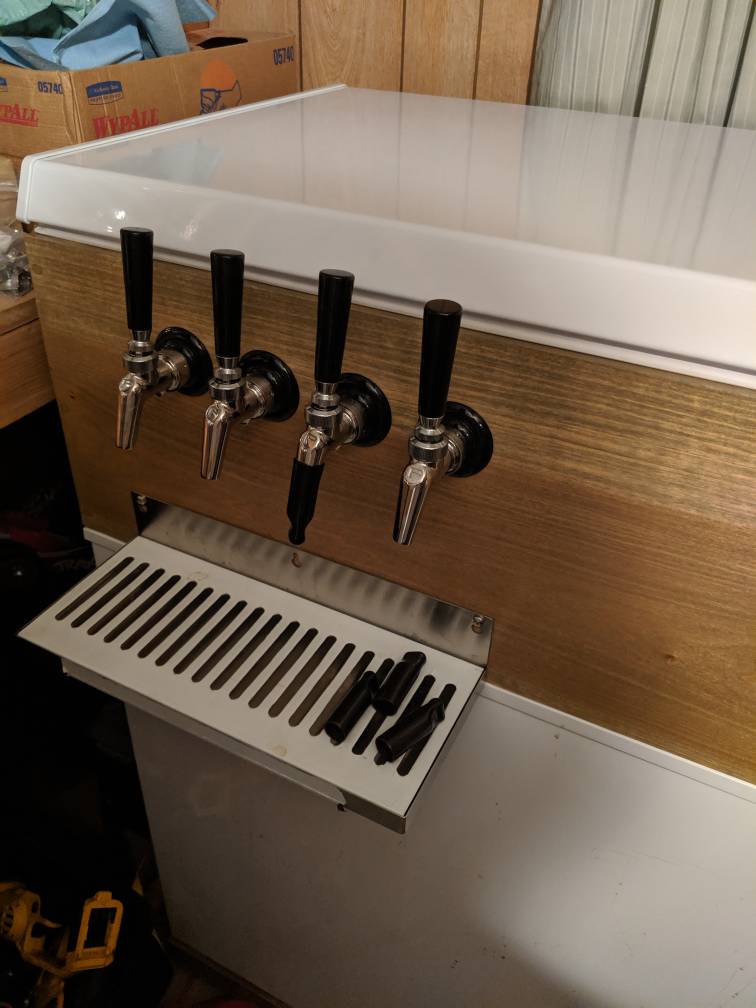

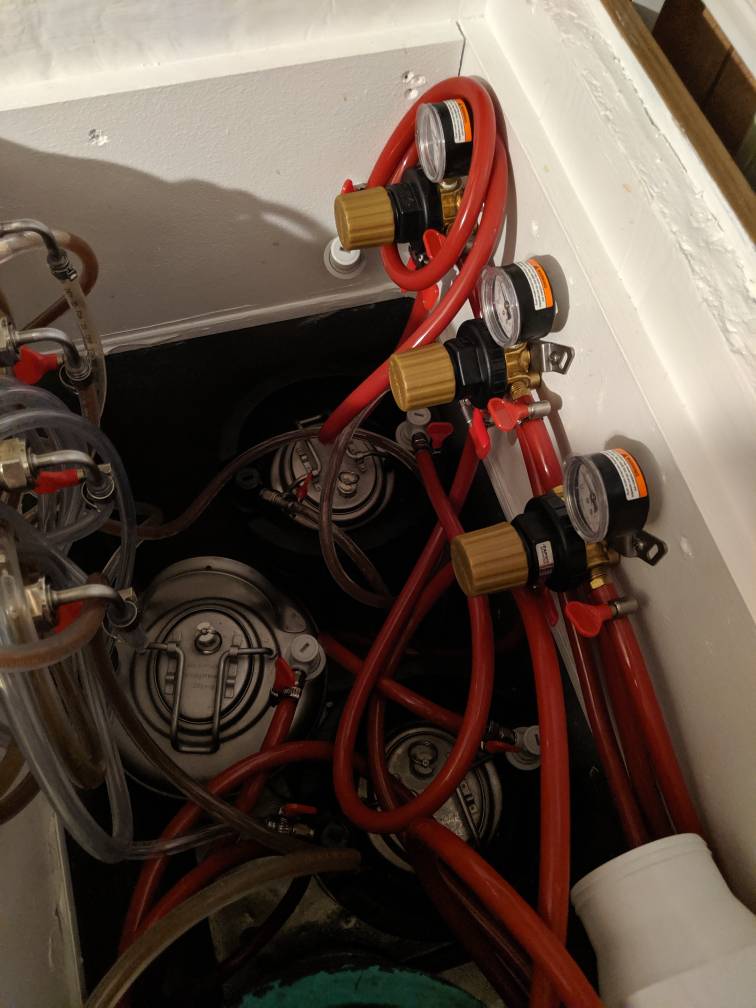

Thanks to so many posts here, I finally made more progress on my build. Probably over engineered some things and messed a few others up, but what a sense of accomplishment... finally. Still need a thermostat controller and some tubing, but... Time to get brewing.


Attachments

moreb33rplz

Well-Known Member
Joined
Mar 25, 2014
Messages
521
Reaction score
154
Has anyone used this one for ball lock kegs? https://www.homedepot.com/p/Magic-Chef-5-0-cu-ft-Chest-Freezer-in-White-HMCF5W3/305468704

I measured ~16.5" x 13.25" not including the hump. If I draw it, I should be able to get 2 ball lock kegs. I used 8 3/8" and 8 1/2" diameters and they both work.

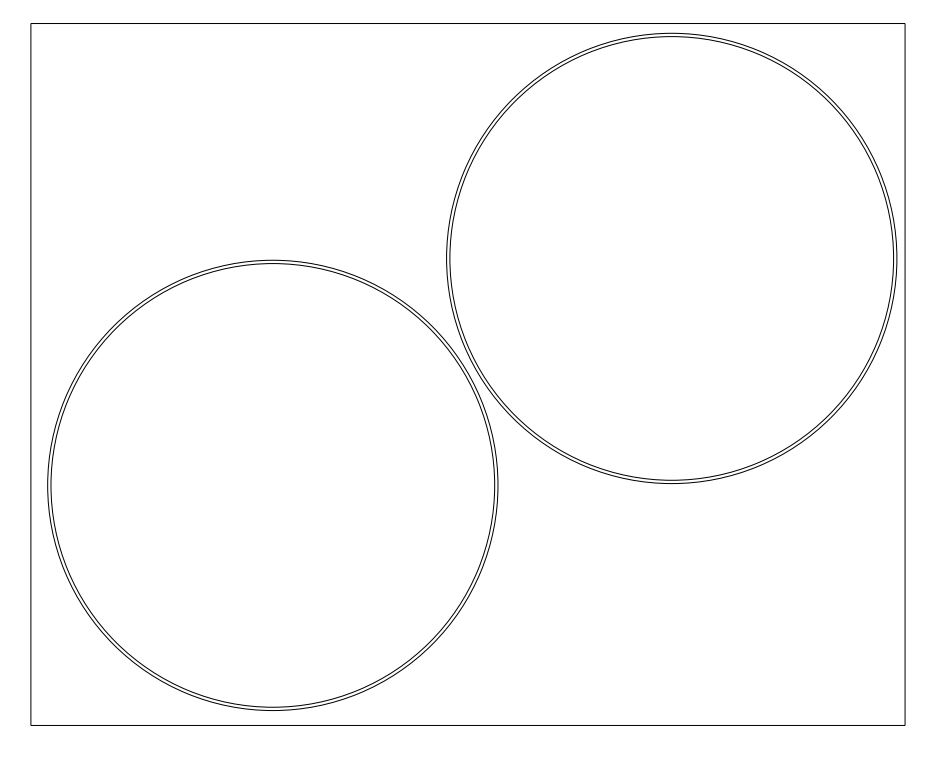

View attachment 651744
I just bought this 2 days ago for $120 @ home depot. I believe it will fit 2 ball lock 5 gallon cornies. I have an atypical setup, but it fits my 5 gallon ball lock keg + a 2.5 gallon torpedo keg on the floor, then my 5 lb tank and another 2.5 gall torpedo on the hump.


pmd5700

Active Member
Joined
Jan 22, 2012
Messages
44
Reaction score
6
Location
Tampa
I just bought this 2 days ago for $120 @ home depot. I believe it will fit 2 ball lock 5 gallon cornies. I have an atypical setup, but it fits my 5 gallon ball lock keg + a 2.5 gallon torpedo keg on the floor, then my 5 lb tank and another 2.5 gall torpedo on the hump.
Good to know! It looks like 2.5gal Torpedo Kegs are 9 1/8" in Diameter? Does that sound right? If so, there should be no problems fitting 2 Ball Lock Corny Kegs in. Thanks!
