I bought a Chinese replacement pump that should fit, size-wise, but it did not come with a plug. I figured I would just replace my new plug less cord with my old cord, but the wiring colors are very different. The original cord has the has a green, white and black wire (which I presume are ground, neutral and hot, respectively). The new cord has a yellow wire with green stripe, which appear to be ground, and I don't know whether the where the blue and pink wires should be connected (or whether it makes a difference). Any ideas? My inclination is to get the ground right, and then assume there is no polarity so it does not matter which of the other two wires go where. But then again, I don't want to ruin my new pump by doing so without checking in with more knowledgeable people.

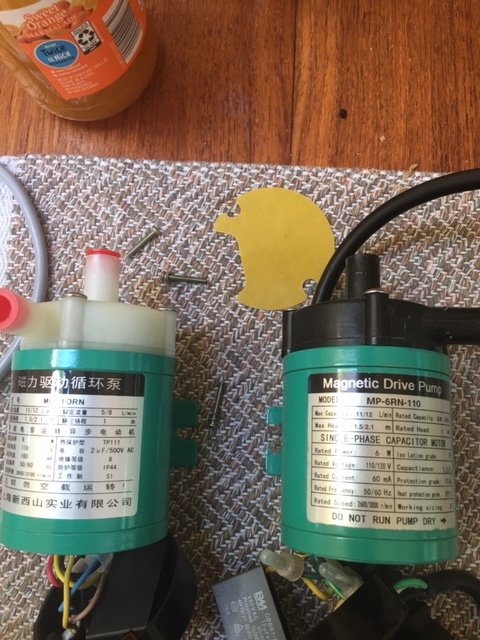

Original pump on the right.
The new one has no plug.
The original pump's wiring:

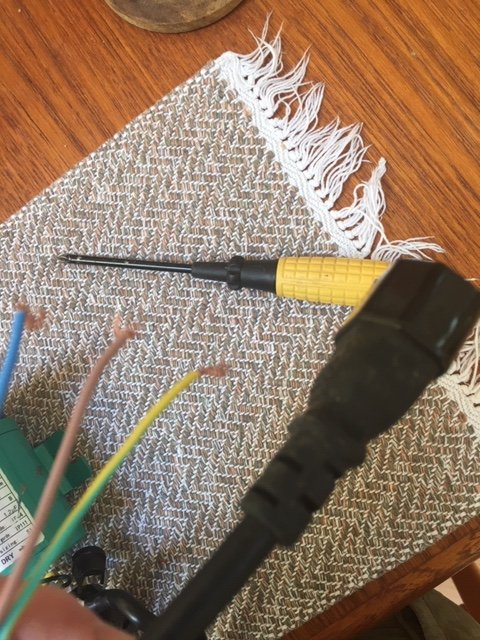

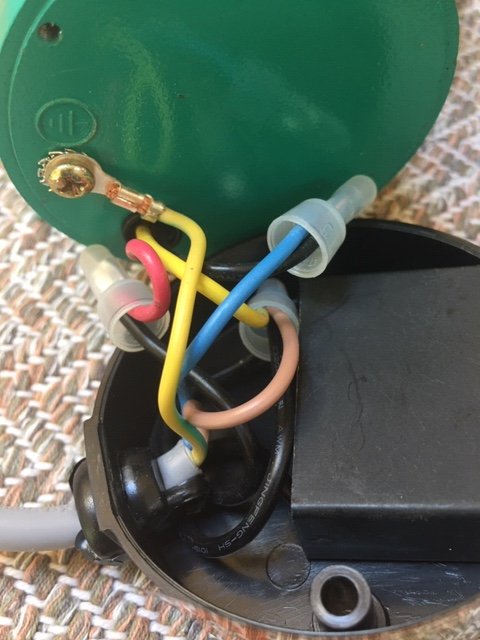

The replacement pump's wiring:
Original pump on the right.
The new one has no plug.
The original pump's wiring:
The replacement pump's wiring:
