Perlick 630SS closed handle position

[TopRowSeat]

Finally moving on from picnic taps to a legitimate three headed keezer. I bought three Perlick 630SS and installed them in 2” black pipe per some instructions I found on HBT. Everything is great… except…

One of the three taps has a different closed position. Two of them are closed at just past vertical. One of them closes at vertical. Looking at them hurts my OCD

New to these taps and need your help. How can I adjust the tap close position so they all match?

Thank you!
Steve



[day_trippr]

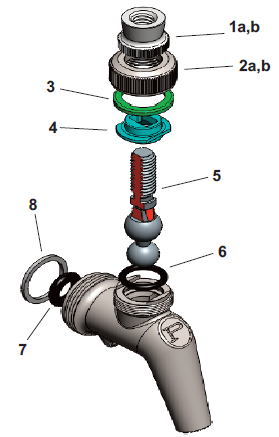

I would check item 4 to see if its orientation is matched by all three faucets, or not. I believe the faucet lever (5) is symmetric, but I don't know if the same is true of item 4. On my 525ss faucets the equivalent part to item 4 is not symmetric...

Cheers!
