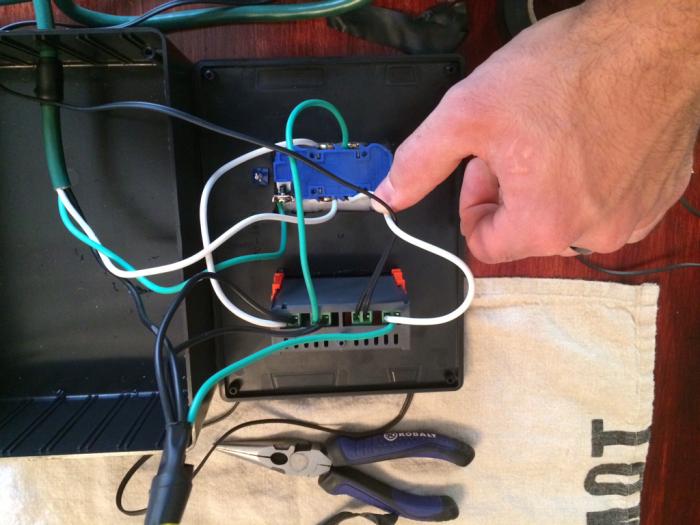

Hopefully these pictures aren't useless, but I've followed wiring instructions, double and triple checked them and the unit still won't power up? Am I missing something obvious or did I get a dud?
Sent from my iPhone using Home Brew
Help with STC wiring woes
- Thread starter MicahB
- Start date
Help Support Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum:
Hopefully these pictures aren't useless, but I've followed wiring instructions, double and triple checked them and the unit still won't power up? Am I missing something obvious or did I get a dud?
Sent from my iPhone using Home Brew
The only thing i see different is that in this pic I have the white wire goes into and out of the outlet on the same screw. Shouldn't matter though as long as you didn't break the connector tab on that side of the outlet.
Sent from somewhere to someone
Sent from somewhere to someone
Does the unit power on at all? If it won't heat or cool are you waiting the minute?i think? Delay before it starts operating. Might be 3 minute don't remember really.
Sent from somewhere to someone
Sent from somewhere to someone
Make sure to break the connector tab between the 6-8wire in my drawing.
Sent from somewhere to someone
Sent from somewhere to someone
Yes. If you broke the tab in both the white wire will not transfer to the other side of the outlet and return to STC to power it up. You will need a jumper to both screws in the white side and the lead to the STC. Or use an outlet with only the black side tab connector broken.
Sent from somewhere to someone
Sent from somewhere to someone
- Joined
- Apr 11, 2013
- Messages
- 376
- Reaction score
- 61
Something looks a little goofy to me. It looks like you have your temp probe wired into one of the relays. Shouldn't your temp probe be on the 3,4 terminals?
[edit]
Yep, just looked at the manual.
First get your temp probe wired in the right terminals 3, 4.
Second, I'm not sure what you have going on for heat/cool because I only see one cable exiting your control box from the pictures. So is this only for cooling?
[edit]
Yep, just looked at the manual.
First get your temp probe wired in the right terminals 3, 4.
Second, I'm not sure what you have going on for heat/cool because I only see one cable exiting your control box from the pictures. So is this only for cooling?
Sorry the picture is upside-down so the temp probe is in the 3,4 position. I tried to follow the method here:http://www.onemansbeer.com/keezer-build-diy-temperature-controller/ Are you saying that breaking the tabs on both sides has left and "open" which is keeping the circuit incomplete?
Edit: Yep! That exactly what you're saying. I'm off to get a new outlet and try to remedy this. Thanks for all the help! I friggin love you bums, no hobo!
Edit: Yep! That exactly what you're saying. I'm off to get a new outlet and try to remedy this. Thanks for all the help! I friggin love you bums, no hobo!
Yes you only want to break the tab in the side that has the single wire from the heat and cool relays.
Sent from somewhere to someone
Sent from somewhere to someone
That would be the side that the 6&8 wires connect to on the picture I attached.
Sent from somewhere to someone
Sent from somewhere to someone
If you want to use an outlet with both tabs broken you would need to split your white supply line to three with one wire to each screw on one side of the outlet and one to the 2 slot on the STC. Then your unit will power up. The only reason your current setup is not working is you need a bridge between the white screws on you outlet. **EDIT*** That would be the white wires on the bottom side of the outlet in your picture.
Sent from somewhere to someone
Sent from somewhere to someone
flars
Well-Known Member
I will be getting the STC 1000 for heating purposes.
GilSwillBasementBrews, Thanks for the simplified wiring diagram.
GilSwillBasementBrews, Thanks for the simplified wiring diagram.
Sure happy to help. Wish I could remember who/which thread I originally got it from to give them credit.
Sent from somewhere to someone
Sent from somewhere to someone
- Joined
- Nov 8, 2012
- Messages
- 108
- Reaction score
- 43
had the same problem had to switch the inlet power wires I can't remember which way they go but switch them
That won't help him. He has the connector tab broken on both sides of the outlet. So his white lead in is only hitting the bottom left side of the outlet and he is trying to pull current from the bottom right side of outlet but that will not work without the tab bridging the two bottom sides. He needs to either split his white supply to go to both bottom sides and the STC or use his current configuration with an outlet that has the connector tab still intact on the bottom side of the outlet.
Sent from somewhere to someone
...or he could just jumper across the broken strap with a piece of wire, using the screws on either side...
Cheers!
Cheers!
Well a new outlet with only the gold bridge removed proved to be a success. Thanks again GilSwil et al for all of the help and pointing me in the right direction, I was beginning to worry!
Cheers!
Sent from my iPhone using Home Brew
Cheers!
Sent from my iPhone using Home Brew
Not a problem. Glad you got it working.
Happy Fermenting!!!!
Sent from somewhere to someone
Happy Fermenting!!!!
Sent from somewhere to someone
