Having some trouble. Wired and programed my freezer up and the love TS2 just won't cycle the compressor. It randomly turned on for a minute but turned off with out getting the freezer to temp.
I wired into the original thermostat wires. I just connected them and the compressor runs fine, it's when i run those wires through the TS2 that I get nothing.

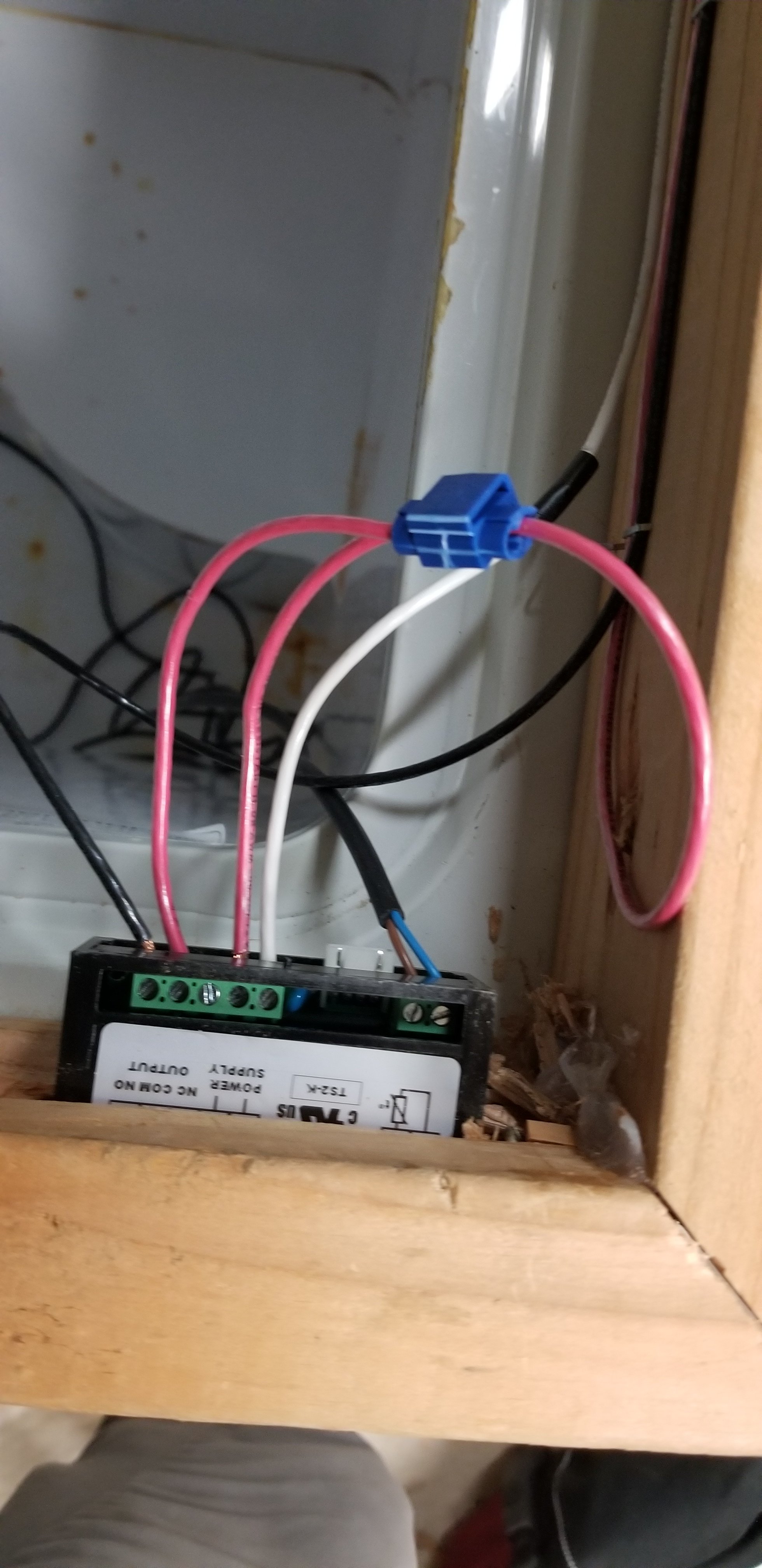

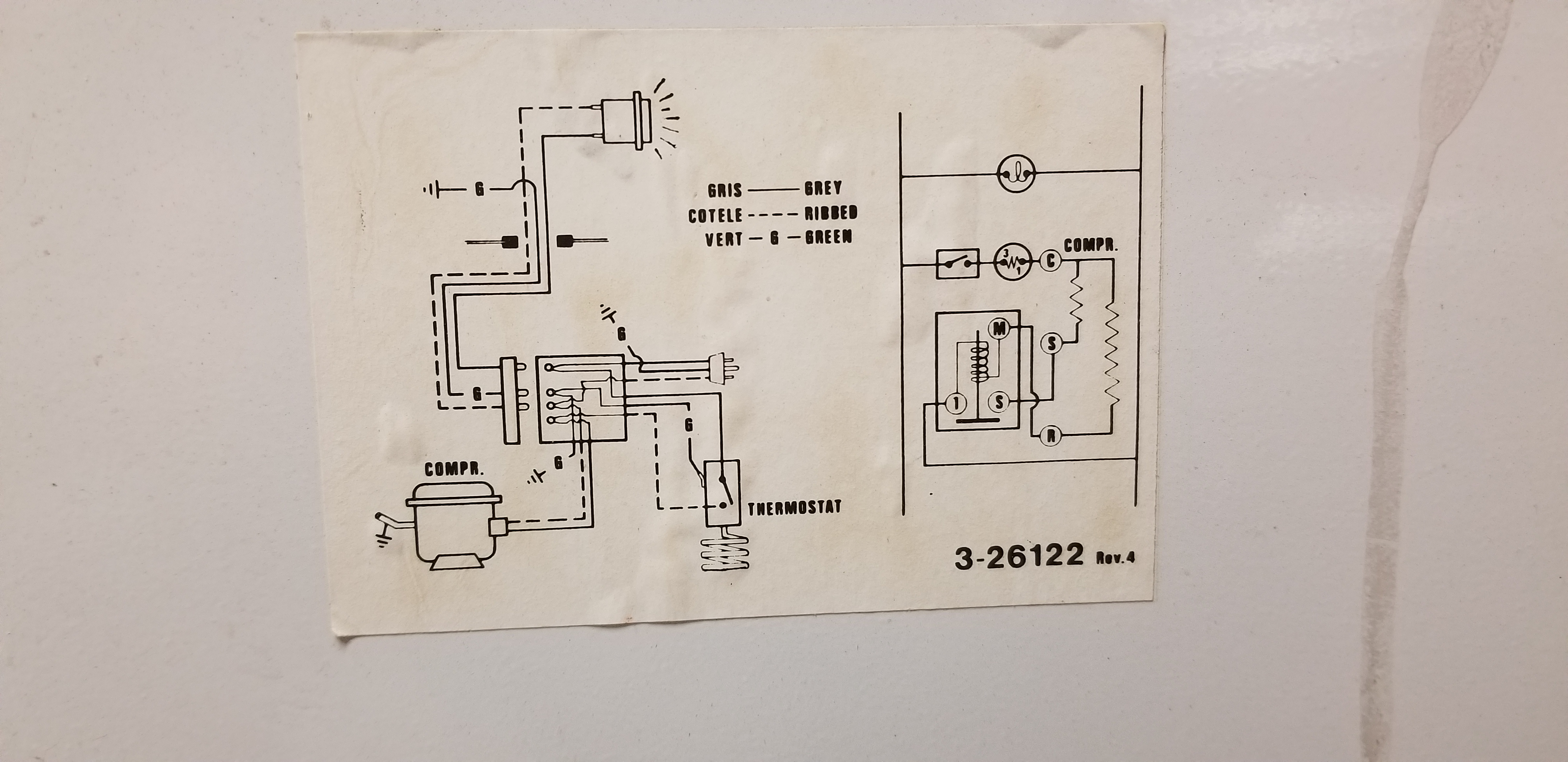

Here are some photos and the freezers wiring diagram. I'm hoping it's something simple I just over looked. I have a TSS2 I'm about to thrown on there to see if it's just a bad controller.
I wired into the original thermostat wires. I just connected them and the compressor runs fine, it's when i run those wires through the TS2 that I get nothing.
Here are some photos and the freezers wiring diagram. I'm hoping it's something simple I just over looked. I have a TSS2 I'm about to thrown on there to see if it's just a bad controller.
