Your fridge keezer kegerator temp graphs

[NBBrewer]

What are your temp graphs? I have a few fridge temp graphs here. One shows a cycle every 1/2 hour or so the other looks quite flatline



[day_trippr]

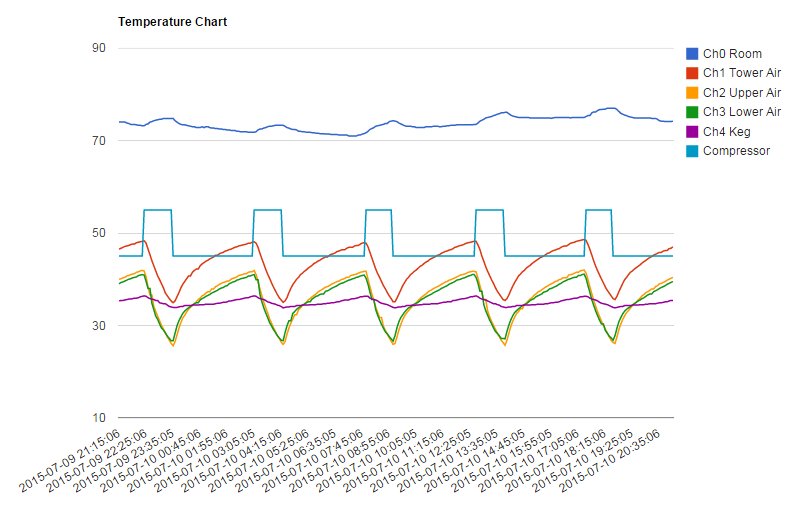

This is a fairly representative 24 hour plot of my keezer when the six kegs average more than half full during the warmer months.
Cycle time is almost 5 hours with the compressor on time ~60 minutes for each cycle. So, roughly 20% duty cycle...

Cheers!



[NBBrewer]

This is a fairly representative 24 hour plot of my keezer when the six kegs average more than half full during the warmer months.
Cycle time is almost 5 hours with the compressor on time ~60 minutes for each cycle. So, roughly 20% duty cycle...

View attachment 700946

Cheers!

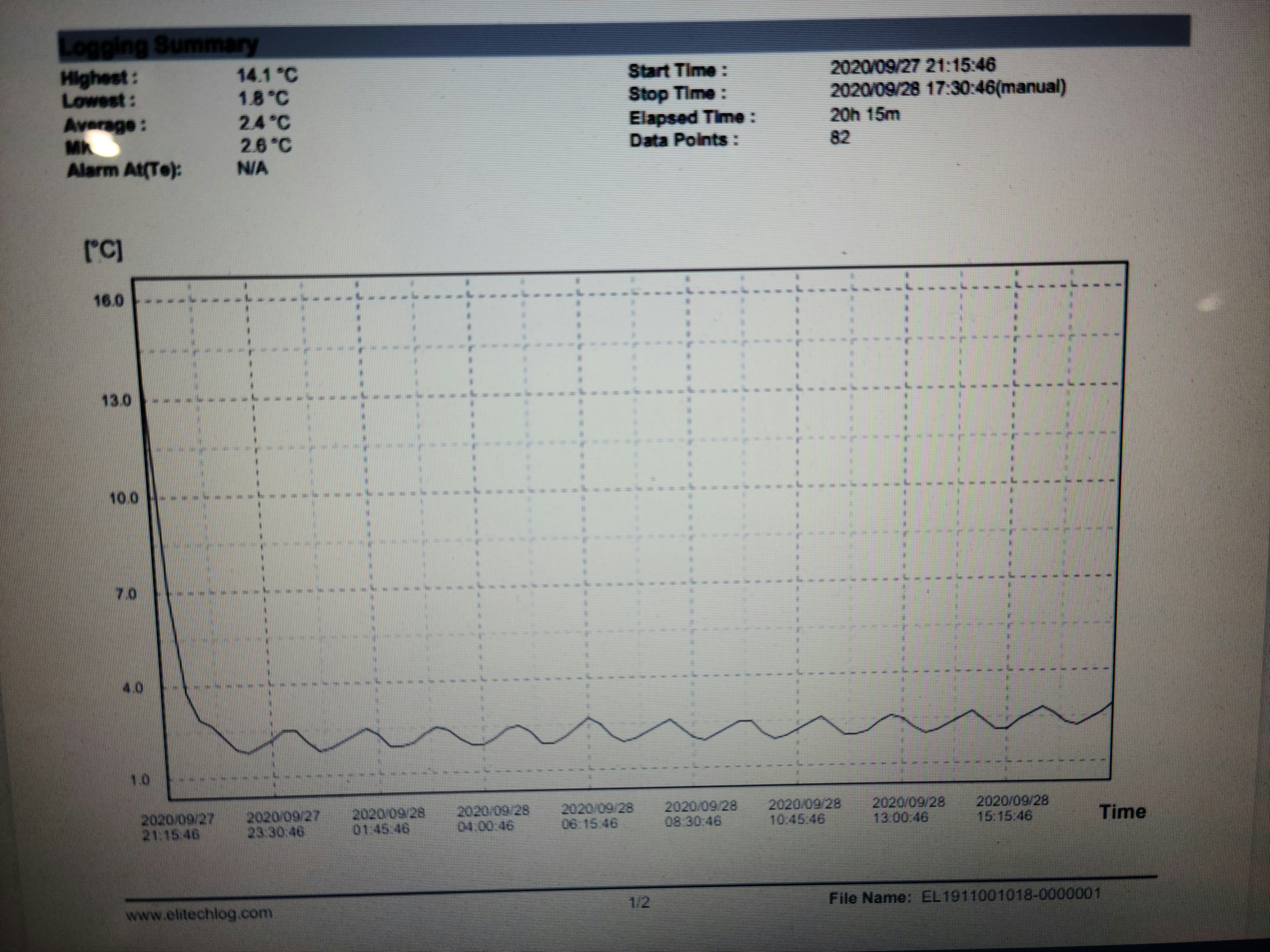

Here is my first lager fermentation using my tired old fridge with an inkbird 308. I had it set for 53.6 degrees Fahrenheit(12 degrees celcius )
