I'm an Electrical engineer and work as an application engineer for power monitoring systems, mainly electric power, but some gas and water. Been doing automation and control/monitoring systems for about 15 years.

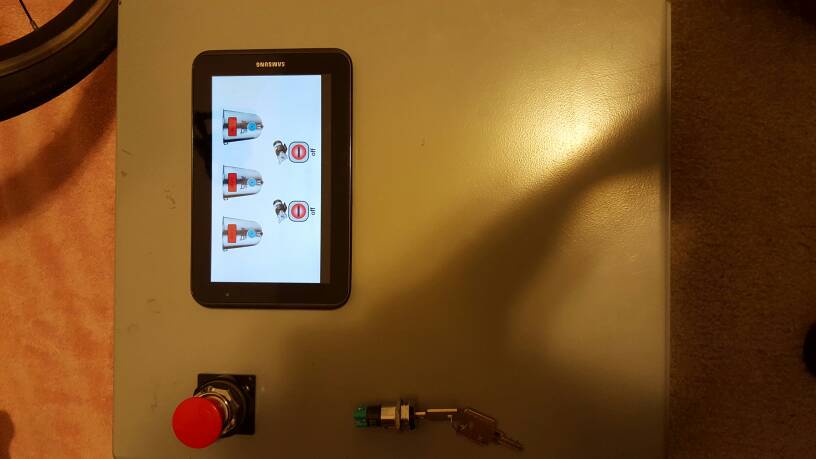

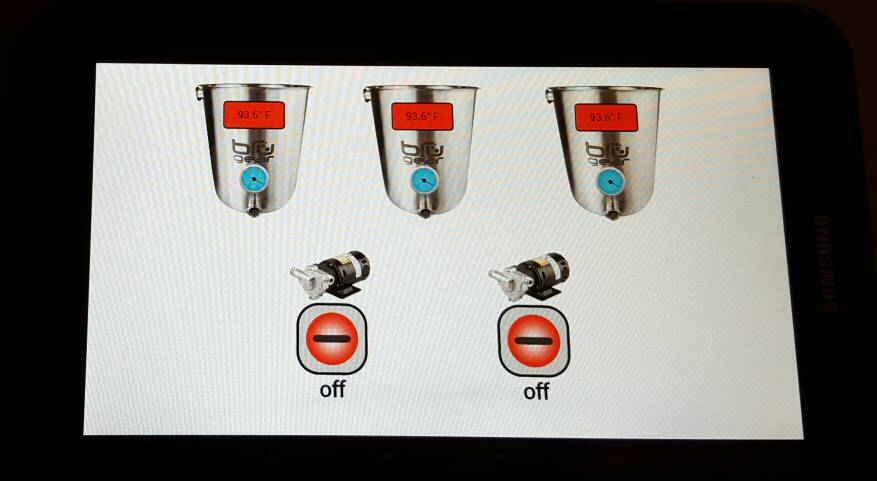

I just started building my electric system with all sorts of goodies. Here's my HMI talking to our modbus gateway then to our modbus I/O module.
View attachment 1450415510919.jpg
View attachment 1450415790533.jpg
