[Version 2 Release] RaspberryPints - Digital Taplist Solution

[fuzzybee]

I did, and it kept taking me back. A pi reboot appeared to fix it.

It may be an issue with my SD card - I've had it for quite some time. I'm going to get another one today and reinstall from scratch,

I got a new SD card at lunch and reinstalled from scratch - the same thing is happening. A successful login take me to http://192.168.1.164/admin/index.php with the login page showing.

If I re-open the site and click the logo, it then takes me to the administration without prompting me for credentials.



[garzlok]

So….I’m just trying to understand what’s happening to you…
You navigate to 192.168.1.164 and your RPints opens and displays the tap list?

You click on the logo, and it opes this page….

You enter your credentials, click log in and it takes you back to the same log in page (As pictured above)?

You close the page from your web browser, reopen, click the logo, and it takes you straight to the RPints Management Portal?



[fuzzybee]

I got a new SD card at lunch and reinstalled from scratch - the same thing is happening. A successful login take me to http://192.168.1.164/admin/index.php with the login page showing.

So….I’m just trying to understand what’s happening to you…
You navigate to 192.168.1.164 and your RPints opens and displays the tap list?

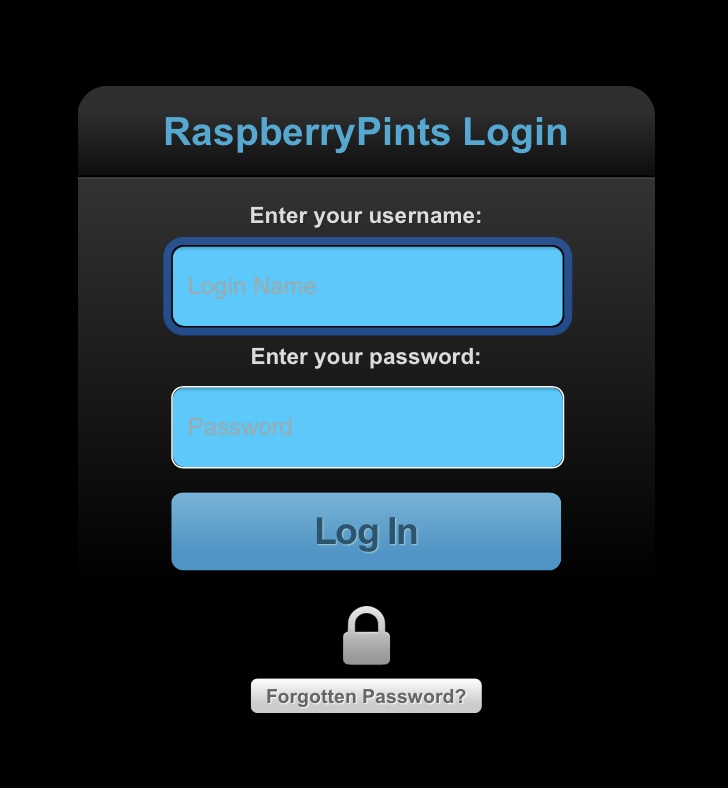

You click on the logo, and it opes this page….
View attachment 734919
You enter your credentials, click log in and it takes you back to the same log in page (As pictured above)?

You close the page from your web browser, reopen, click the logo, and it takes you straight to the RPints Management Portal?

That's what is happening.



[day_trippr]

[edit] Duh - thought "browser cache" maybe, but a re-installation would obviate that.

Nevermind...



[garzlok]

That's what is happening.

[edit] Duh - thought "browser cache" maybe, but a re-installation would obviate that.

Nevermind...

Well....I guess along those lines, I guess it would be good to know if it's repeatable across different web browsers. What your experiencing @fuzzybee is definitely unique.



[fuzzybee]

Well....I guess along those lines, I guess it would be good to know if it's repeatable across different web browsers. What your experiencing @fuzzybee is definitely unique.

Pre reinstall, this did the same thing on Chrome and Edge. I'll verify Edge on the reinstall when I get home.



[nhannath]

Guys. I changed my wifi password but cannot find a way to get Raspberry Pints out of kiosk mode and back to the desktop where I could update it. Tried CTRL =ATL and F1 and got a prompt but no desktop



[fuzzybee]

Pre reinstall, this did the same thing on Chrome and Edge. I'll verify Edge on the reinstall when I get home.

Going into Edge, it works as expected. Going back to Chrome, it works as expected. I dunno.

On a side note, how do I get the attached monitor to update?



[day_trippr]

Guys. I changed my wifi password but cannot find a way to get Raspberry Pints out of kiosk mode and back to the desktop where I could update it. Tried CTRL =ATL and F1 and got a prompt but no desktop

I don't run in kiosk mode, I run in "windowed" mode then use alt-F3 to full-screen the taplist.
So, try alt-F3 to at least change from full screen to window....

Cheers!



[nhannath]

Thanks for the quick response. I could not get that to work. I was able to use CTRL-ALT-F1 to being bring up a CLI prompt and then was able to use sudo rasp-config to set the wifi connection. Thanks. All working now.



[garzlok]

Going into Edge, it works as expected. Going back to Chrome, it works as expected. I dunno.

On a side note, how do I get the attached monitor to update?

Awesome! Glad I didn’t have to ”do anything” to help!

monitor update? Do you have a monitor attached to the Pi and running in kiosk mode?



[troyp42]

can you pm the xml you are trying to upload?

Will do when I’m home next. It happened with 2 of them.



[fuzzybee]

Awesome! Glad I didn’t have to ”do anything” to help!

monitor update? Do you have a monitor attached to the Pi and running in kiosk mode?

Ha!

And yes - I have the browser open on my desktop that updates whenever I return from config, but the kiosk mode attached monitor does not update.



[RandR+]

I return from config, but the kiosk mode attached monitor does not update.

Tap updates do not trigger a refresh. Its something ive been thinking of changing, If you run flowmonitors pouring a beer would trigger the update, if not running flow meters then you need to use a timer to refresh the page because there isnt a connection from the monitor to the server to trigger the refresh



[fuzzybee]

Tap updates do not trigger a refresh. Its something ive been thinking of changing, If you run flowmonitors pouring a beer would trigger the update, if not running flow meters then you need to use a timer to refresh the page because there isnt a connection from the monitor to the server to trigger the refresh

Makes sense. Thanks! I ultimately plan to put in flow meters, but that's still a little but down the road. Would it be possible to have a keg change force the refresh?



[RandR+]

Would it be possible to have a keg change force the refresh?

I could put the logic in but it would require to at least run the python for flowmeters even without flowmeters (so install but not configure flowmeters either at install or by reconfiguring rpints when running the installer again)



[fuzzybee]

I could put the logic in but it would require to at least run the python for flowmeters even without flowmeters (so install but not configure flowmeters either at install or by reconfiguring rpints when running the installer again)

That's not that big of an ask, I'd think (installing the flowmeter scripts). Thanks again!

What RPi are you running this on? Mine's an old 2.



[RandR+]

What RPi are you running this on

I run on a 3



[Roadrune]

I still get some ghostpours ranging from 1,5litres to 7litres. All the small ones seem to have gone away with changing the start pulses, but i was thinking; is it possible to add a "maximum pour limit"?
In my case i do not have any glass bigger then 0,6litre, so what if there was a limit of, in my case, 0,7 litres, and anything above would be ignored as a ghost?

Possible?

Ps: i have put all my flowmeters horizontal and at the bottom, so the beerlines is higher at both sides.



[beerNbikes]

Ha!

And yes - I have the browser open on my desktop that updates whenever I return from config, but the kiosk mode attached monitor does not update.

If you can ssh into the pi, there should be a refresh.sh in the html directory.
cd /var/www/html
./refresh.sh


Whoops, Update - it's in the /var/www/html/includes directory.



[beerNbikes]

Hi RandR+,

I just noticed that the temp value wasn't updating in the top right. I went into the Pi and it totally seems to be still reading the temp, cut not updating. I checked the temp history, and it stopped about 3 hrs after I installed it. Can you point me in the right direction to troubleshoot?

I've gone to cd /sys/bus/w1/devices/28-XXXXXXXXX
and cat w1_slave returns different values, so I'm sure it's checking temp.

Cheers!



[McTwidget]

I've had Raspberry Pints installed for a while. Today when I tried to log in from the admin screen in the web browser I got a series of question marks in black diamonds across the top of the screen (in the browser). I tried typing in the correct username and password and the wrong one and the screen afterwards is always the same. My tap list loads fine and even trying to reset the password seems to function properly, but I can't log in.

Any help would be appreciated.

Thanks,
Jason



[RandR+]

Can you point me in the right direction to troubleshoot?

check /var/log/rpints.log for errors regarding temp

enabling debug information in the log may help also
to do that change this line in python/Config.py
config['flowmon.debug' ] = False#True
to
config['flowmon.debug' ] = True

then restart Flowmonitor



[RandR+]

My tap list loads fine and even trying to reset the password seems to function properly, but I can't log in.

Any help would be appreciated.

what web browser are you using? Are you using the latest Pi and Pi OS?

from the terminal can you run (default database name is raspberrypints)
sudo mysql -D <Database name>
update users set password = 'd41d8cd98f00b204e9800998ecf8427e' where userName = 'Admin';


then try logging in without a password (the update statement removes the password from the Admin user)



[RandR+]

In my case i do not have any glass bigger then 0,6litre, so what if there was a limit of, in my case, 0,7 litres, and anything above would be ignored as a ghost?

I just added logic for this. now on the personalize screen you should be able to configure the max pour value



[RandR+]

That's not that big of an ask, I'd think

I reviewed the logic and when the tap config changes it triggers the python to reload the shield currently, but that didnt trigger a refresh of attached screens.

I added the logic that when the tap list changes the python refreshes the attached tap lists if you update to the latest and install the flow meters options for Rpints.

If Flowmon is restarted (either manually or a pi restart) the tap lists will need to manual refresh as they lost their connection to the pi and will not get the refresh signal



[Roadrune]

I just added logic for this. now on the personalize screen you should be able to configure the max pour value
View attachment 735214

Thanks man, you rock!



[Roadrune]

I just added logic for this. now on the personalize screen you should be able to configure the max pour value
View attachment 735214

What unit is this in?
Litres?



[fuzzybee]

I reviewed the logic and when the tap config changes it triggers the python to reload the shield currently, but that didnt trigger a refresh of attached screens.

I added the logic that when the tap list changes the python refreshes the attached tap lists if you update to the latest and install the flow meters options for Rpints.

If Flowmon is restarted (either manually or a pi restart) the tap lists will need to manual refresh as they lost their connection to the pi and will not get the refresh signal

Awesome! Thank you!



[RandR+]

What unit is this in?

the configured unit on the tap.
Essentially if the number of pulses divided by the count per unit associated with the tap is greater than that configuration the pour is ignored.

So if you have a 50 pulse pour and have the tap set to 100 per unit and the config value set to .4 the pour would be ignored (50/100 = .5 and .5 > .4)
