It's a task that's duller than Elwood Blues' diet of dry white toast, but if I'm going to build a hybrid PID/Automated control box, I've got to slog through it. I've started translating my schematic into a wire-by-wire cut sheet.
I'm finding that I need two or three edits every time I step back and review, which is alarming. I guess my concentration levels aren't what they should be!

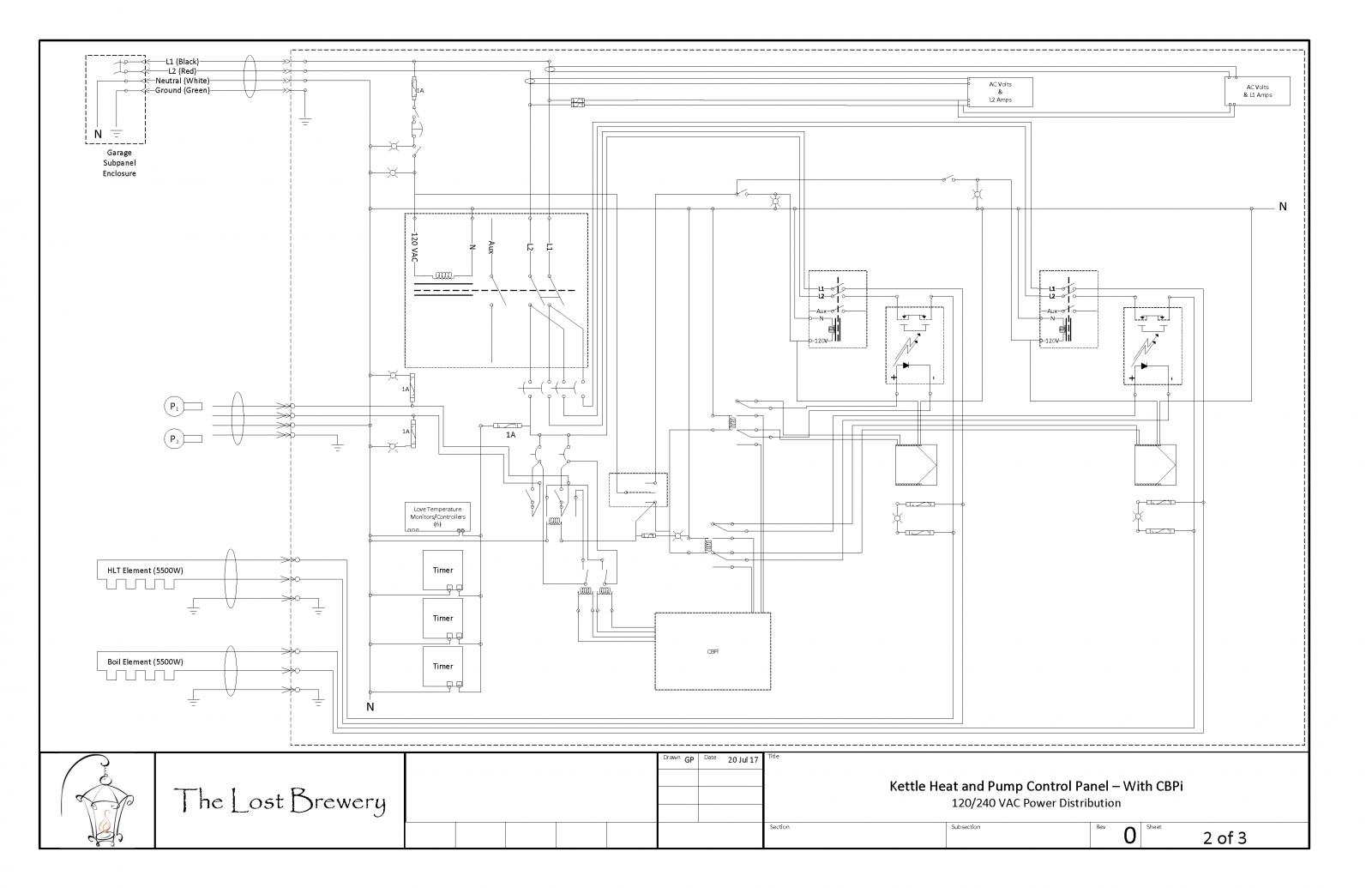

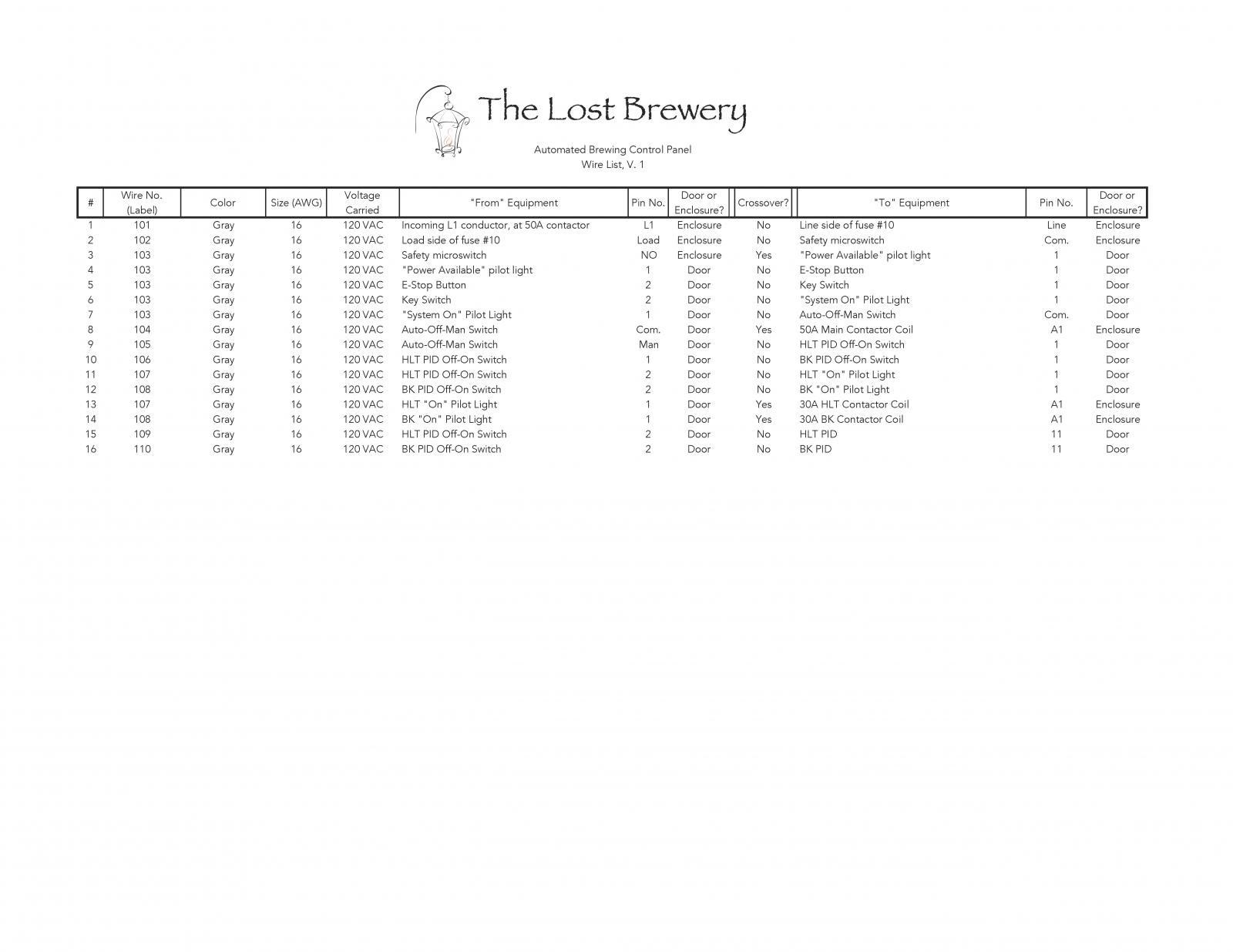

Anyway, the schematic and the cut sheet are attached.
I'm finding that I need two or three edits every time I step back and review, which is alarming. I guess my concentration levels aren't what they should be!
Anyway, the schematic and the cut sheet are attached.
