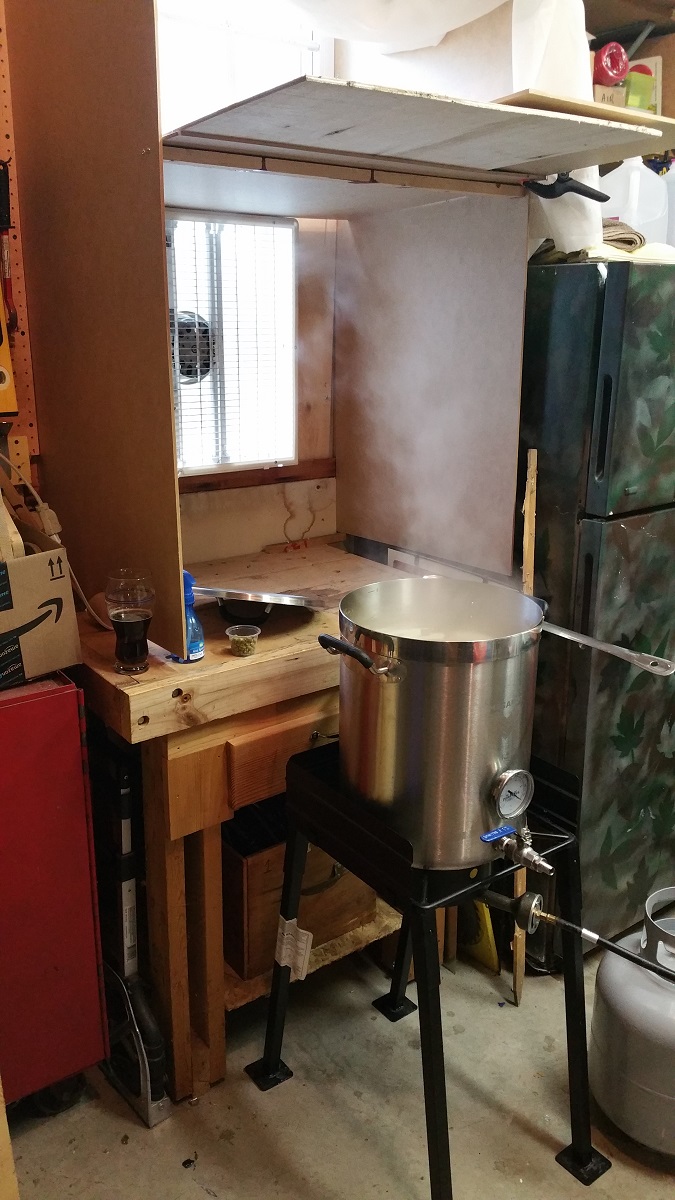

Here's how I vent from my garage to the outside. Probably not exactly what you're looking for :) but it may give you some ideas.

I crack the service door about an inch to provide makeup air, and put a propane heater by the door to heat the incoming air. During the more moderate temperatures of the year I just open the garage doors.



HausBrauerei_Harvey

Well-Known Member
Joined
Mar 19, 2014
Messages
833
Reaction score
284
Location
Golden
I can't find any newer post on this site. Does anyone have any other ideas for a hood. I am setting up my electric brewery but, I can't find any ideas that I like. I would love to see some new ideas. Mine will be in my basement with easy access to an exit wall. Any help would be greatly appreciated?

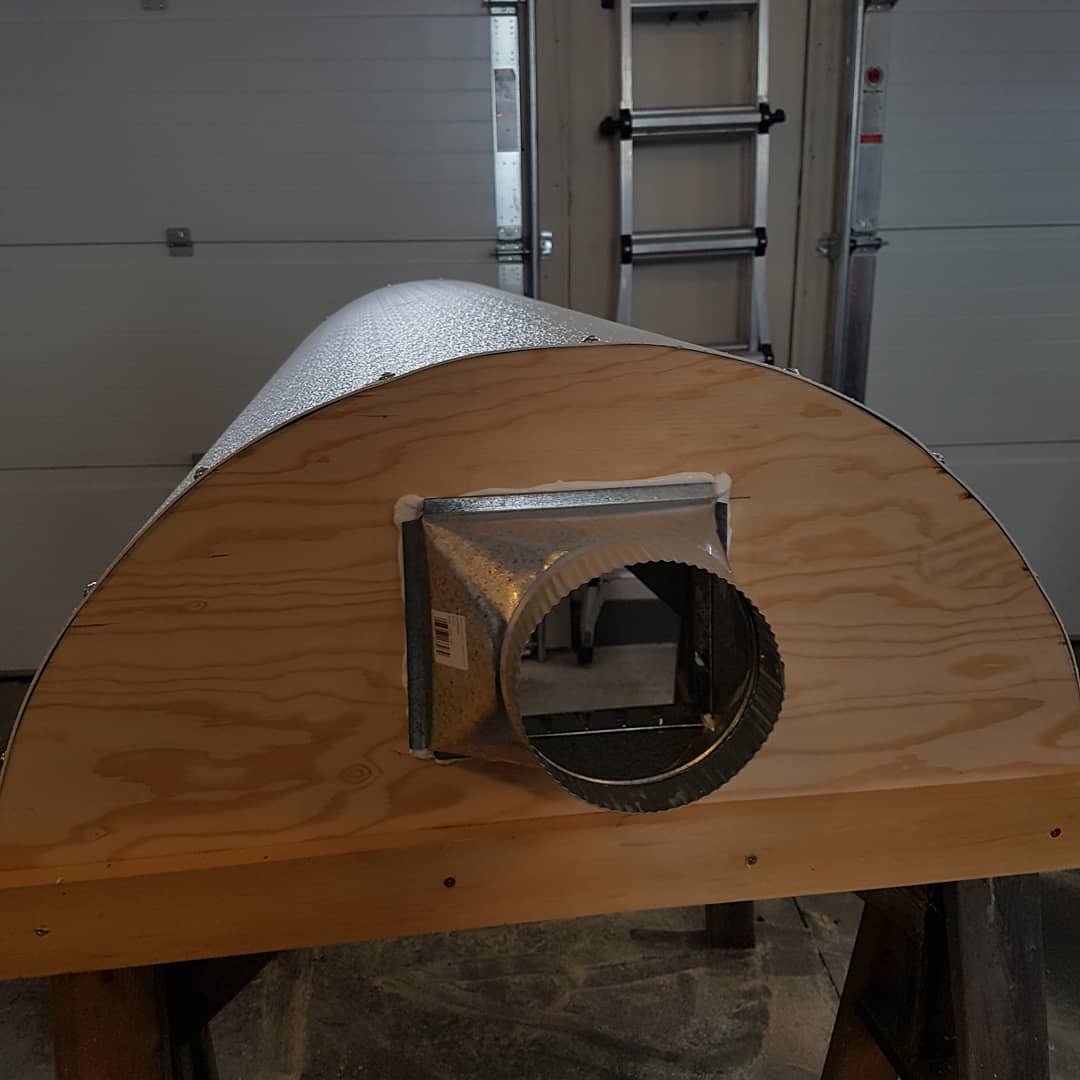

I haven't done the work yet but I plan to make my hood from some metal 55 gallon drums (i can get them for free from a friend). I'll cut the drum in half the tall way, cut one half down a bit then to be sized right over my when I then the two halves together to make a long hood, then cut in a hole for the ducting+fan on the top. I haven't yet figured out how to make and easy drip catch, but i'll talk to my buddy who does a lot of metal work and get something ironed out.


deprecated

Well-Known Member
Joined
Mar 18, 2010
Messages
207
Reaction score
74
Location
Midwest
My old DIY hood can be found here.

More than a few people in that thread did a better job than my original and some of the hoods in this thread are very impressive!

My original DIY hood made it through 2 moves and just last week was disassembled so that I could re-use the FRP.


jimboh

Member
Joined
Sep 9, 2014
Messages
6
Reaction score
2

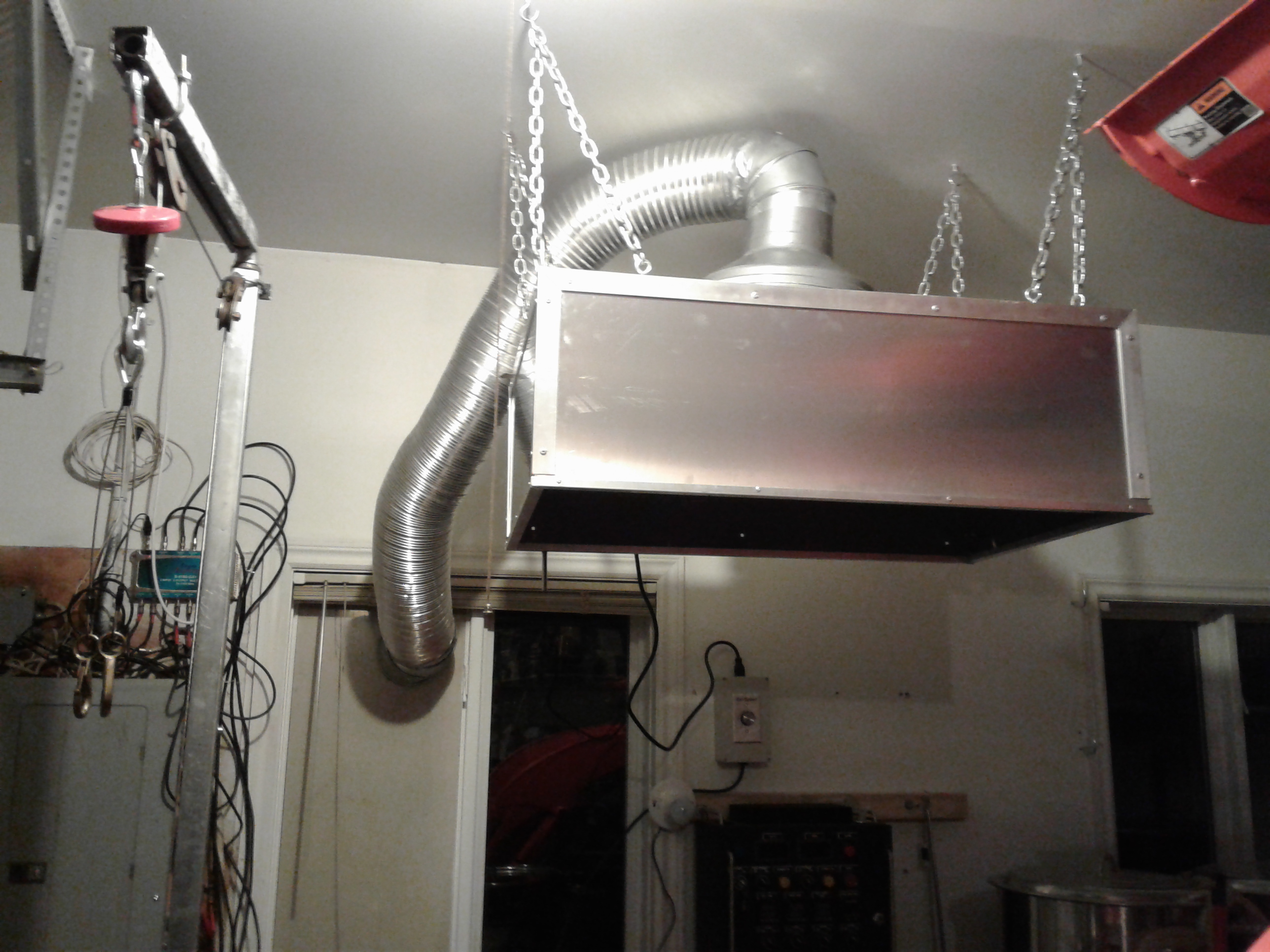

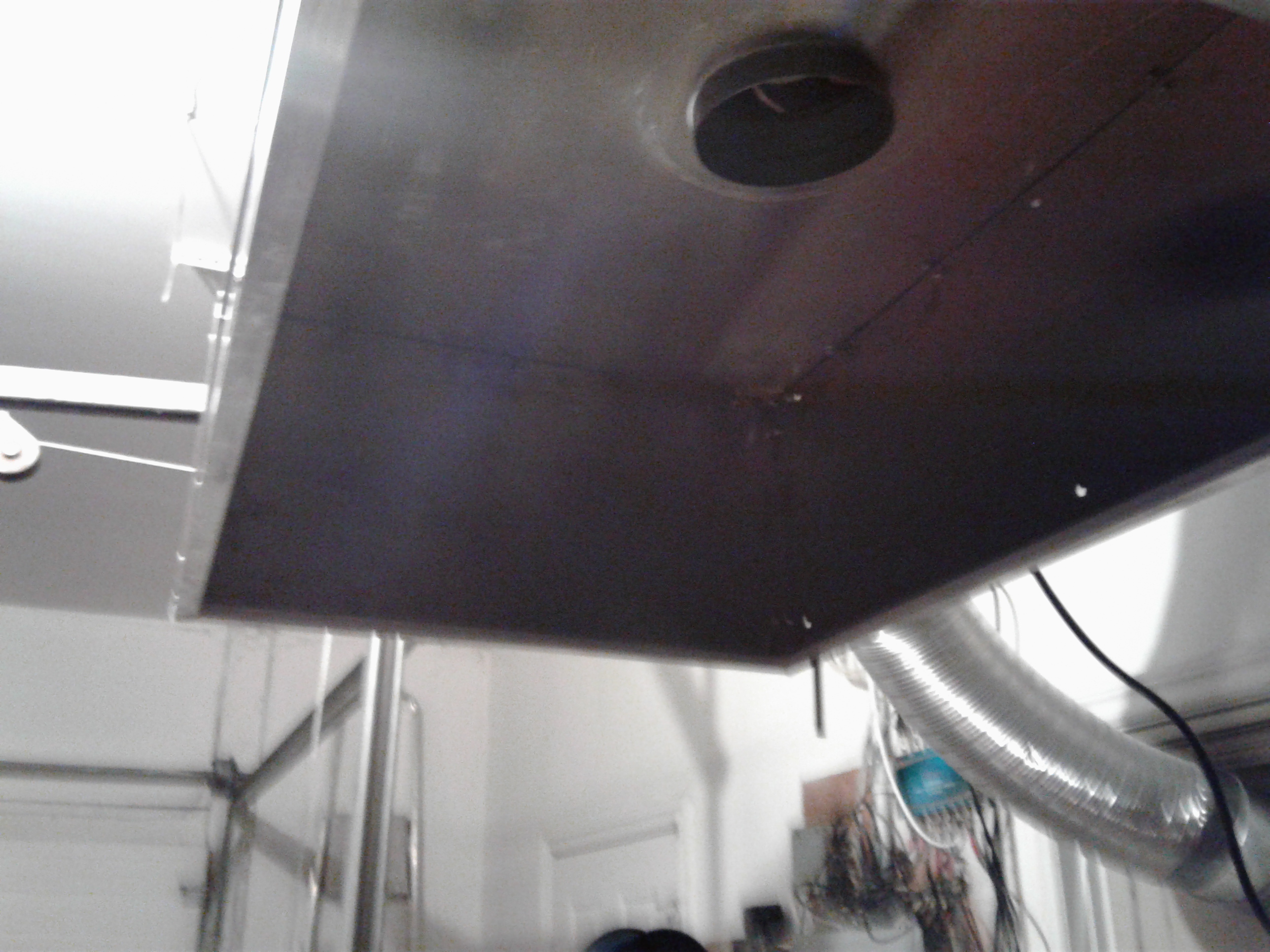

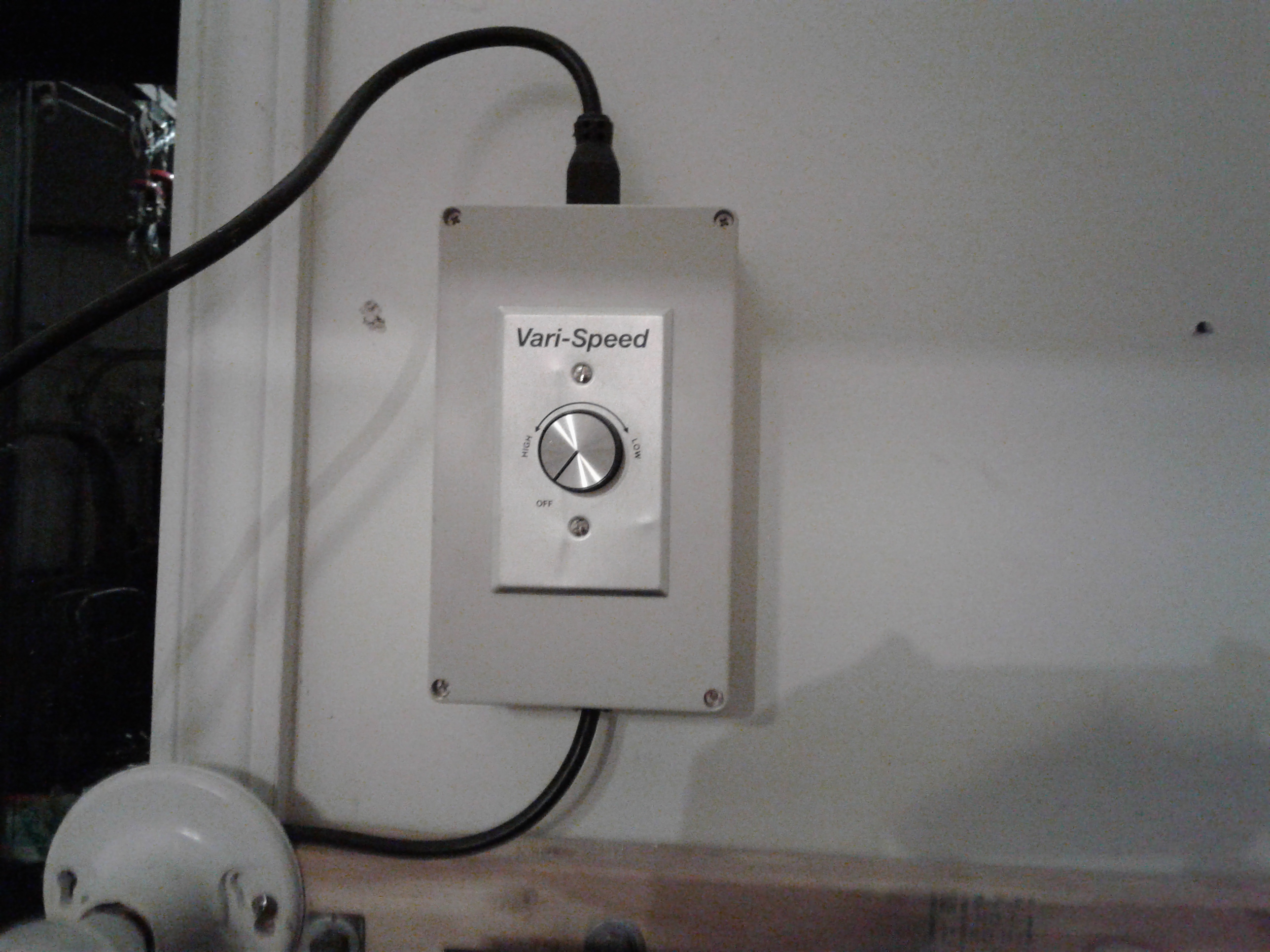

Just finished my hood. Made from .080" Aluminum sheet (4'x4') and 1.25" angle and 0.5" channel (for the drip channel). Total cost just over $100 CAD inc tax. Bought from Metal Supermarkets and they cut and even mitered the angle and channel for me for free. Unfortunately I forgot to take thickness of material into account so I ended up re-cutting 20% of the corners. 6" Vortex fan and speed controller. Hanging from ceiling is temp until I clear space for permanent wall mount.


Attachments

Last edited:

sicktght311

Well-Known Member
Joined
Oct 16, 2018
Messages
563
Reaction score
246
Here's what i went with. Basement casement window. Pulled the window out of the frame. Cut a piece of wood to fit the frame. Cut a rectagular hole to match the exhaust vent of a Broan 30" stainless 250cfm range hood i got off craigslist (i'm running 120v brewing setup), sealed everything up and mounted the Broan, installed a cap on the outside of the window with flap that opens and closes when in use and not in use, and wired it up to a plug. Works great, not a single drip during the boil except with its below freezing outside, and even then its nothing a couple wipes during the boil doesnt fix.

Only thing left is to create some kind of false decorative panel to hide the area above the vent. I just havent gotten around to it yet







joemagellan

New Member
Joined
Feb 3, 2021
Messages
3
Reaction score
0
Another old thread perhaps worth unearthing.

DIY Garage Hood and Heat Shield

View attachment 264594
Hi I am very interested in how you buildt this vent hood, I have tried to see to other pictures you posted from 2012 but can not see or open them, any help is greatly appreciated!
Another old thread perhaps worth unearthing.

DIY Garage Hood and Heat Shield

View attachment 264594
Hi I am very interested in asking some questions about this build, I am not able to pull up the old photos you had.


joemagellan

New Member
Joined
Feb 3, 2021
Messages
3
Reaction score
0
Hi I am very interested in how you buildt this vent hood, I have tried to see to other pictures you posted from 2012 but can not see or open them, any help is greatly appreciated!

Hi I am very interested in asking some questions about this build, I am not able to pull up the old photos you had.
Thank you! Build is in process, I will post pictures when completed.
