New Bayou Classic kettle conversion

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

bstacy1974

Well-Known Member
Joined
Dec 7, 2010
Messages
379
Reaction score
191
Location
Fairbanks
How it started.


Halfway through.


Almost there.


Passed a 7 gallon hot water leak test.
Drained it down to 3 gals that will sit overnight, just to make sure the bulkheads are holding.
Tomorrow will be pickup tube install, wire the element, solder the RTD plug.
A light scrub with bar keepers friend then test fire!


DonT

Active Member
Joined
Oct 3, 2016
Messages
34
Reaction score
22
Very nice. Can we get a peak inside?

OP
bstacy1974

bstacy1974

Well-Known Member
Joined
Dec 7, 2010
Messages
379
Reaction score
191
Location
Fairbanks
Very nice. Can we get a peak inside?

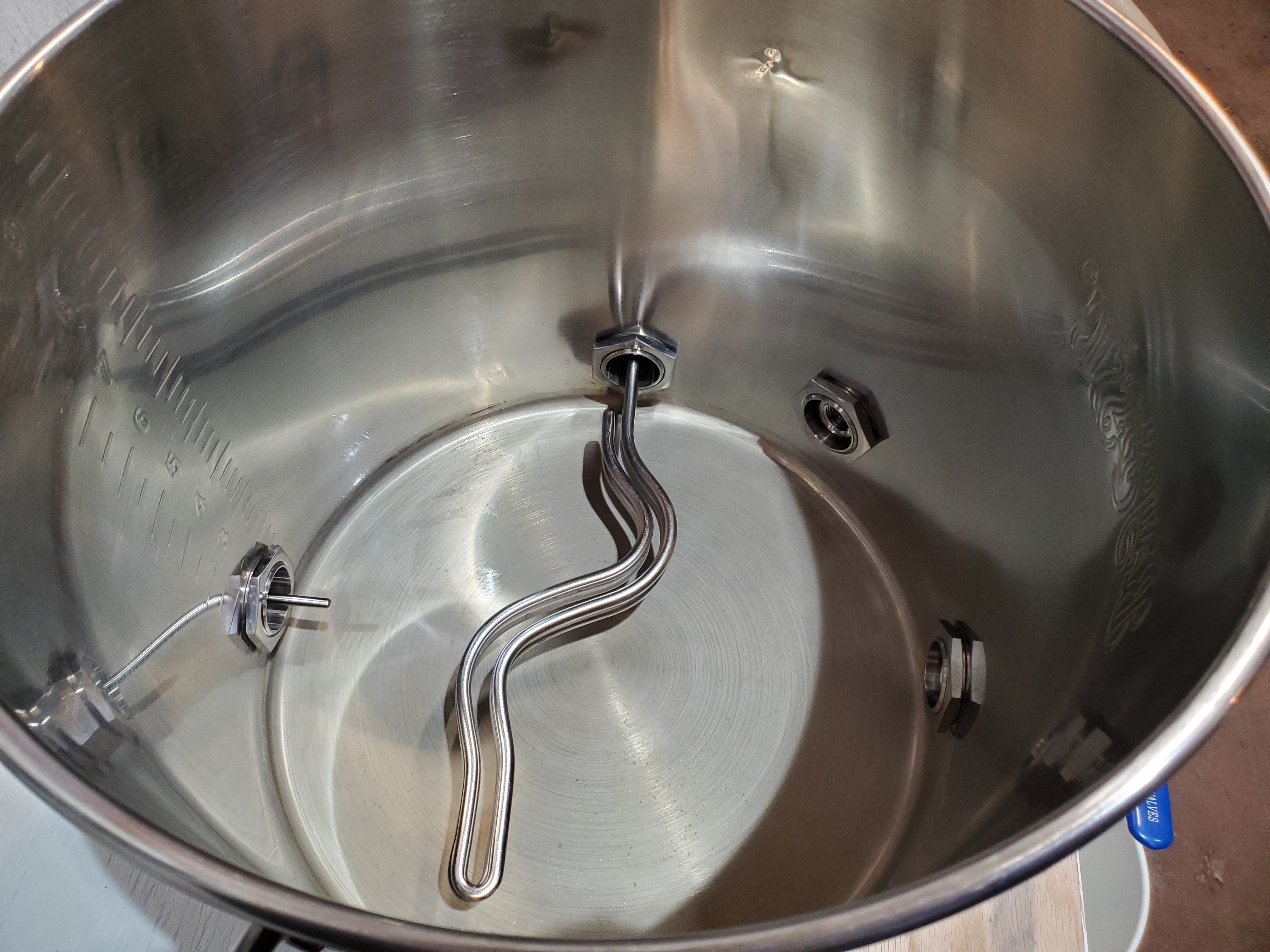

Here you go. The two ports on the right are the main outlet and the whirlpool return. I'll get the tubes attached later today. The RTD is wired and functional. Still need to wire the element. Cleaned and passivated the kettle this morning. Hope to do a test run later today.

OP
bstacy1974

bstacy1974

Well-Known Member
Joined
Dec 7, 2010
Messages
379
Reaction score
191
Location
Fairbanks
I think bending copper tube for the pickup and whirlpool was a bad idea. I guess if it works, I can live with it being ugly. Test run tomorrow.

OP
bstacy1974

bstacy1974

Well-Known Member
Joined
Dec 7, 2010
Messages
379
Reaction score
191
Location
Fairbanks
Did a test run last night. About a 10 min boil. By the end the water was yellow with orange residue on the bottom of the kettle. Rust, really. Gosh, I hope that was a one time issue.
Try again later today.


DonT

Active Member
Joined
Oct 3, 2016
Messages
34
Reaction score
22
Did a test run last night. About a 10 min boil. By the end the water was yellow with orange residue on the bottom of the kettle. Rust, really. Gosh, I hope that was a one time issue.
Try again later today.
May have been from the copper... ?

OP
bstacy1974

bstacy1974

Well-Known Member
Joined
Dec 7, 2010
Messages
379
Reaction score
191
Location
Fairbanks
Short video of a test run.


OldDogBrewing

Well-Known Member
Joined
Jun 11, 2020
Messages
381
Reaction score
280
I plan on doing the same, but one step at a time, I don't trust myself that much yet hahaha


DonT

Active Member
Joined
Oct 3, 2016
Messages
34
Reaction score
22
Wouldn't you get a lot of hop material into the FV?

OP
bstacy1974

bstacy1974

Well-Known Member
Joined
Dec 7, 2010
Messages
379
Reaction score
191
Location
Fairbanks
Wouldn't you get a lot of hop material into the FV?
Most of the time, there are no issues with some of the hops and other trub going into the fermenter. I did experience a loss of wort in the kettle about two batches ago, when I used 13 ounces in the boil. I could have used a filter then.
With low to moderate hop levels, a decent whirlpool will keep much of that material in the kettle. That's what I'm going for with this build.

OP
bstacy1974

bstacy1974

Well-Known Member
Joined
Dec 7, 2010
Messages
379
Reaction score
191
Location
Fairbanks
Looks great but one question. Why the TC (other than element)?
If you've been on this site for any length of time, you may know there's lots of debate on TC fittings on smaller kettles (10 gals or less).
My logic for going TC was...
1. They're cool. Yeah, I know. Not a real good reason, but come on.
2. They're super easy to clean. Even with some threaded fittings in the mix, TC connections are easy to clean.
3. Many of the homebrew manufacturers are starting to put TC fittings on kettles, fermenters, valves, and other accessories. I'm somewhat preparing my setup for what's coming down the line with the homebrew equipment market.
4. The biggest reason for me is the fact I don't have running water in my brewing space. The TC fittings give me the ability to fully breakdown my kettle for cleaning in the kitchen sink or bathtub. There are no cords or valves sticking out at awkward angles. I can quickly spray and wipe at the end of the brew day. Likewise, I can do the same with the valves, element, and RTD. Rinse, wipe, or scrub, quickly and easily.


brewman !

Well-Known Member
Joined
Nov 27, 2006
Messages
2,058
Reaction score
200
I'm somewhat preparing my setup for what's coming down the line with the homebrew equipment market.
What is coming down the line ?

Where did you get your weldless triclamp fittings ? What size are they ?

OP
bstacy1974

bstacy1974

Well-Known Member
Joined
Dec 7, 2010
Messages
379
Reaction score
191
Location
Fairbanks
What is coming down the line ?

Where did you get your weldless triclamp fittings ? What size are they ?
I'm just guessing that more and more homebrew equipment manufacturers will utilize triclamp fittings based on market offerings right now.

The triclamps are 1.5 inch. I do much of my shopping on AliExpress and Amazon.

OP
bstacy1974

bstacy1974

Well-Known Member
Joined
Dec 7, 2010
Messages
379
Reaction score
191
Location
Fairbanks
Had just enough time on Sunday to get in the first brew on the new kettle. A few issues, but the kettle performed as expected. Clean up was a breeze compared to my old set up.
I've been cleaning out my hop inventory, so I threw together Sterling, Summit, and Mandarina for a pale ale.
