I have had a busy couple of weeks of brewing. I have four 5 gallon batches of beer happily fermenting away in the fermentation chambers! I brewed up 4 AG batches including a summer orange wheat, a monster IPA, a rye maibock, and world wide lager. The chambers continue to work flawlessly, so I'm happy. My biggest fear is that the mini fridge used for the lager chamber is going to give out and I'm going to have to tear the whole thing apart to re-install another. It continues to serve it's purpose for primary lager fermentation and getting the temp. most of the way for the secondary lagering at which point I transfer to my keezer for longer term lagering. All in all I'm pleased!



[Hoppopotomus]

Just a quick update on my fermentation chambers. I have been dabbling with some lagers as of late and am finding that my current lager chamber does a good job of maintaining primary fermentation temps, but the old mini-fridge that it is build around struggles to get the chamber below 7 degrees C (44 degrees F) anymore. I purchased a chest freezer off of CL yesterday and am going to build a multi-use chamber for the brewery. I want something that can be used not only for lagering, but also for cold crashing and carbing up kegs in waiting. I plan on starting on it tonight and will post some pics over the weekend. Here we go again.



[Hoppopotomus]

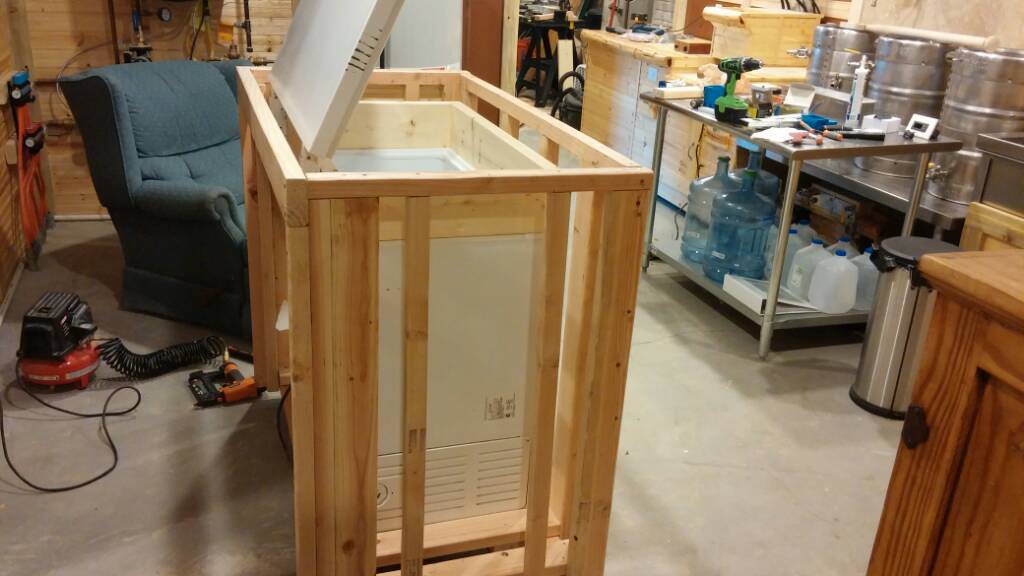

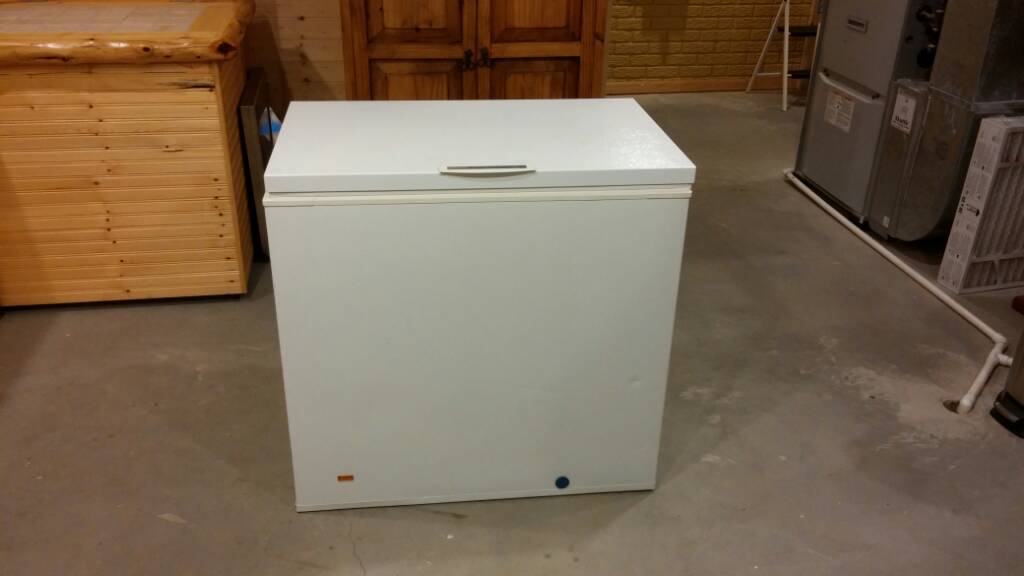

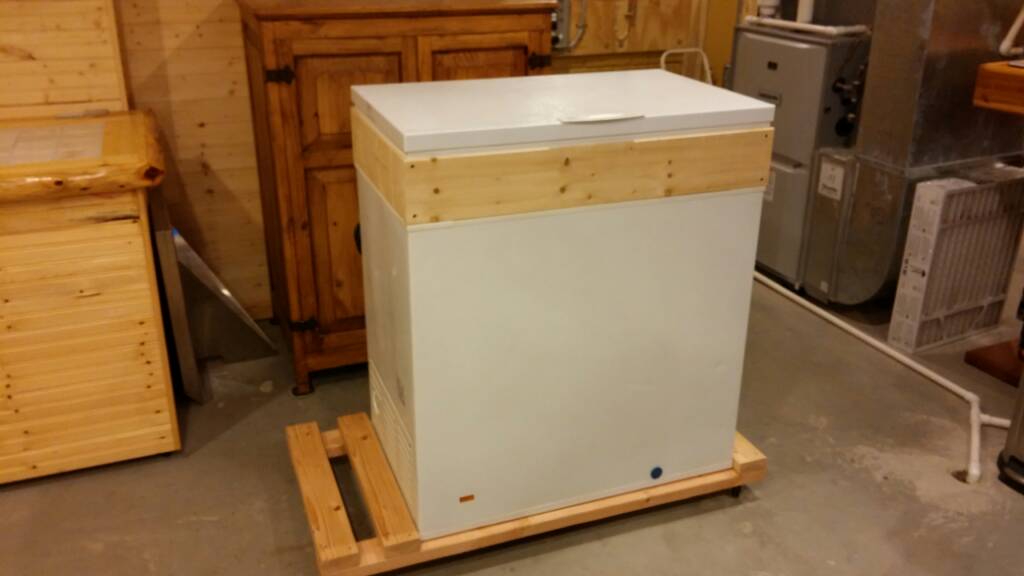

The freezer and framing.



[Hoppopotomus]

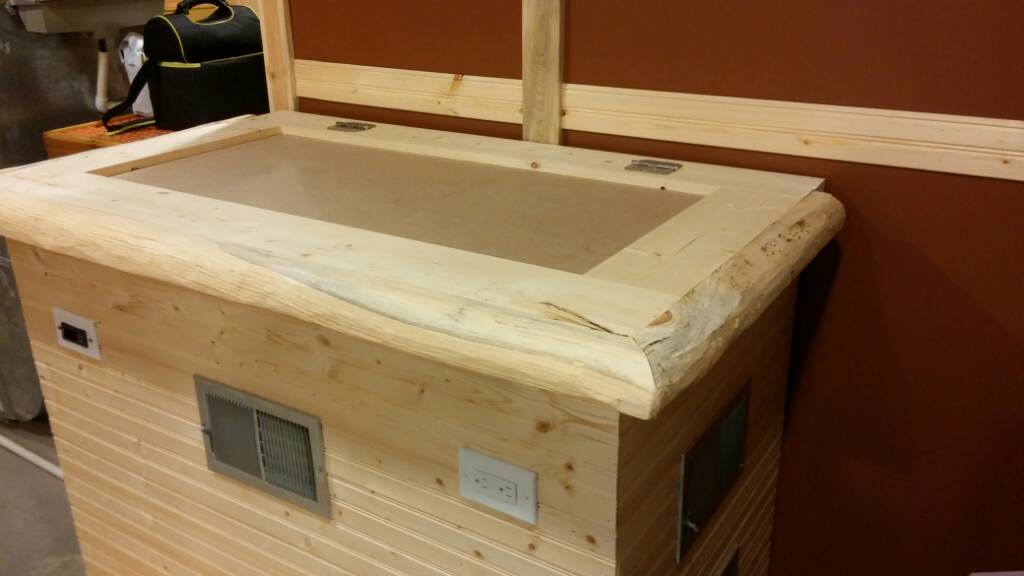

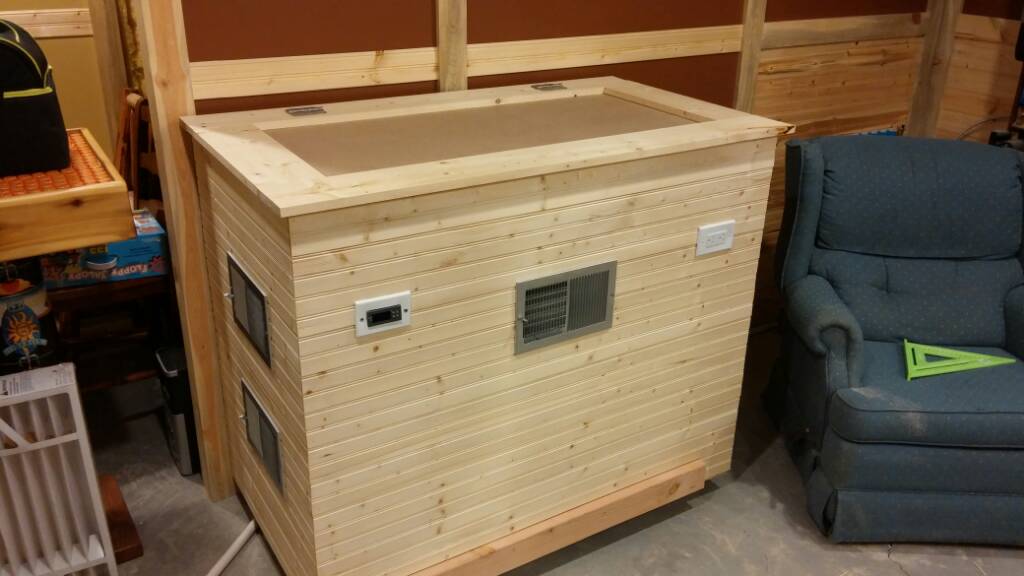

Cabinet dressed out with knotty pine, vents installed, and temp controller placed. I also installed an additional outlwt on the front in case I need to plug something in and for symmetry. Next onto the decorative lid and log trim pieces.



[Huaco]

Very nice looking Hoppo!
I like how you've given plenty of space for venting on the chest... Wise!



[Hoppopotomus]

Thanks Huaco. I built the hinged lid and trimmed it out with pine boards. Just need to mill some log trims and tile the top to match my other pieces. Controllers wired up and working, just in time for my Oktoberfest to go into the secondary.....better late than never on that beer. This chamber ended up really tal, so I am building a step out of a large slab of pine that I have out in the garage for easier access.



[Hoppopotomus]

Pics



[Huaco]

Thanks Huaco. I built the hinged lid and trimmed it out with pine boards. Just need to mill some log trims and tile the top to match my other pieces. Controllers wired up and working, just in time for my Oktoberfest to go into the secondary.....better late than never on that beer. This chamber ended up really tal, so I am building a step out of a large slab of pine that I have out in the garage for easier access.

Could you rig a block and tackle or other hoist type winch above the chamber? It's going to be a bear of a time on your back overcoming the height of the chamber wall. I ferment in 1/2 bbl Sanke kegs and heaving the 12 gallons over the wall of that is not fun. I can't imagine doing it over what you have. I need to build a long enough hose from my chilling setup to chill directly into my fermentor that has been placed into the chamber empty!



[Hoppopotomus]

I'm sure that I could rig something up above the unit. However, I have a large 4" thick slab of pine that I plan on using as a stair step to make things easier. I ferment in Ale Pales and 6 gallon carboys with carboy hauler straps, no larger. My 10 gallon batches get split, so I can easily handle the 45 to 50 lbs load....for now anyways. I'm sure later in life, I'll start looking into more back friendly alternatives, but with the step in place the height will be no different than what I face with my keezer and other 2 chambers. My last patient is finishing up in the gym, so I'm actually getting out of the office a little early for once. I plan on going home this evening and ripping the pine slab down to size and building the base for the step. If I'm feeling real ambitious, I'll rip down the log trims as well.



[Hoppopotomus]

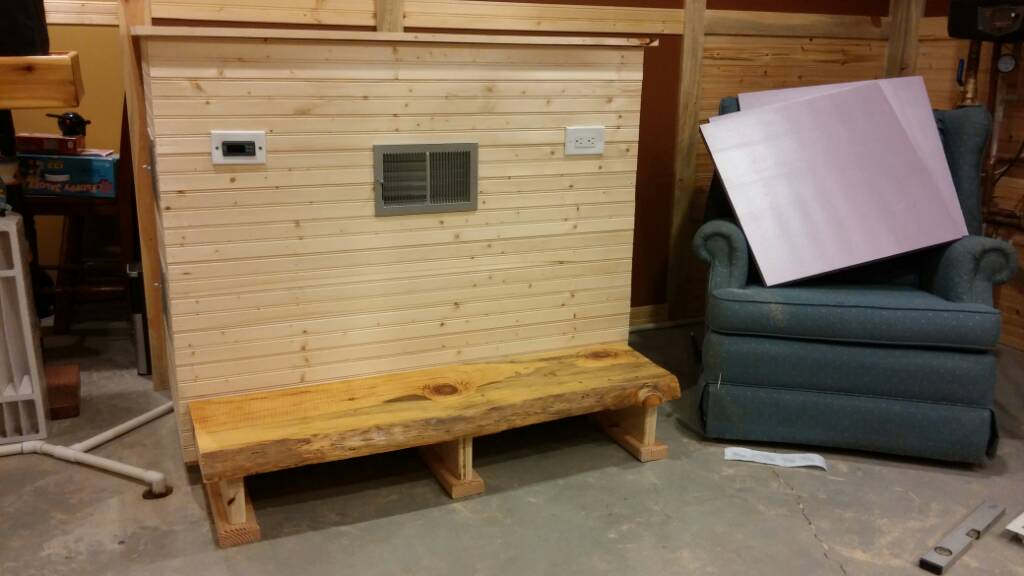

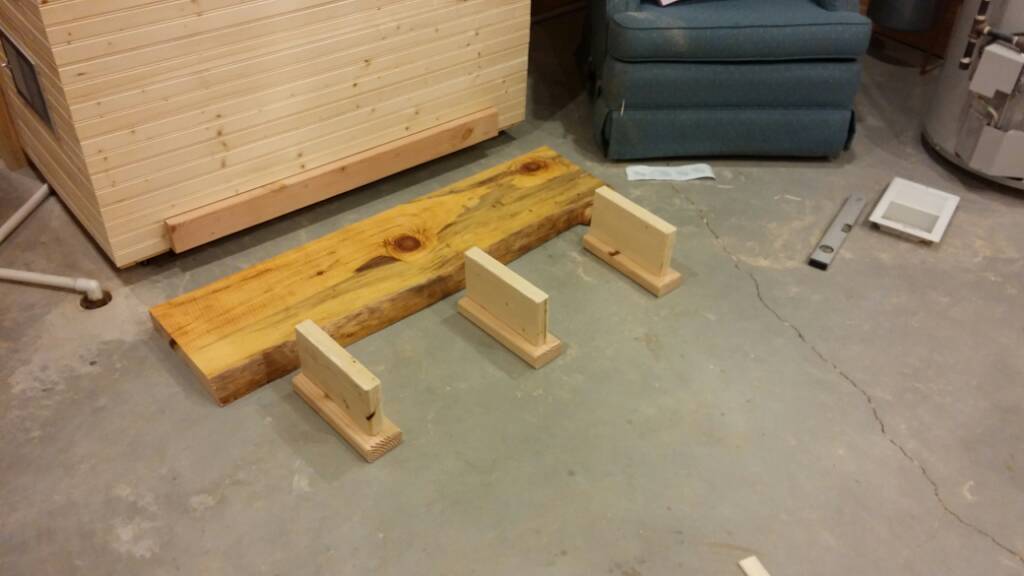

I ripped down the pine slab to use as a step and made a base to support it. Should make life easier lifting kegs and fermenters into the chamber.



[Hoppopotomus]

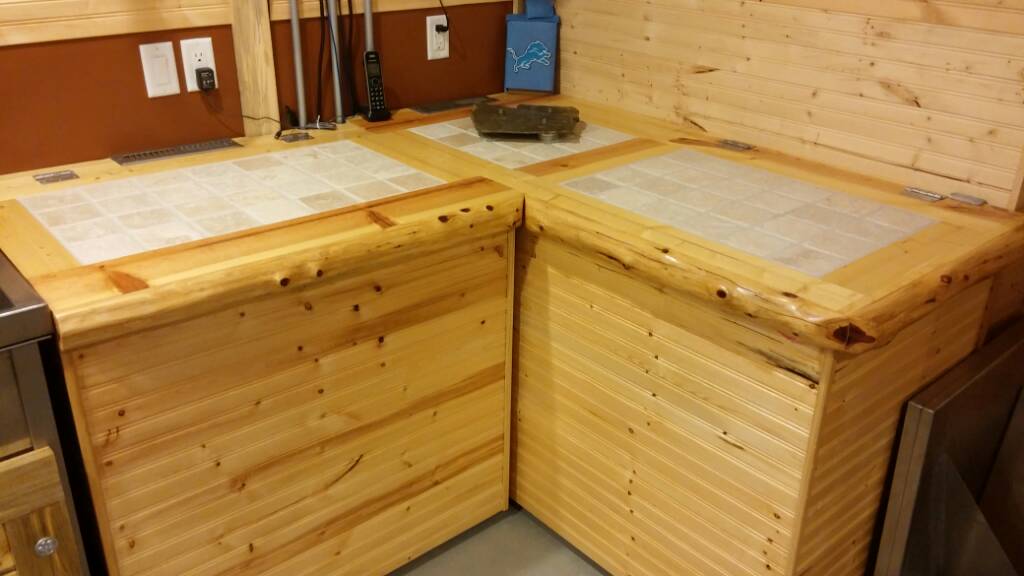

I decided that I didn't have the ambition to rip down, debark, and knife cedar logs all day, so I went with a quicker alternative. I ripped down the rest of the pine slabs into 3" wide stock, then knifed them down into a log shape. Not as much character as the authentic cedar logs used on the other components, but it saved me a ton of time and aggrevation. Far easier to miter the corners with somewhat square stock, than with inconsistently shaped and sized cedar logs. Next I need to get the collar insulated and my CO2 system installed.



[Hoppopotomus]

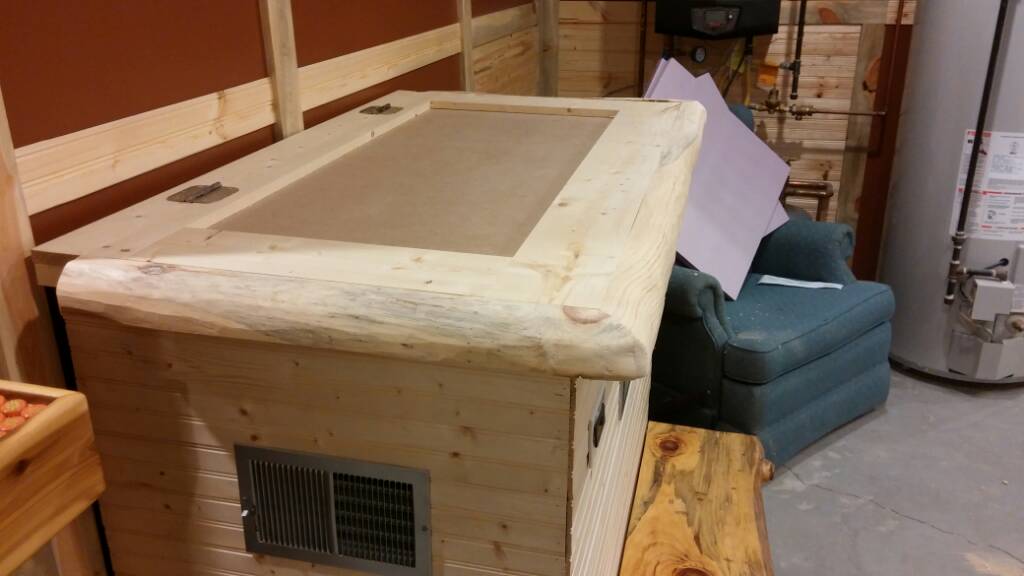

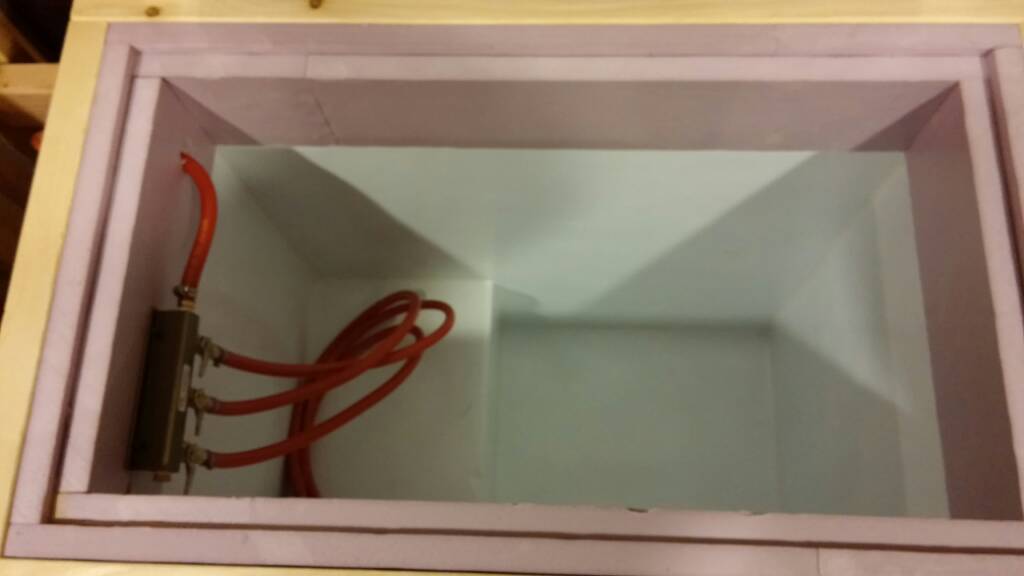

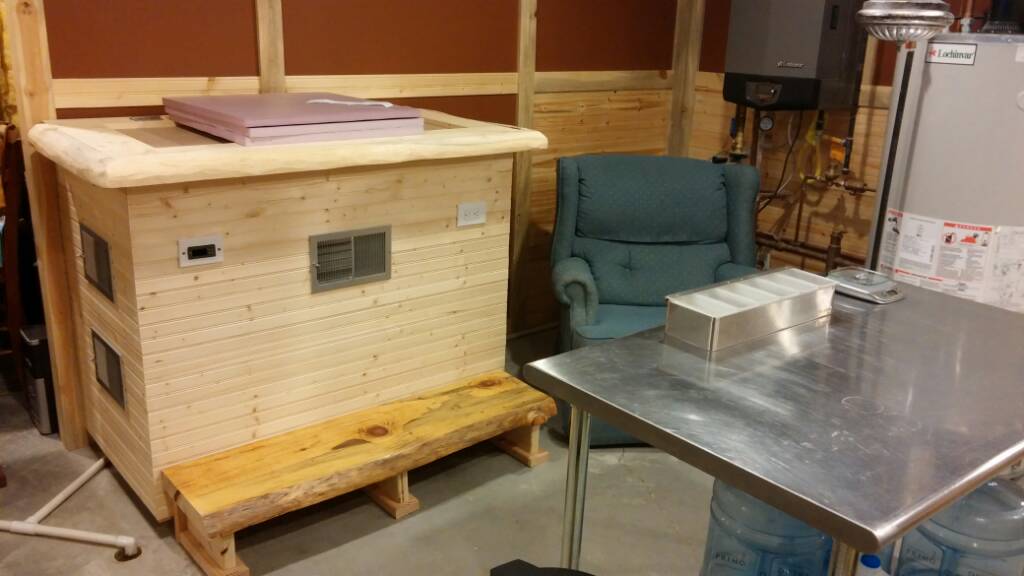

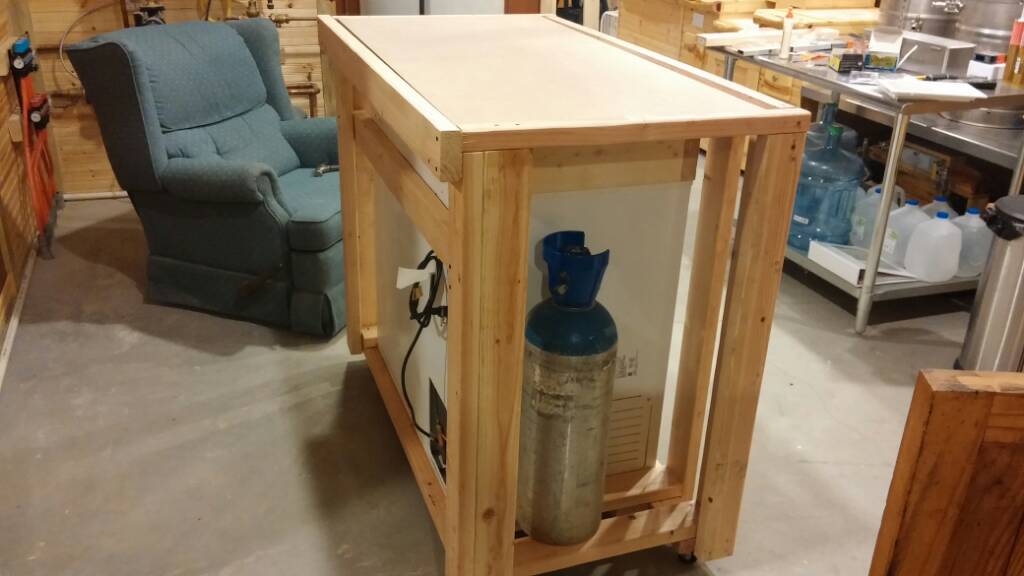

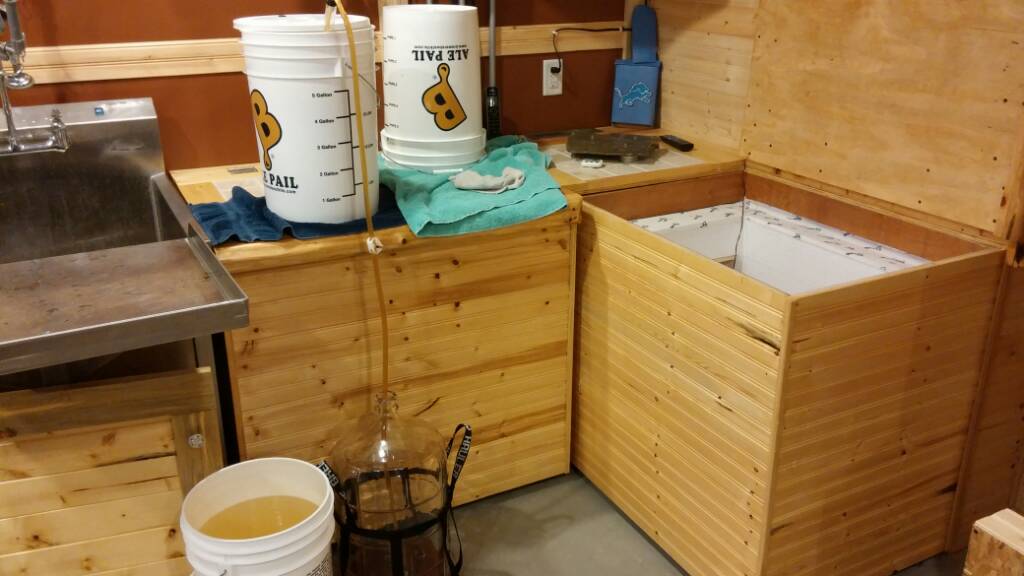

Collar insulated, CO2 manifold mounted, and tank/regulator placed. The chamber is now operational. Just need to tile the top with tumbled travertine, trim the vertical corners, and finish the wood work. I have an Oktoberfest sitting in primary in my other lager chamber at 48 degrees for almost 4 weeks. Unfortunately thats as cold as the dorm fridge can handle, hence me building this one. Need to get it racked today and moved over to this chamber for the progressive lagering down to colder temps. Better late than never.



[limulus]

I ripped down the pine slab to use as a step and made a base to support it. Should make life easier lifting kegs and fermenters into the chamber.

Very nice work. I just noticed the PVC pipe coming out along the floor. You may have covered that earlier, but is that a condensation drain from the keezer? No matter what I do, I still get condensation in mine. I have added extra weather stripping around the gasket and I still have to get the wet/dry vac out on a regular basis. I have a coffin top and although it is built quite solidly with a tight seal, I may be getting moist air in through the coffin.

Unfortunately for me, my basement is finished and I have 8" wide scraped hickory flooring down there. I wont' be making any floor drains, but I could possibly construct some sort of drainage system so I don't have to vacuum out the condensate.

BTW, you probably know this but places like Home Depot sell the vents in wood. I have on on mine.



[Hoppopotomus]

No the pvc is for the condensing discharge for my furnace and boiler. My keezer is in my bar area on the other side of the wall. I get condensation in mine as well. I shop vac it out everytime I open it up. I'm sure I will get some condensation in the lagering chamber as well, but I don't worry too much about it. I had a case of wall registers left from when I built the house that I came across, so I just shot them with hammered metal spray paint to match my 2 control panels in the brewery. I considered wood diffusers, but pine ones are harder to find and these were free.

I got the Oktoberfest racked and put in the chamber. Let the lagering begin.
