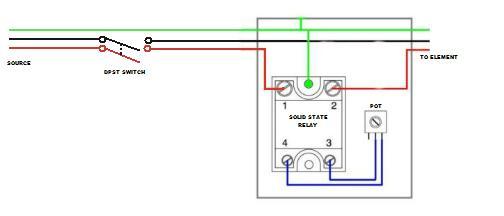

Just quick question. Im building a very basic controller with a 40a SSRV from auberins with rheostat. I started my build based on another forums members basic schematic. My only question about it before I make my connections is why don't both hot wires on the schematic go to the relay? and should they?

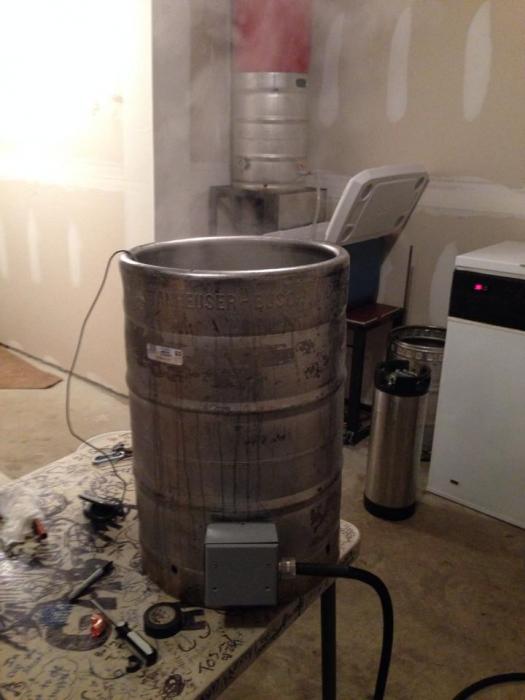

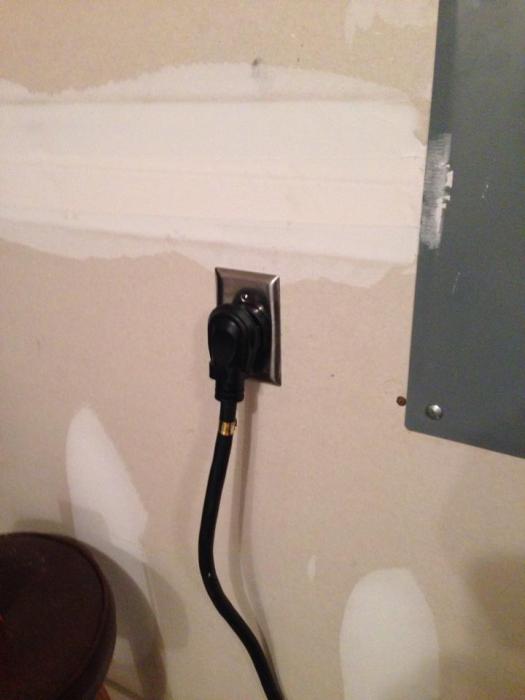

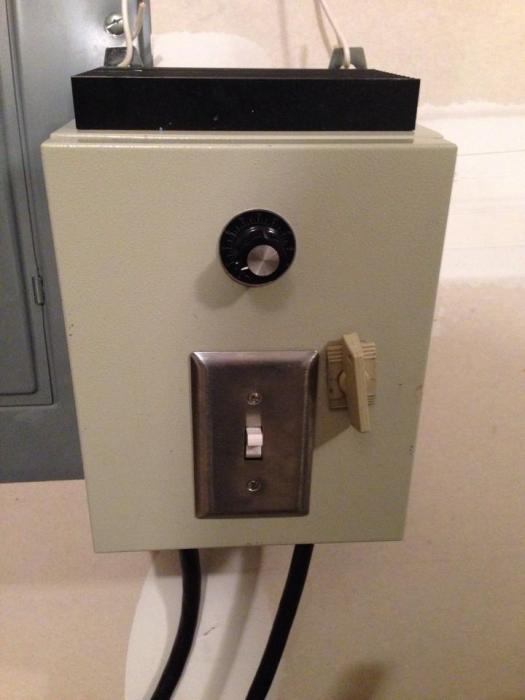

I am going to be using 1 - 5500 w 240v element. I have a 30a gfci breaker which was installed in my panel and tied to a 4 prong dryer outlet. Below is my current controller I am putting together. Please someone let me know if I should have both hot legs going into the relay and then out to the element..
[/ATTACH]
I am going to be using 1 - 5500 w 240v element. I have a 30a gfci breaker which was installed in my panel and tied to a 4 prong dryer outlet. Below is my current controller I am putting together. Please someone let me know if I should have both hot legs going into the relay and then out to the element..
[/ATTACH]
