Any opinions on the EZ Boil DSPR320?

[doug293cz]

How hard is it to change out the DSPR 110/120 to the DSPR 320? is the wiring diagram the same?

The DSPR120 is terminal compatible with the DSPR320, but the DSPR110 is not.

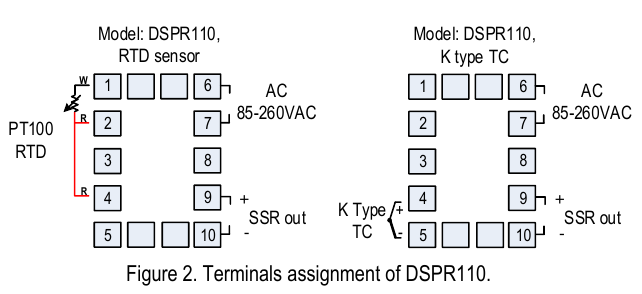

DSPR110 terminal assignments:

​

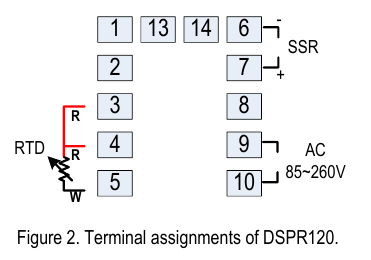

DSPR120 terminal assignments:

​

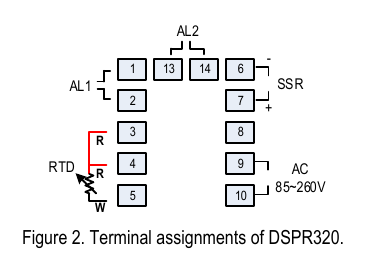

DSPR320 terminal assignments:

​

Brew on



[Reneauj62]

The DSPR120 is terminal compatible with the DSPR320, but the DSPR110 is not.

DSPR110 terminal assignments:

View attachment 722232​

​

DSPR120 terminal assignments:

View attachment 722233​

​

DSPR320 terminal assignments:

View attachment 722234​

​

Brew on

Ok, I have a Unibrau Controller SV220 220v. Could I change out the Auber EZBoil 110 for a DSPR 320?



[doug293cz]

Ok, I have a Unibrau Controller SV220 220v. Could I change out the Auber EZBoil 110 for a DSPR 320?

Of course. Just have to make sure you hook things up to the correct terminals.

Brew on



[Bobby_M]

Ok, I have a Unibrau Controller SV220 220v. Could I change out the Auber EZBoil 110 for a DSPR 320?

Yes, and tighten all the screw terminals on everything inside that box while you're in there. Mine were so loose I figured a four year old girl did the wiring job.



[Reneauj62]

Of course. Just have to make sure you hook things up to the correct terminals.

Brew on

Well, I know about electrical, just not much about electronic but, it seems pretty straight forward
