Ok well I decided to compile all the new Speidel parts into one thread.

Since were adding new parts (what seems like) daily I want a place to showcase them all as a just a "line of products"

If you have questions feel free to toss em in here.

We have added all these parts to the Website and added them as combos as well to save you guys some "$crilla"

http://www.norcalbrewingsolutions.com/store/Carousel-Slide-1.html

I am going to save the next couple spots for pictures. IF the Admins dont mind...

Cheers
Jay

For those of you that don't know what a Speidel is. For your viewing pleasure.. :)


OP
Jaybird
Joined
Jul 16, 2006
Messages
7,343
Reaction score
1,165
Location
Redding Ca
All the dip tube and lower connections available right now for the ALL the Speidel Fermenters AND Storage.

We have the 5/8" dip tube with 1/2" NPT threaded connection

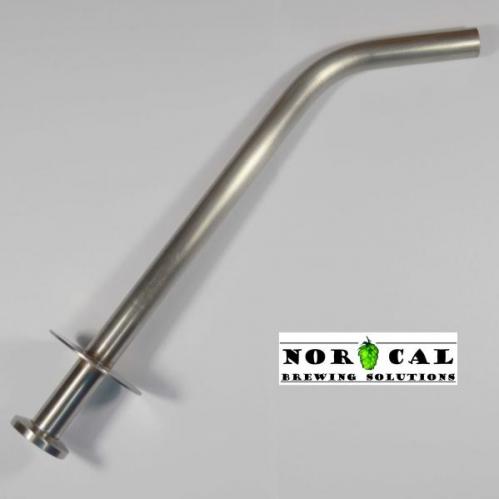

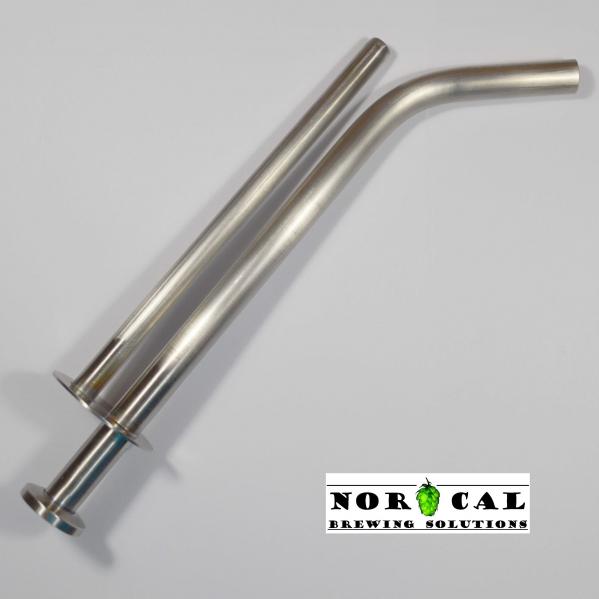

We have the 3/4" Tri Clover connection on a 1/2" dip tube WITH a thermowell

We have the 3/4" Tri Clover Connection on a 1/2" dip tube WITHOUT a thermowell

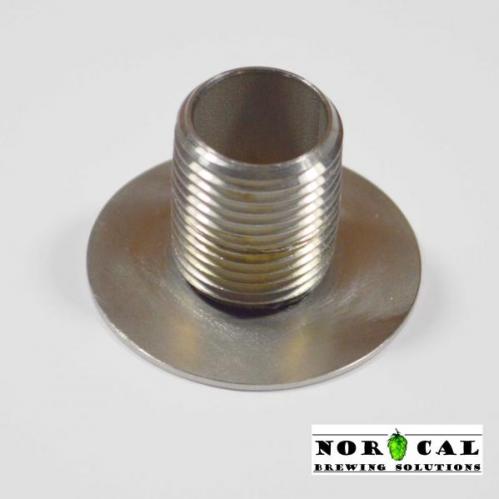

And then a simple 1/2" NPT threaded adapter that can be used both on top of the Speidel or on the bottom

Cheers
Jay








OP
Jaybird
Joined
Jul 16, 2006
Messages
7,343
Reaction score
1,165
Location
Redding Ca
Then on top of the Speidel

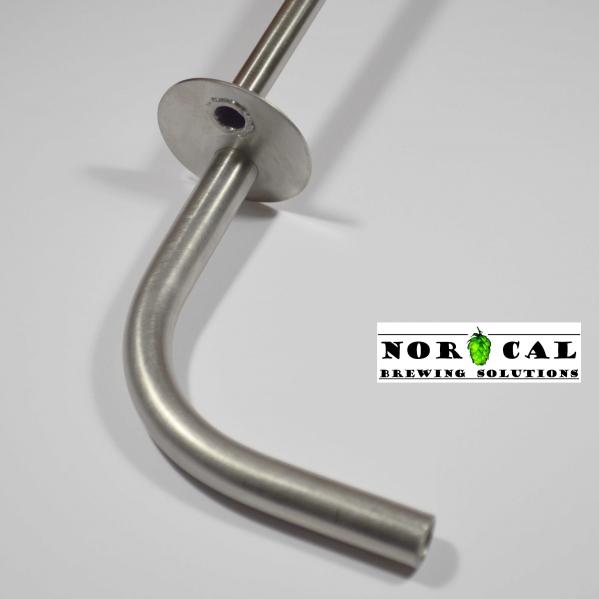

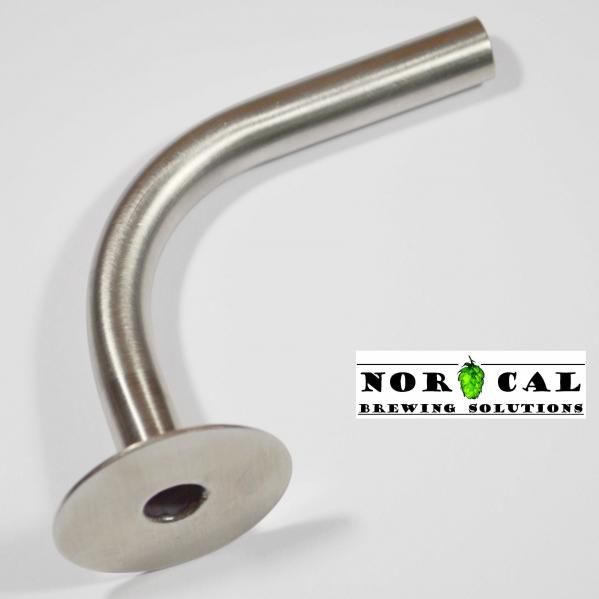

We have a simple Blow off tube and the Blow off tube WITH a 16" Thermowell


Cheers
Jay




OP
Jaybird
Joined
Jul 16, 2006
Messages
7,343
Reaction score
1,165
Location
Redding Ca
I have them. We just got them in and will be available early next week online. BUT..If you want to call the store and chat I can get an order in for you over the phone.

530 243 BEER (2337)

I have the clamps and gaskets in stock.

Cheers
Jay


liquidcourage

Well-Known Member
Joined
Aug 9, 2014
Messages
52
Reaction score
9
Location
Craig
Jay,

I bought the dip tubes and blowoff tubes for my speidels but couldn't get them to stop leaking when I installed the dip tubes yesterday. Any advice?

OP
Jaybird
Joined
Jul 16, 2006
Messages
7,343
Reaction score
1,165
Location
Redding Ca
Where are you putting the gasket?
Lay the Speidel on its back. We did it both ways, with the gasket on the inside and the outside. If you do it while its laying down it will help to center the gasket. This is how I am doing it in the big one and didn't have a drop leak out. You have to make sure you center that gasket and then tighten it.

Cheers
Jay


liquidcourage

Well-Known Member
Joined
Aug 9, 2014
Messages
52
Reaction score
9
Location
Craig
I tried the gasket in both positions. I didn't try laying it on its back. I guess I might try that when they're empty again in a couple weeks.


ParanoidAndroid

Well-Known Member
Joined
Feb 27, 2012
Messages
339
Reaction score
31
Location
Birmingham
I purchased the pickup arm and top with thermowell and blowoff.

Has anyone used the blowoff to transfer with CO2 from the Speidel to a corney?


stonebrewer

Invented the IPL
Lifetime Supporter
Joined
Mar 8, 2012
Messages
2,119
Reaction score
376
Location
rockville
I gotta say this about Jay and Norcal: they are user focused, innovative, willing to listen and work with you, and a great HBT sponsor! I bought some of their Speidel add on products and I am SO happy with the fit, finish, and functionality of these quality parts. I improved my process and will thus make better beer because of Jay: hats off to ya bro!!

OP
Jaybird
Joined
Jul 16, 2006
Messages
7,343
Reaction score
1,165
Location
Redding Ca
I gotta say this about Jay and Norcal: they are user focused, innovative, willing to listen and work with you, and a great HBT sponsor! I bought some of their Speidel add on products and I am SO happy with the fit, finish, and functionality of these quality parts. I improved my process and will thus make better beer because of Jay: hats off to ya bro!!
Thanks for the AWESOME shout out! Its been my pleasure to work with you on the project! Glad you like em! :D

Cheers
Jay


beefy620

Active Member
Joined
Jan 13, 2012
Messages
41
Reaction score
5
Location
tampa
Any tips/tricks installing the dip tube. I can't seem to get it on there without leaks from where the gasket is. Gasket between the steel and orange cap correct? The Gasket seems to wanna mush out when i try to tighten. Am i tightening too much?


I also might add that I'm about to start boiling some wort and had hoped to use this today. Thanks!

Last edited:
OP
Jaybird
Joined
Jul 16, 2006
Messages
7,343
Reaction score
1,165
Location
Redding Ca
Any tips/tricks installing the dip tube. I can't seem to get it on there without leaks from where the gasket is. Gasket between the steel and orange cap correct? The Gasket seems to wanna mush out when i try to tighten. Am i tightening too much?


I also might add that I'm about to start boiling some wort and had hoped to use this today. Thanks!
Lay it on its back so you can center the gasket perfectly. Gasket first then dip tube then lock ring. I filled a 31 gallon full and left it overnight asnd it didn't leak a drop. Key point -----YOU HAVE TO LAY IT ON ITS BACK---- so the gasket doesn't fall down. Do that and I am sure will have success..

Cheers
Jay

OP
Jaybird
Joined
Jul 16, 2006
Messages
7,343
Reaction score
1,165
Location
Redding Ca
Any tips/tricks installing the dip tube. I can't seem to get it on there without leaks from where the gasket is. Gasket between the steel and orange cap correct? The Gasket seems to wanna mush out when i try to tighten. Am i tightening too much?


I also might add that I'm about to start boiling some wort and had hoped to use this today. Thanks!
I take it by the "LIKE" @beefy620 you were able to get it to tighten up without leaking?

Cheers
Jay


jmcquesten

Well-Known Member
Joined
Sep 3, 2012
Messages
1,117
Reaction score
296
Location
VA
Would it be possible to ad a threaded piece on the end of the blowoff tube? I'm thinking; add threaded ball lock adapter and ball lock gas post. Use ball lock gas disconnect with barb fitting and tube for blowoff during fermentation. Then disconnect quick connect fitting from blowoff tube and connect co2 to slightly pressurize fermenter for transfer to keg. This would eliminate oxygen during transfer. The spigot would be connected to a transfer line with a liquid disconnect going to the keg.

Or.....add a shraeder valve to the blowoff/thermowell unit allowing pressurization, but then you'd have to somehow plug the blowoff tube before pressurizing.


beefy620

Active Member
Joined
Jan 13, 2012
Messages
41
Reaction score
5
Location
tampa
I take it by the "LIKE" @beefy620 you were able to get it to tighten up without leaking?

Cheers
Jay
yeah sorry was checking back while brewing and whatnot. Forgot to come back and post. I was able to get it to seal properly with your instructions. Thank you.

As an aside, dont put it on in reverse order "dip tube gasket lock ring". I might have cranked it down too hard and possibly messed up the lip of the threading surface on one my speidels derp!


jmcquesten

Well-Known Member
Joined
Sep 3, 2012
Messages
1,117
Reaction score
296
Location
VA
I am working on a full transfer connection right now that will do the same thing as this part for a keg.

http://www.norcalbrewingsolutions.com/store/Ultimate-Sanke-Keg-Fermenter-Kit.html

But YES totally doable!
Stay posted. Its in the works.

Cheers
Jay
That looks to be more complicated than it needs to be. A blowoff tube with the keg post adapter threads on it for a gas post would work. That would also allow for a spunding valve to be installed.

Or just a blowoff tube with a gas post on the end.

OP
Jaybird
Joined
Jul 16, 2006
Messages
7,343
Reaction score
1,165
Location
Redding Ca
That looks to be more complicated than it needs to be. A blowoff tube with the keg post adapter threads on it for a gas post would work. That would also allow for a spunding valve to be installed.

Or just a blowoff tube with a gas post on the end.
I think You can put together what your talking about with this little guy. Add your Tee and build from there.

Cheers
Jay



jmcquesten

Well-Known Member
Joined
Sep 3, 2012
Messages
1,117
Reaction score
296
Location
VA
I think You can put together what your talking about with this little guy. Add your Tee and build from there.

Cheers
Jay[/quote]

Possibly, but there's no thermo well.

Like this:




jmcquesten

Well-Known Member
Joined
Sep 3, 2012
Messages
1,117
Reaction score
296
Location
VA
Space is limited up there for sure. You can do the thermowell at the dip tube location.

Cheers
Jay
Would there be enough room for the valve if you do thermo well at dip tube location? Don't see how there could be.

Why is the keg post adapter on the end of the blow off tube not a good idea? It could even be rigged with a spunding valve.

OP
Jaybird
Joined
Jul 16, 2006
Messages
7,343
Reaction score
1,165
Location
Redding Ca
Would there be enough room for the valve if you do thermo well at dip tube location? Don't see how there could be.

Why is the keg post adapter on the end of the blow off tube not a good idea? It could even be rigged with a spunding valve.
Sorry..I keep thinking you are needing a dip tube like a racking cane as well. That's totally my bad. I think a simple compression fitting on the blow off tube and you can attach anything you want from there. That would get you to 1/2" MALE NPT. Then it will need to go 1/2" MNPT to 1/4" Male OR Female NPT to do the post connection but I think that's doable for sure.

Cheers
Jay


paulshe

Well-Known Member
Joined
Sep 14, 2013
Messages
63
Reaction score
21
I'm liking the diptube assembly. Super convenient since the ball valve points out for my application where I have no room for down spout like the original. I can take gravity samples easy. I find even with the dip tube facing down i leave majority of the trub and the keg filling is super super fast.

Jay, are you going to get us a "ridged" gasket to make it easier to fit in place. I was able to line mine up after a few tries but just this weekend lost my gaskets so my diptubes are lonely (i just used the plugs for now). Hate to buy more spouts just to get the gasket. Or with the right measurement perhaps I can source just the gasket.


beefy620

Active Member
Joined
Jan 13, 2012
Messages
41
Reaction score
5
Location
tampa
I am working on a Silicone gasket that will WRAP the parts but its slow going to get the Proto done and the Mold made. I am on it though..

Thanks for the feedback!

Cheers
Jay
I was just getting ready to ask about something like this since my initial trouble lining it up. I think on one of my fermenters, i might've cranked it down too tight with the gasket on the wrong side like a moron haha.

I have since got the other two installed properly and they work amazingly!

OP
Jaybird
Joined
Jul 16, 2006
Messages
7,343
Reaction score
1,165
Location
Redding Ca
I am amazed at how well this line has been doing!

You guys are AMAZING!

Thanks for all the feedback, input and of course the orders!

Cheers
Jay


Leadpencil

Well-Known Member
Joined
Jan 6, 2013
Messages
271
Reaction score
43
Location
Elkhart Lake
jay, what are you using for a valve of these? looks to be pretty tight to have a 1/2" valve on there?


helibrewer

Well-Known Member
Joined
Nov 11, 2011
Messages
4,088
Reaction score
459
Location
Wilmington
Just found this. Real nice Jay, I love my Speidel's and this really polishes them off....I will be ordering soon.


Derp

Well-Known Member
Joined
Jun 3, 2010
Messages
294
Reaction score
70
Location
San Antonio
I am working on a Silicone gasket that will WRAP the parts but its slow going to get the Proto done and the Mold made. I am on it though..
Great news. I just tried my dip tube today and could never get it to stop leaking. I assume that I might've screwed it on too hard, but I eventually gave up and put on the stock valve (what a piece of junk) because it was time to sanitize the Speidel.

Looking forward to the new gasket.

OP
Jaybird
Joined
Jul 16, 2006
Messages
7,343
Reaction score
1,165
Location
Redding Ca
New Ball lock gas in AND PRV part will be up tomorrow! This will be used for pressure transfers ETC. Several other new parts on the horizon to be posted very soon. Racking cane transfers, ball lock gas in and beer out connections, ball valve blow off and CIP connections..LOADS of good stuff!

Gasket mold is about done but I understand a 1.5" TC gasket works like a charm.....

Cheers
Jay


Leadpencil

Well-Known Member
Joined
Jan 6, 2013
Messages
271
Reaction score
43
Location
Elkhart Lake
Cool looking forward to it. Going to try me 1/2 full coupler adapters I got from you this weekend.

OP
Jaybird
Joined
Jul 16, 2006
Messages
7,343
Reaction score
1,165
Location
Redding Ca
Here it is. Gas in WITH PRV

Not exactly cheap @ $39.99 but a great addition to the Speidel family of stainless solutions....Couple this with a stainless ball valve on the bottom and your golden.

Cheers
Jay





dfborn

Well-Known Member
Joined
Jun 25, 2011
Messages
134
Reaction score
17
Location
Hannibal
Do you plan to release a 1/2" npt version with the thermowell like the 3/4" tc diptube?

OP
Jaybird
Joined
Jul 16, 2006
Messages
7,343
Reaction score
1,165
Location
Redding Ca
Do you plan to release a 1/2" npt version with the thermowell like the 3/4" tc diptube?
There is just not enough real estate on that little stainless cap to get both an NPT adapter AND a thermowell. We have been trying...

Cheers
Jay
