Indiana 1 BBL Turn Key Brewery

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

Hoosierbilly

Well-Known Member
Joined
Jun 21, 2008
Messages
113
Reaction score
5
Location
Muncie

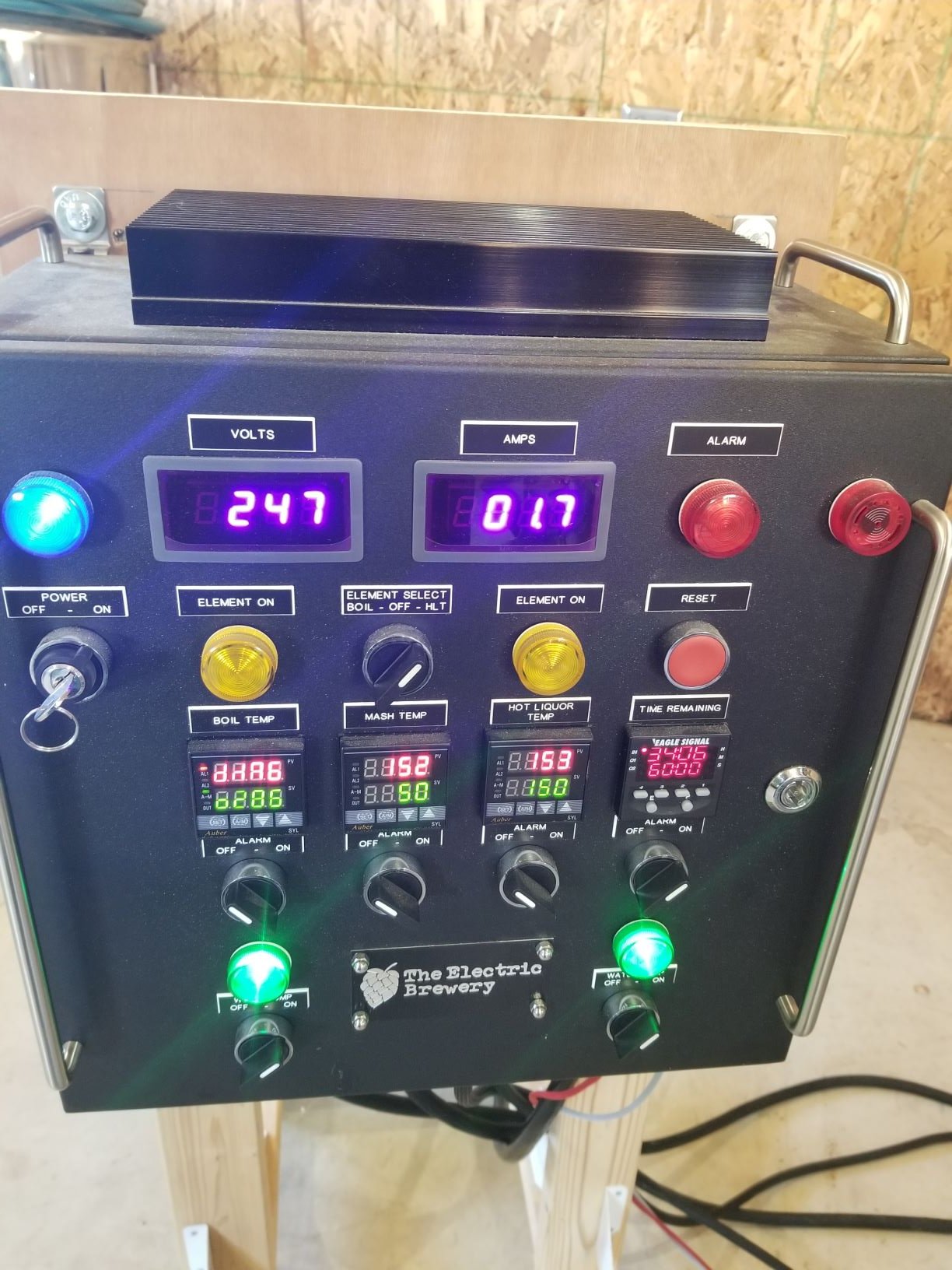

I am selling my 1BBL turn key brewery. I down graded from 2bbl to 1bbl but I find it sits around more than it is brewed on. I have brewed maybe 10 batches with this setup. Not my first set of stainless vessels, very well cared for. No dents, nicks, scratches, or discoloration. Cleaned with BKF and stored inside. I get efficiency in the 80's. I find myself doing more smaller batches and would like to see this put to use in a brewery where it belongs. Before this I had a 2bbl gas fired setup that I ended up selling to a brewery in Detroit. This includes every single part and piece needed to brew. Uses a 50 amp 4-prong outlet. The control panel is the electric brewery 50amp control panel for 30+ gallons that was pre-asymbled by them, with their control panel power cord.

https://shop.theelectricbrewery.com...ry-control-panel-for-30-gallons-pre-assembled

https://shop.theelectricbrewery.com...ts/control-panel-power-cord-50a-pre-assembled

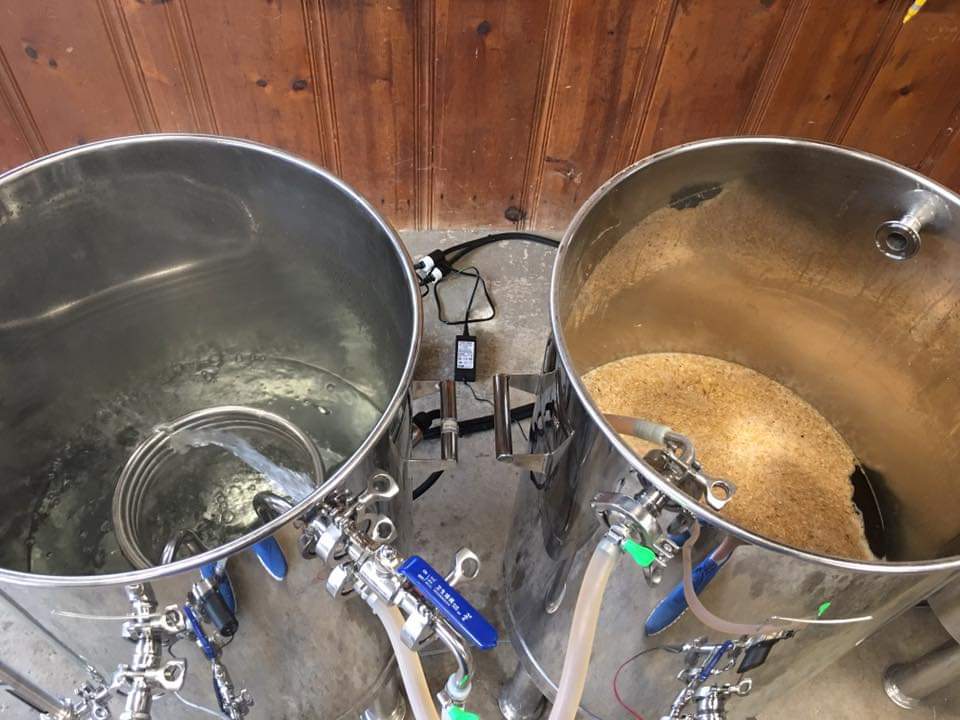

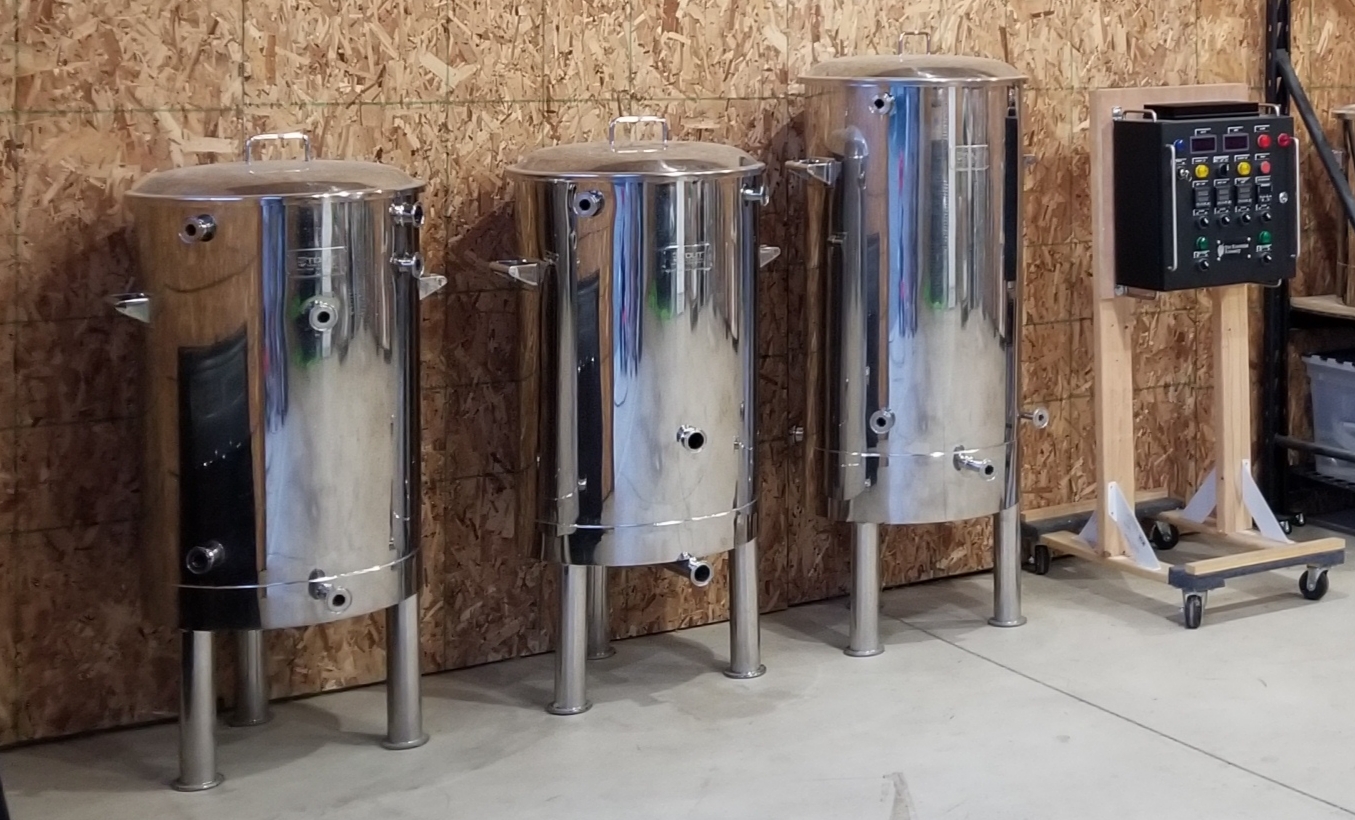

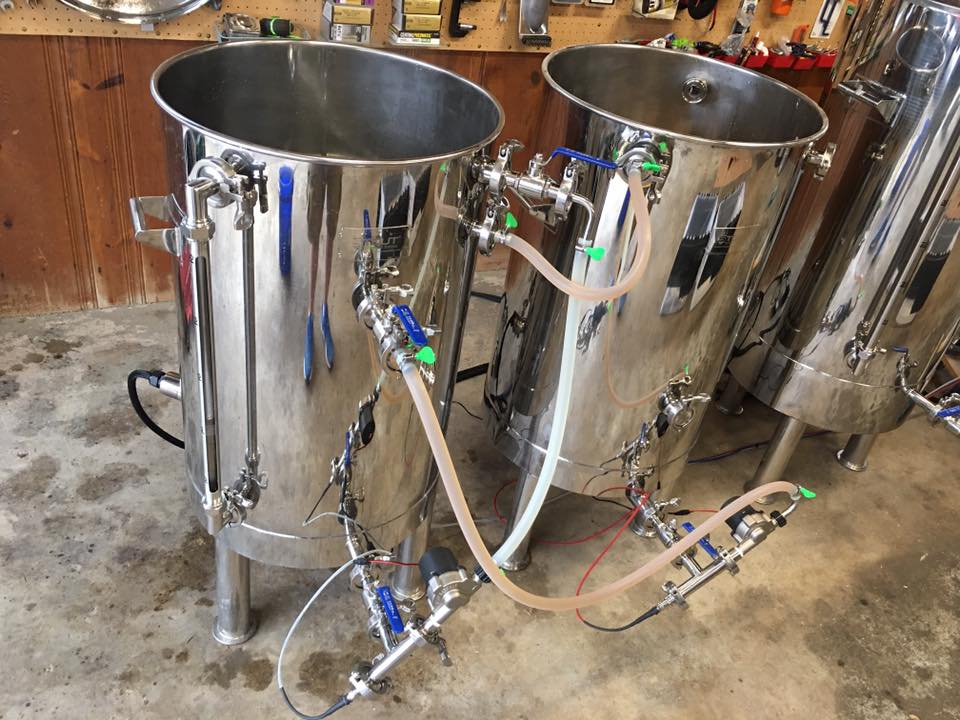

The vessels are stout tanks:

40gal HLT

https://conical-fermenter.com/40-Gallon-Hot-Liquor-Tank-sight-glass-HERMS-Coil.html

40gal MT and 12" sparge arm

https://conical-fermenter.com/1-bbl-Mash-Tun-486.html

45gal BK

https://conical-fermenter.com/45-Ga...et-Sight-Glass-Electrical-Ports-and-legs.html

The control panel connects to 4 5500w all stainless elements (two in HLT and two in BK) with grounded TC connections. Two twist lock cords go to power the two DC pumps.

https://www.brewhardware.com/product_p/element5500.htm

https://www.brewhardware.com/product_p/etc3.htm

https://www.northernbrewer.com/collections/pumps/products/the-steelhead-2-pump

Each vessel has a TC temp sensor with color coded cables to the control panel (Red for mash, white for water, blue for boil.)

https://shop.theelectricbrewery.com...p-tri-clamp-1-5-flange-1-38-35mm-probe-length

https://shop.theelectricbrewery.com...roducts/temperature-probe-cable-pre-assembled

For recirculating, whirlpooing, and cooling in the BK is a march nanobrewery pump and chillzilla.

https://woodyshomebrew.com/products...MIgefMgcOv3QIVg7rACh0C4AUCEAQYAyABEgJQUvD_BwE

http://shop.greatfermentations.com/product/chillzilla/wort-chillers

SSbrewtech 1bbl chronical brewmaster edition with cooling coil and neoprene sleeve

https://www.ssbrewtech.com/collections/chronicle-bme/products/chronical-one-barrel-fermenter

Included is all silicone hoses, hose clamps, triclamps, gaskets, and any and all fittings needed for brewing. No plastic or pvc touches the wort, only stainless and silicone.

I have well over $10,000 in everything. Asking $8,000 firm. Located in central IN, local pickup only. Cheers!


Attachments

Last edited:
Joined
Jan 9, 2011
Messages
42
Reaction score
24
Location
The Basement
Hey that's really cool stuff you got there. I hope you sell it and it's used to make great beer!. I live in central IN too. Surely one of the breweries around here would take it! Maybe you can post a flier at great fermentations and get some hits?
