1/2" Tubing Adjustable Bender

[cosmatics]

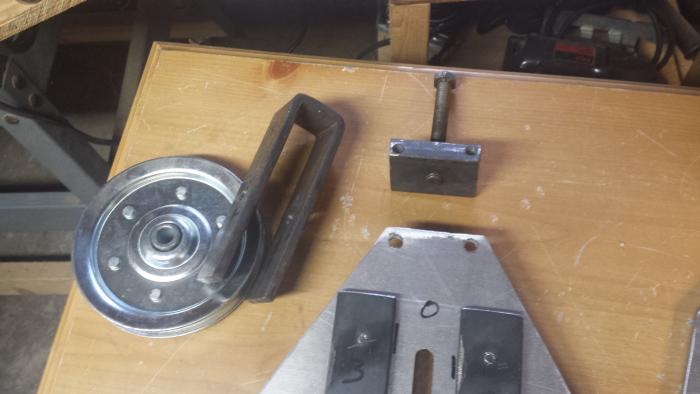

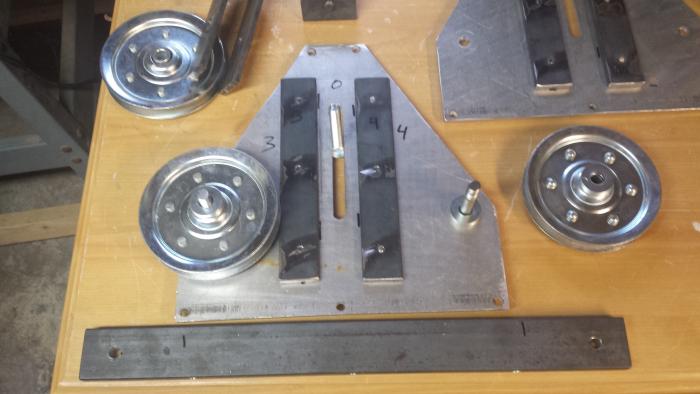

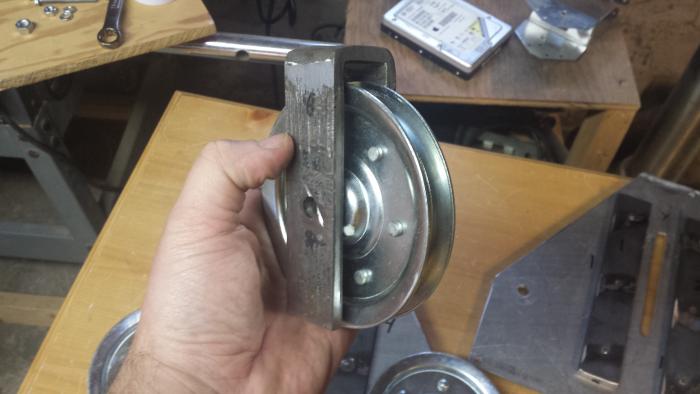

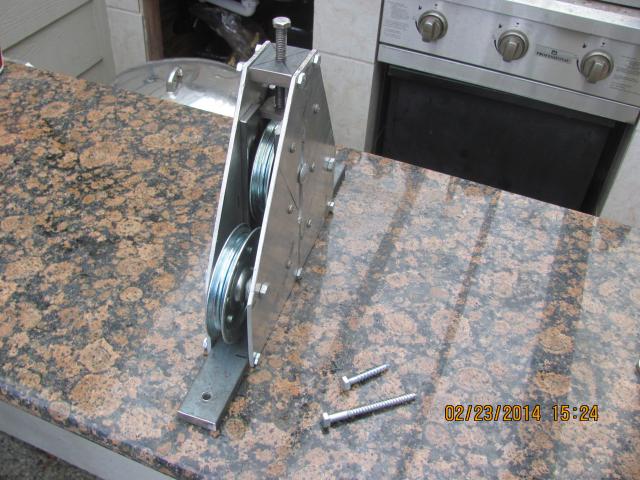

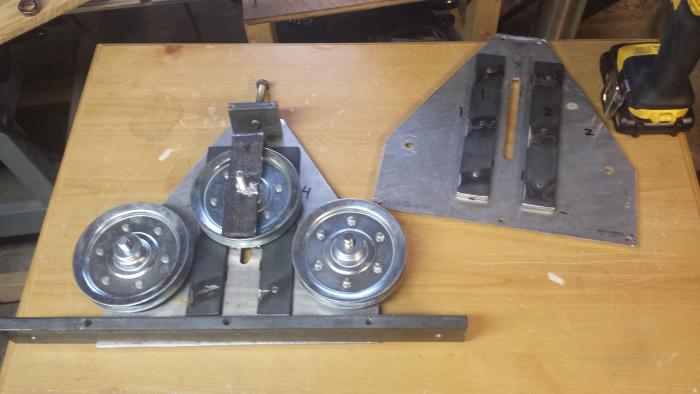

This is a thread dedicated to a DIY tubing bender made by AcidRain. I purchased it from him and wanted to share his great work to interested parties. I can take more detailed measurements later but for now here are some pics.



[cosmatics]

Very beefy construction, looks like the OP works in a machine shop or something.



[IslandLizard]

Yes, this is one piece of fine machinery. I saw it when he was selling it. Glad it found a good home.



[Ki-ri-n]

That does look good. Very similar to this: https://www.homebrewtalk.com/f51/50-foot-1-2-inch-ss-coil-300138/index12.html



[fc36]

Cosmatics, thanks for the build thread. I'm looking forward to seeing the dims on this bad boy. Hopefully, AcidRain chimes in with part nos. on those pulleys.



[fc36]

Cosmatics, what's the outside diameter on those pulleys? I think this might be the part no. http://www.mcmaster.com/#3164t16/=qyrhkt



[cosmatics]

I'm out of town til Sunday in London but the pulleys are 4" I believe.

Sent from my SAMSUNG-SGH-I337 using Home Brew mobile app



[acidrain]

I've got pictures of the original roller packaging, but my computer crashed last week, and I don't have access to the pics. They were $10 a piece at the local hardware store. If I can't get them out of my computer, I can always get them from my camera at work.
I have the original drawing for the side plates too.
Stay tuned



[Drizzt]

Am I the only one that packs the pipe with sand then bends with what ever spare parts I have?


Hello my name is Drizzt and I have a brewing addiction.



[pat_carnig]

Subbed jic.



[fc36]

I've got pictures of the original roller packaging, but my computer crashed last week, and I don't have access to the pics. They were $10 a piece at the local hardware store. If I can't get them out of my computer, I can always get them from my camera at work.
I have the original drawing for the side plates too.
Stay tuned

Any chance we can get those pics from your work camera and the drawing of the side plates?



[acidrain]

I'll see if I can dig them up.
Right after I posted last time I looked for the pics of the rollers in the packages, but didn't find them. I'll swing by the hardware store that I got them from and see if they have more and get a pic of the package... they were perfect for the job.



[DivrDwn]

I'll see if I can dig them up.
Right after I posted last time I looked for the pics of the rollers in the packages, but didn't find them. I'll swing by the hardware store that I got them from and see if they have more and get a pic of the package... they were perfect for the job.

Any follow up on this acidrain??



[acidrain]

Sorry, looked and looked, but couldn't find any info for you guys.
