I am giving this away for FREE to a good home. I do not feel like fixing this as I all ready have a working stir plate. A huge preference is going to be given to anyone willing to come pick this up. I am Near DIA for reference. I would ship it but would want the true cost of packing materials and shipping.

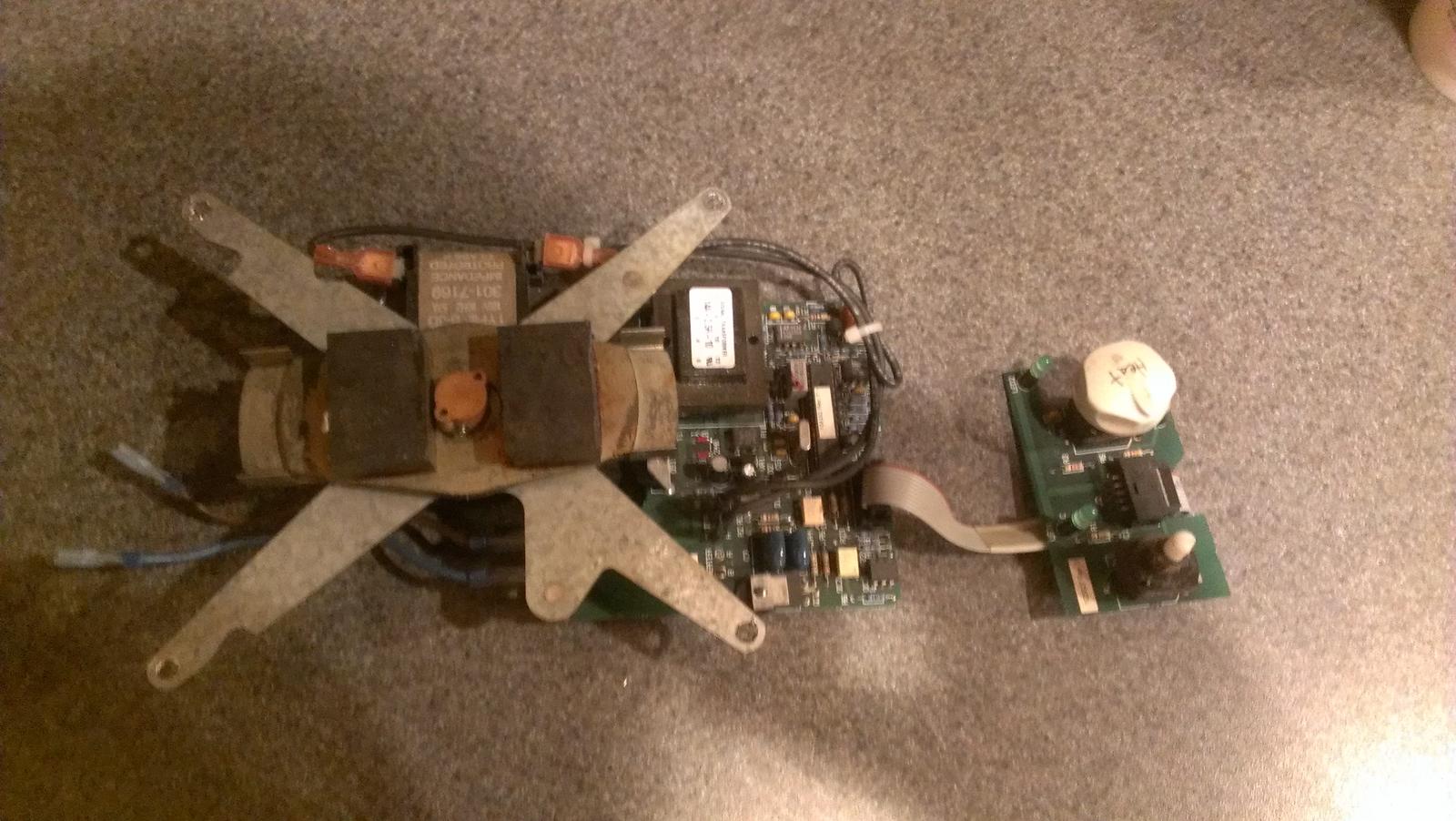

This is the internal stirring mechanism from Corning 10x10 stir plate. I dropped it and shattered the ceramic top and was trying to salvage the stirring mechanism. These stir plates have no problem stirring 5+ liters being that the magnets are both very strong and perfectly aligned.
This does however need some love and care to get it back working. It needs a power input. The two leads that are connected to nothing formerly connected to a 3 wire receptacle with the chassis of the stir plate grounded. The speed control also does not seam to be working. It is either all on or all off at this point. This could be fixed with a cheap pulse width modulation board. This was working when I took it apart so it also may be an easy fix. The motor is 60hz 120v AC and draws .57 amps so a PWM module should be easy and cheap to find for this. And also as you can see this needs mounted into something to provide protection from open electrical circuits and to provide a surface to place a flask on.
