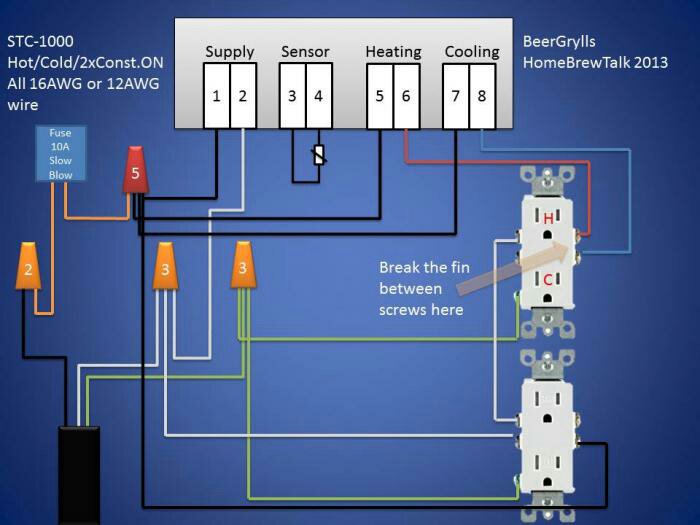

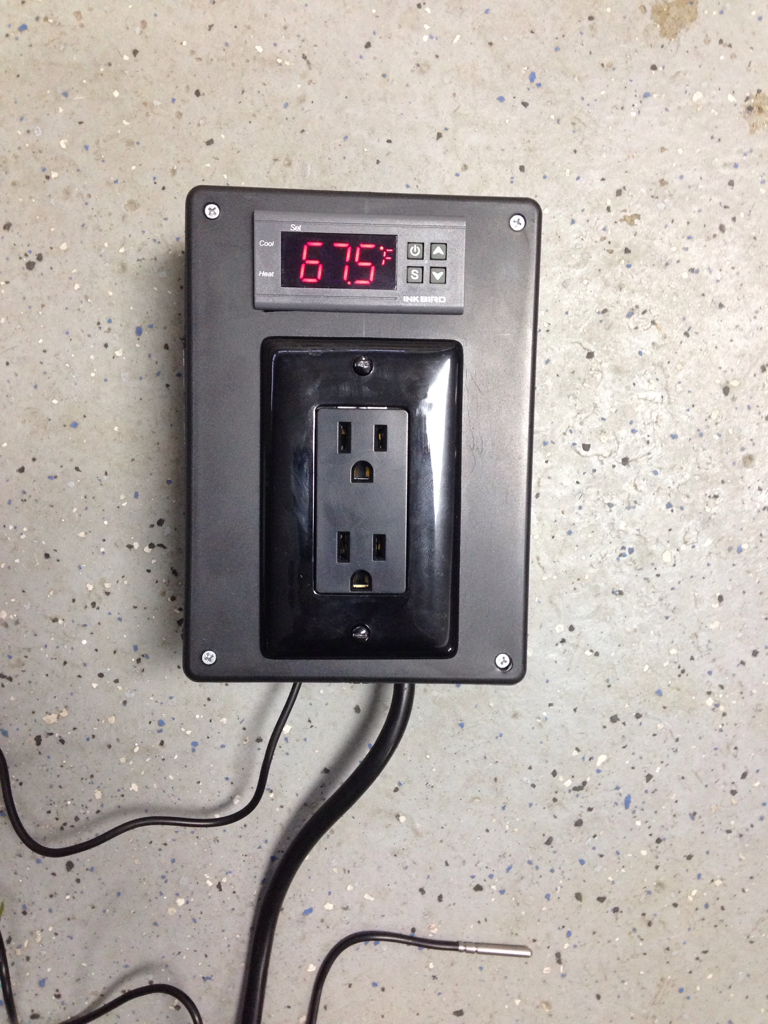

The wire color labels are not clear but I'll take a stab at it. Essentially the STC1000 cool relay will replace the component labeled "TEMPERATURE CONTROL". The two wires (Brown? & Gray) connected to this component need to be removed and connected to 7 & 8 of the STC1000. An STC1000 power source to 1 & 2 must be obtained from the Hot and Neutral lines that are shown as the left-most and right-most vertical lines on the diagram. Brown (hot) and if the defrost control is accessable, Orange (neutral) can be used.
