It's not pretty but I'm happy with it so far after a trial run. Thanks to everyone that contributed to the many,many threads on this topic.
I have natural gas piped outside, and was tired of using up propane tanks.
Based on reading quite a few threads here, I picked up a 23 jet natural gas burner and set out to build a stand. I didn't feel like welding, so, I went the strut route. Strut isn't the cheapest route but it seemed to be the most versatile.

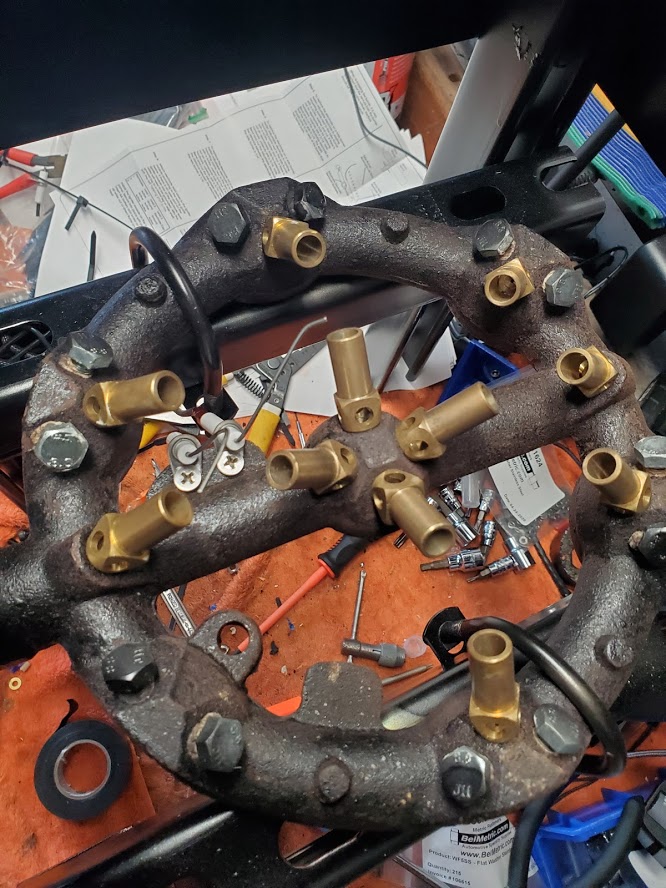

I plugged up all but 11 of the jets based on reading here, as all 23 are a little bit overkill. I used m8x1.0 bolts + ptfe sealant to close them off.

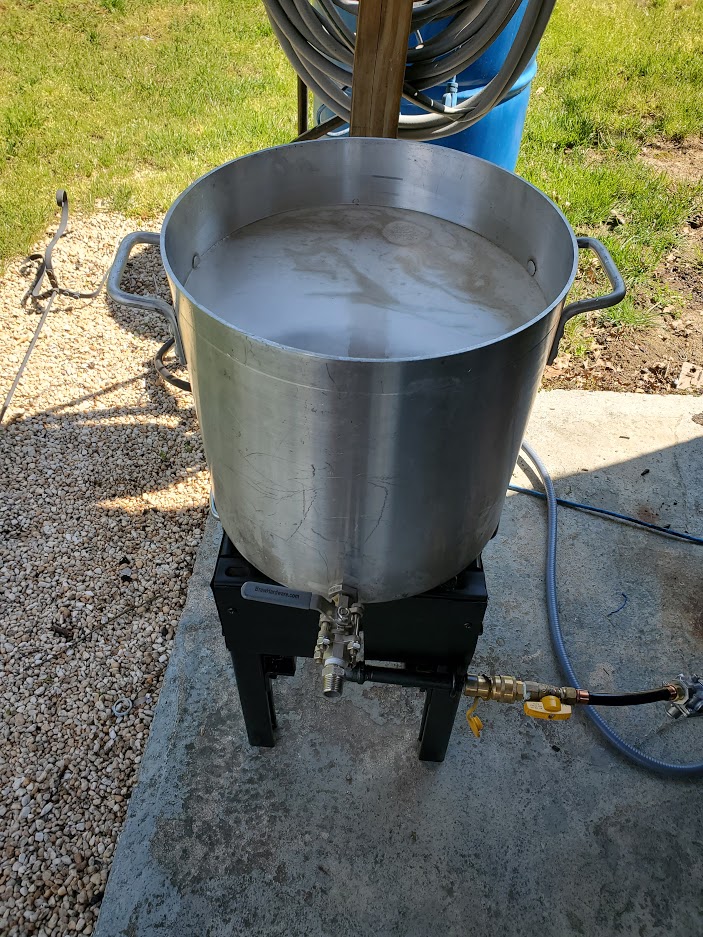

Did a brew the other day, was able to bring 7.25 gallons from mash to boil in about 22 minutes. Once at boil, I cranked the ball valve to barely open and it kept a nice rolling boil. I did soot up the pot, which I am guessing is due to my (overkill) wind shields, I'm going to need to let some more oxygen in there. Considering putting some sort of adjustable damper, some strategically placed holes, spacing the pot, spacing the wind shields, or, just taking the screens off and not brewing on windy days.. we'll see. My pot can block the entire burner exit.
I still need to secure the pipe extension to the stand.

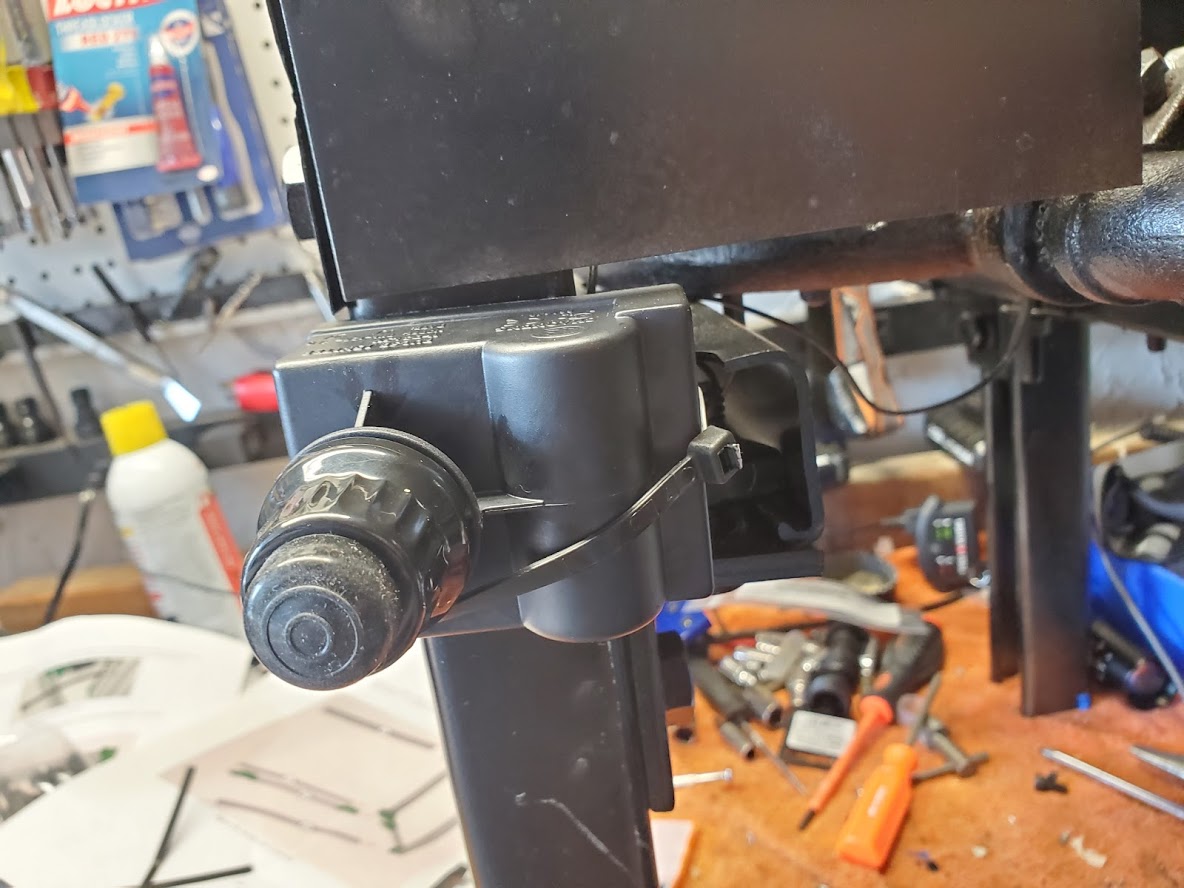

I did put quick disconnect on the stand side as well so that I don't have to carry it + the hose together, to store easier.
Inspiration (and some parts) from here: https://www.homebrewtalk.com/forum/threads/my-weldless-build-using-strut.363128/
I had a kitchenaid natural gas conversion kit (something like this: https://www.homedepot.com/p/KitchenAid-Natural-Gas-Conversion-Kit-710-0003/204268072 ) laying around, that's where the hose and regulator came from.
Fittings were me piecing things together in the gas hot water heater/fittings area of home depot... I'll (maybe) paint it when it's warmer?
Some of the pics were before I tightened everything up.
video at full blast: https://i.imgur.com/c5t7R4H.mp4
