Jockey Box Cold Plate Leak

[thadeus_d3]

I picked up this bad boy for $10. It works, but has a tiny leak on the liquid out post of the cold plate. I observed 3 drops of water when I ran 1 gallon through the hoses. I've tightened the liquid post and hose clamps. Do you guys think I could solder the post to fix the leak?

https://cleveland.craigslist.org/for/5516935869.html



[LandoLincoln]

Uh...well...yeah, probably. Give us some pics of the thing with the liquid out post removed.

I'd really try to fix it with new o-rings or maybe teflon tape before resorting to solder if that's possible.



[thadeus_d3]

Good call on the teflon tape and o-rings. I'll give that a shot tonight and take some pics.



[microbusbrewery]

+1 what LandoLincoln said. There should be a an o-ring like this between the cold plate and the post. It might be missing or just worn out.

http://www.micromatic.com/cold-plate-fittings/compression-gasket-red-wd-003



[thadeus_d3]

+1 what LandoLincoln said. There should be a an o-ring like this between the cold plate and the post. It might be missing or just worn out.

http://www.micromatic.com/cold-plate-fittings/compression-gasket-red-wd-003

Thanks for the link. I didn't have a chance to look at it yesterday, but should have some time tomorrow night. It's ridiculous that they charge $6 to ship a 34cent gasket, but maybe I can find it locally.



[microbusbrewery]

Yeah, you might be able to find them elsewhere with more reasonable shipping. If you have a local homebrew shop, they might carry them, or might be able to get them from one of their suppliers.



[microbusbrewery]

Here's a better description on the CHI site. I believe it's a standard flare washer, so you might be able to find it cheaper elsewhere, http://www.chicompany.net/index.php?main_page=product_info&cPath=375_19_220_285&products_id=1412



[thadeus_d3]

Here's a better description on the CHI site. I believe it's a standard flare washer, so you might be able to find it cheaper elsewhere, http://www.chicompany.net/index.php?main_page=product_info&cPath=375_19_220_285&products_id=1412

Excellent. Seems like something Lowes or Home Depot would carry.



[thadeus_d3]

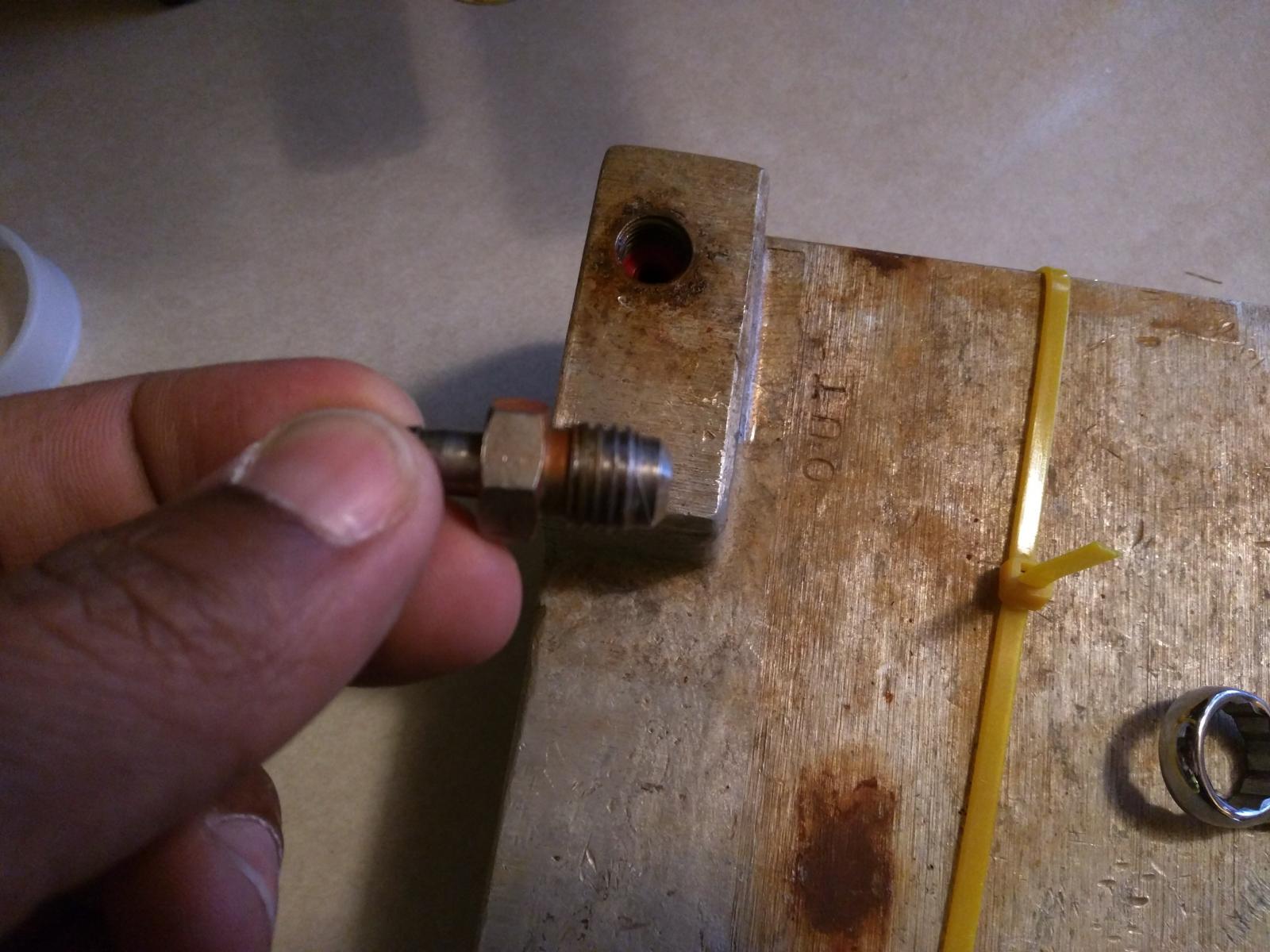

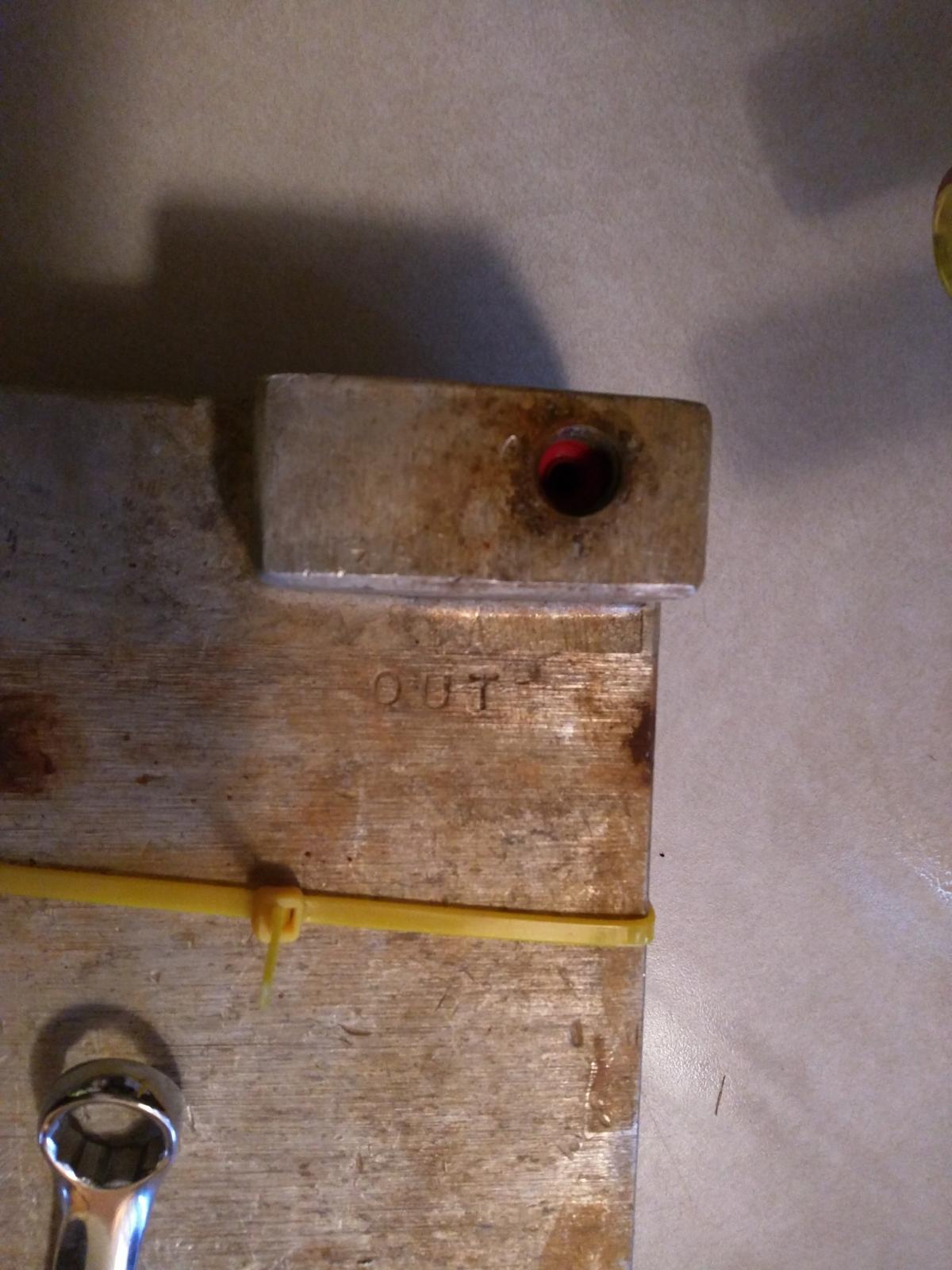

I just checked and there is a red gasket between the cold plate and the out-post. I didn't take it out to see if it was cracked, but decided to apply teflon tape to the end of the post. Once I put the post back in, it started leaking way worse than before.

At this point, I don't know if I should solder the existing post or order this cold plate fitting kit and replace both the post and the washer.

http://www.ebay.com/itm/Two-Cold-Pl...219238?hash=item3a95e9a026:g:2OsAAOSwVFlT9WVS



[thadeus_d3]

Update: I reseated the washer and rethreaded the post and it's leak free! I let it sit for a few hours and there are no drips. Thanks for all the help folks. Can't wait to use it this summer! $10 well spent. Next project - My wife wants to paint the cooler.
