HERMS coil o- rings (Spike System)

[Rob2010SS]

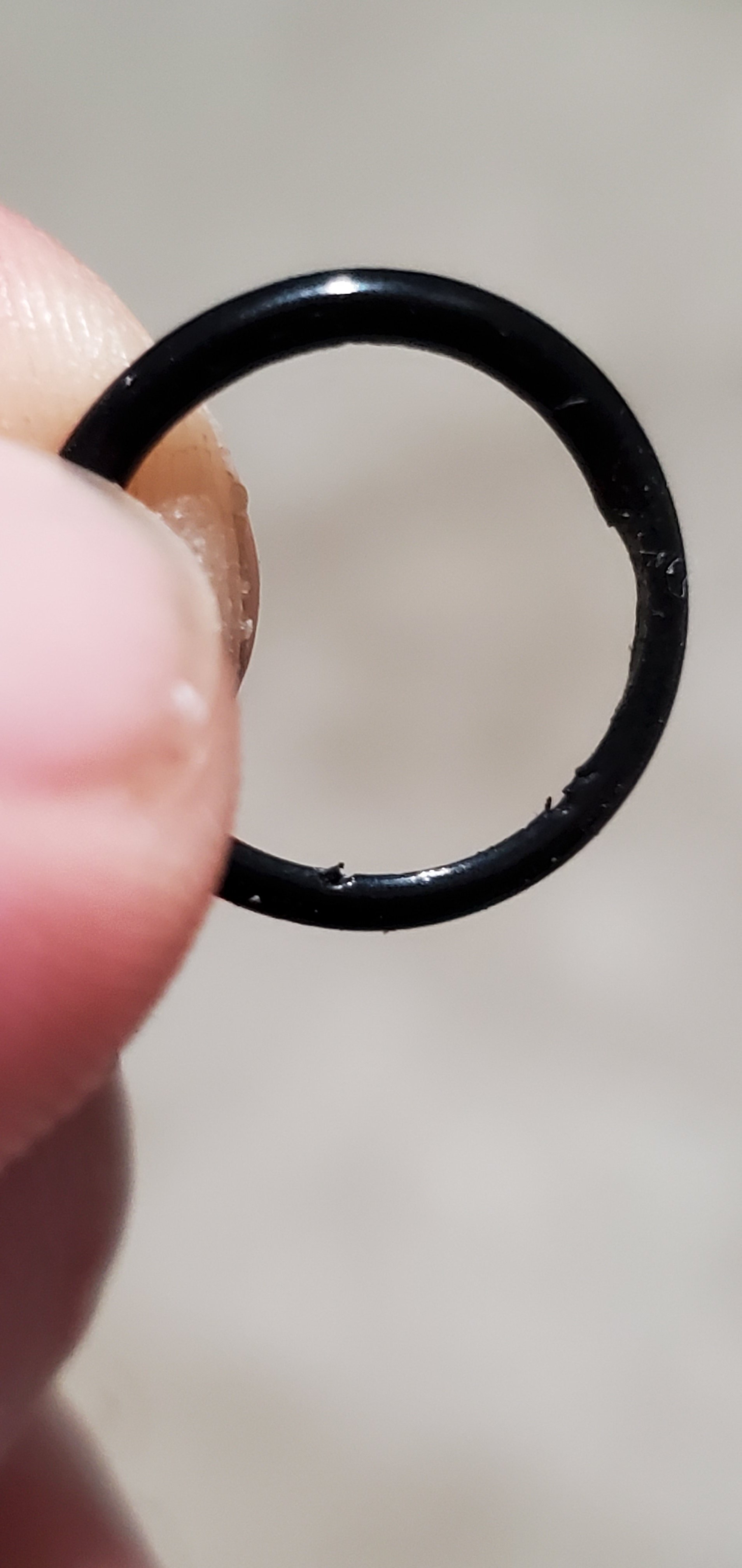

I pulled apart my HLT on the spike system for a complete clean. When I reassembled and I pushed the ends of the HERMS coil into the fittings on the HLT, I destroyed one of the o rings inside the fittings. Pics below.

Spike doesn't list this o ring separately on their site. I am going to request this same info from them but figured I'd start here.

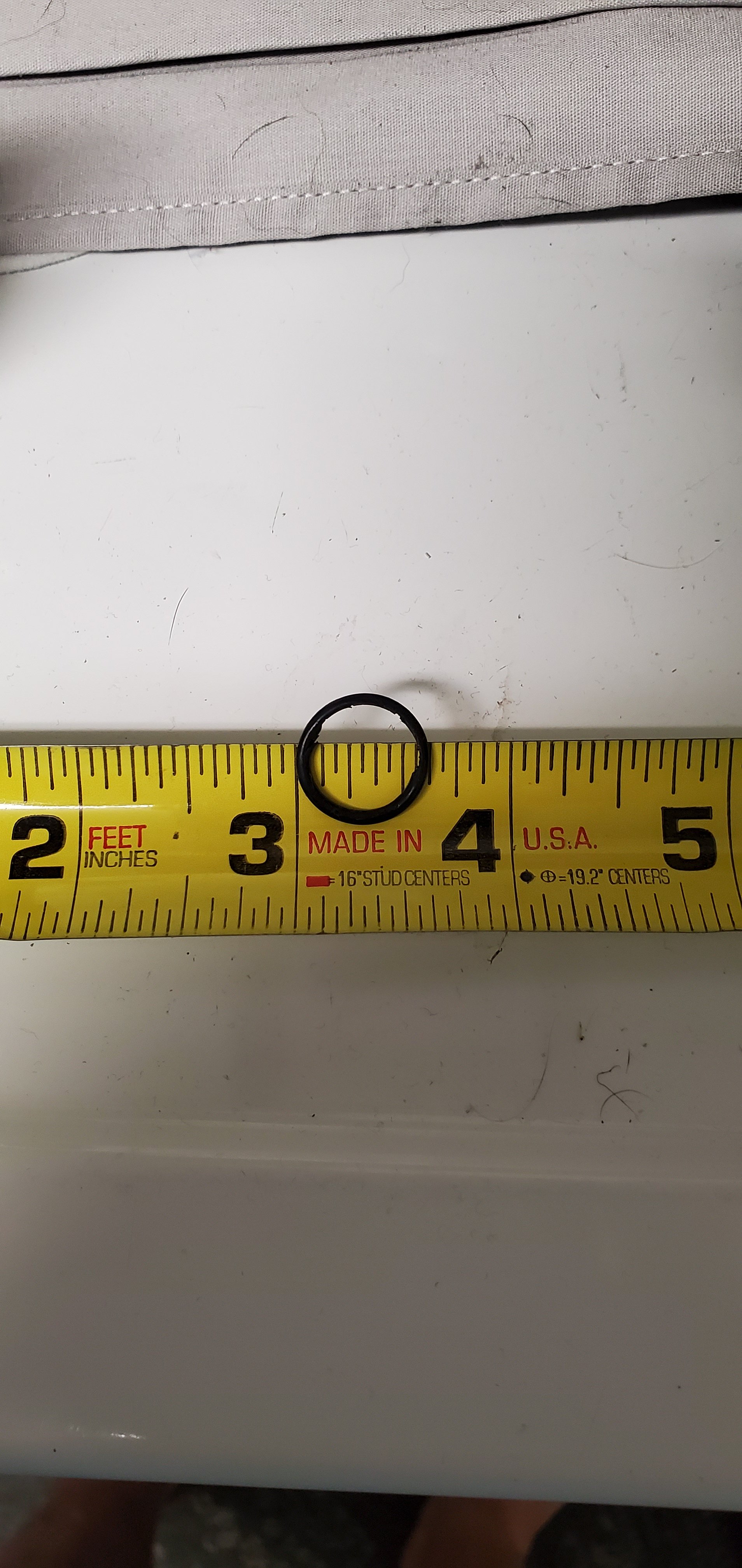

1. Anyone know what size o ring this is? I know what the measurement pic shows but not sure if something like this would be metric or standard.
2. Is this something that I could get a replacement at a hardware store instead of ordering through spike? I have a brew scheduled this weekend and I'd like to be able to complete that.
3. Can you use keg o ring lubricant on these to keep from destroying them?

Thanks for the help



[Rob2010SS]



[Rob2010SS]

Appears this would be a size 14 o ring...? Right?



[Deric]

Not sure on size but Spike does have them on their site...

https://spikebrewing.com/collection...rms-coil-replacement-o-rings?lshst=collection



[Rob2010SS]

Not sure on size but Spike does have them on their site...

https://spikebrewing.com/collection...rms-coil-replacement-o-rings?lshst=collection

Damn, I looked for them! I didn't see them on the site. I searched for them and couldn't find them. Thanks for sharing.

Spike did end up getting back to me with a size. 5/8" OD x 1/2"ID x 1/16" thick. They sent me some of them as well. I'm pushing the brew day back a week for other reasons so I'll have these replacement rings in time.
