Help adapting a wiring diagram

[noodle23]

Hi every one,
I'm getting ready to motorize my mill. I have all the parts but different switches than what is on the diagram. I had them around the house so i would like to use them. I just some help adapting them. I might be over looking something simple but none the less. The on/off is single pole single throw and the forward/reverse is Double pole Double throw.
Thanks all

Here are the switches:

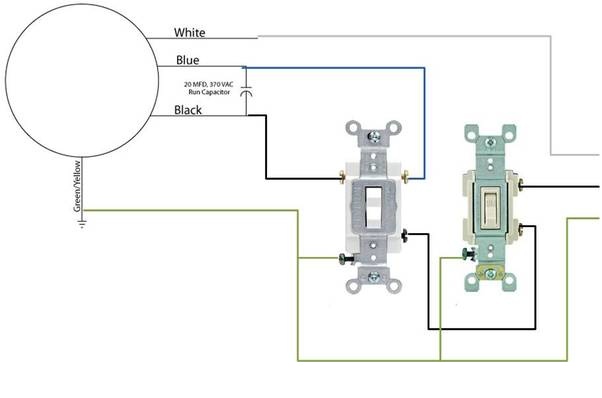

Here is the diagram:



[Chrisl77]

As far as i have read with that on-off-on switch you dont need the second switch. Just wire each of the on positions to a side of the capacitor then piggyback each wire to the motor.



[P-J]

I modified your diagram a little as the switch you are showing in your diagram is a 3 way switch not a DPDT.

This should work for you.

P-J

Chrisl77,
The switch he is referencing is not a center off unit.
