I have been doing some searching but can't seem to find what I am looking for.
I have a pre-existing Direct fired RIMS set up that uses a Brewbit, time to go to something else. The reason I went with that set up was plug-n-play ability. I need help getting this worked out.
What I have and need to control Via PID:
1 - 1/2 120v Ball valve for MT (use standing pilot light light)
On/off
1 - Pump
The rest is manual (HLT, Boil Kettles)

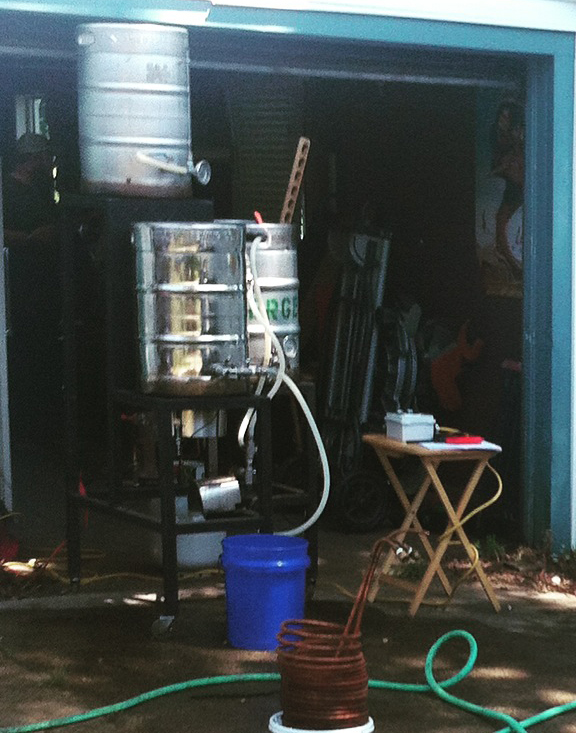

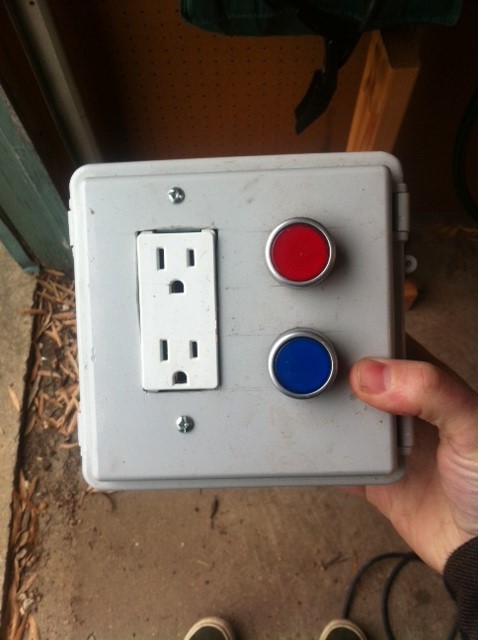

Not much it needs to do, I can do all the wiring etc, just confused on PID. Wanting it all in one box Controllers and diagrams to go by. I have built an easy controller for the pump already, seen below and a shot of my system. Thanks for the help.
