Cheapest i found STC-1000

[Beer666]

I picked up another STC-1000 for £5.36 from AliExpress. Free postage to the UK. With exchange rates as they are is about 10p cheaper today. Its got 0.1c accuracy instead of the normal 0.3c and the sensor is prewired.
https://www.aliexpress.com/item/4000214253326.html?spm=a2g0s.9042311.0.0.4f0c4c4dcfvHW0



[IslandLizard]

Good deal indeed!

For U.S. customers: $6.69 + $0.44 shipping. There are a couple discount coupons as well.



[Bigdaddyale]

Will it run off of 120volts?



[IslandLizard]

Will it run off of 120volts?

Looks like it:
From specs: STC-1000--110-220V
You can see on the top label: The checkbox for AC110V/AC220V is checked.



[Beer666]

Good deal indeed!

For U.S. customers: $6.69 + $0.44 shipping. There are a couple discount coupons as well.

Yes i got some free coupons as well, very handy. Postage took about 14 days. I think they do 12v and 24v as well.



[Bigdaddyale]

Yes i got some free coupons as well, very handy. Postage took about 14 days. I think they do 12v and 24v as well.

If you already received yours would you care to take one apart -(easy to do with out breaking the unit) and report back on the version number printed on the pcb?



[Beer666]

If you already received yours would you care to take one apart -(easy to do with out breaking the unit) and report back on the version number printed on the pcb?

No problem it says its a V2 if that is of help. I thought it must be as you can set F2 down to 0.1c.



[Bigdaddyale]

No problem it says its a V2 if that is of help. I thought it must be as you can set F2 down to 0.1c.

Can you compare your board to the ones in this thread? I'm trying to determine if these new units can be flashed to run the STC1000+ software https://github.com/Emile666/stc1000_stm8



[Bigdaddyale]

https://www.homebrewtalk.com/forum/threads/stc-1000.464348/page-62



[Beer666]

Can you compare your board to the ones in this thread? I'm trying to determine if these new units can be flashed to run the STC1000+ software https://github.com/Emile666/stc1000_stm8

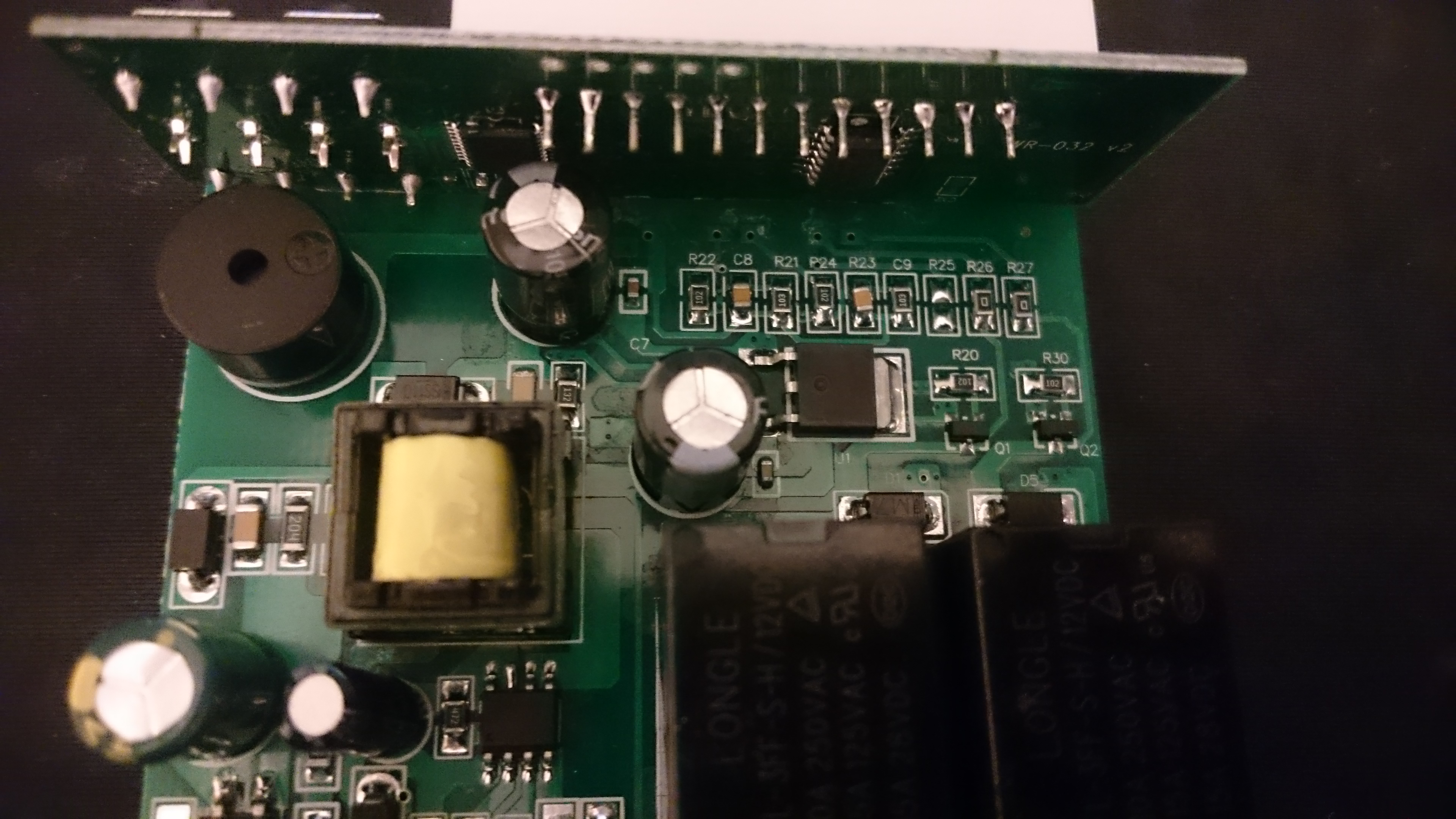

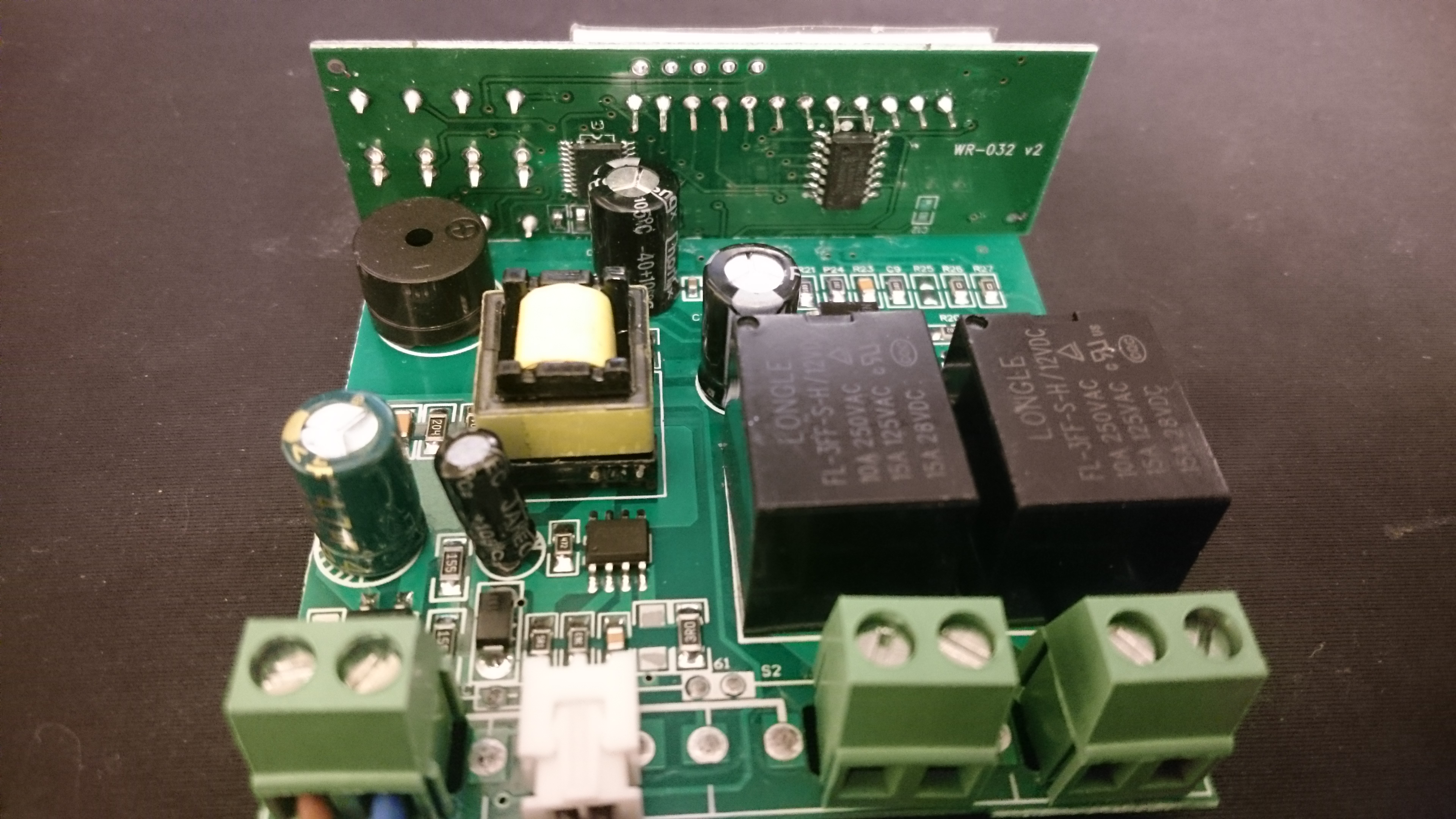

Here you go, its different.



[Bigdaddyale]

Thanks, Can you take a picture of the other side, The IC, and both sides of the display pcb? I'm trying to Identify the IC chip and see if there is a row of contact points that can be used to flash the unit.



[Beer666]

Here you go. I hope it is of use.



[smata67]

I picked one of these up on a lark. Took about 17 days to receive in the US. Now, for $7, this is incredible value, but keep in mind the parts used on these have to be the absolute cheapest, lowest quality parts available on the planet to meet that price point. And that's including shipping half way round the world! At the very least, you may want to consider changing the green high voltage capacitor (4.7uF/400V) for something respectable. Digikey has the the Nichicon ULD series in this size for $1. I'd also change the other caps, though not as critical, any 105 oC "long life" capacitor of equal value will do. These all should also cost under $1 total. So for another $2, you have drastically increased the unit's reliability. I'd next consider replacing those relays, but let's not get too complicated here, it's only beer, not a life support system. Oh, and Digikey offers free shipping if you mail in a check to pay for your order (though you must also add in tax), you can just fill out the attached form, mail it in, and the items ship for free.

4.7uf/400V
https://www.digikey.com/product-detail/en/nichicon/ULD2G4R7MPD1TD/493-13883-1-ND/4695280
