beermaestro
Well-Known Member
- Joined
- Mar 23, 2016
- Messages
- 48
- Reaction score
- 6

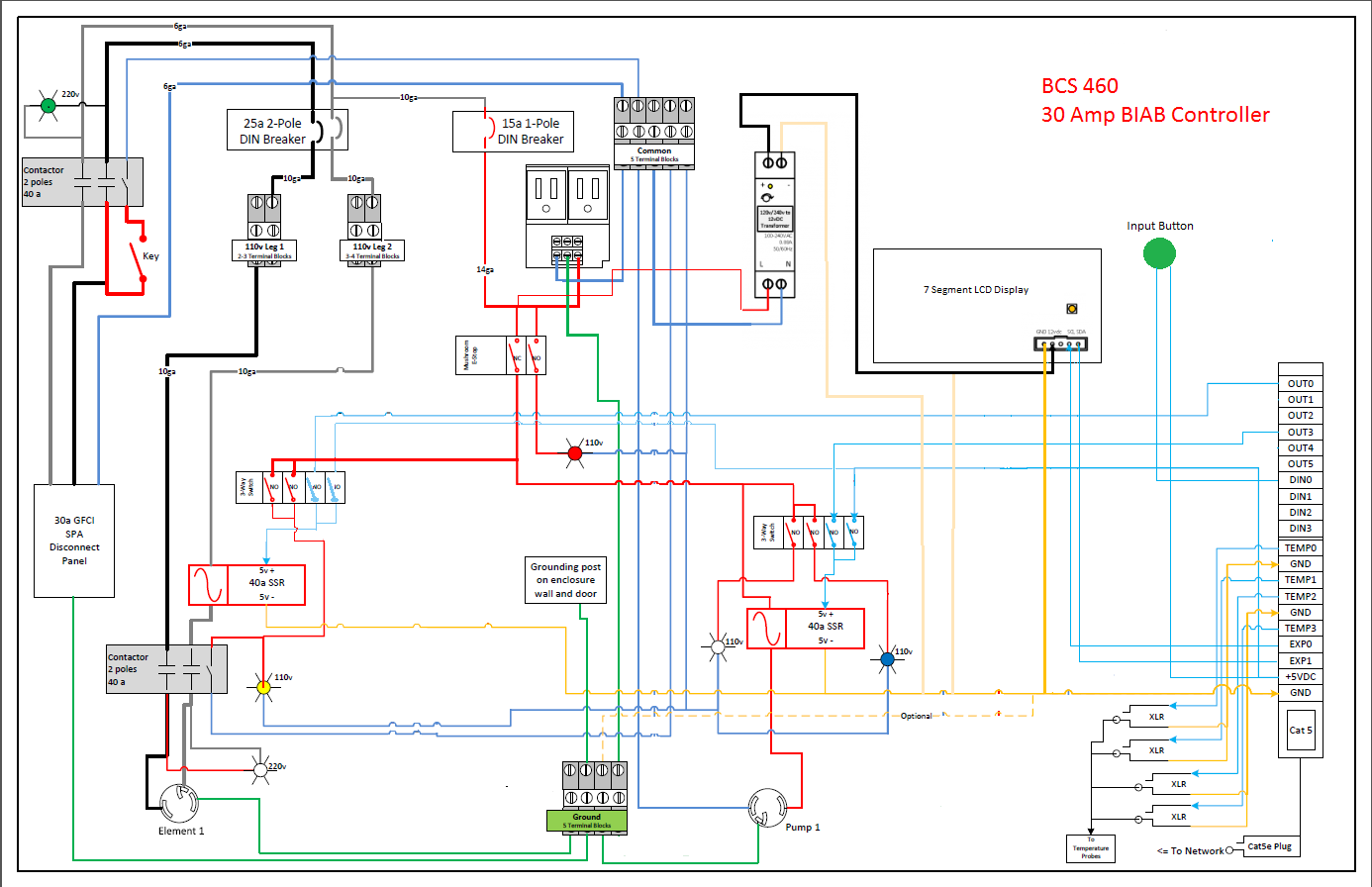

I have decided to try and put together my own control panel. I am looking at doing a BIAB type panel with one pump and one heating element. I have basically taken the wiring diagrams from EBrewSupply and combined them/deleted items to get the set up I would like to build. I will only have the one heating element, one pump, a LCD Display for temperature readings, two 3 way switches (off/on/auto for both the element and pump), E-Stop button, Keyed switch, input button (to manually advance to next step), and indicator lights. I have attached the wiring schematic for others review to make sure it looks correct. Any suggestions would be greatly appreciated. Thanks.
