This is a custom propane setup that I designed myself and had other people help build. It's been used for about 50 brews and creates excellent beer.
It includes:
* Stainless steel rack with casters, pump mounts, three burner stations, three burners, electric control of burners and pumps, BCS-460 control board in a weatherproof case.
* BCS control with temp reading for boil kettle, mash tun, mash tun return and hlt. Control over each pump and MT and HLT burners.
* Two march pumps with output valves
* A boil kettle that's a modified 15gal Blichmann Boilermaker with added return port (with loc-line) and temp sensor port
* Hop mesh filter basket for boil kettle
* A mash tun that's also a modified 15gal Blichmann Boilermaker with added return port (with loc-line) and temp sensor port, includes false bottom

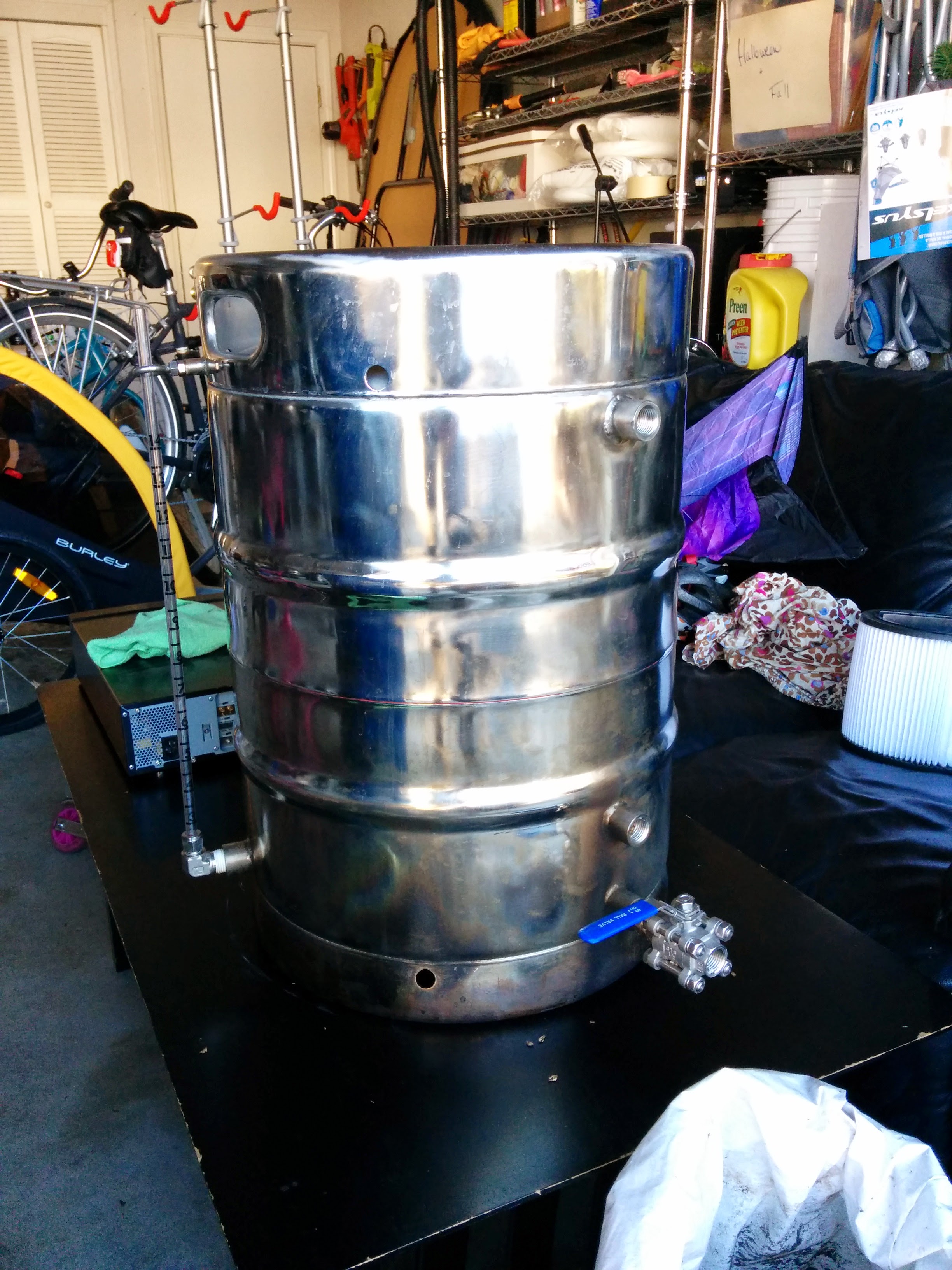

* A hot liquor tank that's a converted 15.5 gal keg with a large hole in the top, an added volume gauge and custom welds for liquid drain, liquid return (with loc-line) and temp sensor port
* a 30 plate chiller from duda with valves, temp probe and inline O2 intake/stone
* A stainless 50' coil for pre chilling

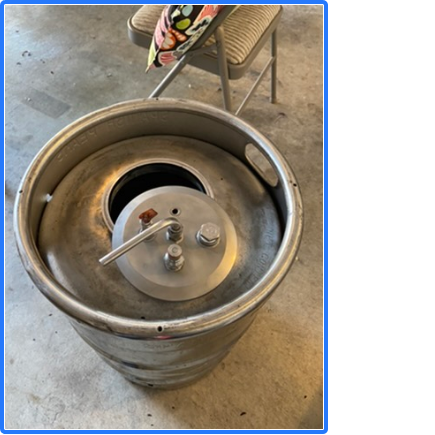

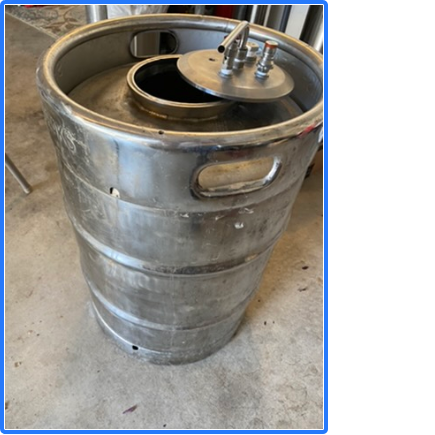

* Three fermentation vessels that are modified 15.5 kegs with a 6" ferrule on the top for each cleaning access and a 6" cap to match. In the cap are welded fittings with : 1/2" blowoff, pressure release valve, 1/8" racking cane, thermocouple sleeve and Co2 post.
* All connections have camlock fittings
* 11 hoses with camlock fittings on both sides
* Hose with sight gauge (used for return line on MT) and camlock fittings on both sides
* Triclamp inline stainless 0.5 micron filter
* A pre-filter for hose water
* 3 Corny Kegs - Ball lock
Asking for $2,000. All reasonable offers will be considered. Willing to split but only if the order includes the brewing rack.
Available in bay area, northern California and you'll need a truck.
Additional photos available on request.
