Default LeBoeuf's fermentation cabinet

After 4 years or so of brewing wild, temperature uncontrolled beer I've decided that I need a fermentation dedicated, temperature controlled closet.

I have this huge box that was left by the PO of my house. It looks like it was used as a locker or something. Anyway I'll be re-purposing it...

Here I have added 15" to the top and added a middle shelf/bracing.



Top shot



More to come after my Friday meeting bonanza clears up...

__________________
leboeuf is offline

Reply With Quote Quick reply to this message
Old 09-11-2009, 10:21 PM   #2
leboeuf
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Albuquerque, NM
Posts: 322
Liked 1 Times on 1 Posts

Default

Ok, onward.
This is my quick and dirty method to bypass the thermostat. I used a piece of copper sheet to make the connection between the two spade connectors.

I also had to cut the stock plug assembly off. It kept throwing its internal breaker about 20% of the time my temp controller switched the unit on. The plug circuit was really only to detect a shorted cord and provide rudimentary surge suppression.

__________________
leboeuf is offline

Reply With Quote Quick reply to this message
Old 09-11-2009, 10:57 PM   #3
leboeuf
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Albuquerque, NM
Posts: 322
Liked 1 Times on 1 Posts

Default

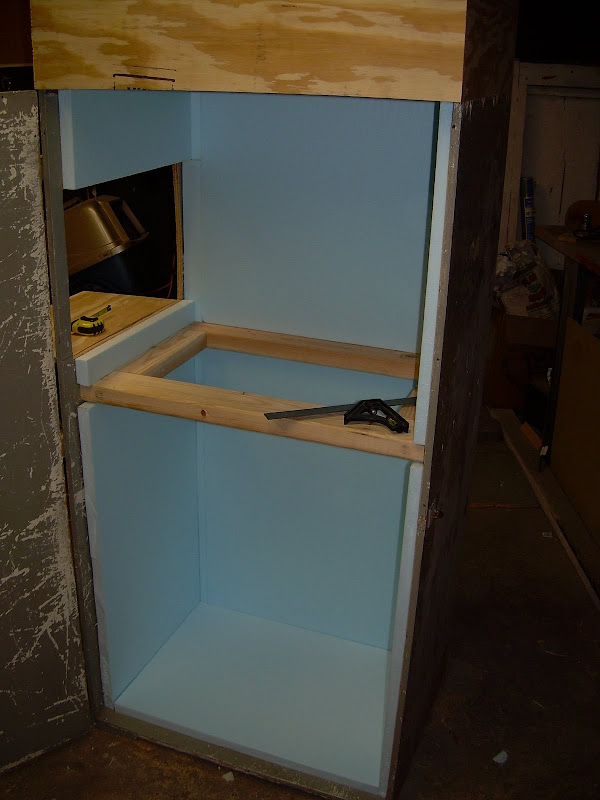

I debated at length as to how much insulation I should use. My kitchen fridge/freezer is insulated with a little over an inch of injected polyisocyanurate which provides something around R8.

An inch of extruded polystyrene yields around R5. Add that to half inch plywood with both sides coated in epoxy paint and you get something in the neighborhood of R6.
I pretty much only brew ales so this cabinet will be around 65F. It gets up to 100F and down to 25F here so I'm looking at a max of 40F differential. So I made a hipshot decision that the 1" of blue foam would be fine.

If I ever feel like lagering, I'll probably just put another layer of insulation on the top half, separate the two halves, temp control with a fan yada yada...

__________________
leboeuf is offline

Reply With Quote Quick reply to this message
Old 09-11-2009, 11:19 PM   #4
leboeuf
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Albuquerque, NM
Posts: 322
Liked 1 Times on 1 Posts

Default

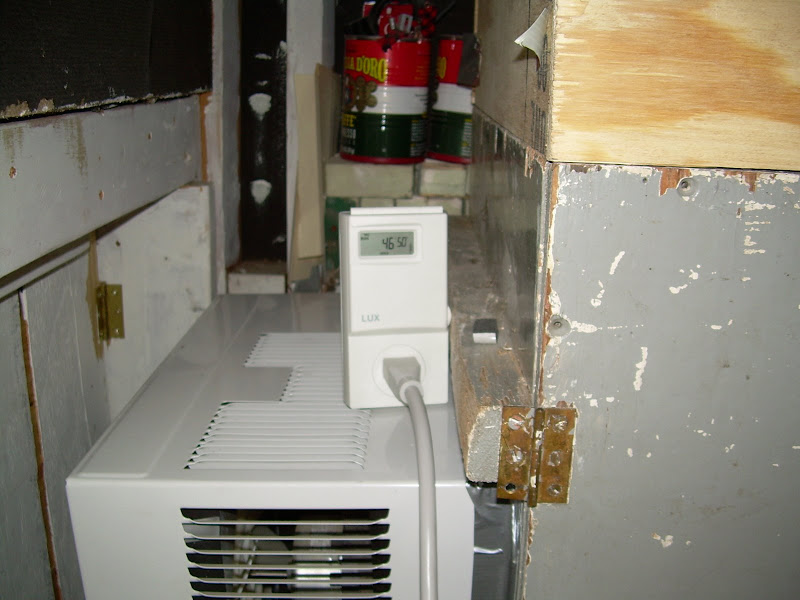

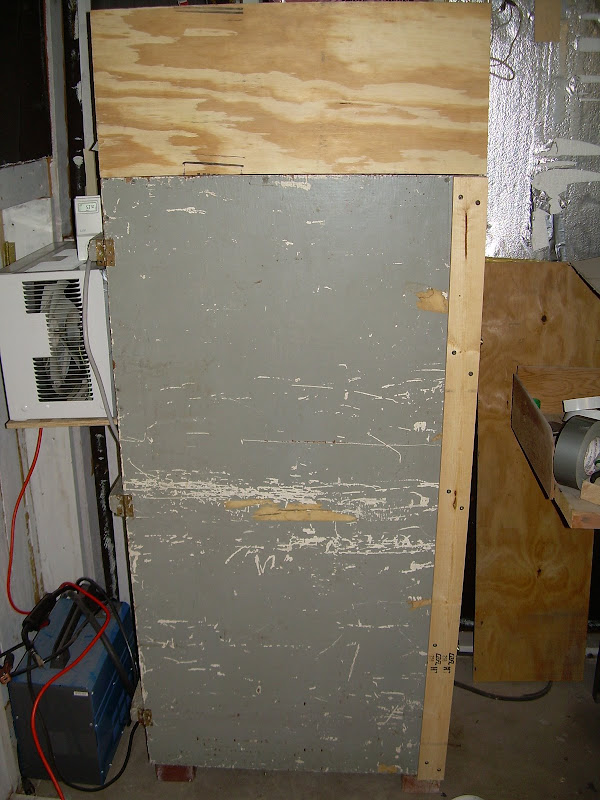

I used a lux temp controller that I picked up locally for $30 and a 5000btu ac unit I picked up on c-list for $50. The temp controller does hot and cold so in the winter I'll plug in a space heater and control that way.

All in all this ran me about $120 all together. I have 10 gallons in it fermenting right now and it is holding steady at 65F. The ac runs about 3 minutes once an hour with the temp probe wedged onto my fermenter.

Thanks for being here forum! I used lots of tidbits that I picked up from you guys.

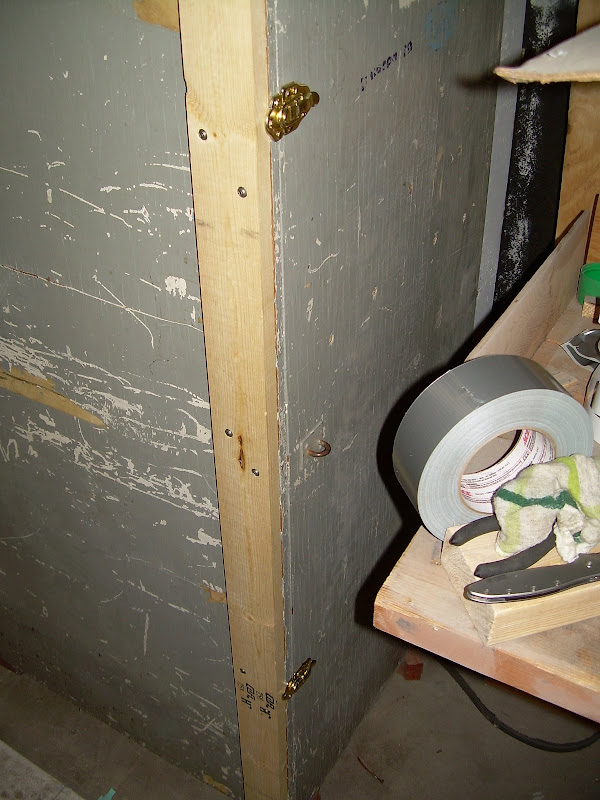

Edit: I've added a gasket along the top of the door since these pics were taken

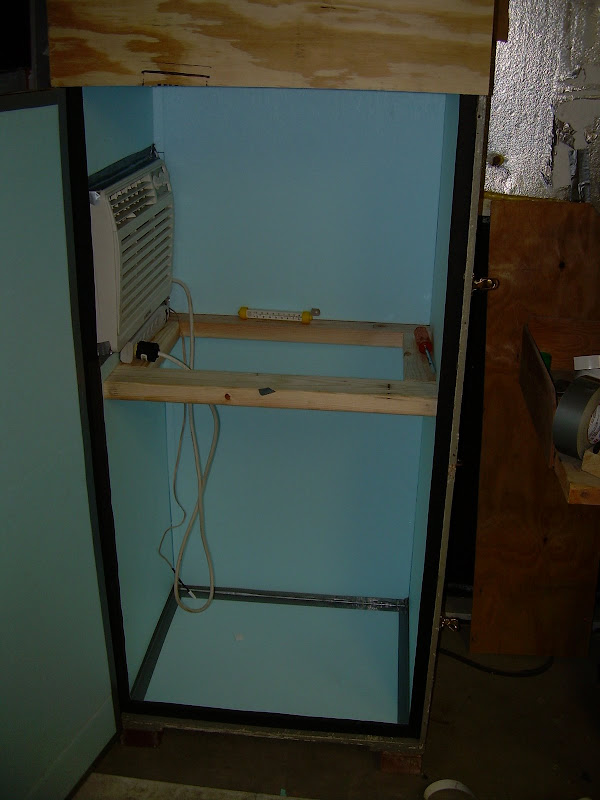

It has the room for 4 cornys, 1/2 barrel keg, and a tall 1/4 keg.

__________________

Last edited by leboeuf; 09-11-2009 at 11:22 PM.
leboeuf is offline

Reply With Quote Quick reply to this message
Old 09-11-2009, 11:47 PM   #5
hitbyatrain
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: Round Rock, TX
Posts: 24
Default

This looks great! How often does the A/C cycle on?

__________________
hitbyatrain is offline

Reply With Quote Quick reply to this message
Old 09-12-2009, 01:41 AM   #6
leboeuf
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Albuquerque, NM
Posts: 322
Liked 1 Times on 1 Posts

Default

Thanks!
If the garage is at 90F it will cycle around twice an hour for 3 or so minutes. So in cooling mode it seems fairly efficient. We'll see in a couple of months how it does with heating. I went a little overboard with the door gasket. It has 3/4" of gasket thickness to seal to so the air leakage is kept pretty low.

__________________
leboeuf is offline

Reply With Quote Quick reply to this message
Old 09-12-2009, 01:54 AM   #7
perkins98
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2008
Location: PLymouth, MI
Posts: 85
Liked 3 Times on 1 Posts
Likes Given: 2

Default

so how is this going to heat in the winter?

__________________
perkins98 is offline

Reply With Quote Quick reply to this message
Old 09-12-2009, 06:06 PM   #8
leboeuf
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2009
Location: Albuquerque, NM
Posts: 322
Liked 1 Times on 1 Posts

Default

The temp controller has a "heat" mode also. The power strip inside the cabinet is powered by the controller, so I'll just set it to heat, plug in a space heater, and shut off the ac. In the fall our temps here range from 30-75 over the course of a day so I'll have to play that by ear. I'll most likely switch the setup from cool to heat during the night and then back to cool for the day.

__________________
leboeuf is offline

Reply With Quote Quick reply to this message
Old 04-24-2011, 06:25 PM   #9
MooMooBrew
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2011
Location: Willow Glen, CA
Posts: 174
Likes Given: 1

Default

are you able to hold lagering temperatures with this?

__________________
MooMooBrew is offline

Reply With Quote Quick reply to this message
Old 04-24-2011, 10:02 PM   #10
Hang Glider
Beer Drinker
Feedback Score: 1 reviews

Hang Glider's Avatar
Recipes

Join Date: Mar 2007
Location: North Augusta, SC
Posts: 3,151
Liked 147 Times on 118 Posts
Likes Given: 100

Default

MooMooBrew - good luck getting a reply - this thread is 19 months old...
